TECHNICA ZSM 810
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

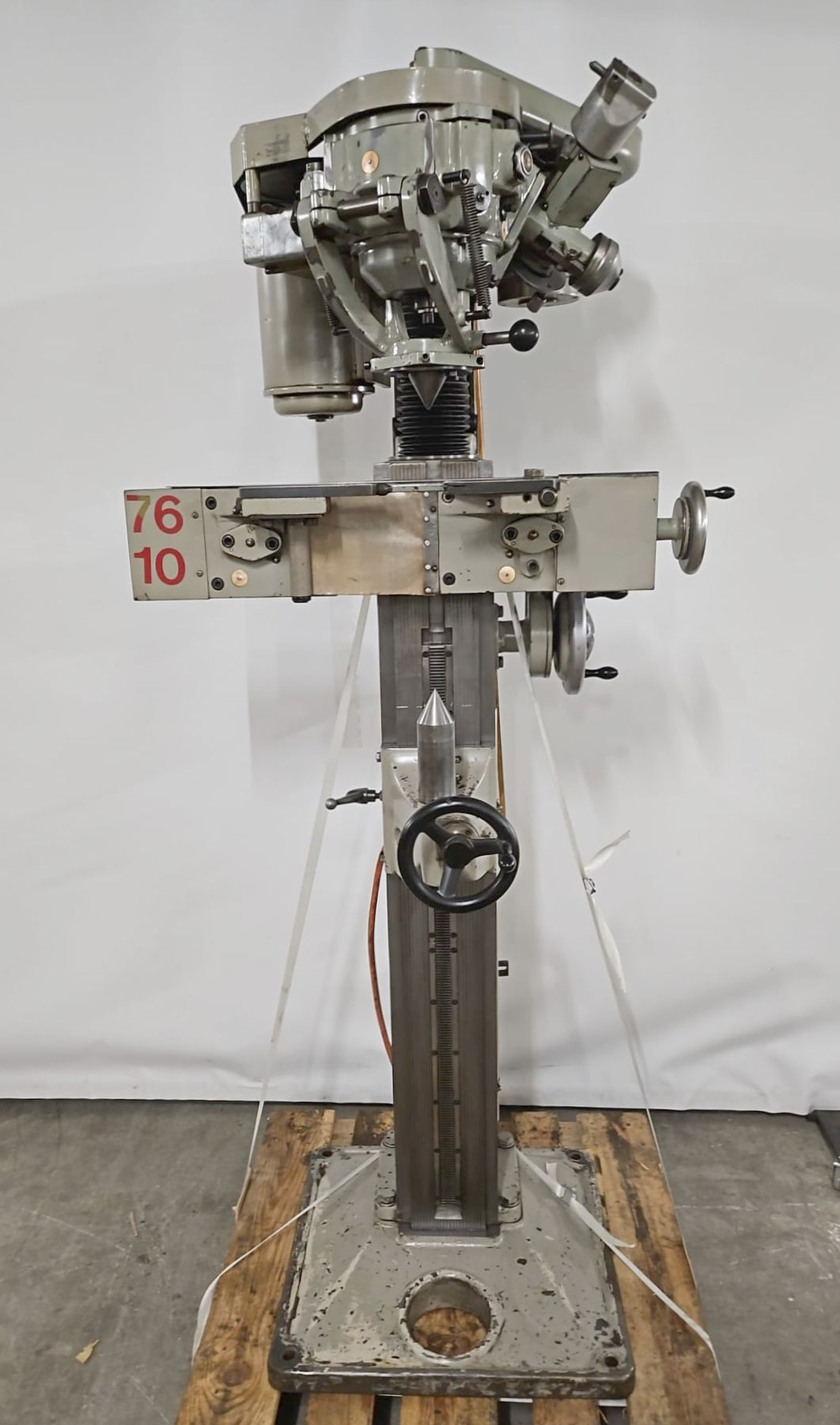

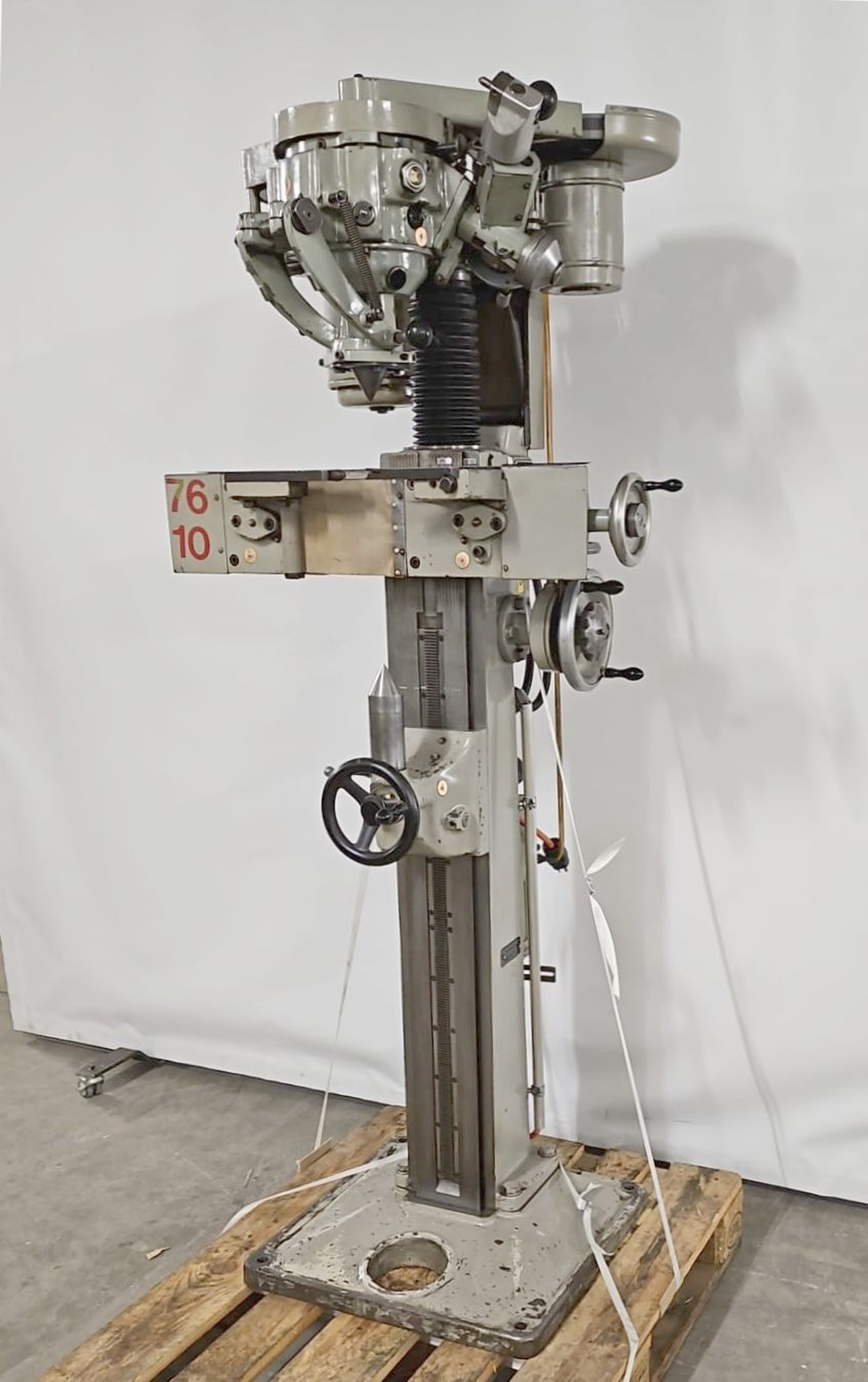

TECHNICA ZSM 810 is a centre grinder of high precision, delivering excellent accuracy and reliability. Capacities: workpiece Ø 8–125 mm, length 50–1100 mm, table load 120 kg, centre hole angle 60°, taper Ø 2–50 mm. Specs: grinding spindle Ø32 mm; speeds: wheel Ø15 45,000 rpm, Ø27 22,500 rpm, Ø48 13,000 rpm; spindle power 0.25 kW; max grinding head traverse 160 mm; voltage 380 V; dimensions 1120×1070×1950 mm. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
| Min. work-piece diameter | 8 mm |
| Max. work piece diameter | 125 mm |
| Workpiece length min. | 50 mm |
| Workpiece length max. | 1100 mm |
| Table load max. | 120 kg |

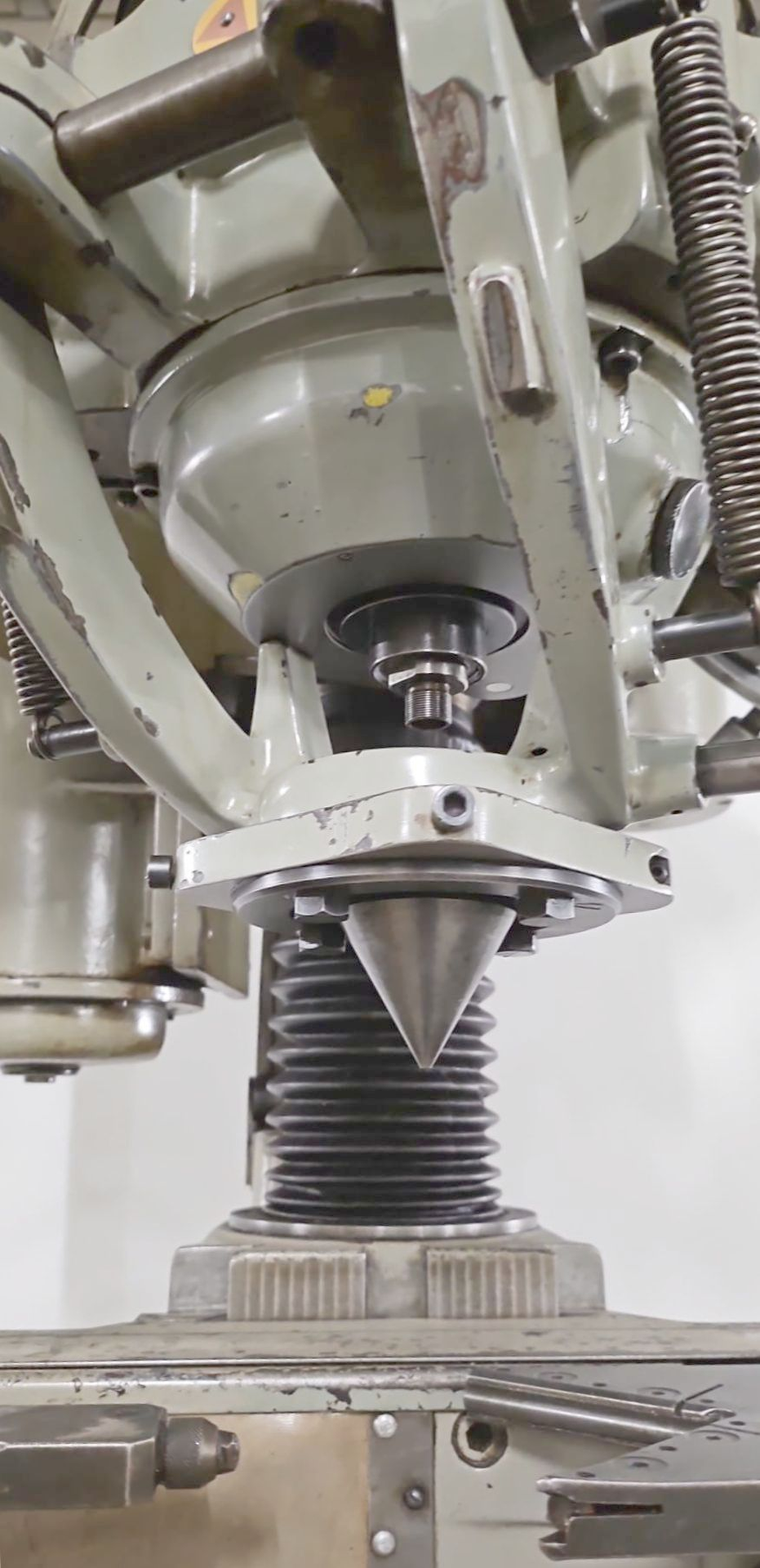

| Angle of the centre hole | 60 ° |
| Taper in centre hole min. | 2 mm |
| max | 50 mm |
| Grinding spindle diameter | 32 mm |
| Grinding spindle speeds with: | |

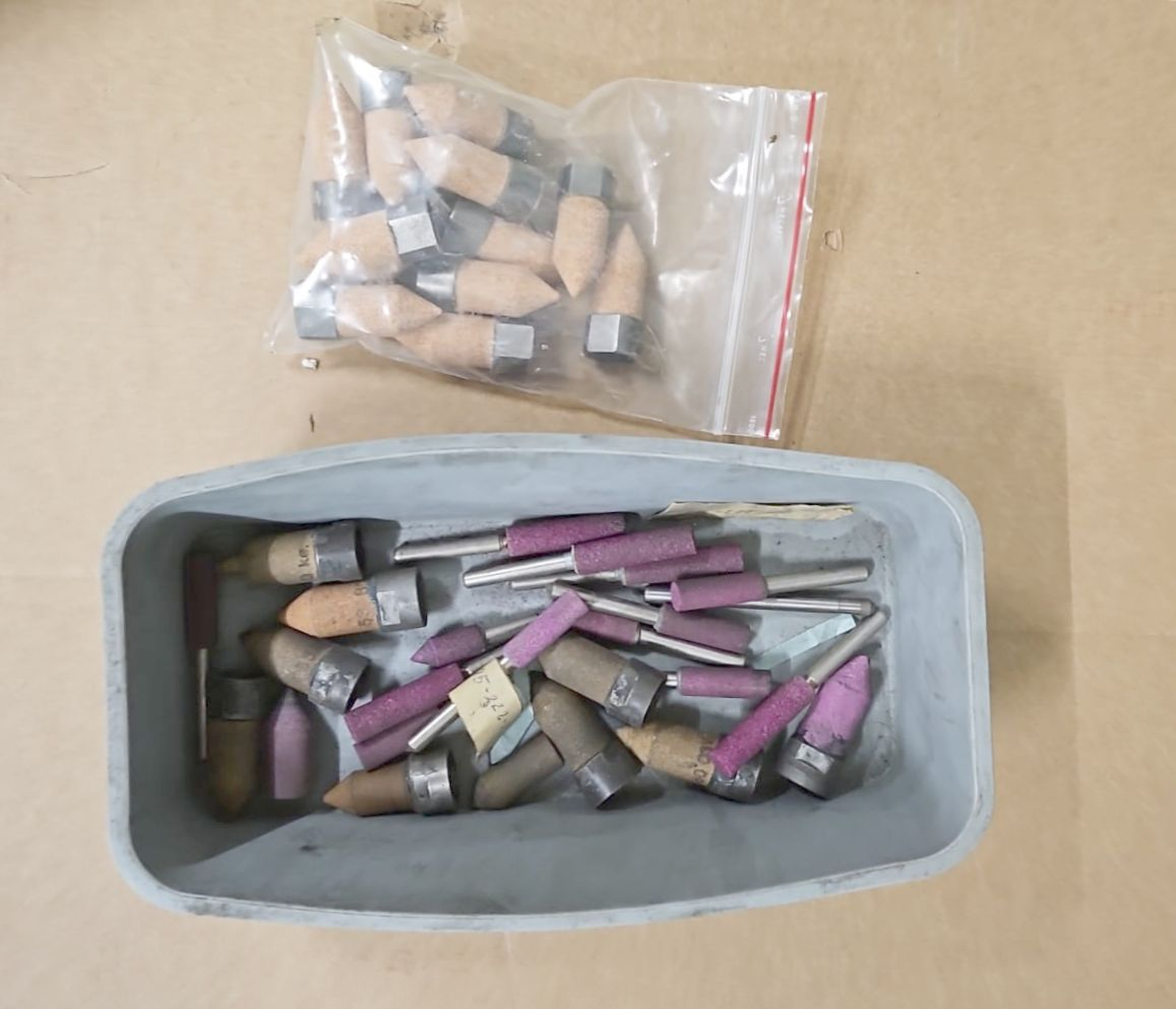

| abrasive wheel 15 mm | 45000 t/min |
| abrasive wheel 27 mm | 22500 t/min |
| abrasive wheel 48 mm | 13000 t/min |
| Motor capacity: | |
| grinding spindle | 0.25 kW |
| planetary stroke | kW |
| Max. grinding head traverse | 160 mm |
| Voltage | 380 Volt |
| Overall dimensions machine: | |
| Length | 1120 mm |
| Width | 1070 mm |
| Height | 1950 mm |
