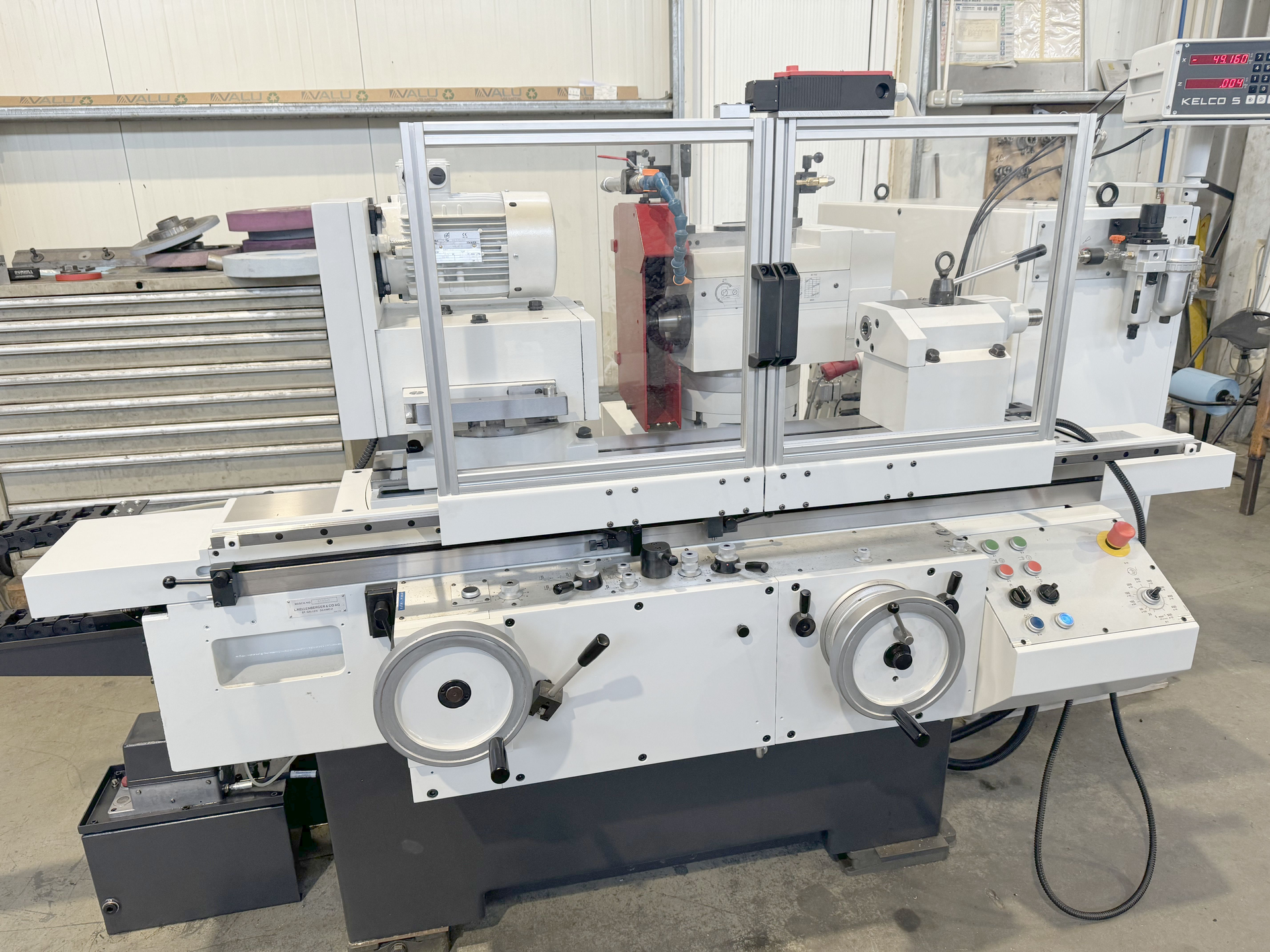

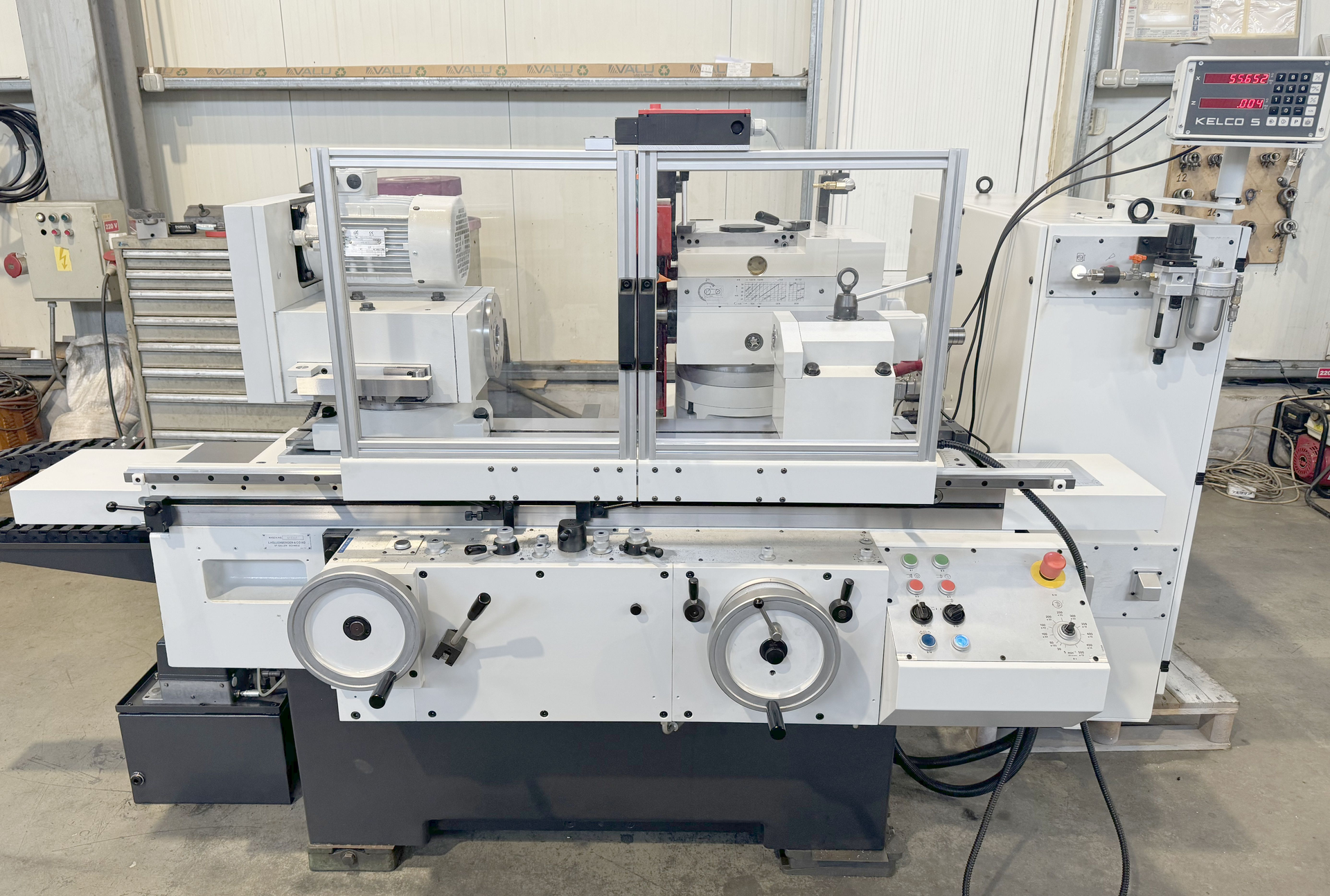

KELLENBERGER 600 U 175 is a cylindrical grinder of high precision, offering accuracy and reliability. Capacities: centre height 175 mm, between centres 600 mm; wheel Ø350×50 mm, bore 127 mm; wheelhead 270°. Specs: wheel speeds 1500–3600 t/min (4 steps); work spindle 20–400 t/min (stepless); table tilt 10°, up to 6 m/min; supply 3×380 V 50 Hz; wheel motor 4 CV; weight ≈2200 kg; dims 3000×1750×1600 mm. Accessories: digital readout (2 axes), tailstock fine adjust, internal grinding attachment, wheel guard, safety device, sliding door. Suited to tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Centre height | 175 mm |
| Distance between centres | 600 mm |
| Grinding wheel: | |
| Diameter | 350 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | |
| number (steps) | 4 |
| from | 1500 t/min |
| up to | 3600 t/min |
| Angular displacement | 270 ° |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 400 t/min |
| rotatable | 360 ° |
| Spindle taper | 5 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 10 ° |
| Table speed: | |
| stepless | |
| up to | 6 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 4 CV |
| Machine's weight about | 2200 kg |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 1750 mm |
| Height | 1600 mm |

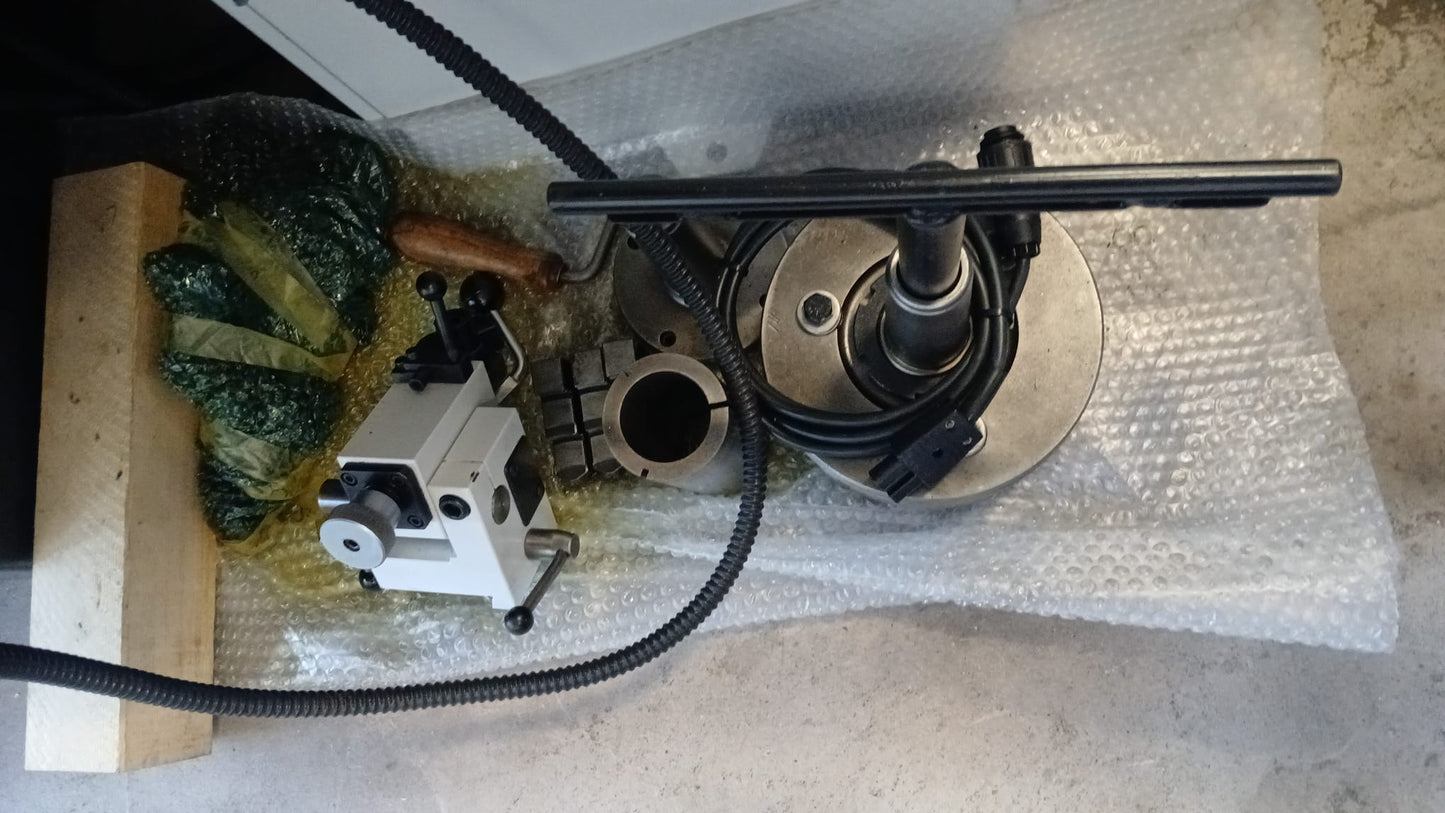

| Various accessories: | |
| Digital readout number of axis: | 2 |
| Manufacturer | KELCO |
| Tailstock with fine adjustement | |
| Internal grinding attachment | |
| Coolant system | |
| Paper filtration system | |
| Set of flanges | |
| Steady | |
| Grinding wheel guard | |
| Safety device | |
| Sliding door |
