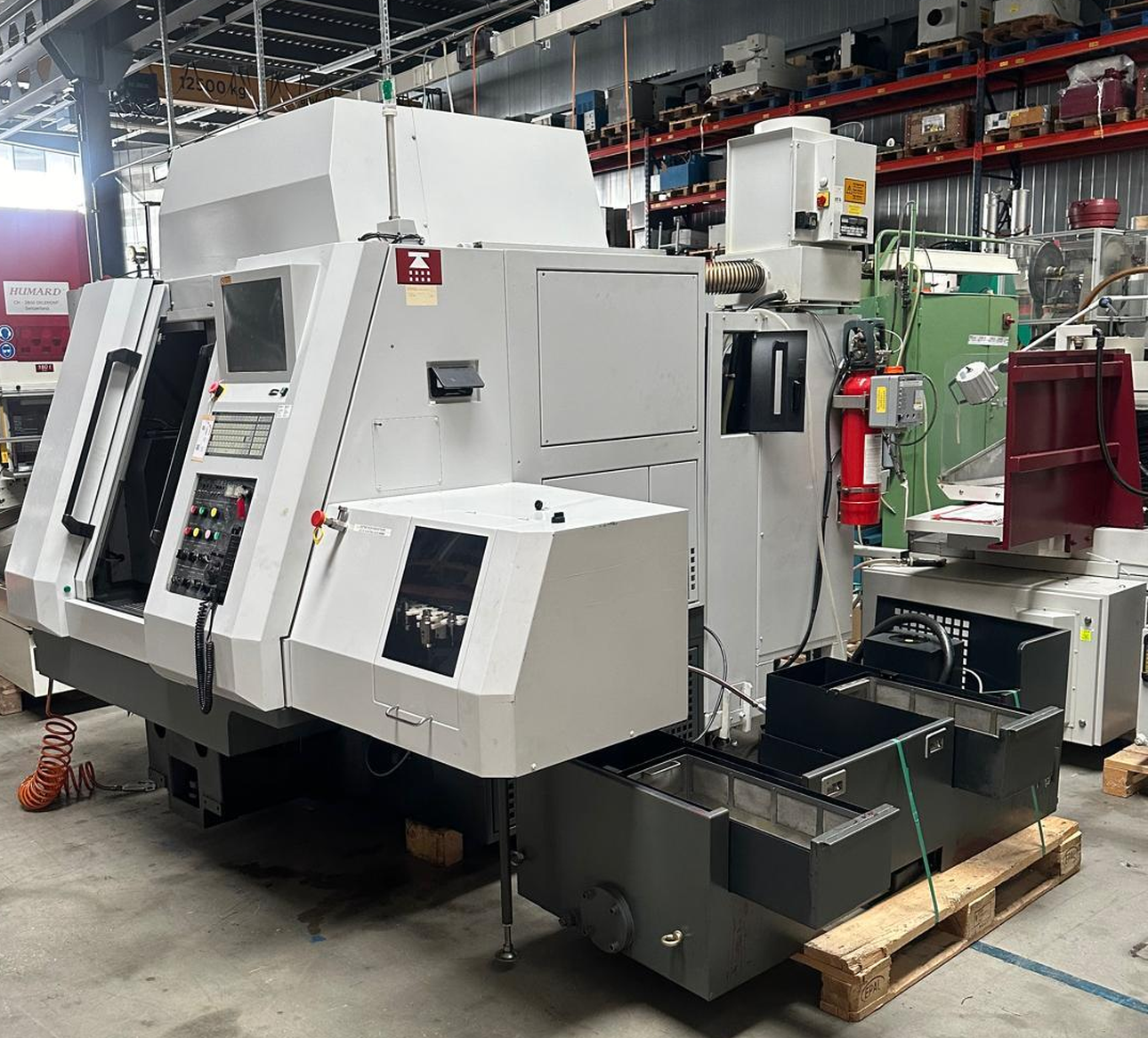

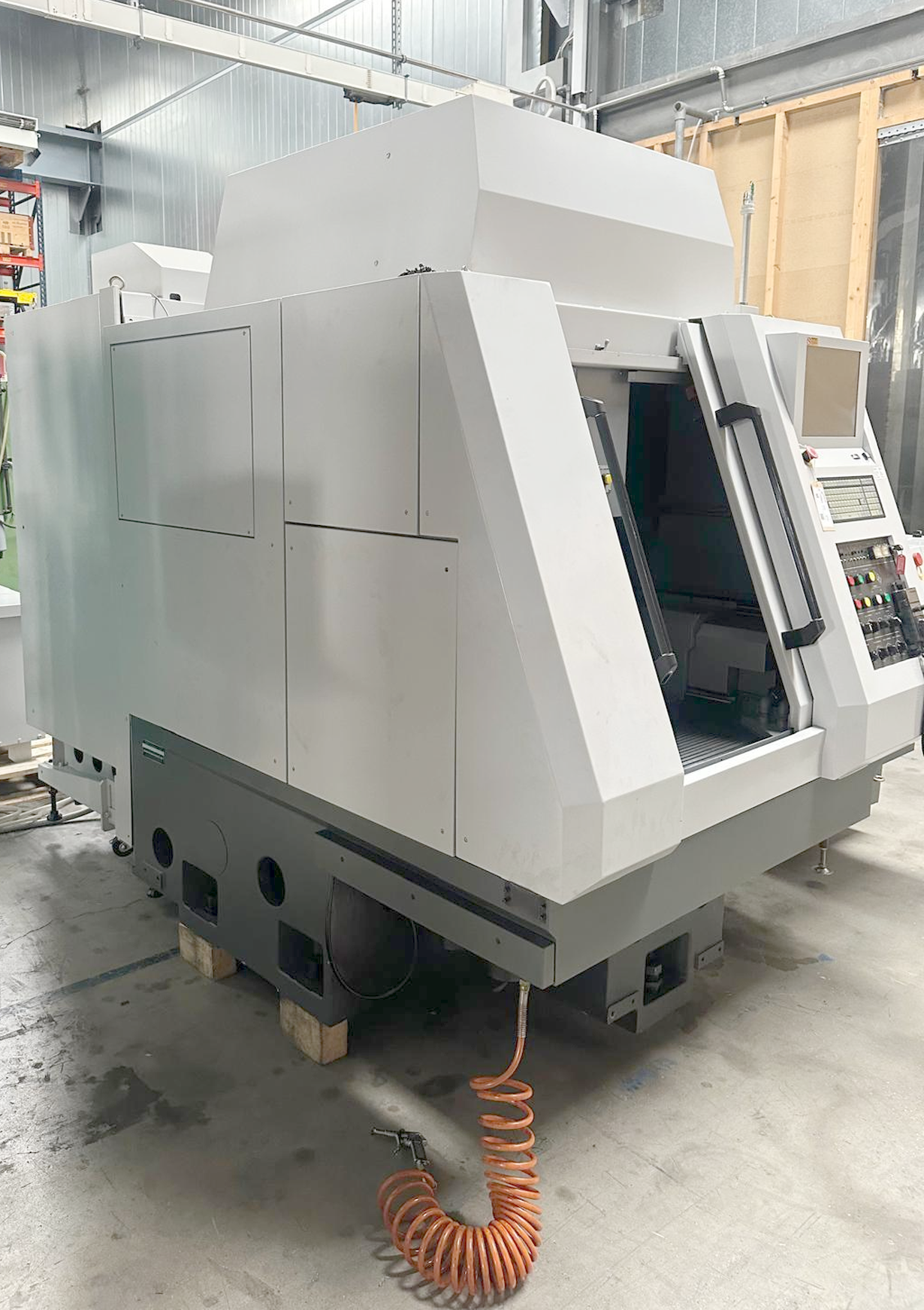

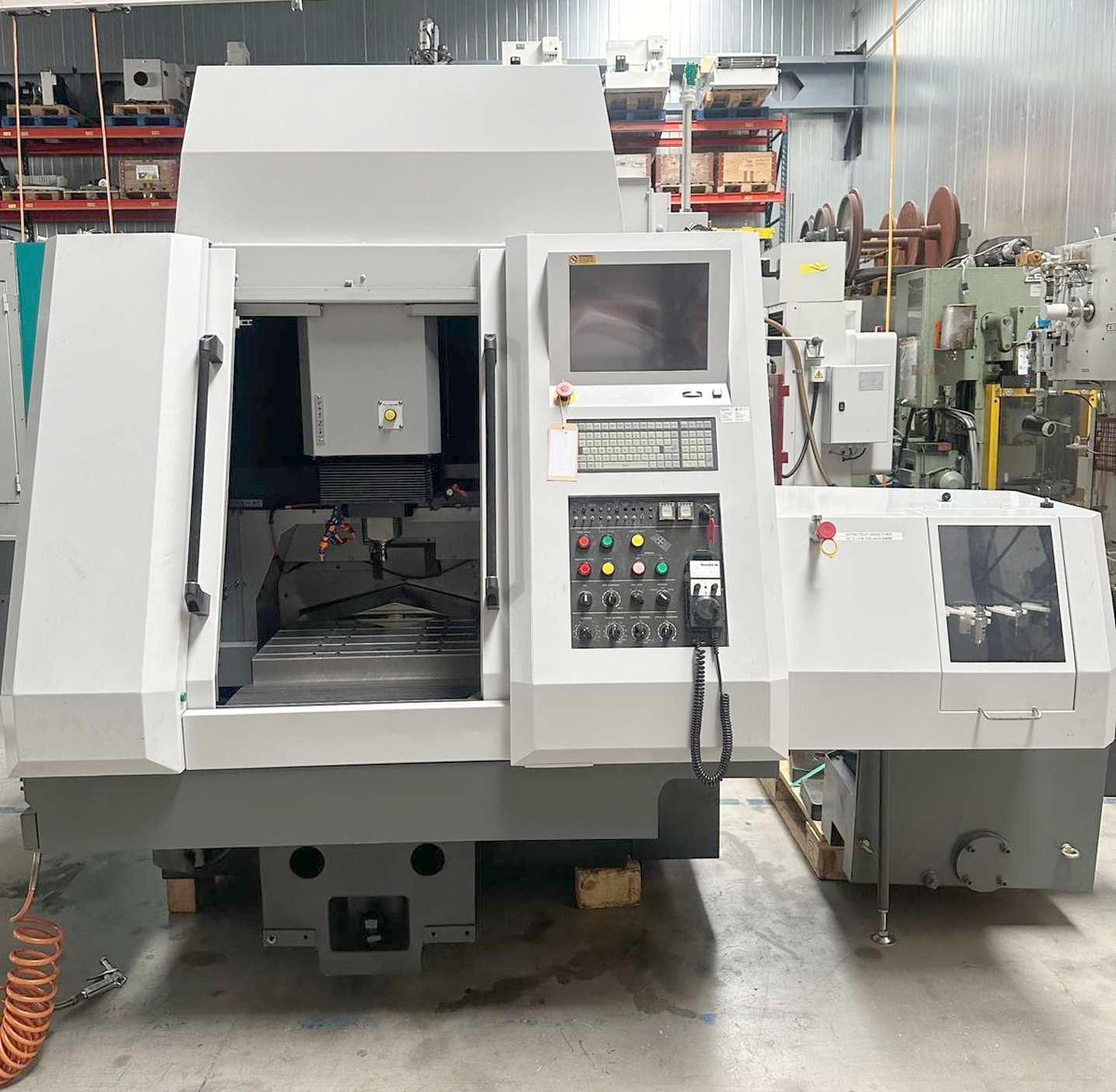

SODICK MC430L is a 3-axis machining center: engineered for precision, high accuracy and reliable operation. Table 600×400 mm, 5 T‑slots (80 mm, 14 mm), table load 60 kg; travels X420 Y350 Z200 mm; HSK E25; 45-tool magazine. Spindle 6,000–40,000 rpm; feed 0–4,000 mm/min; rapid 36 m/min; 3×400 V; weight ≈5,800 kg; size 1625×1500×2105 mm. Key accessories: glass scales, vice, coolant, touch probe, ELBARON oil‑mist extractor, laser tool measurement. Achieves tight tolerances; suited for automotive, watchmaking, machine tools, aerospace and medical.

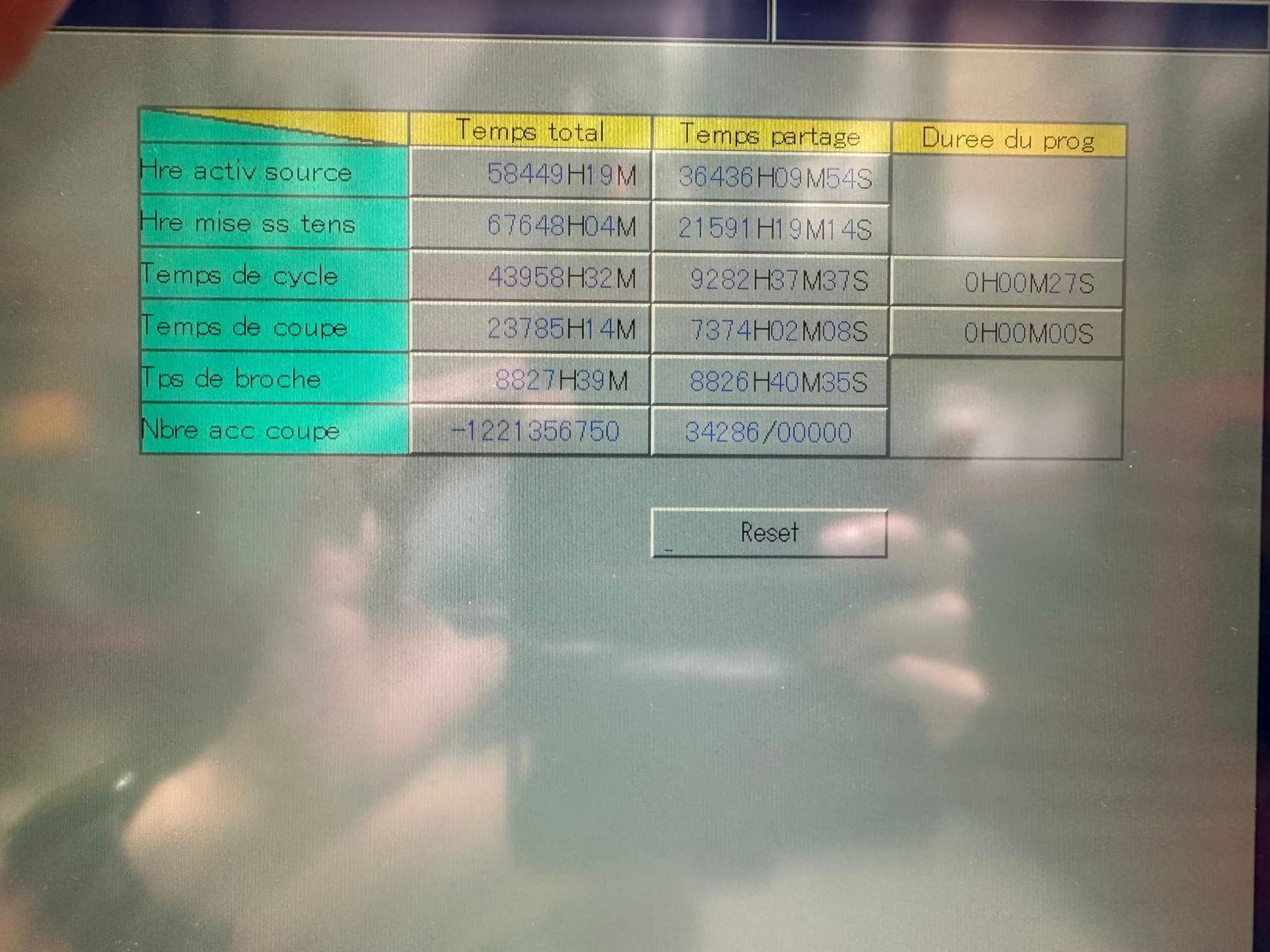

| Time under power | 67648 Heures |
| Operating time | 58449 Heures |
| Working time | 23785 Heures |
| Spindle run time | 8827 Heures |
| Number of axis total | 3 |

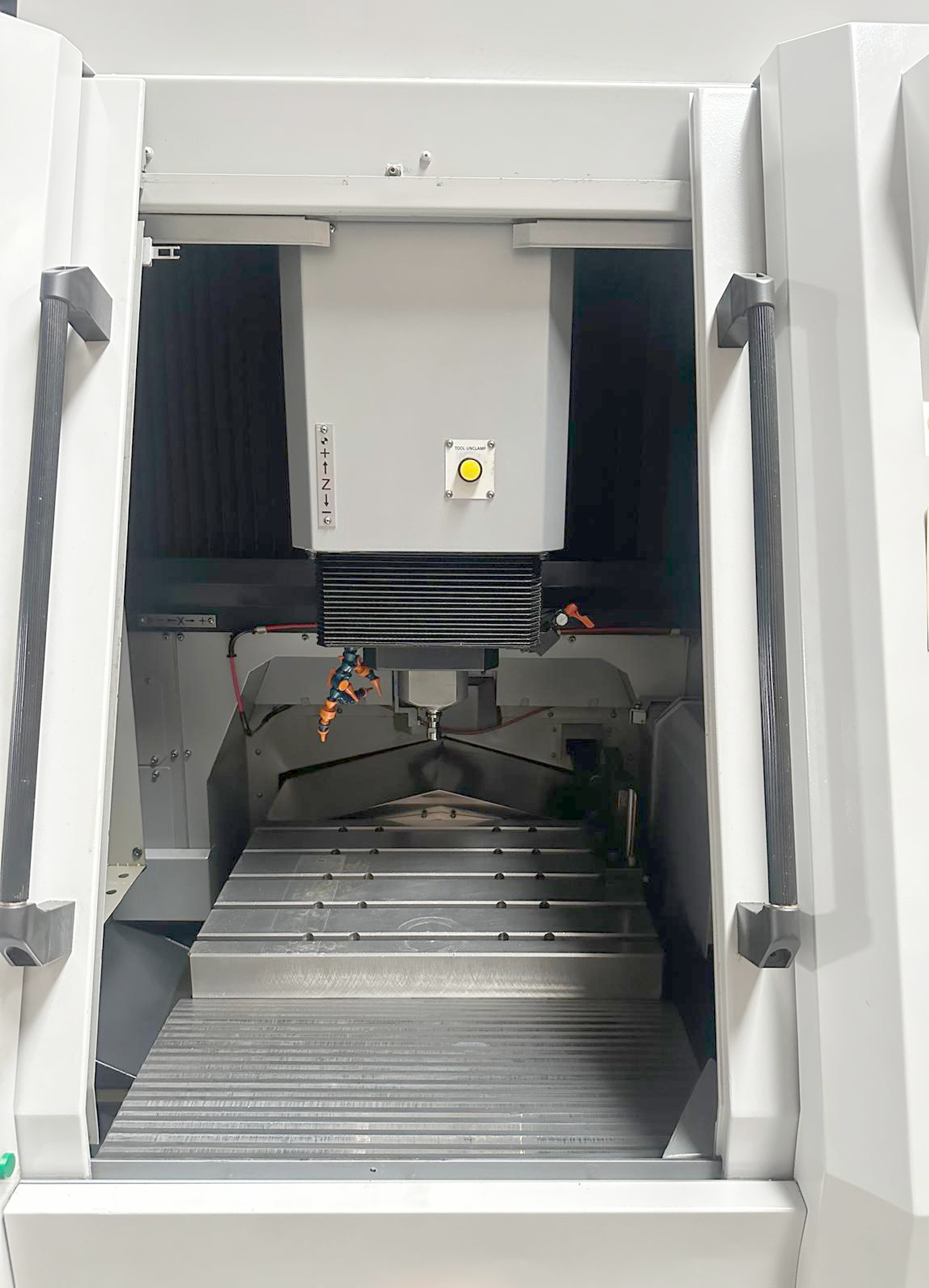

| Table length | 600 mm |
| Table width | 400 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 80 mm |
| T-channel width | 14 mm |
| Table load max. | 60 kg |
| Longitudinal travel (X-axis) | 420 mm |
| Transversal travel (y-axis) | 350 mm |
| Vertical travel (z axis) | 200 mm |
| Dimension of the workpice: | |
| Diameter | 6 mm |
| Tool changer: | |

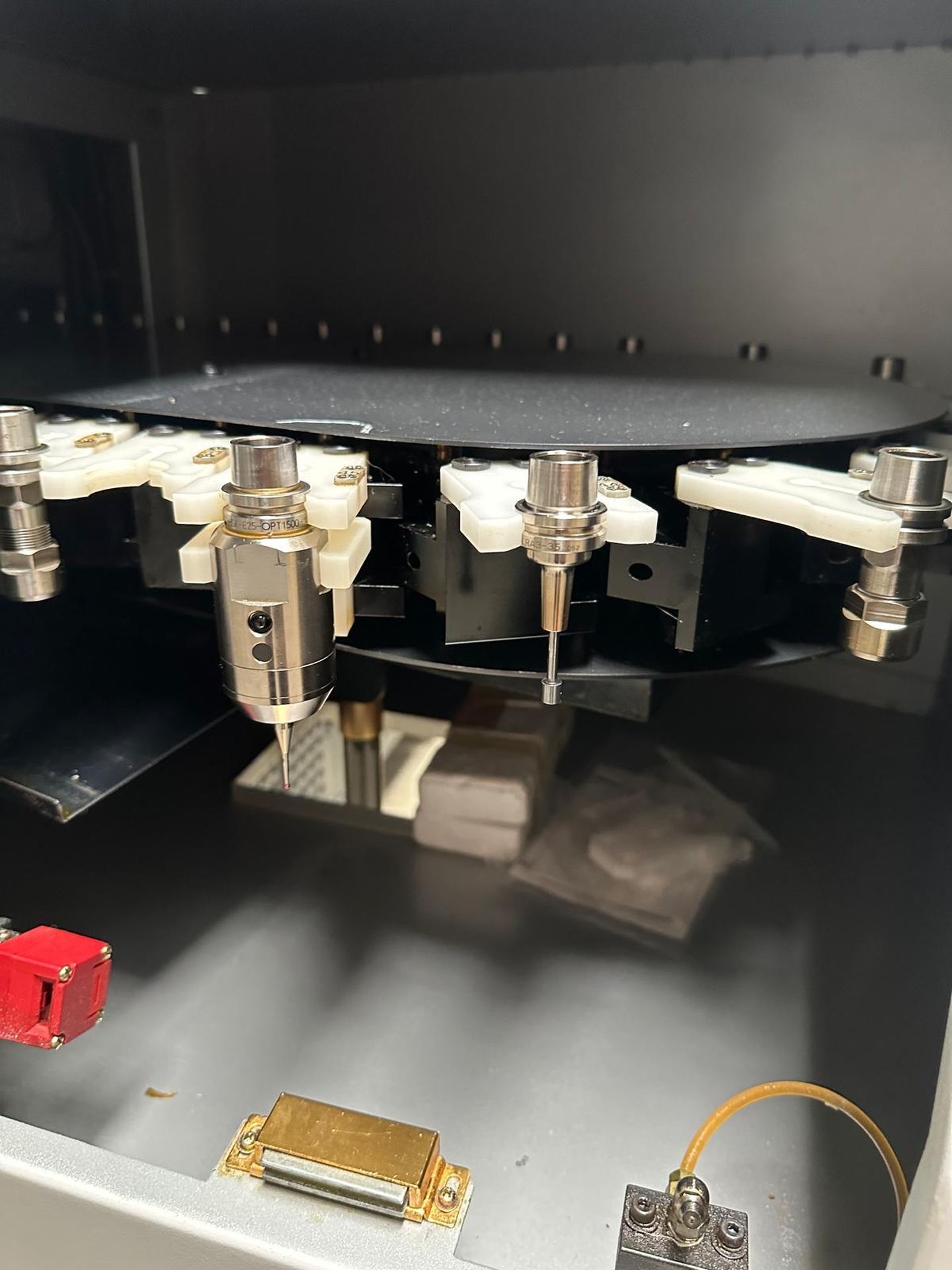

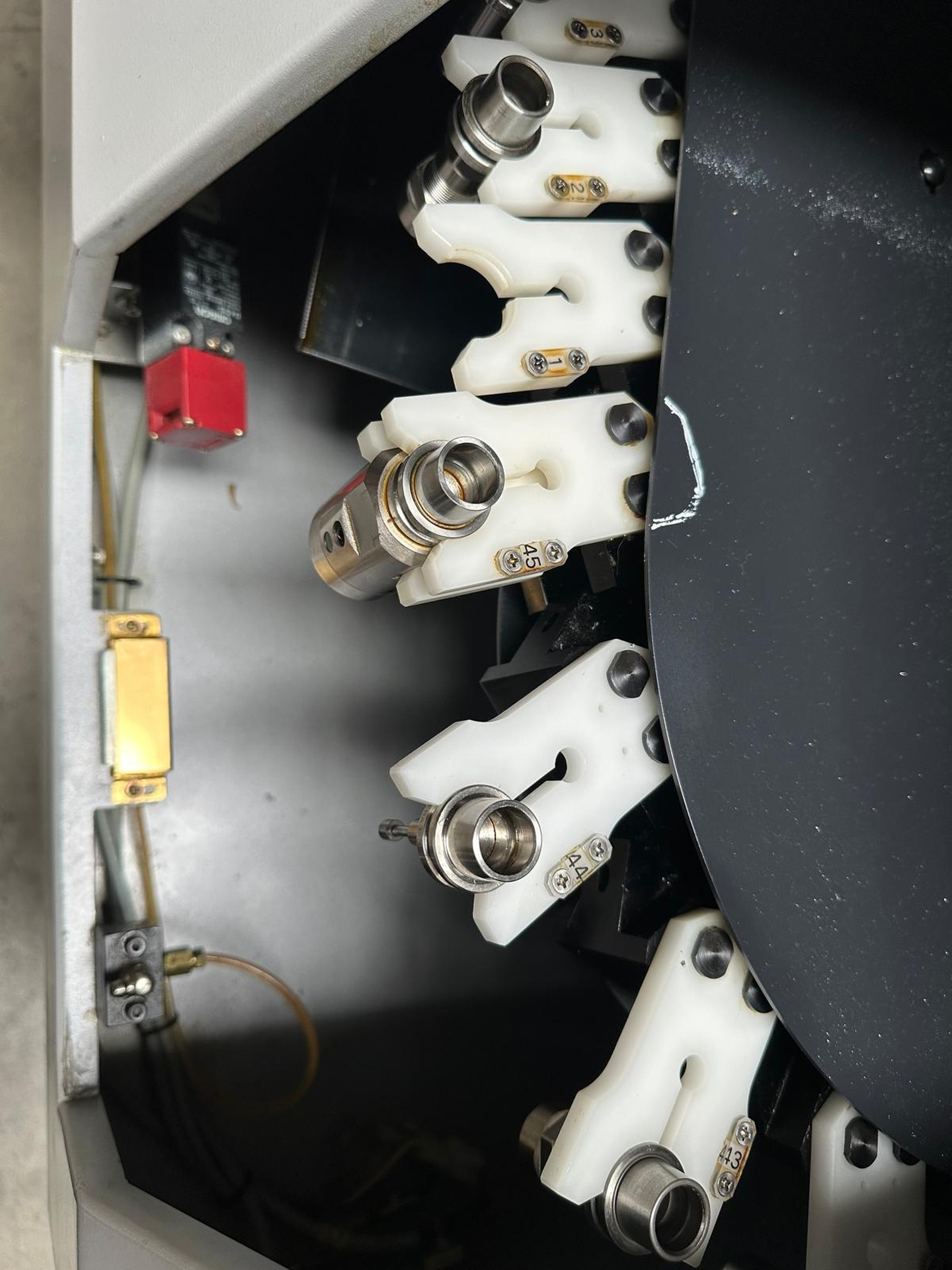

| Number of tools | 45 |
| Spindle nose: HSK | E25 |
| Distance spindle nose to table | 115 - 315 mm |
| Spindle speeds: | |
| stepless | |
| from | 6000 t/min |
| up to | 40000 t/min |
| Feed range | 0 - 4000 mm/min |
| Rapid traverse: | 36 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 5800 kg |
| Overall dimensions machine: | |
| Length | 1625 mm |
| Width | 1500 mm |
| Height | 2105 mm |
| Various accessories: | |
| Direct measurement by glass scales | |

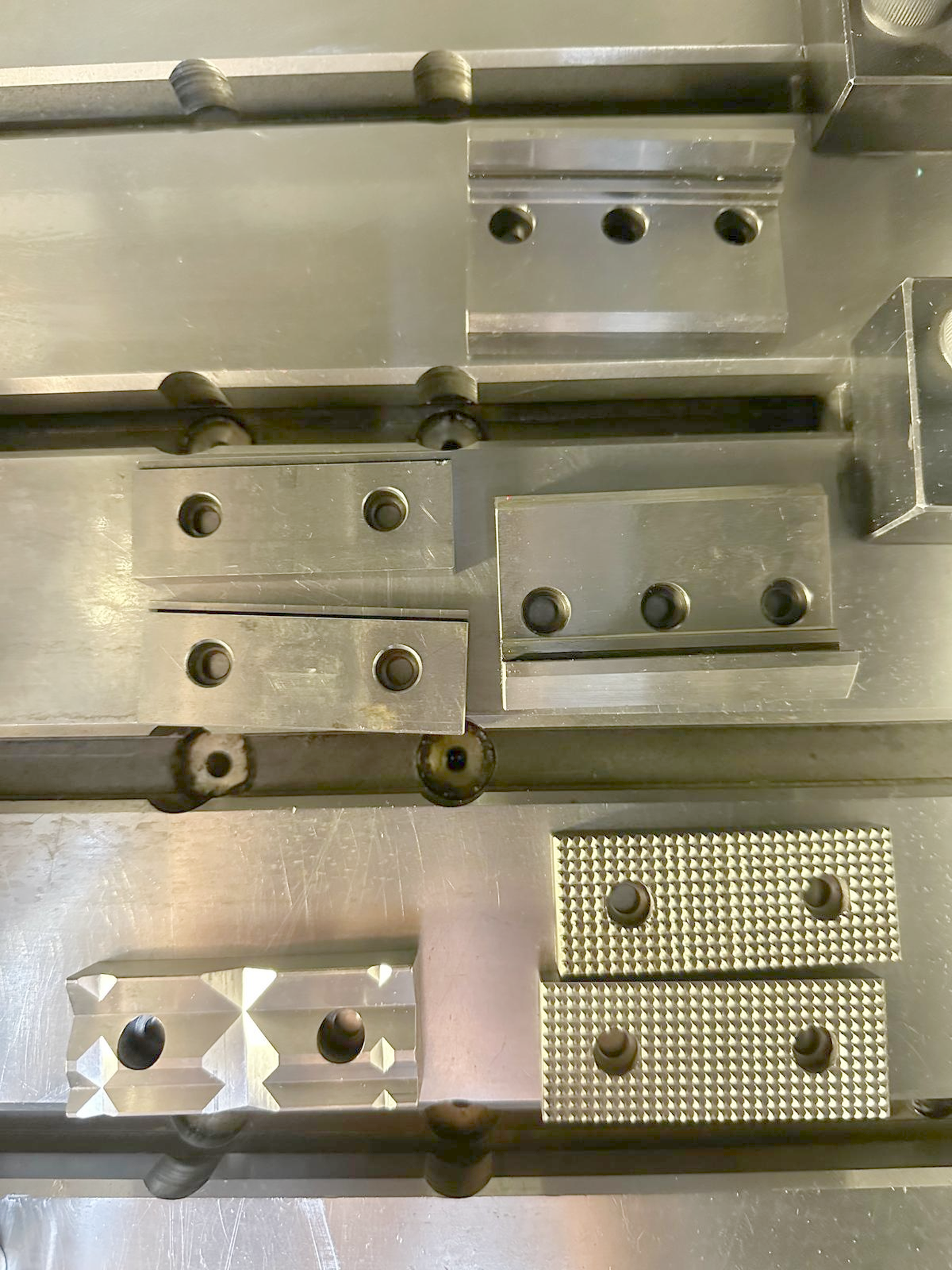

| Vice | |

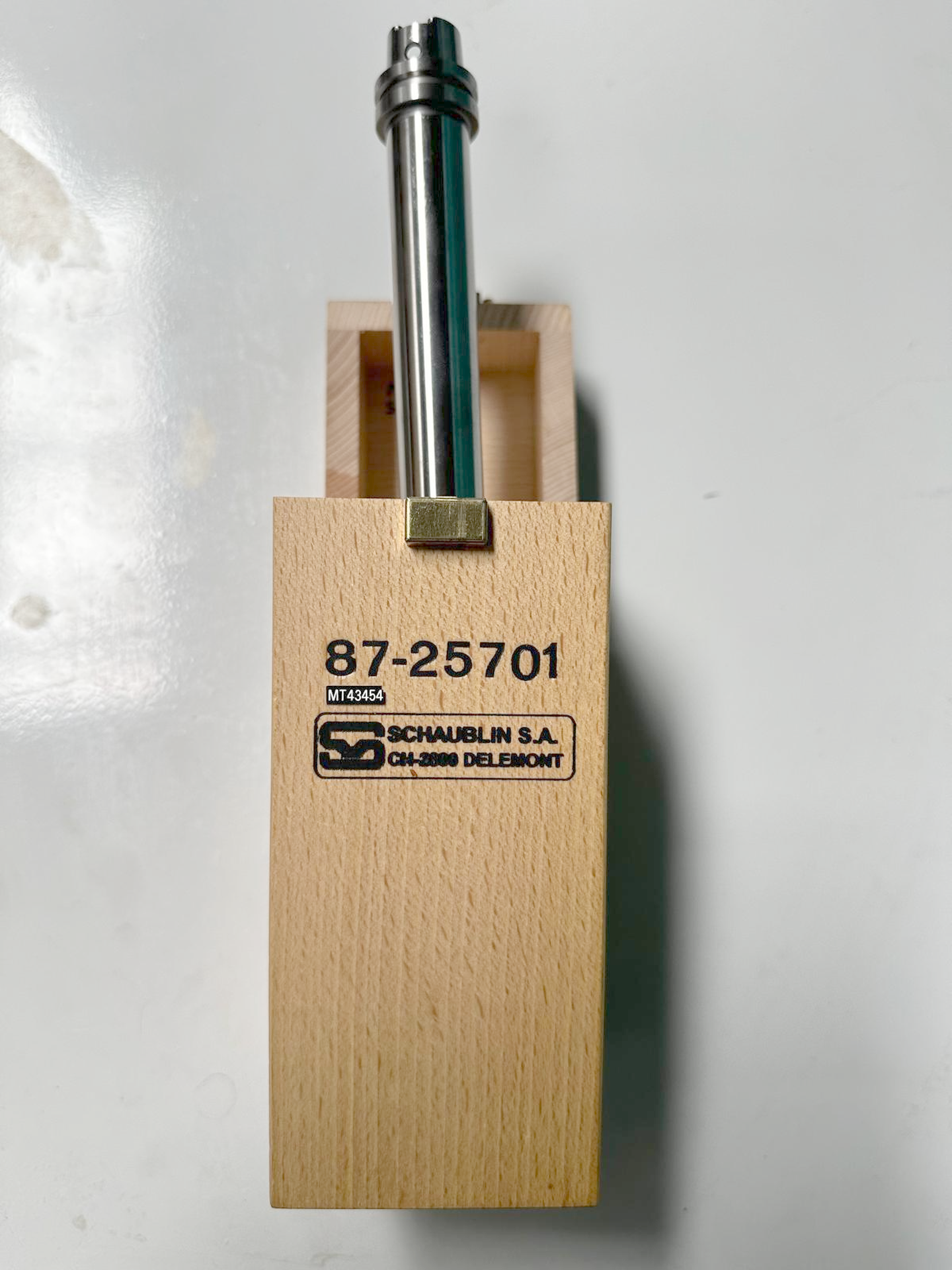

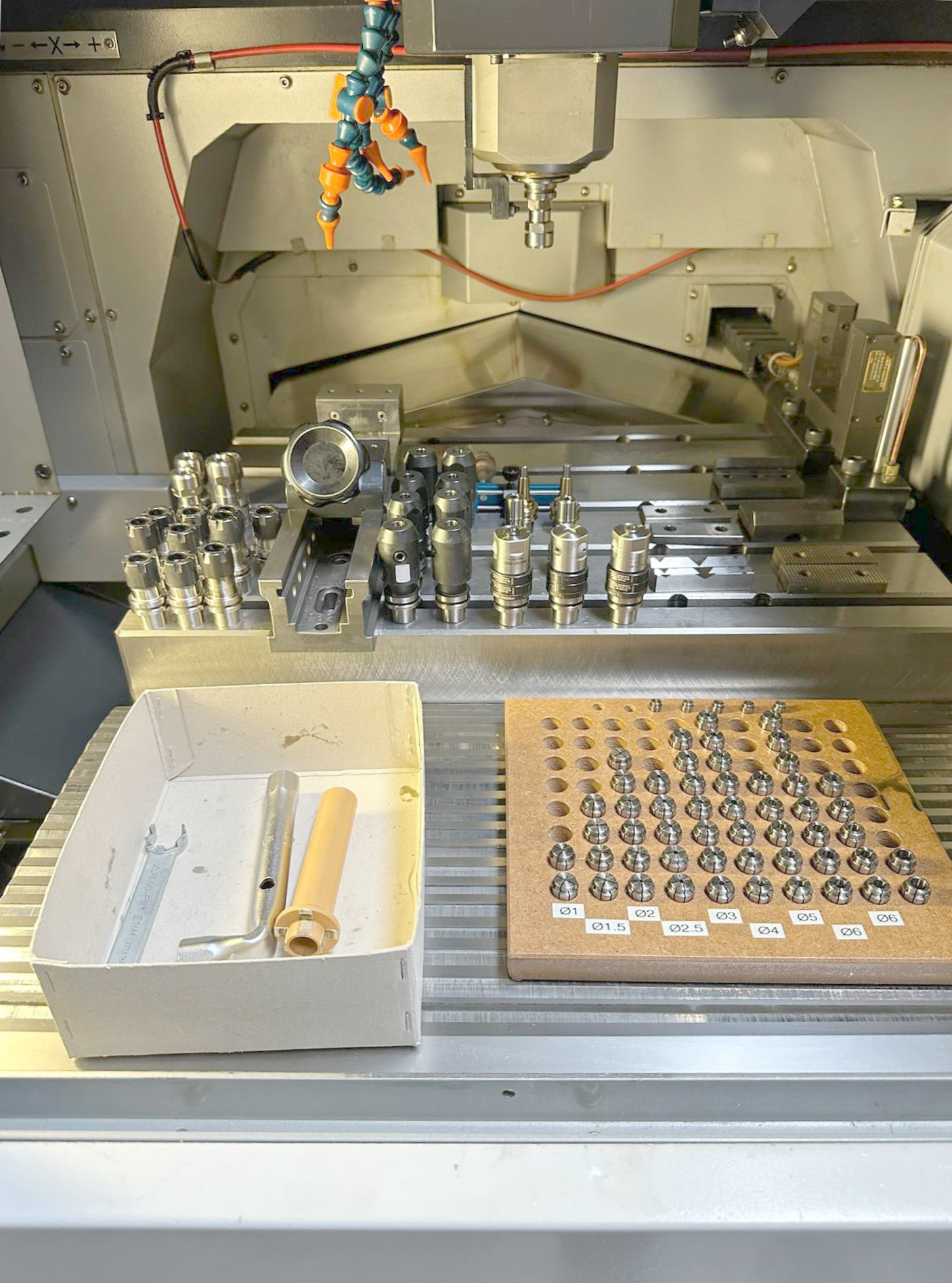

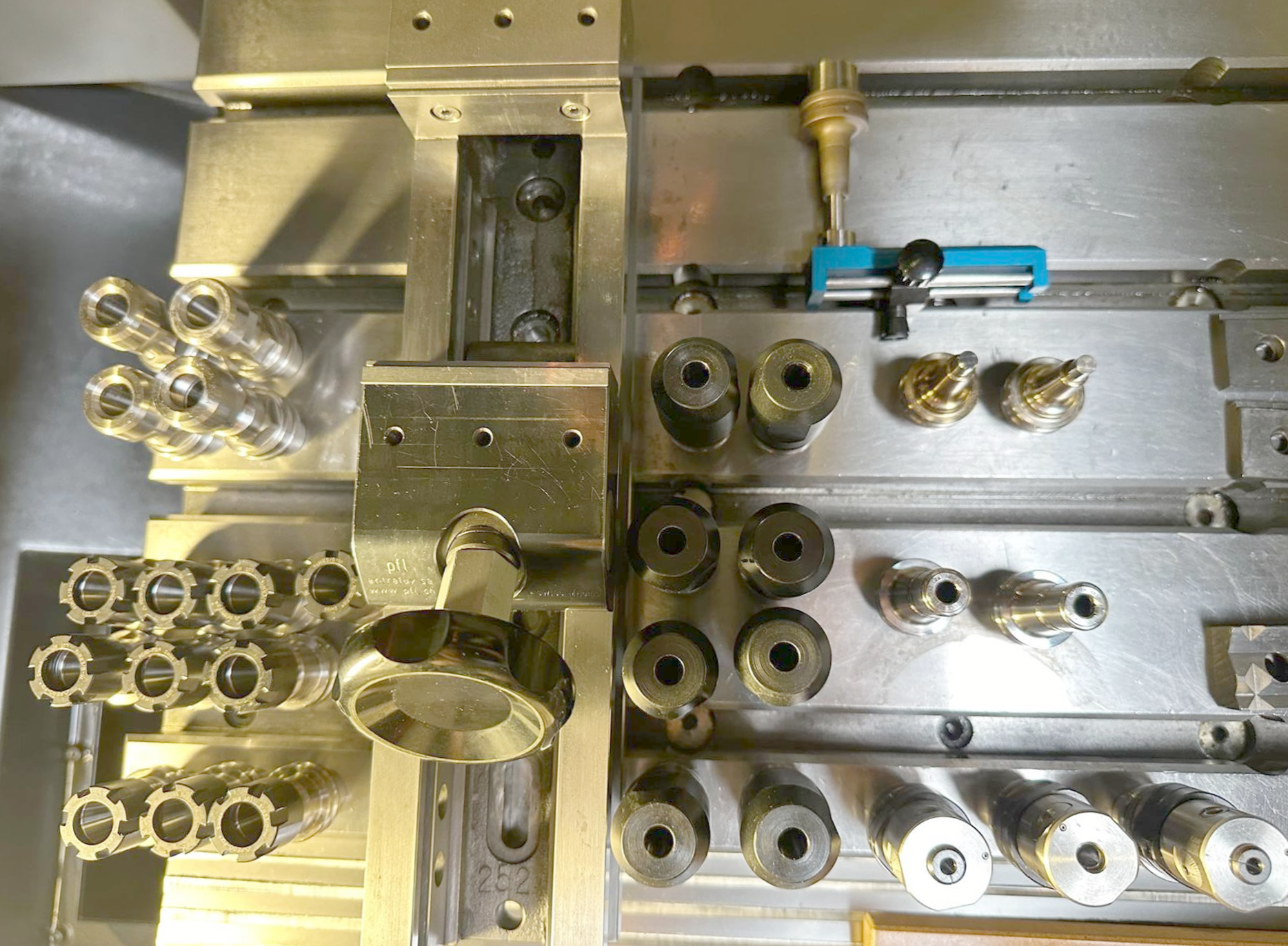

| Set of toolholders | |

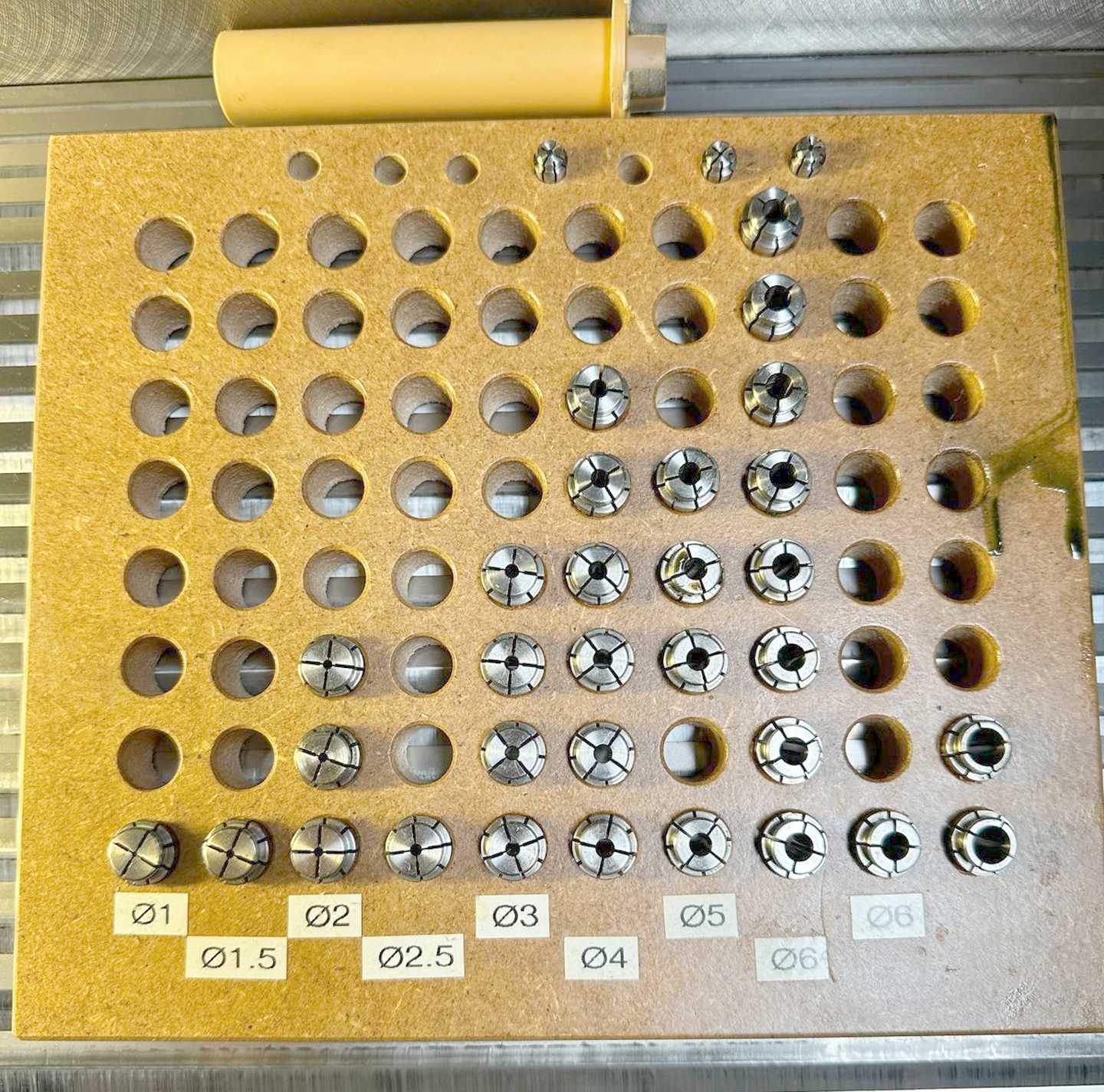

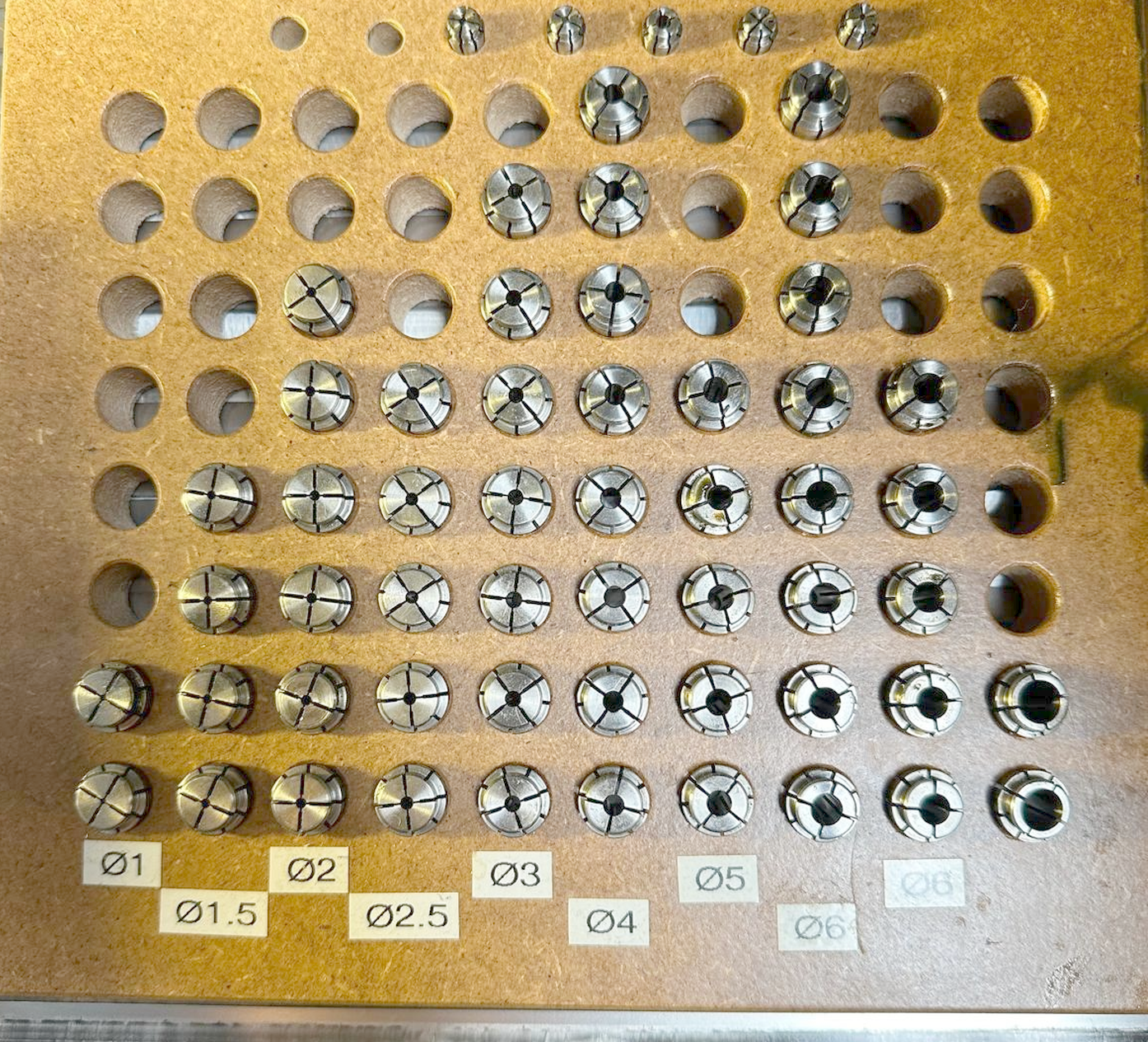

| Set of collets | |

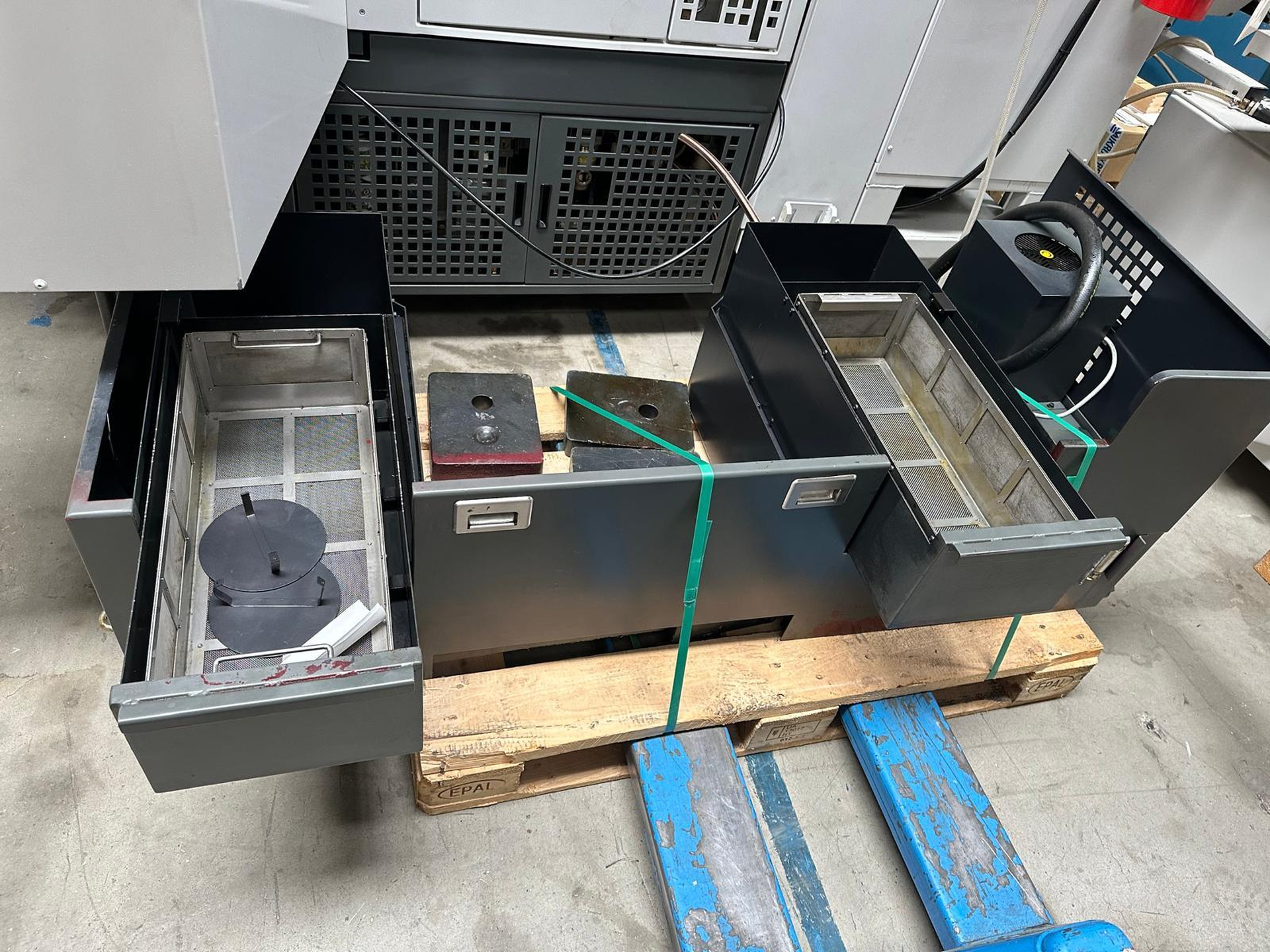

| Coolant system | l |
| Touch Probe | |
| Handwheel electroinic | |

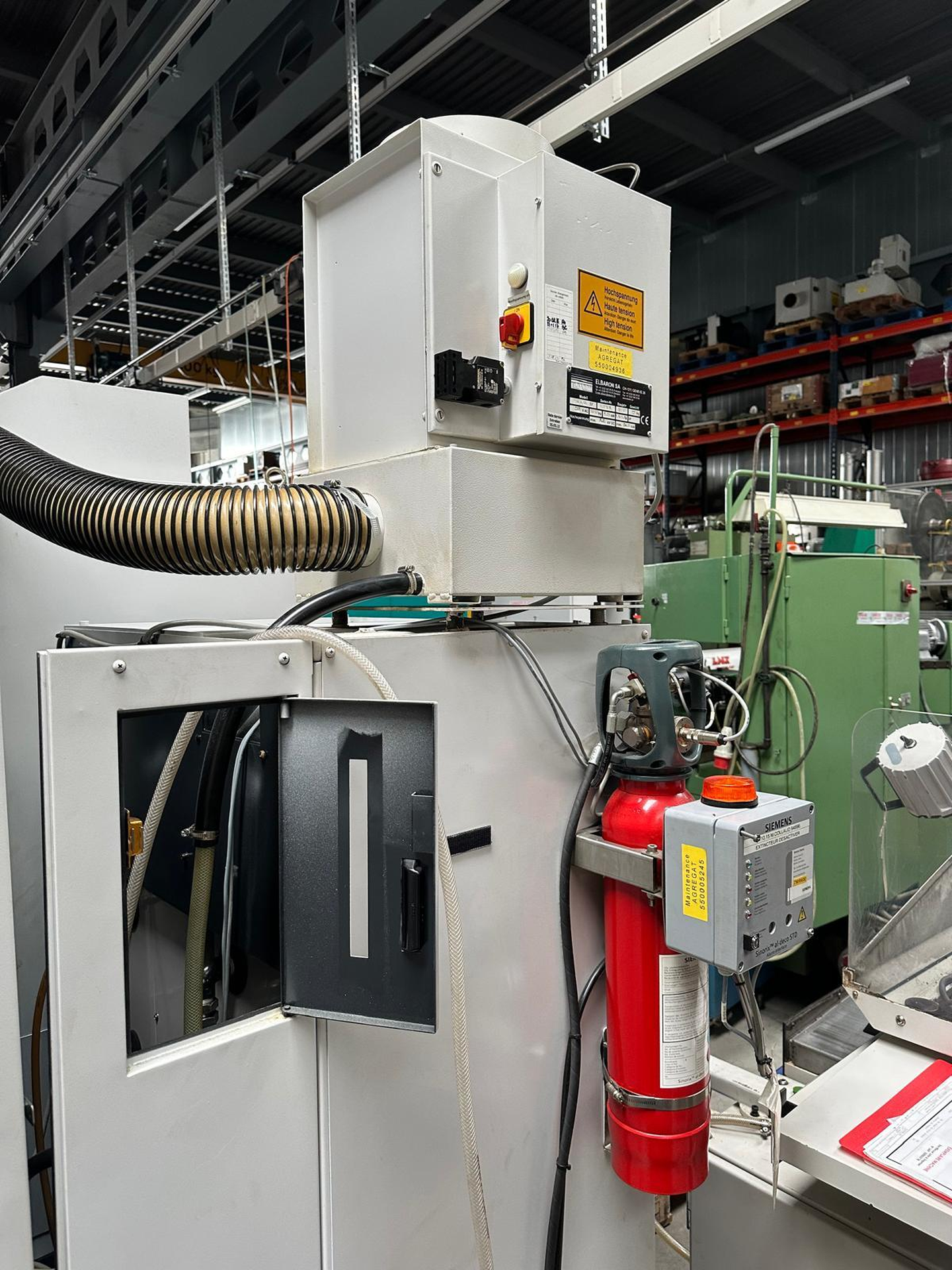

| Oil mist extractor | ELBARON |

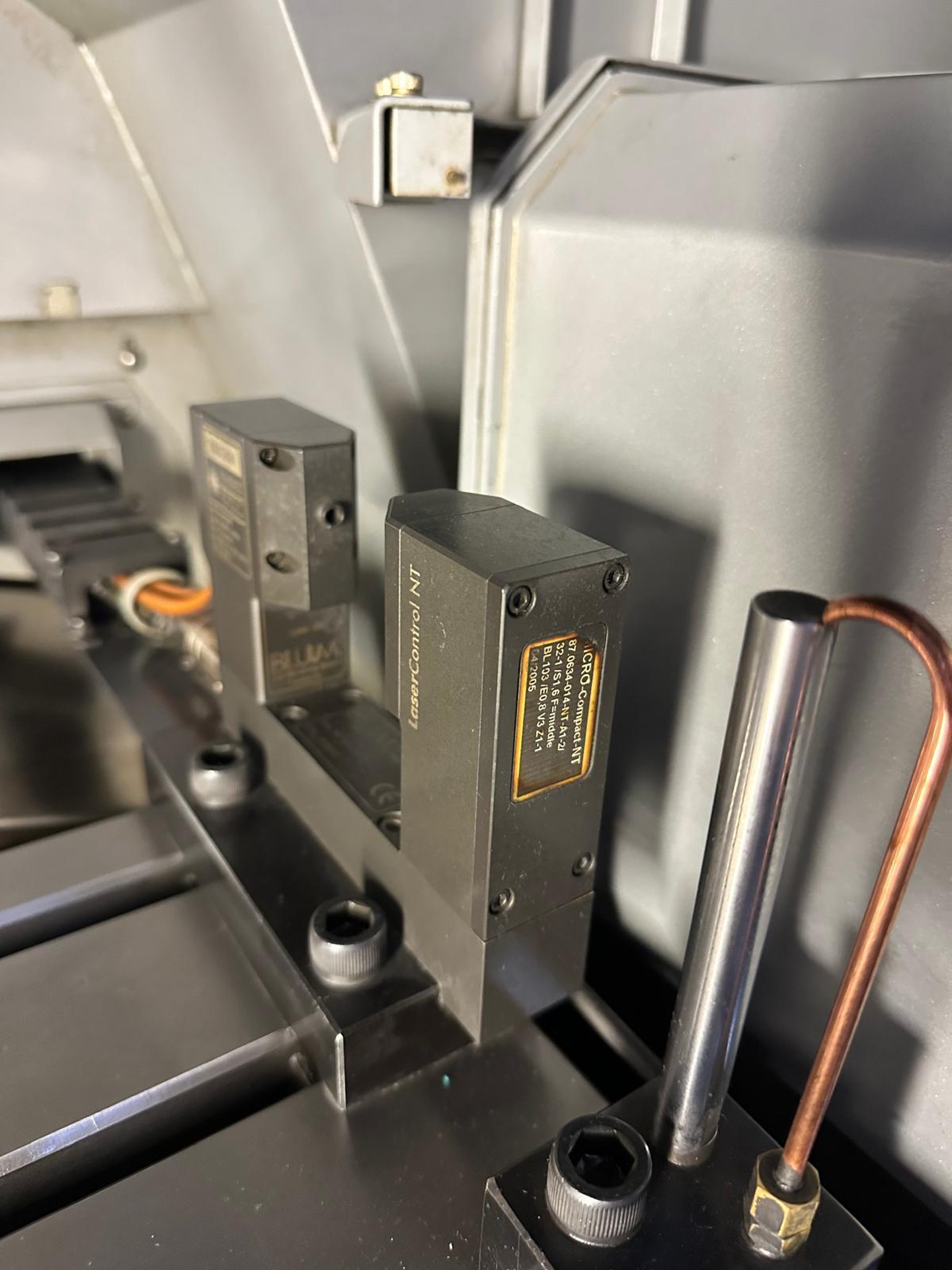

| Laser tool measurement | |

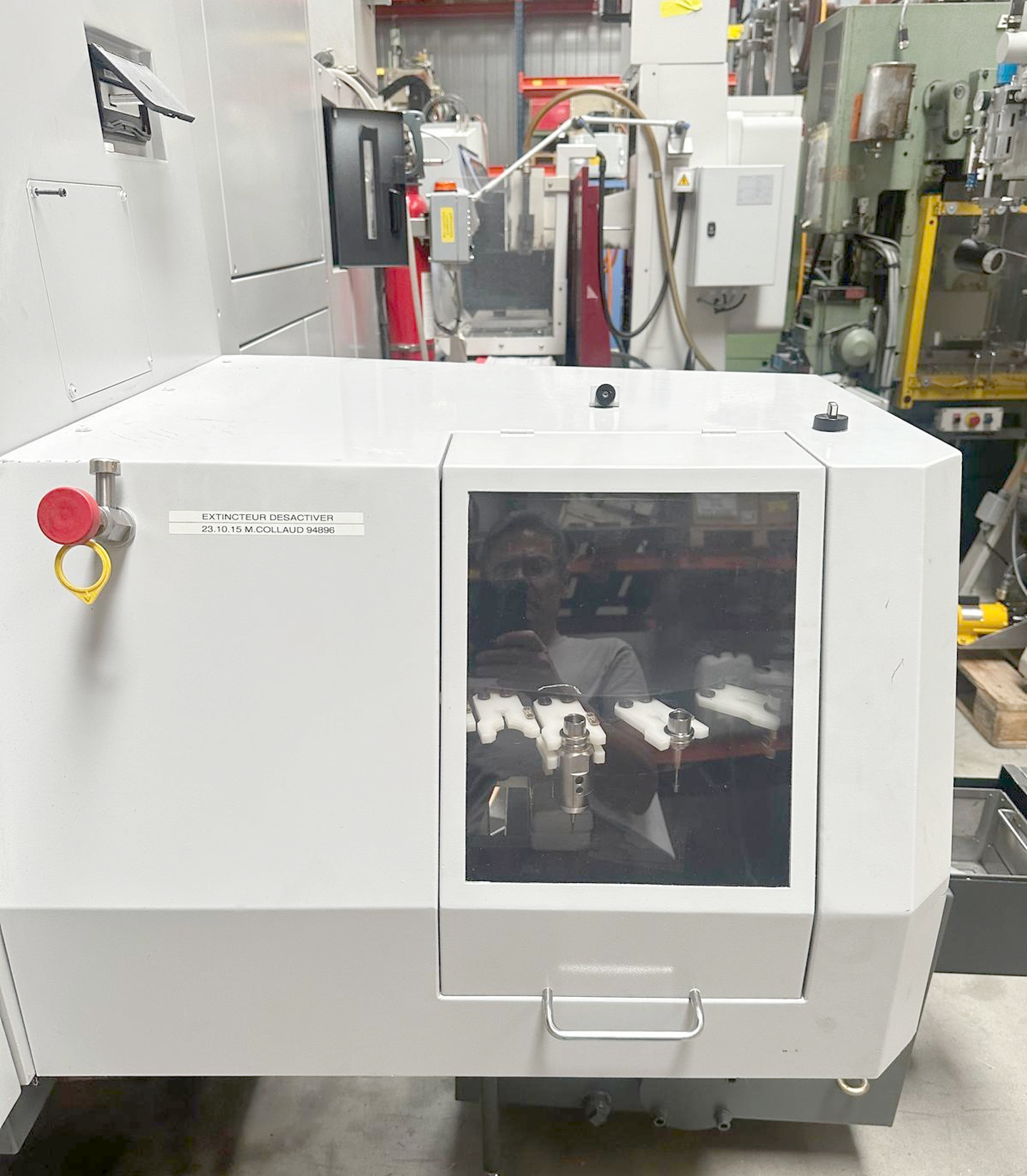

| Fire extinguishing system |
