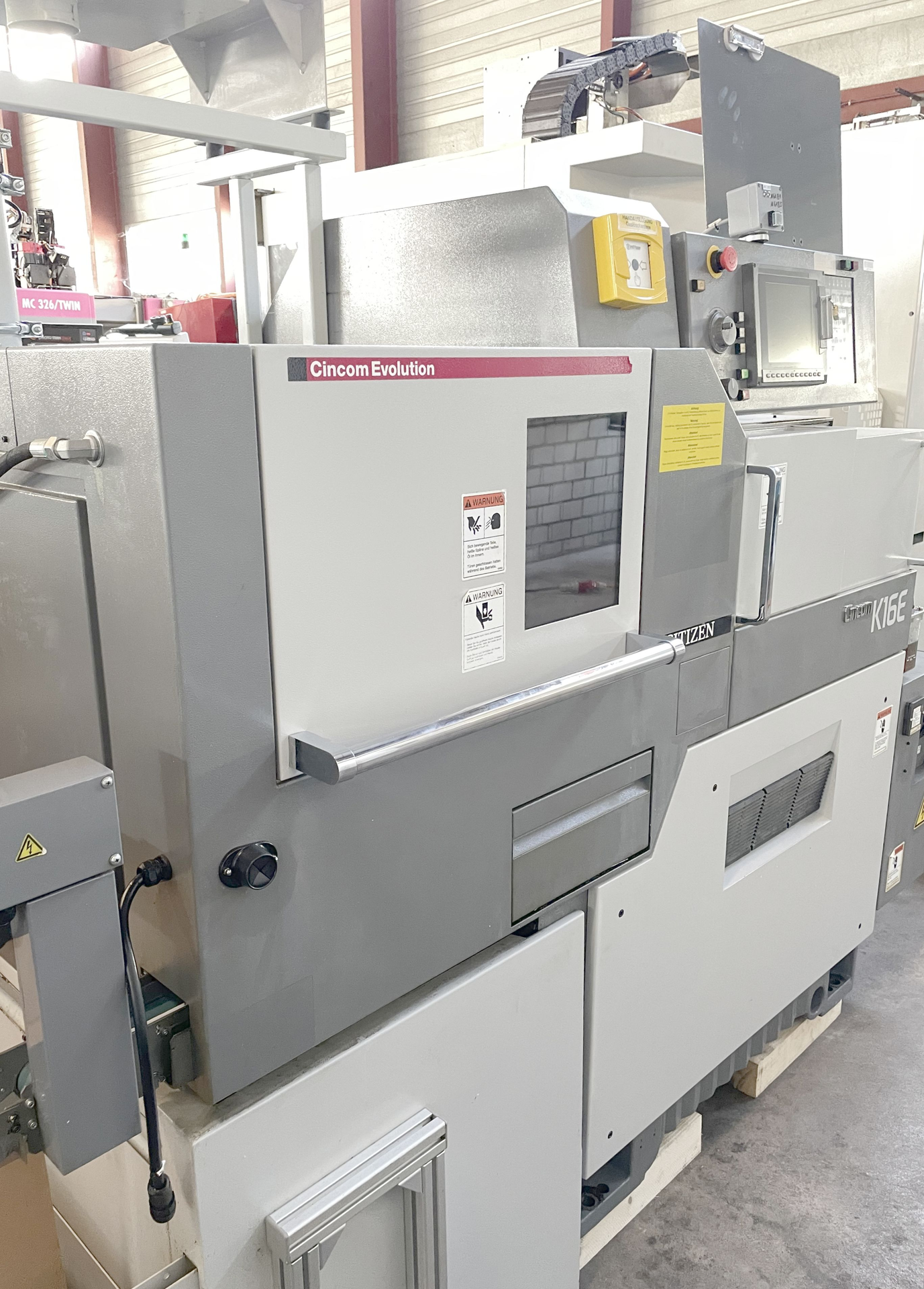

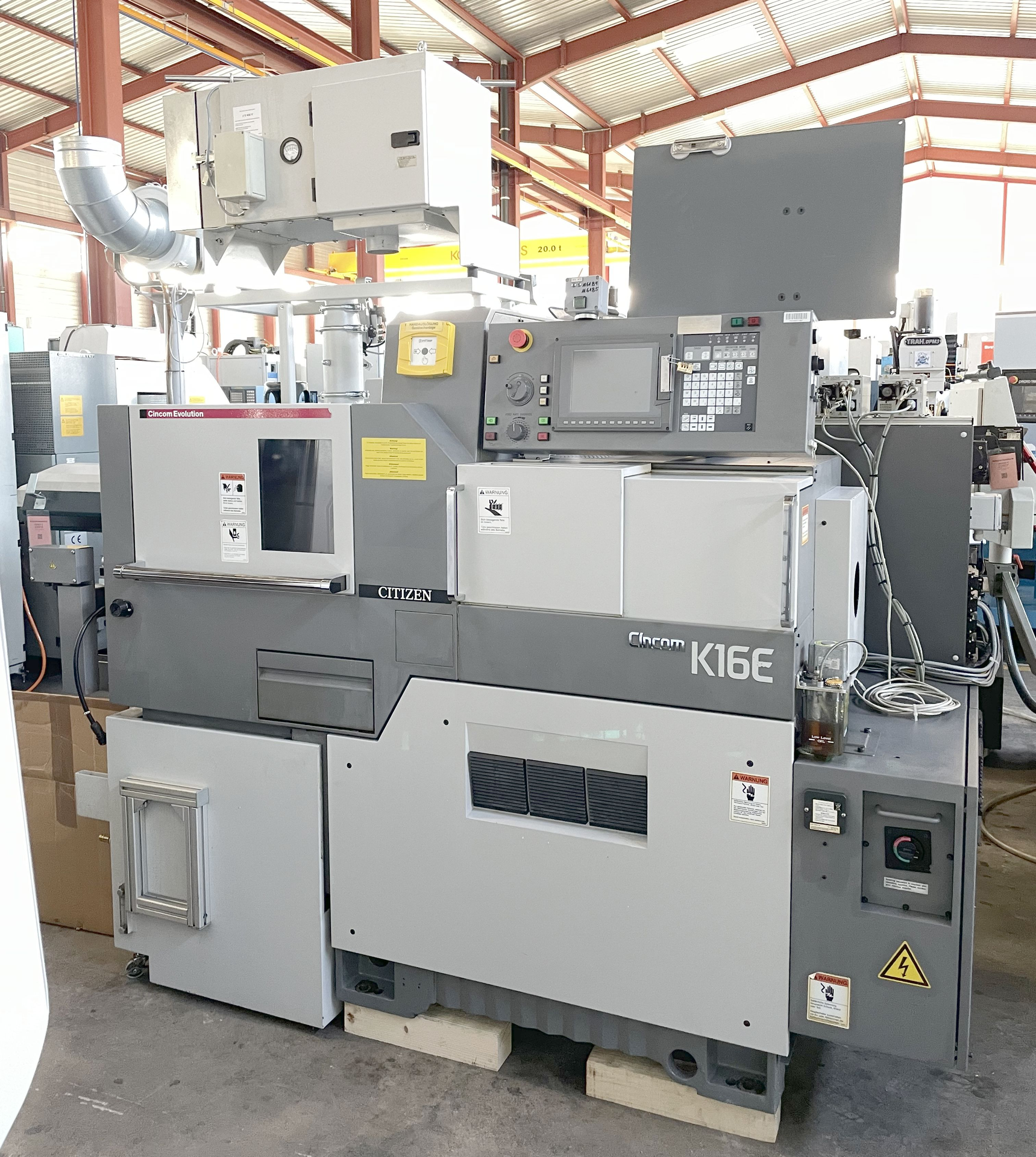

CITIZEN CINCOM K 16 E V II P
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
CITIZEN CINCOM K 16 E V II P is a CNC automatic lathe designed for precision, high accuracy and reliability. Capacities: max turning Ø 16 mm, turning length 200 mm, spindle bore 20 mm, max threading 8 M, back‑machining 80 mm. Specs: 7 axes, spindle 200–10000 rpm, 2× HF 60000 rpm, spindle motor 3.7 kW, 4 driven tools 6000 rpm, 3×400 V 50 Hz, weight ≈2250 kg, L2020×W1070×H1680 mm. Accessories: LNS bar feeder, Donaldson oil‑mist extractor. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 7 |
| Max. turning diameter | 16 mm |
| Turning length | 200 mm |
| Max. threading diameter | 8 M |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| from | 200 t/min |
| up to | 10000 t/min |
| Thread drill diameter | 5 M |
| Back spindle: | |
| speeds: | |
| from | t/min |
| up to | 10000 t/min |
| Back machining workpiece length max. | 80 mm |
| Tool-holder: | |
| number of driven tools | 4 |
| Spindle speeds (turning tools) | 6000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 3.7 kW |
| Machine's weight about | 2250 kg |
| Overall dimensions machine: | |
| Length | 2020 mm |
| Width | 1070 mm |
| Height | 1680 mm |
| Various accessories: | |

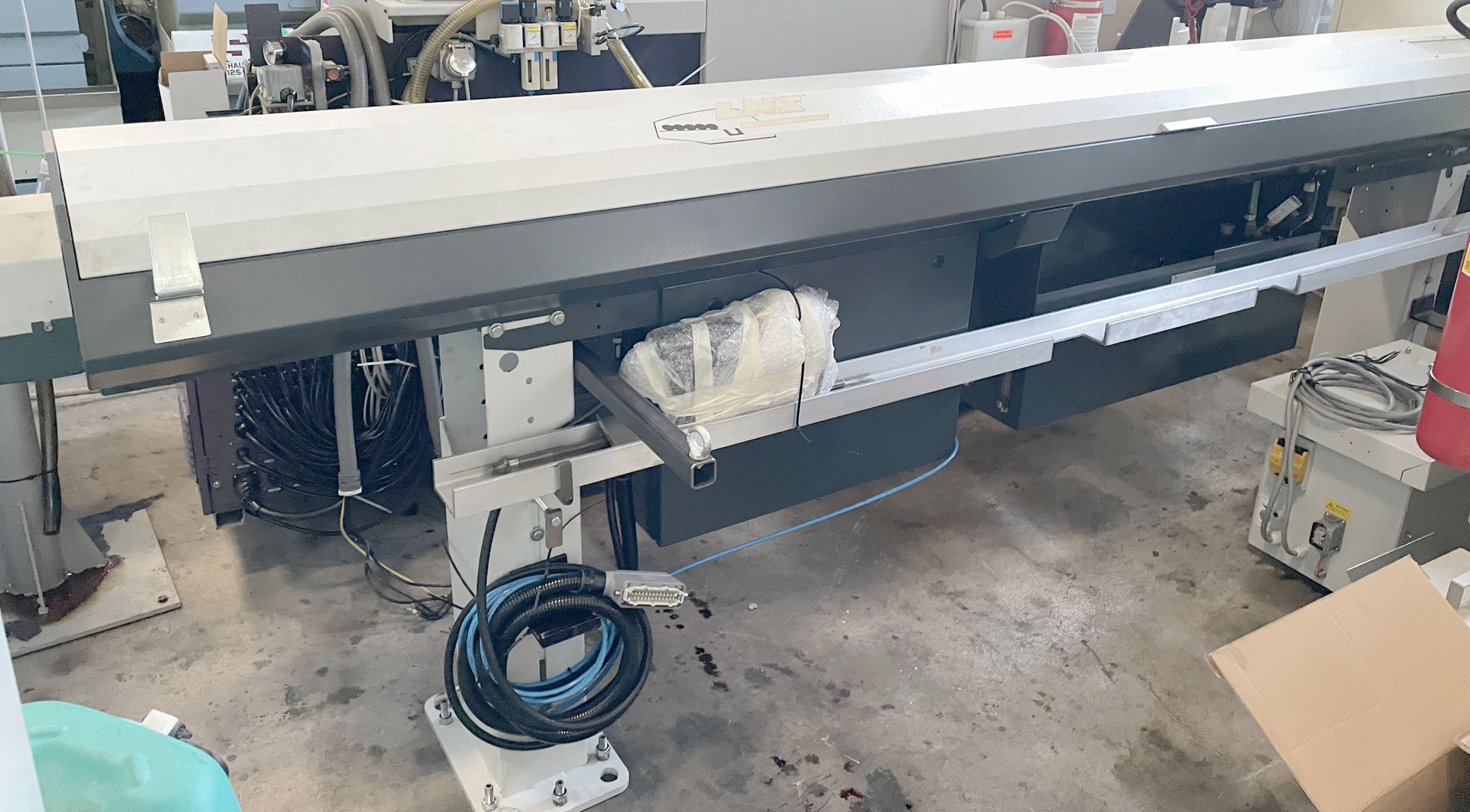

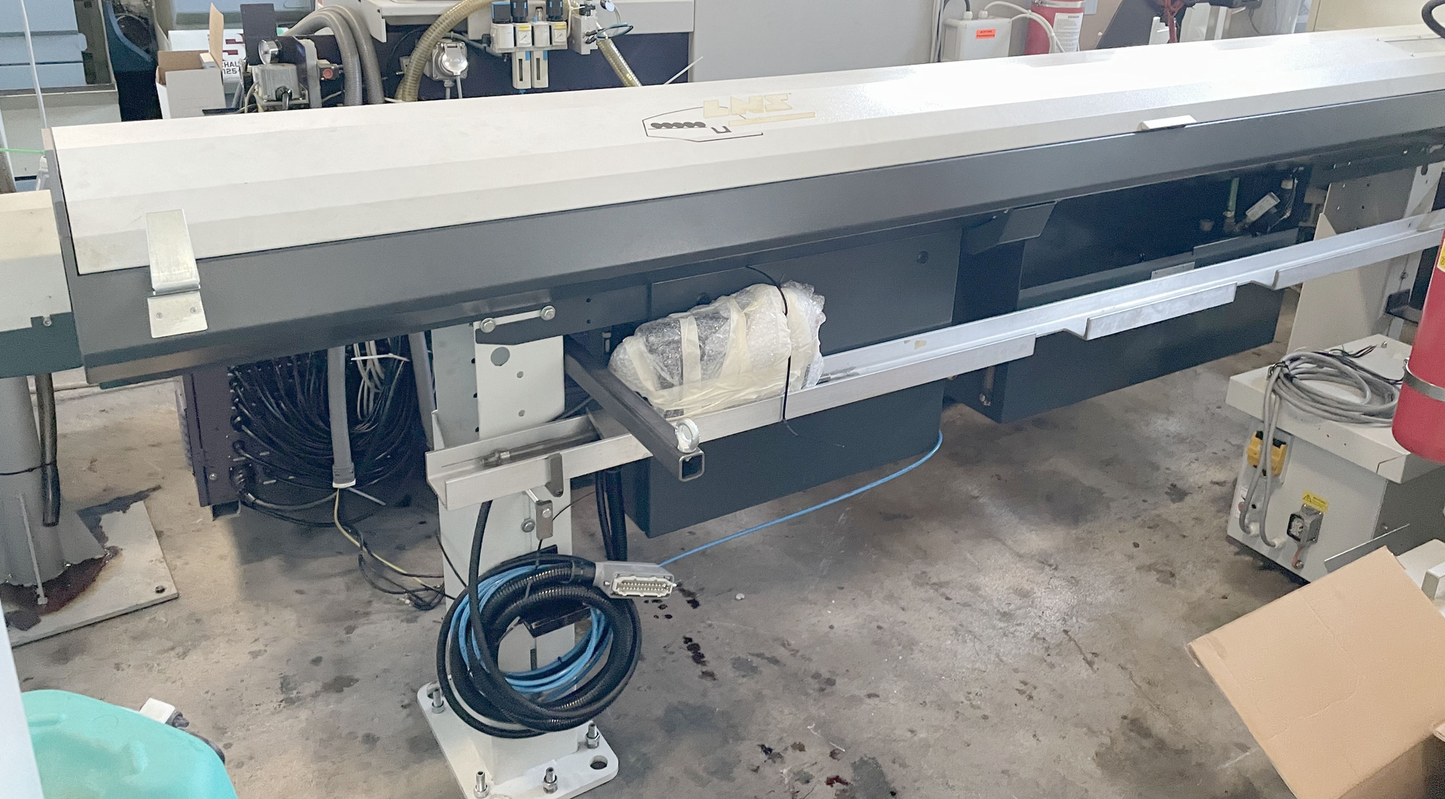

| Bar feeder | LNS |

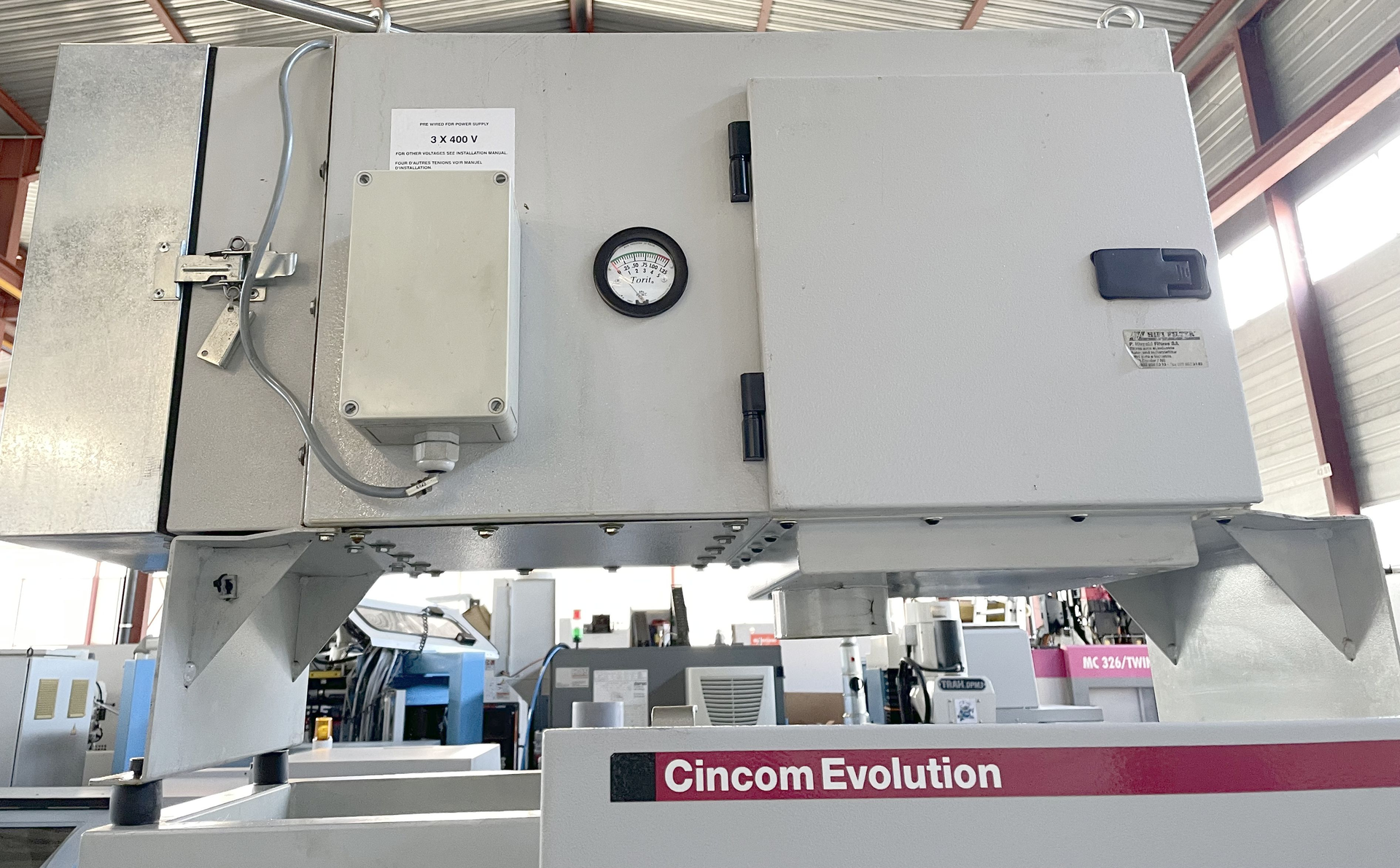

| Oil mist extractor | Donaldson |
| High frequency spindle | 2X |
| Spindle speeds | 60000 t/min |

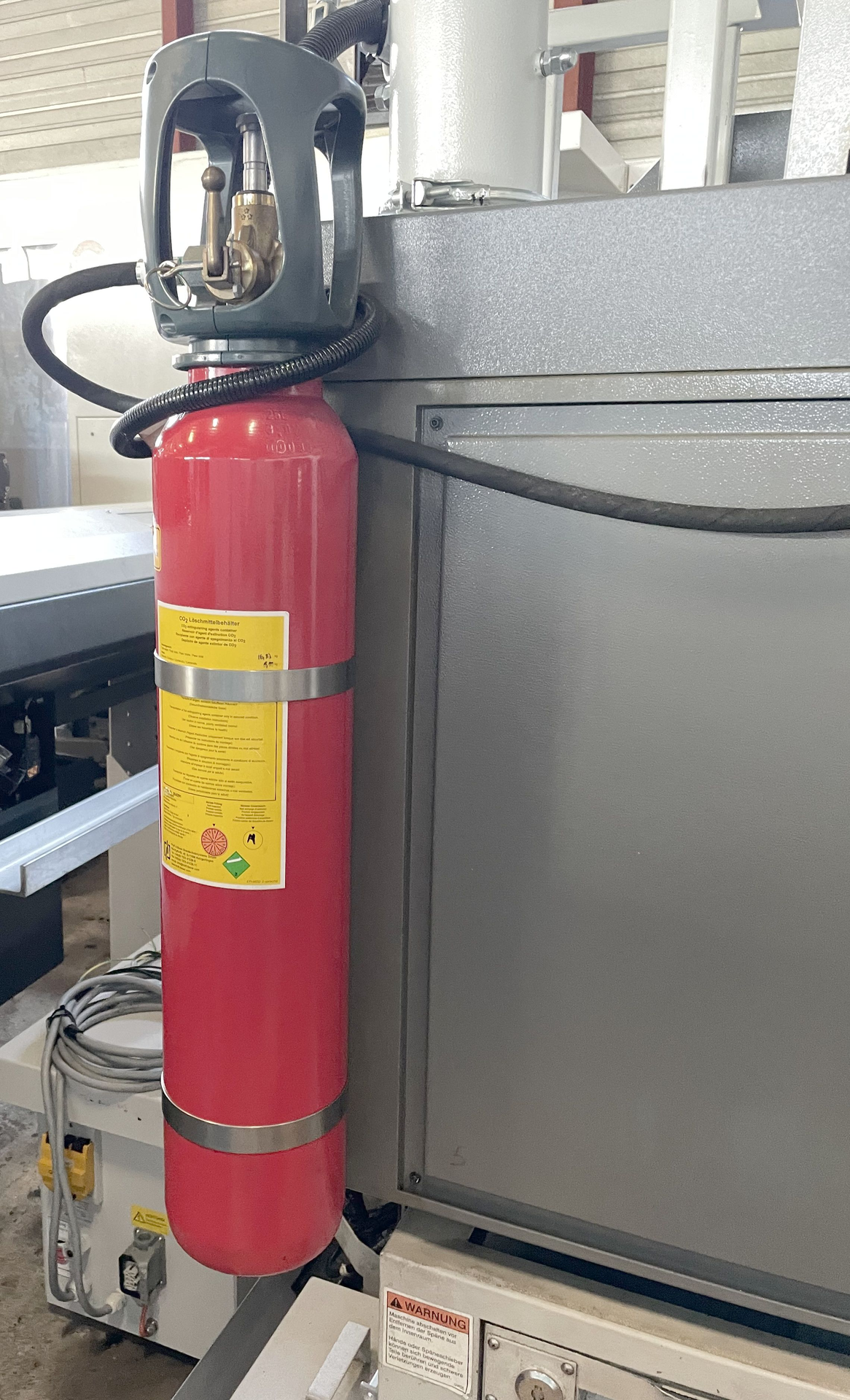

| Fire extinguishing system |
