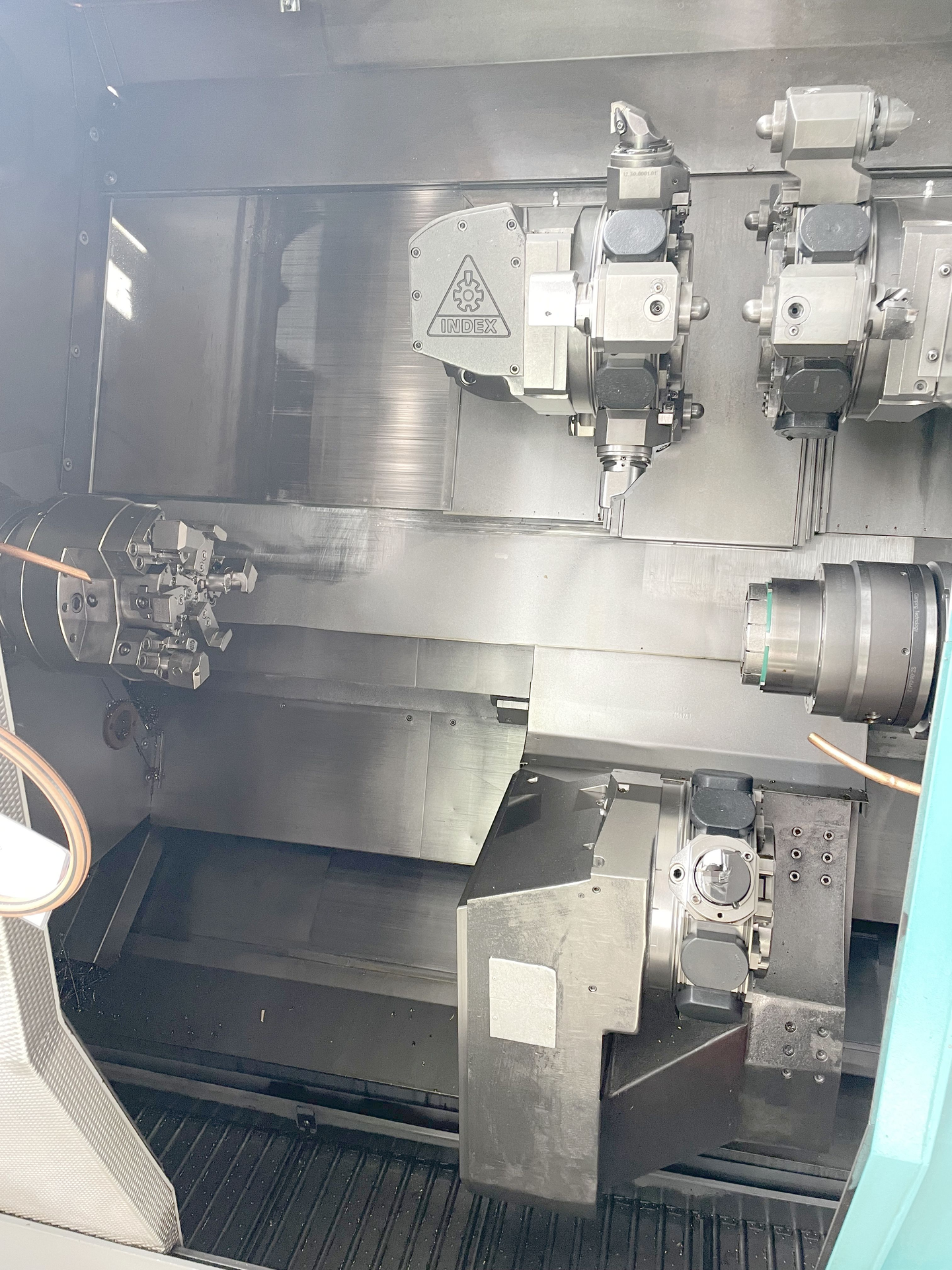

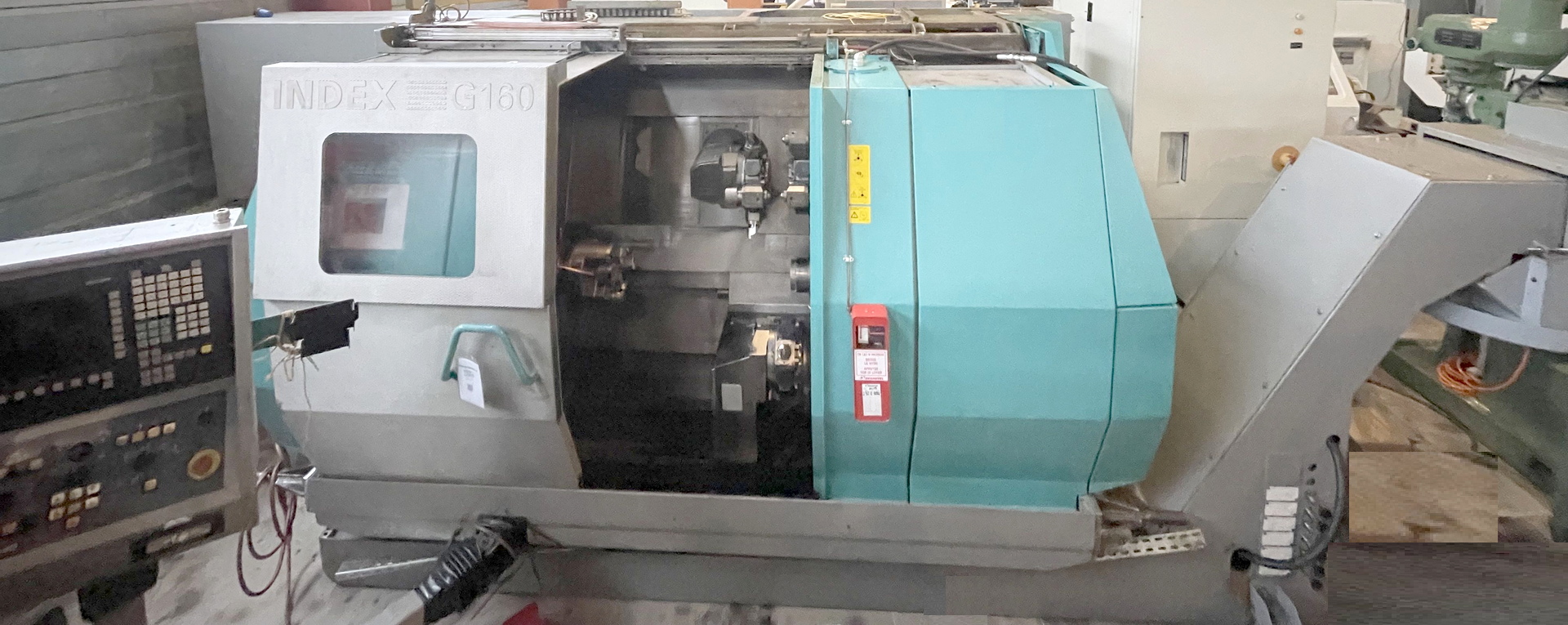

INDEX G 160 is a CNC Turning‑Milling‑Drilling Center engineered for high precision, accuracy and reliability. Capacities: 2 spindles, swing over bed 200 mm; 3 turrets with 10 positions each (lower turret 10). Specs: up to 6000 rpm, stepless 0–5000 rpm, spindle power 27 kW, driven tools 8 kW, C‑axis resolution 0.001°, supply 3×400 V 50 Hz, total power 43 kW; weight ~7500 kg; dimensions 3200×2100×2100 mm. Accessories: chip conveyor, foot pedal. Delivers tight tolerances; suited to automotive, aerospace, medical, watchmaking and machine‑tool sectors.
| Number of spindles | 2 |
| Number of revolvers | 3 |
| Swing over bed | 200 mm |

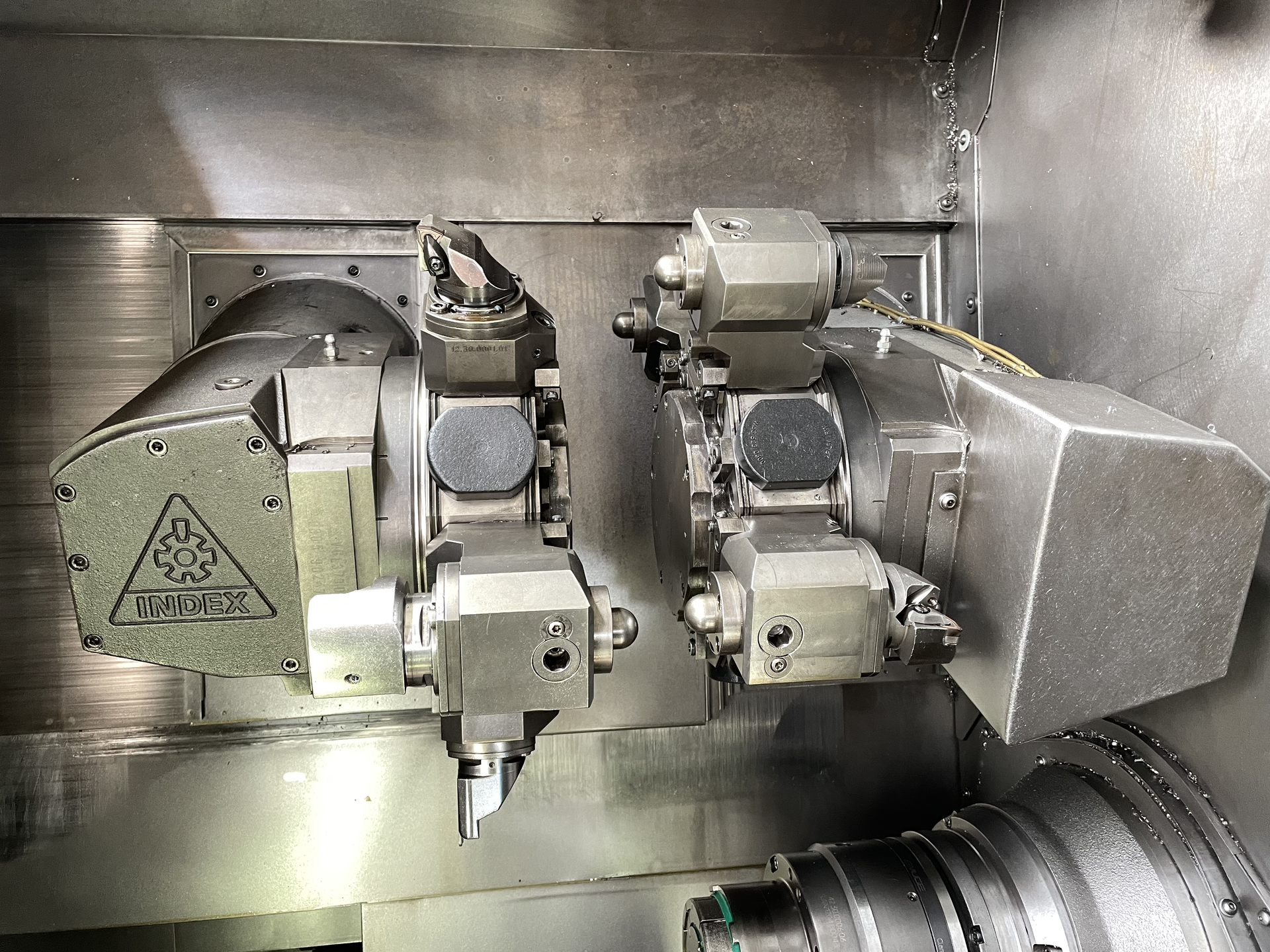

| Turret slide: | |
| Number of positions turret 1 | 10 |
| Number of positions turret 2 | 10 |
| Spindle nose: VDI | 25 |

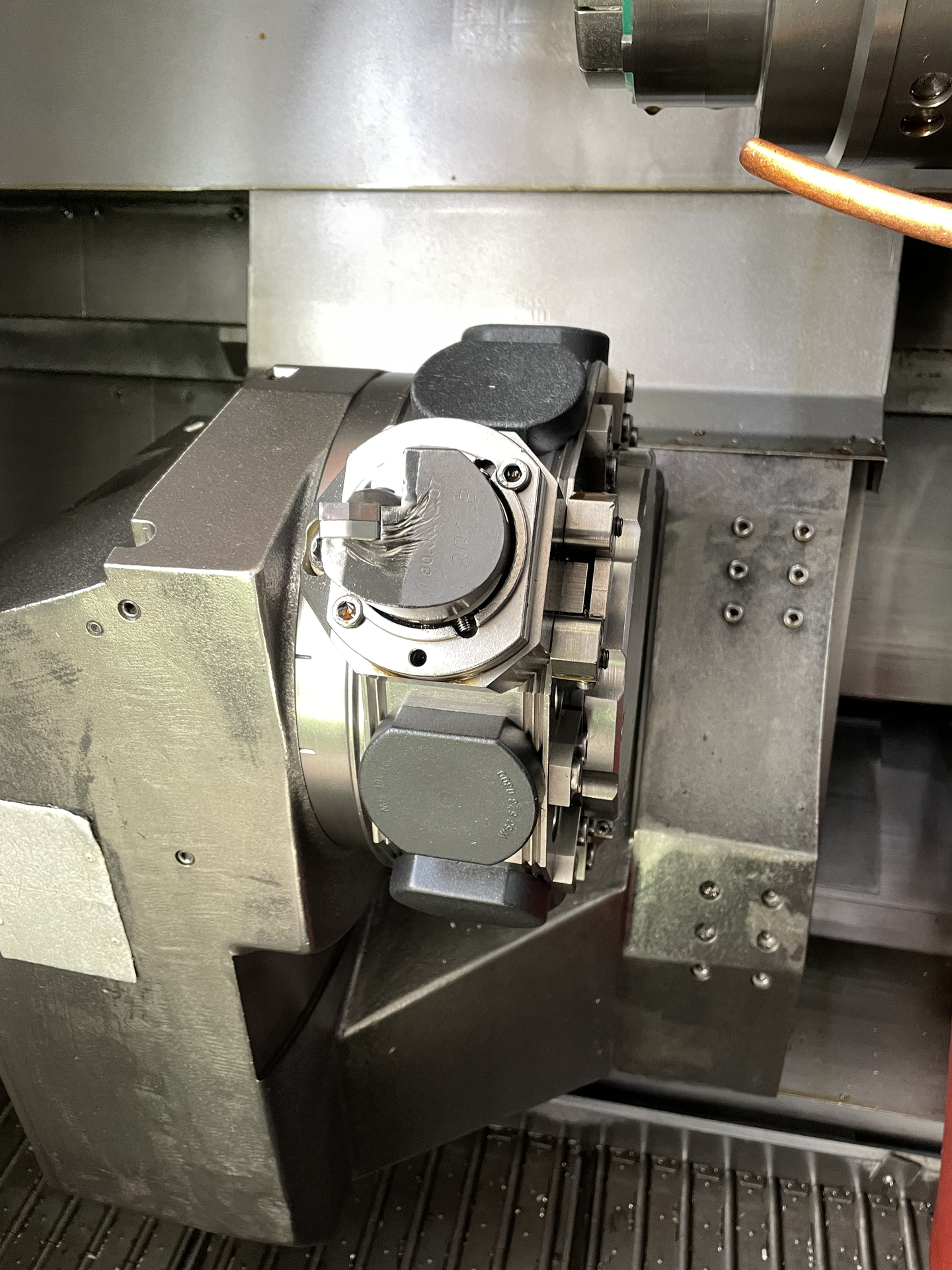

| Lower turret head: | |
| Number of positions | 10 |
| Spindle speeds | 6000 t/min |
| Power of driven tools | 8 kW |

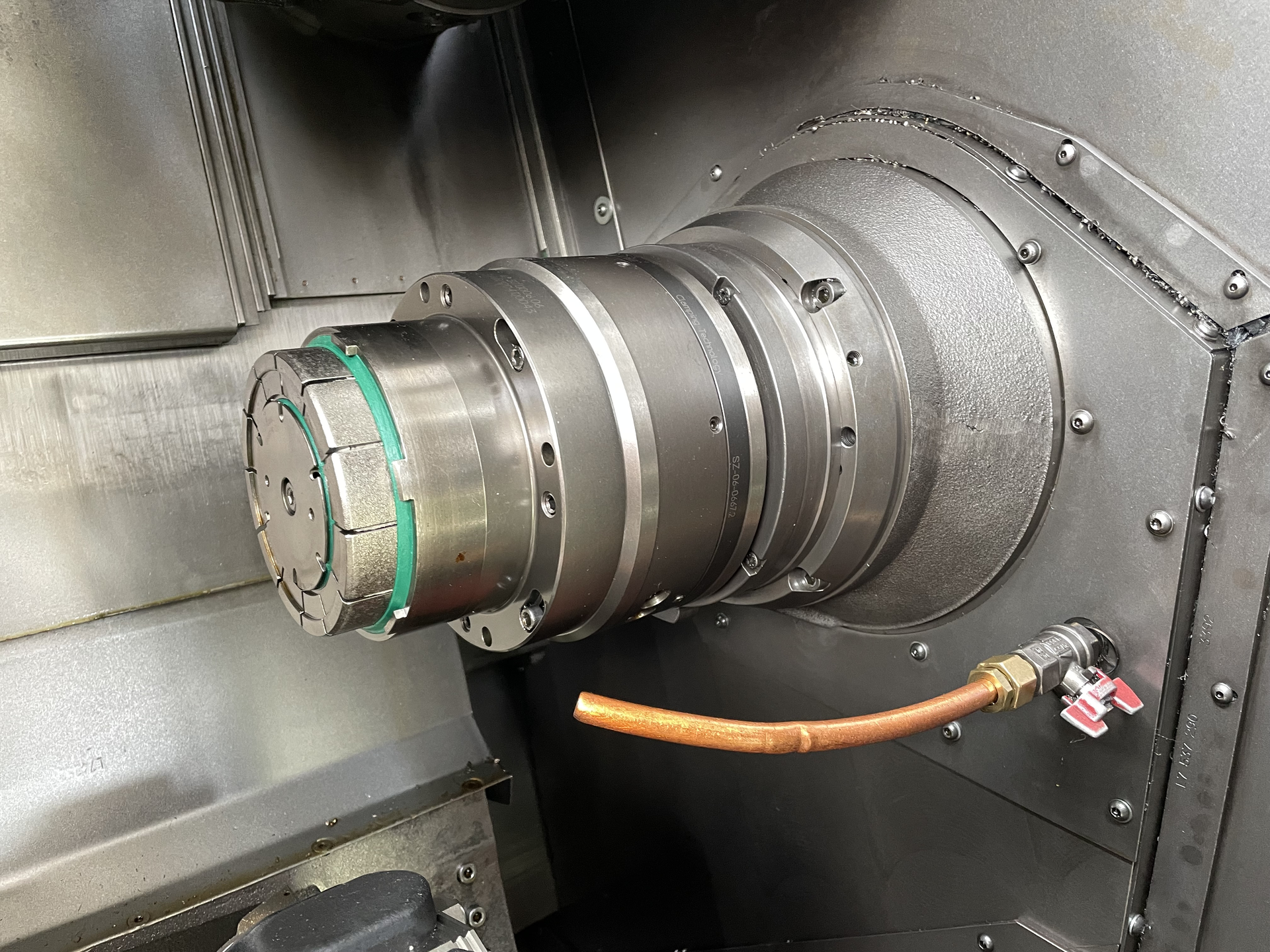

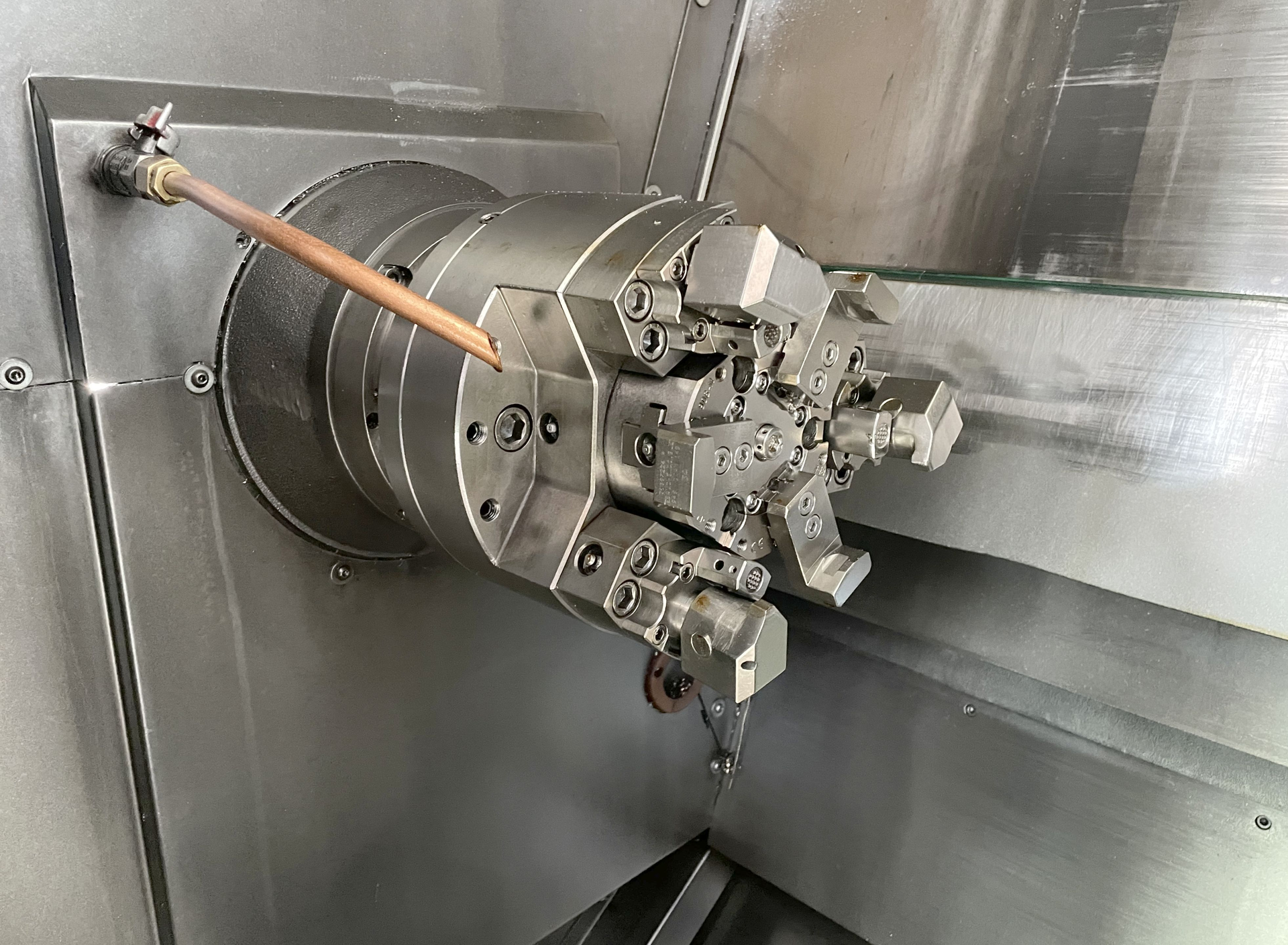

| Main spindle: | |
| C axis (spindle,resolution) | 0.001 ° |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 5000 t/min |
| Spindle power | 27 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 43 kW |
| Machine's weight about | 7500 kg |
| Overall dimensions machine: | |
| Length | 3200 mm |
| Width | 2100 mm |
| Height | 2100 mm |
| Various accessories: | |

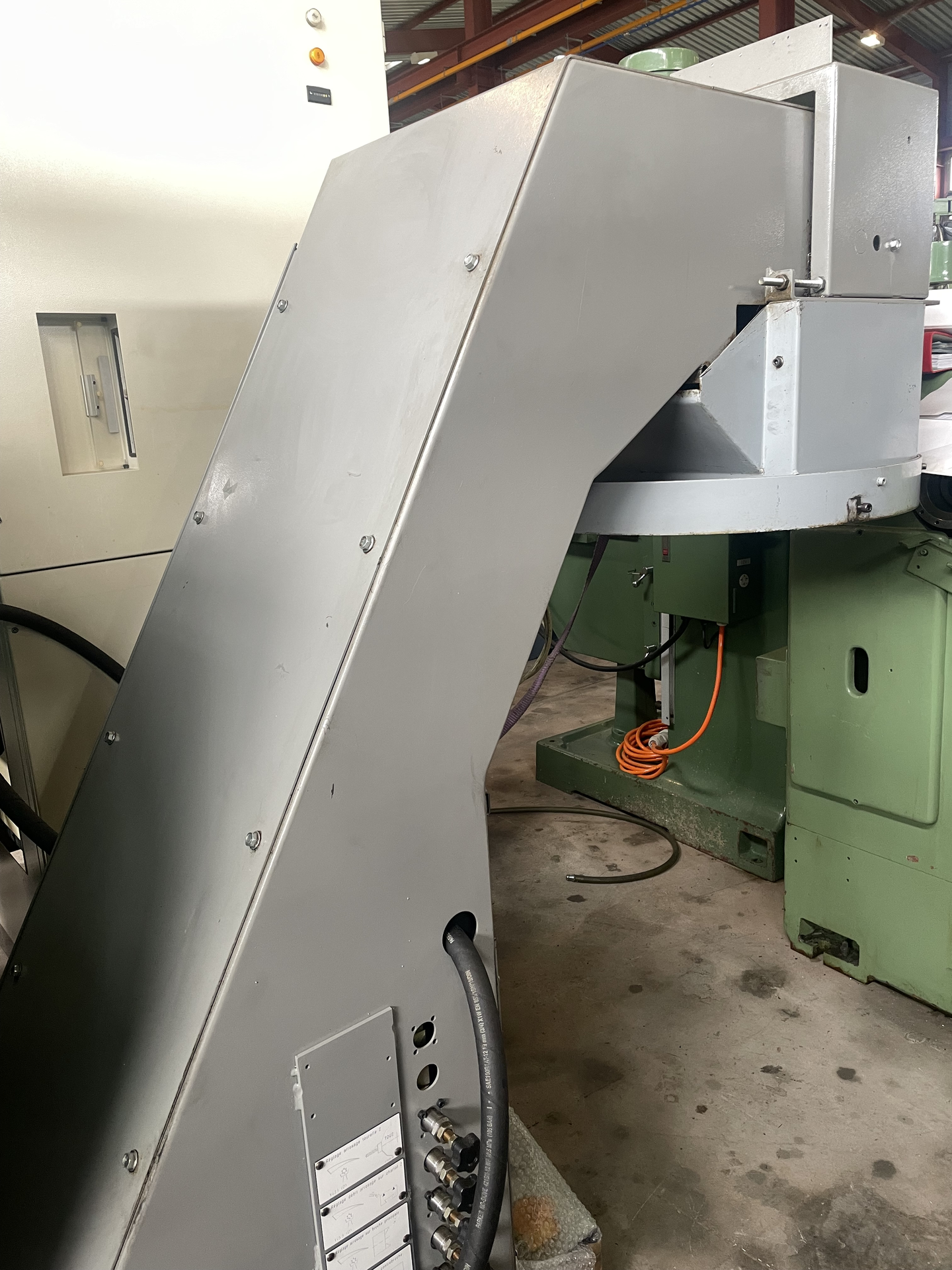

| Chip conveyor | |
| Foot pedal |
