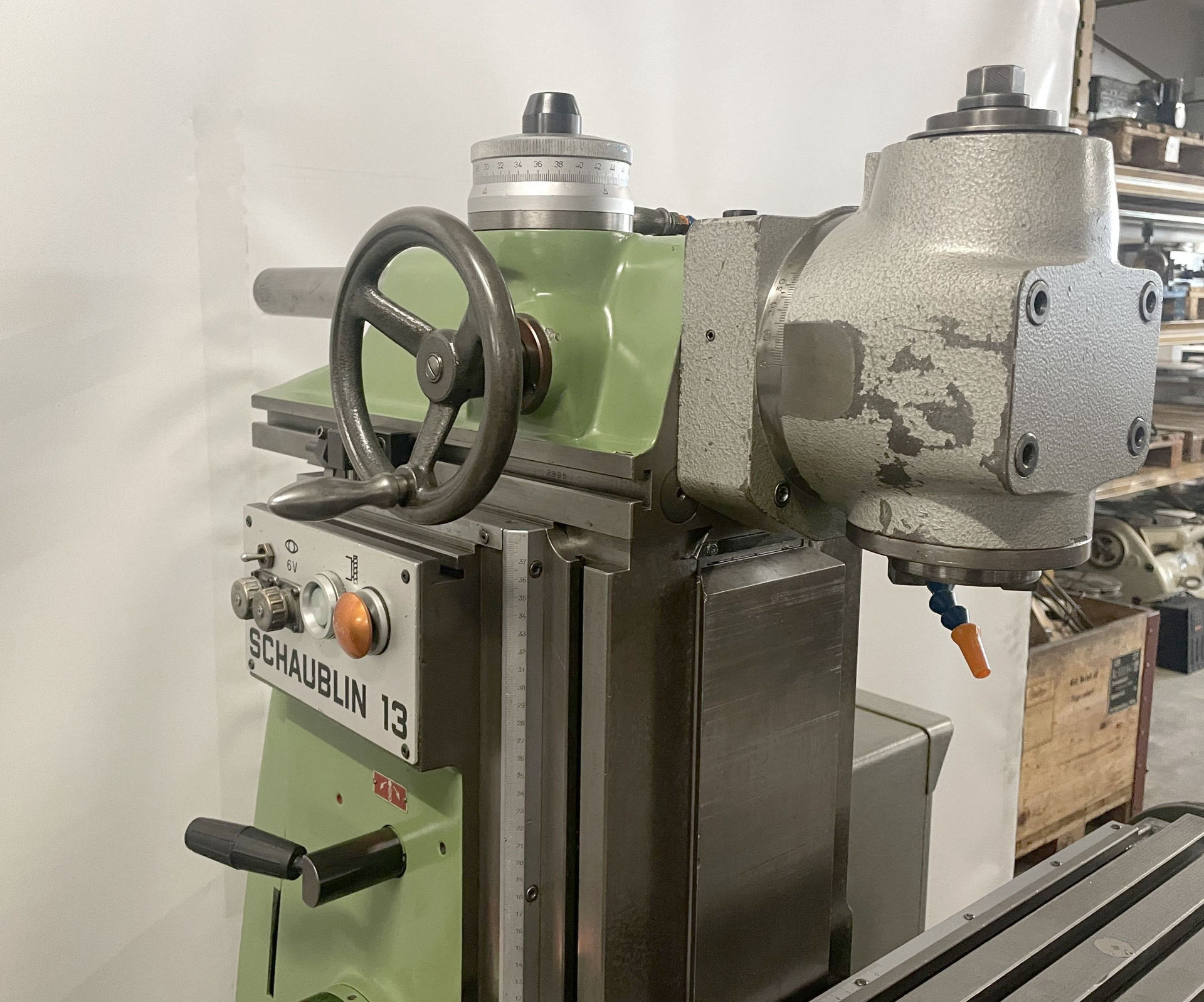

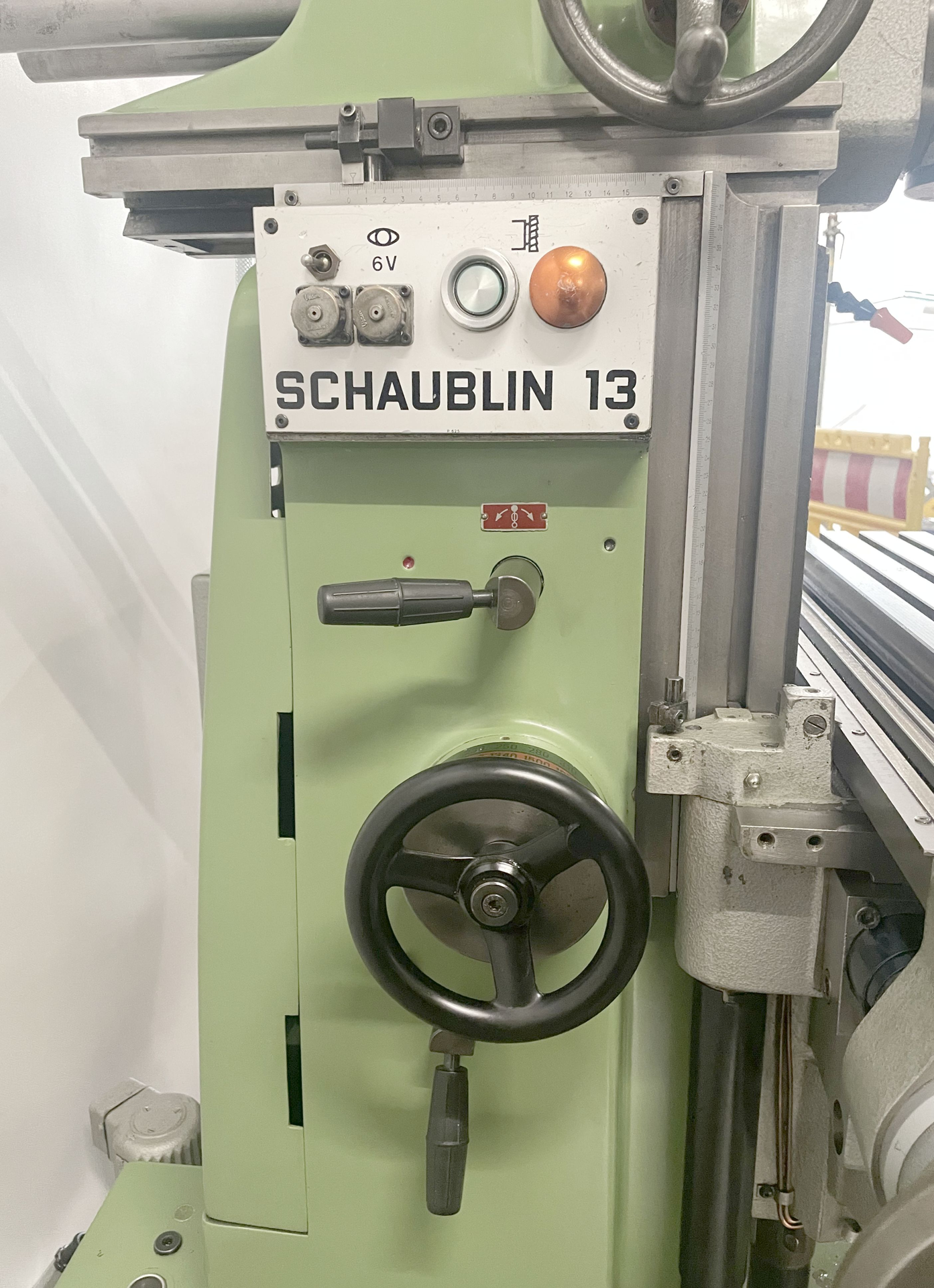

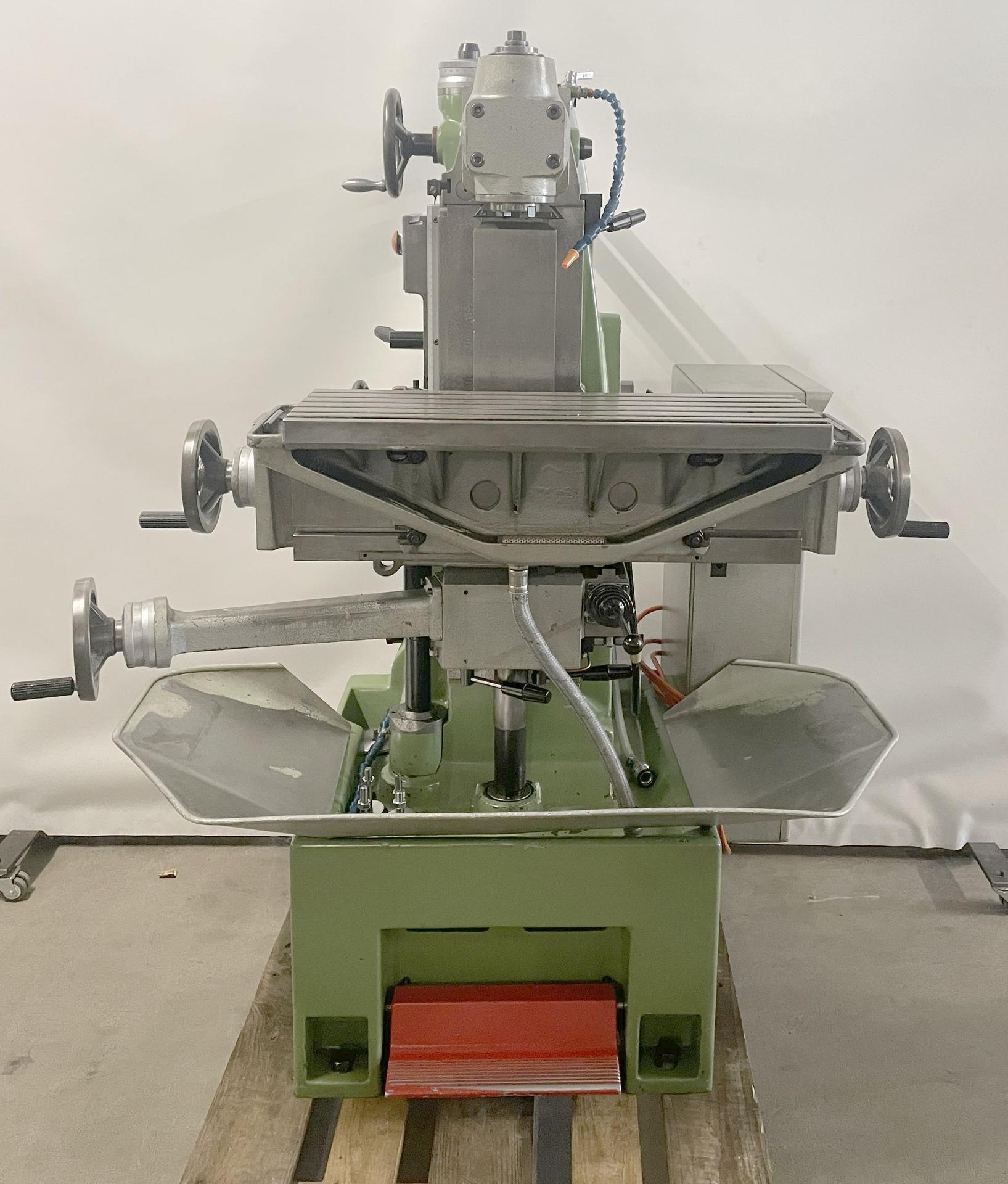

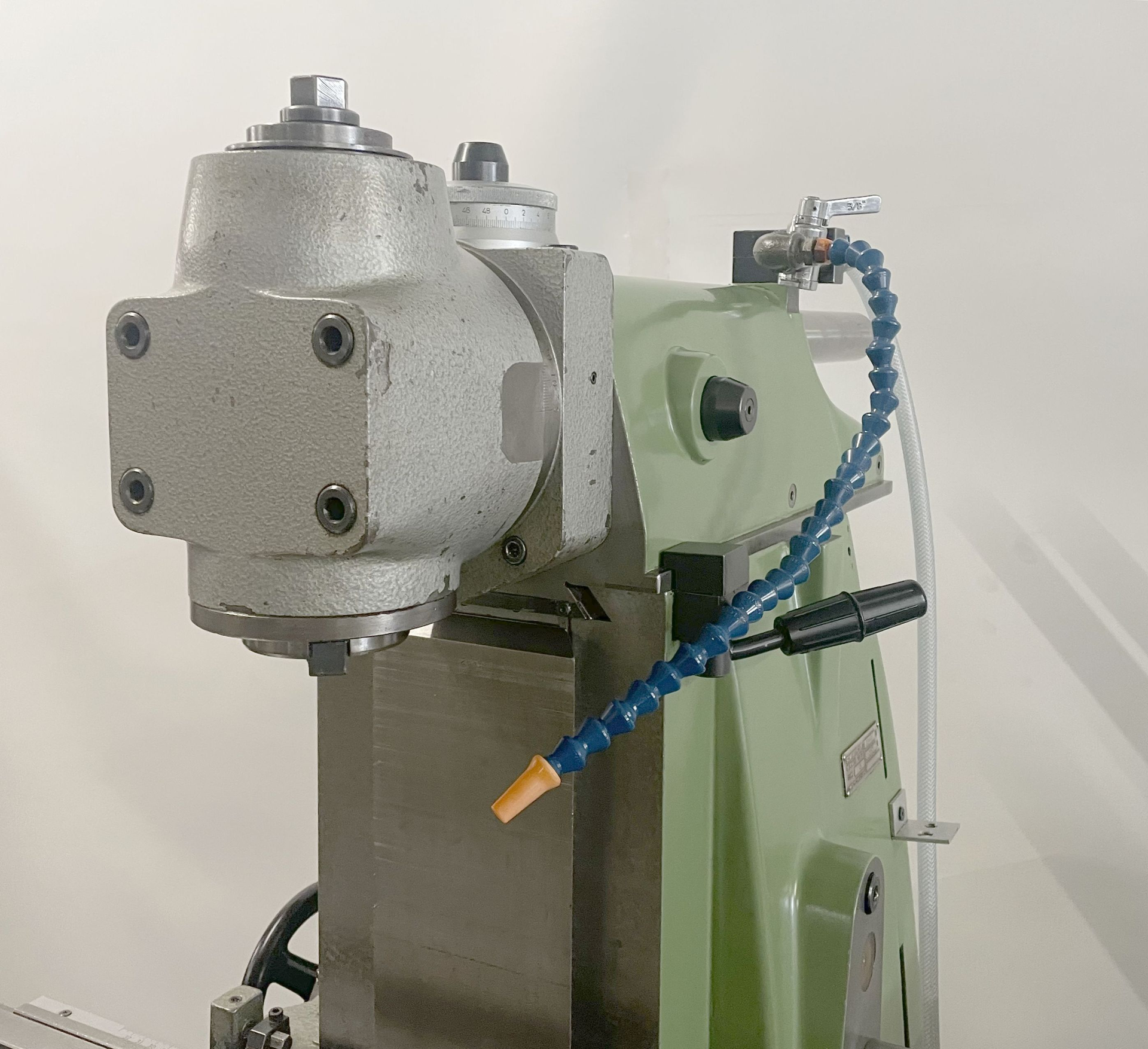

SCHAUBLIN 13 is a universal milling machine, engineered for precision machining with high accuracy and reliability. Table 630x200 mm; 5 T‑slots 12H7 mm spacing 120 mm; travels X 320 mm Y 150 mm Z 375 mm; distance vertical spindle‑table 310 mm, horizontal spindle‑table 410 mm. Stepless spindle speeds 58–2000 t/min; spindle taper ISO40; 10 feed steps 12–400 mm/min (long./vert.); rapid traverse 1 m/min; power 3x380V 50Hz; motor 2 CV; weight ~700 kg; dimensions 1500x1100x1600 mm. Equipped with set of toolholders. Capable of tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.

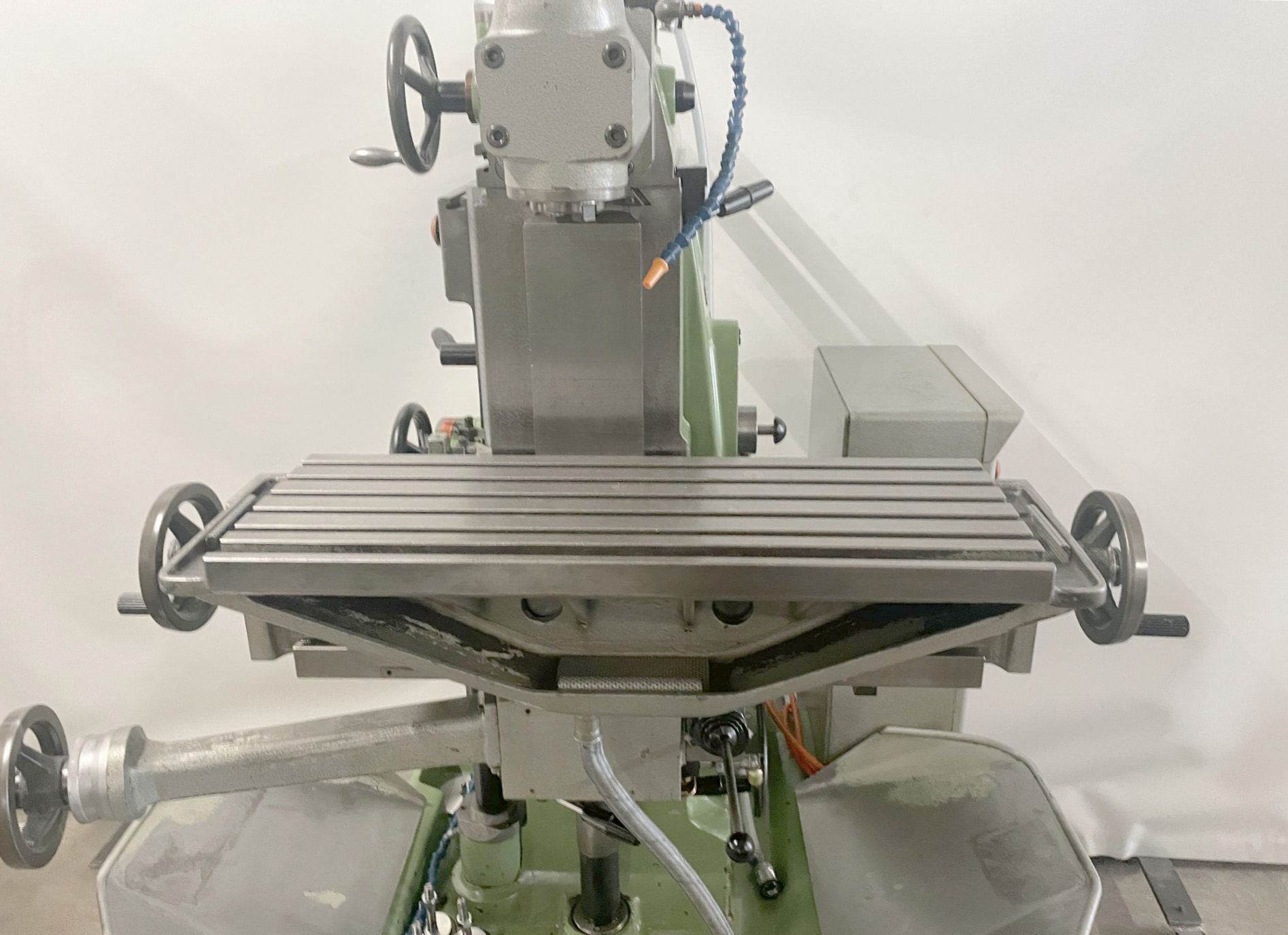

| Table length | 630 mm |
| Table width | 200 mm |
| Number of T-channels | 5 |
| T-channel width | 12H7 mm |
| Distance of the T-slots | 120 mm |
| Longitudinal travel (X-axis) | 320 mm |
| Transversal travel (y axis) | 150 mm |
| Vertical travel (z axis) | 375 mm |
| Distance from vertical spindle to table | 310 mm |
| Distance from horizontal spindle to table | 410 mm |
| Spindle speeds: | |
| stepless | |
| from | 58 t/min |
| up to | 2000 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 10 |
| longitudinal from | 12 mm/min |
| up to | 400 mm/min |
| vertical from | 12 mm/min |
| up to | 400 mm/min |
| Rapid traverse: | 1 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2 CV |
| Total power required | 2 CV |
| Machine's weight about | 700 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1100 mm |
| Height | 1600 mm |
| Various accessories: | |

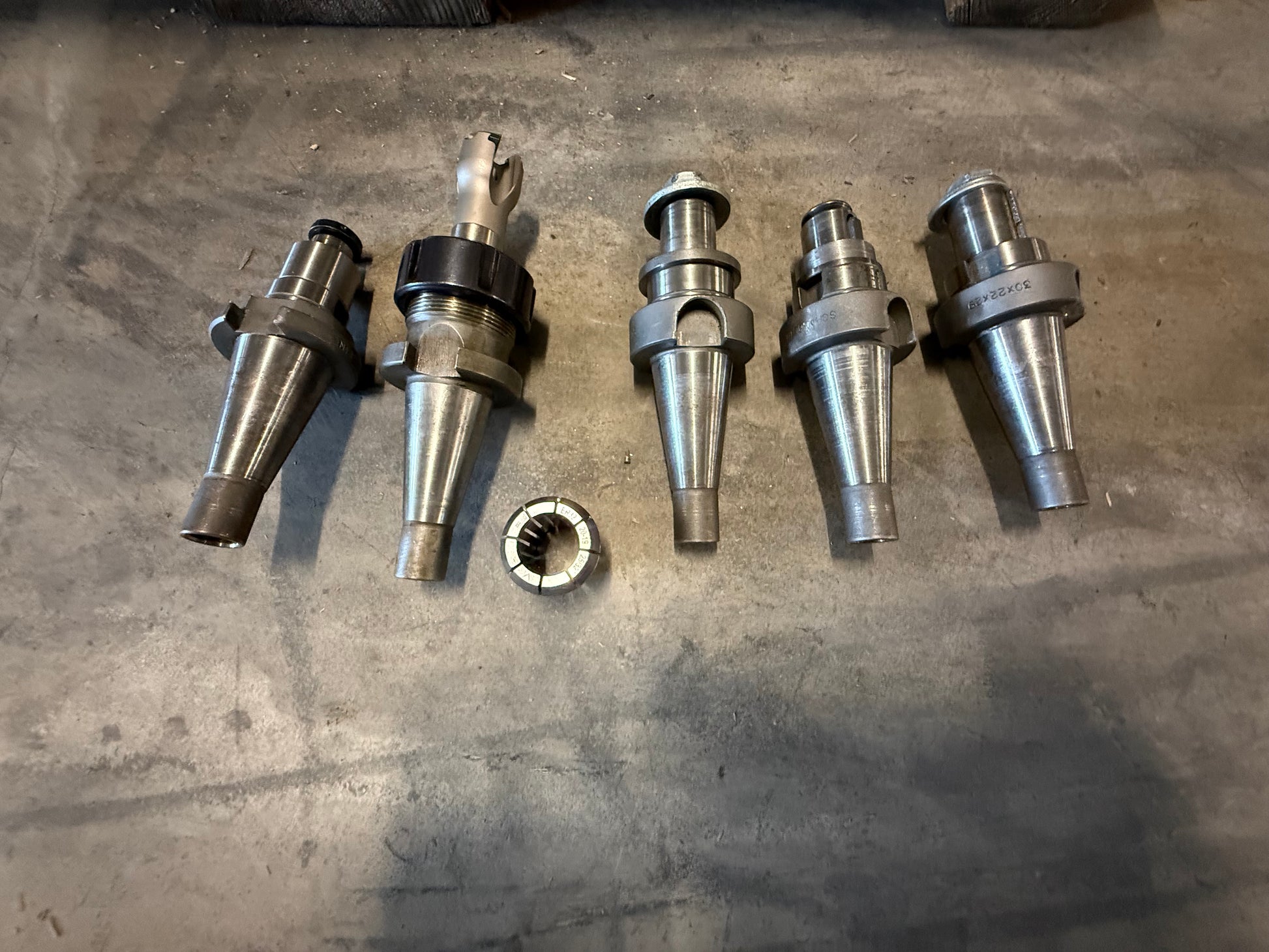

| Set of toolholders |
