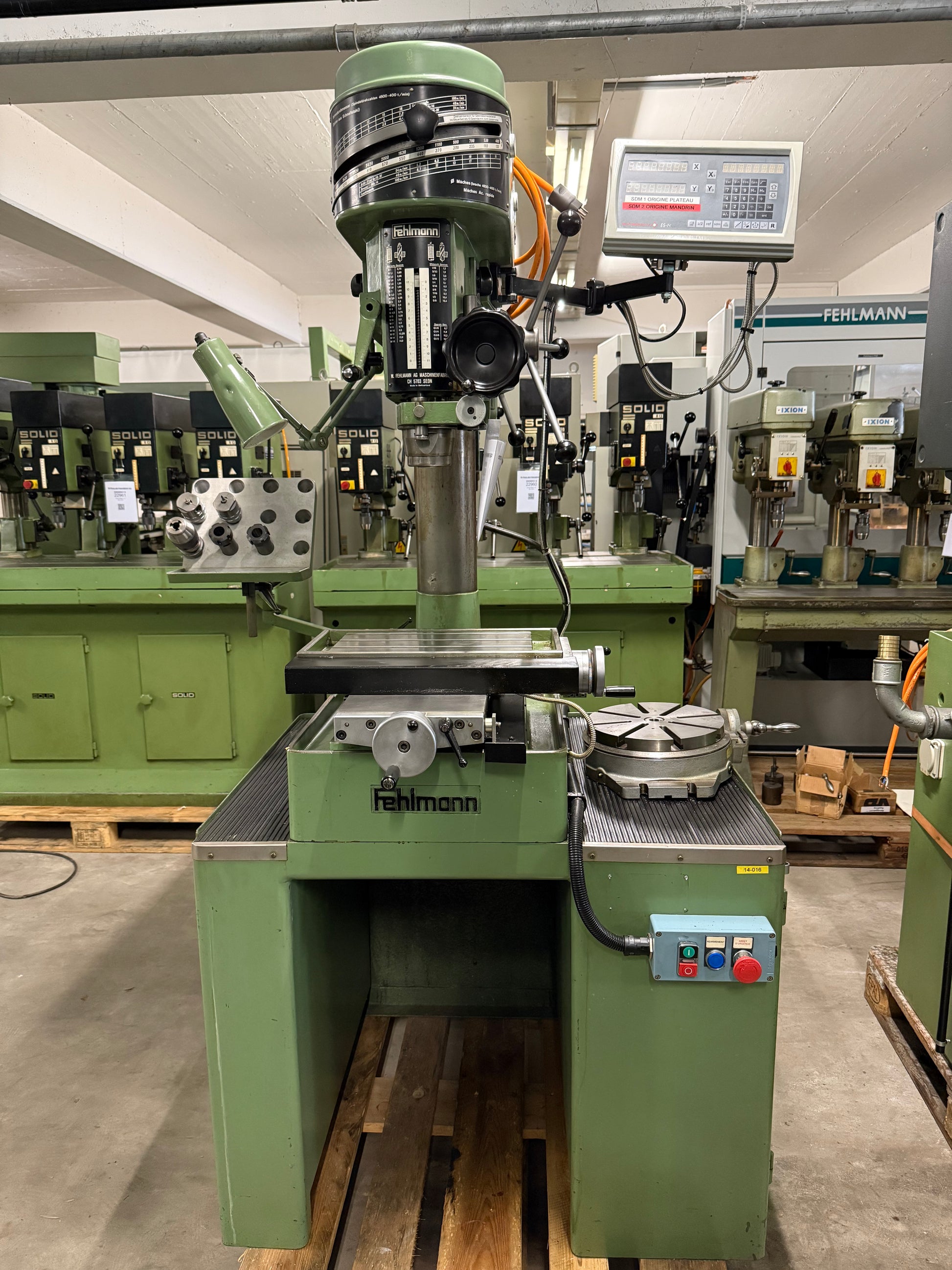

FEHLMANN P 18 S
Type: P 18 S
Manufacturer: FEHLMANN
Subgroup: Bench drill
Stock: 022889
Download technical sheet (PDF)
FEHLMANN P 18 S is a Bench drill providing precision, high accuracy and reliable performance for workshop and production use. Capacities: drill capacity in steel 18 mm; table 300 x 300 mm; depth of throat 225 mm; spindle stroke 100 mm; distance table–spindle nose max 650 mm. Main specs: stepless spindle speeds from 132 to 4500 t/min; 3x 380 V 50 Hz supply; spindle motor 4 CV; overall dimensions L900 x W400 x H1200 mm. Equipment: drill chuck, lamp, tool storage, digital readout (2 axes), rotary table Ø250 mm, set of toolholders, centering microscope. Achieves tight tolerances; suitable for watchmaking, precision components, aerospace, medical and automotive sectors.

Drill capacity in steel 18 mm
Table length 300 mm
Table width 300 mm
Depth of throat 225 mm
Spindle stroke 100 mm
Spindle speeds:
   stepless
   from 132 t/min
   up to 4500 t/min
Distance from table to spindle nose:
   min. mm
   max 650 mm
Voltage 50 Hz 3x 380 Volt
Spindle motor 4 CV
Overall dimensions machine:
   Length 900 mm
   Width 400 mm
   Height 1200 mm
Various accessories:
Drill chuck
Lamp
Tool storage

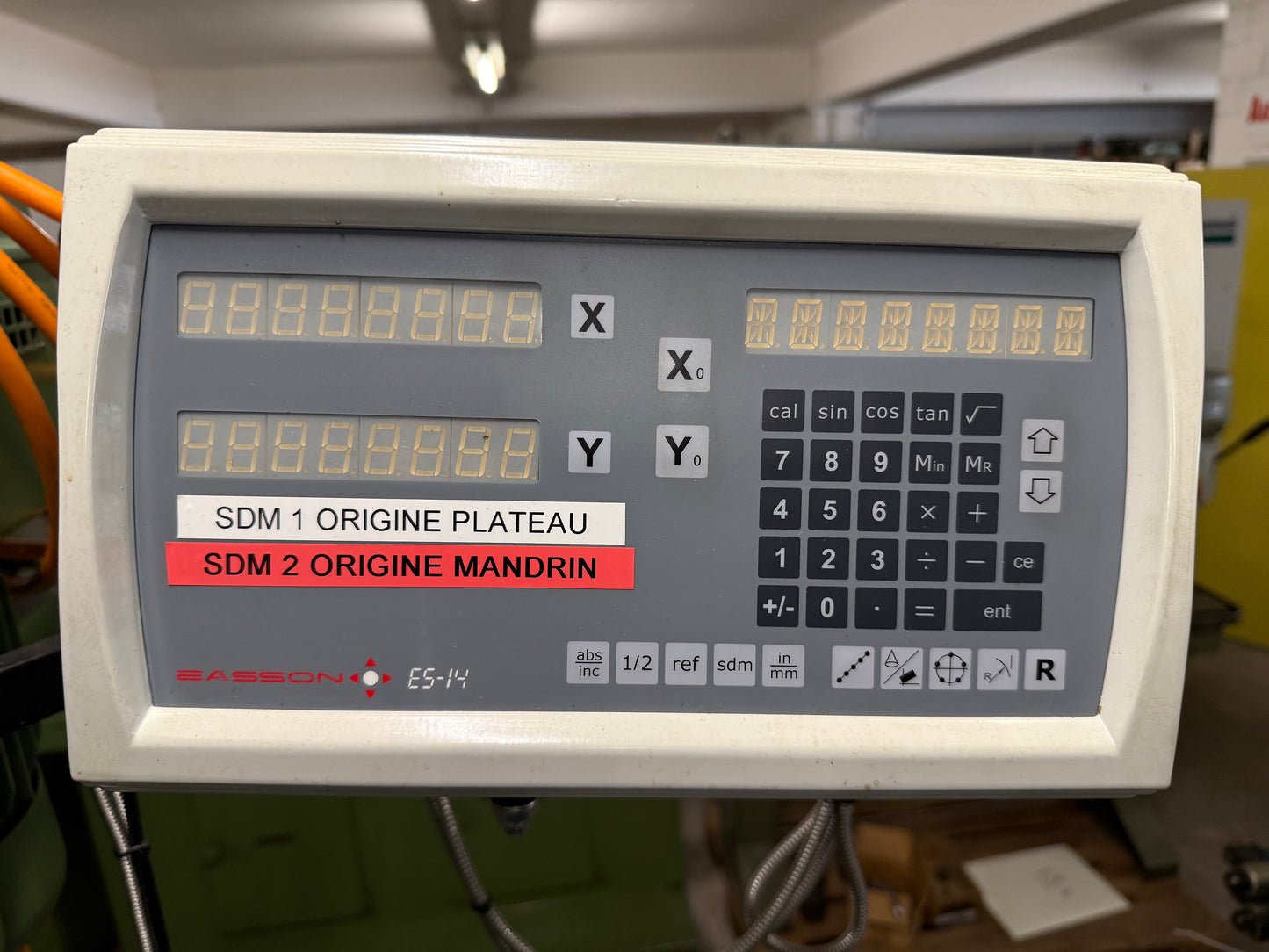

Digital readout number of axis: 2

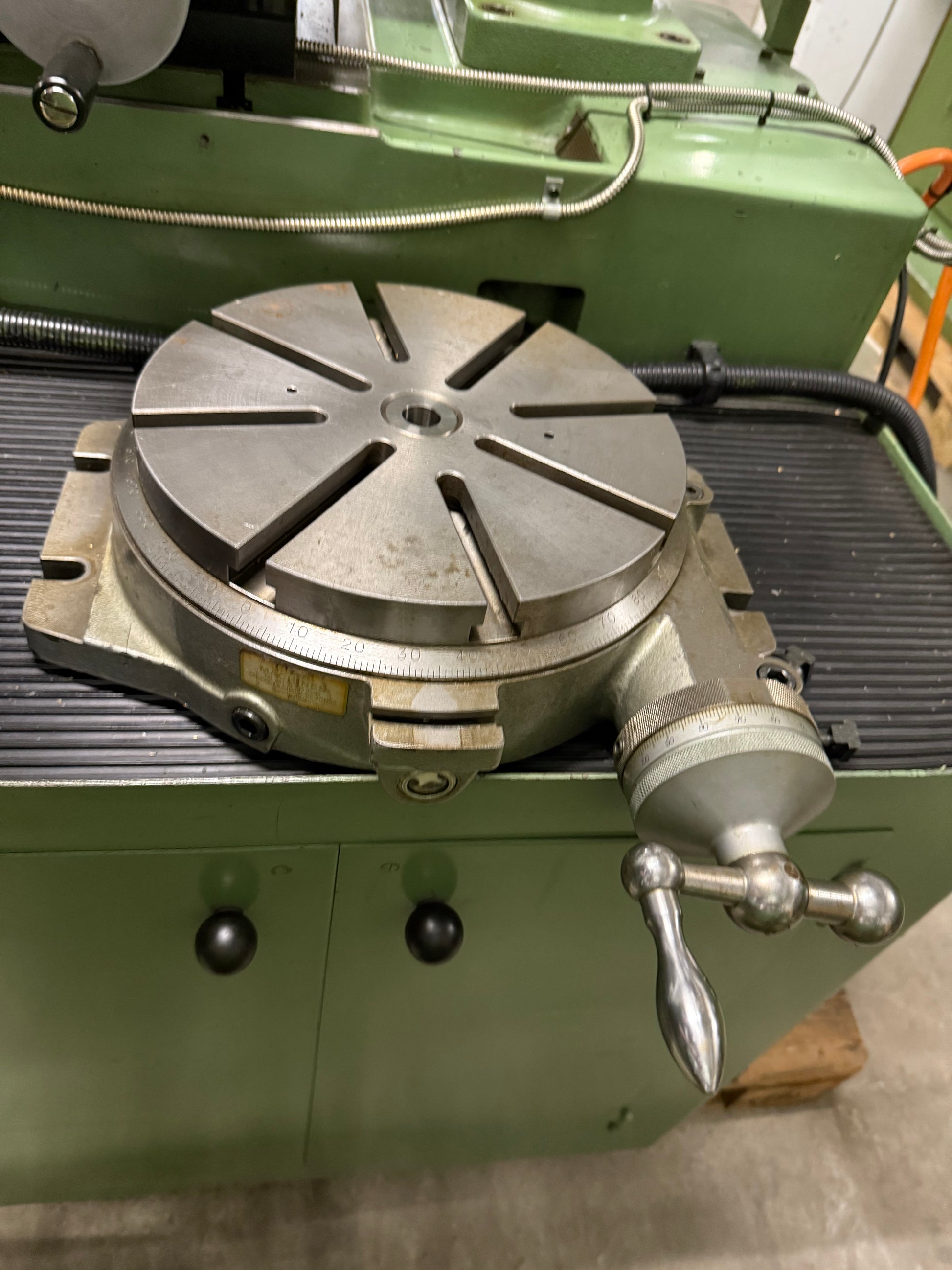

Rotary table diameter 250 mm

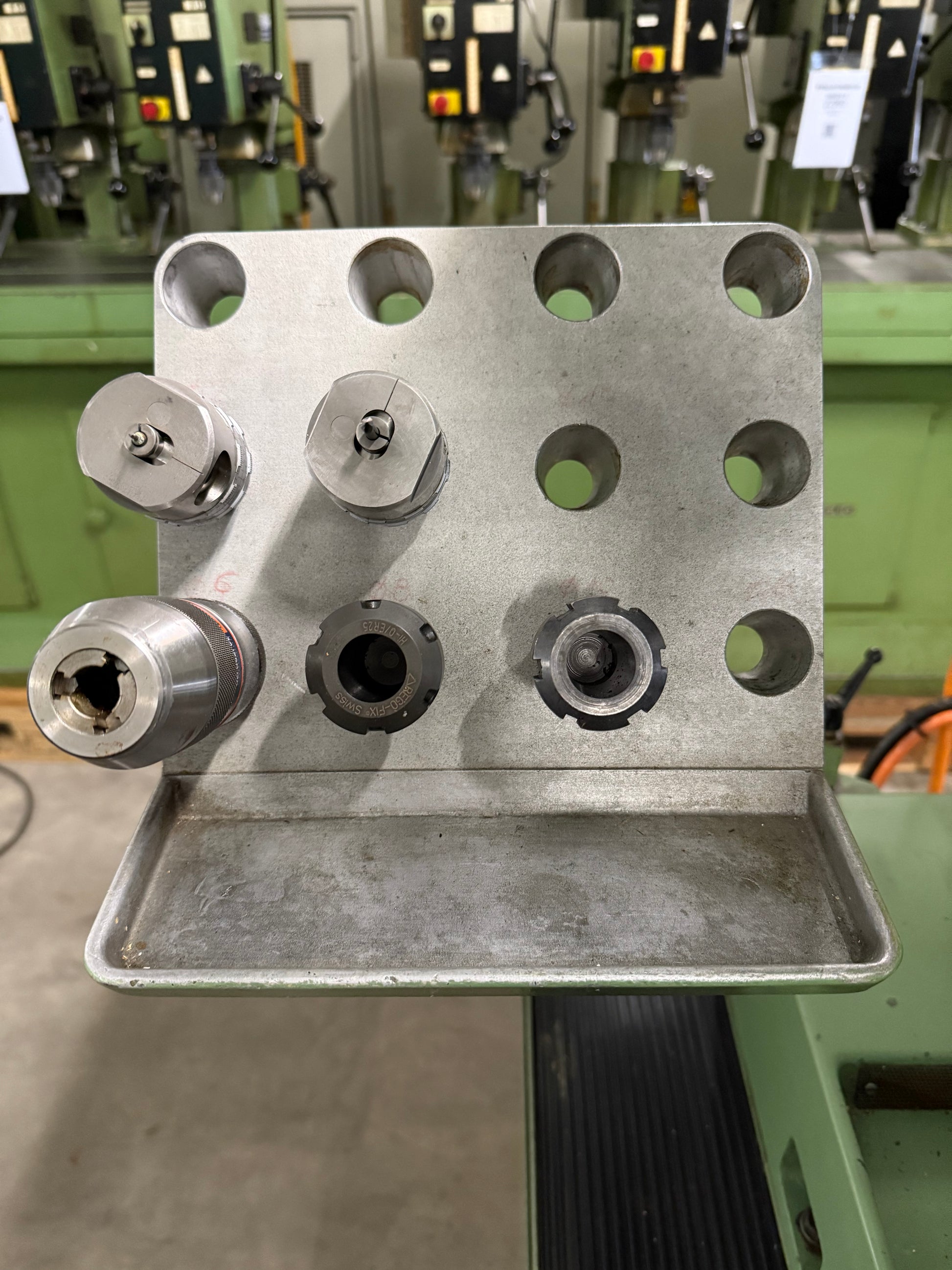

Set of toolholders

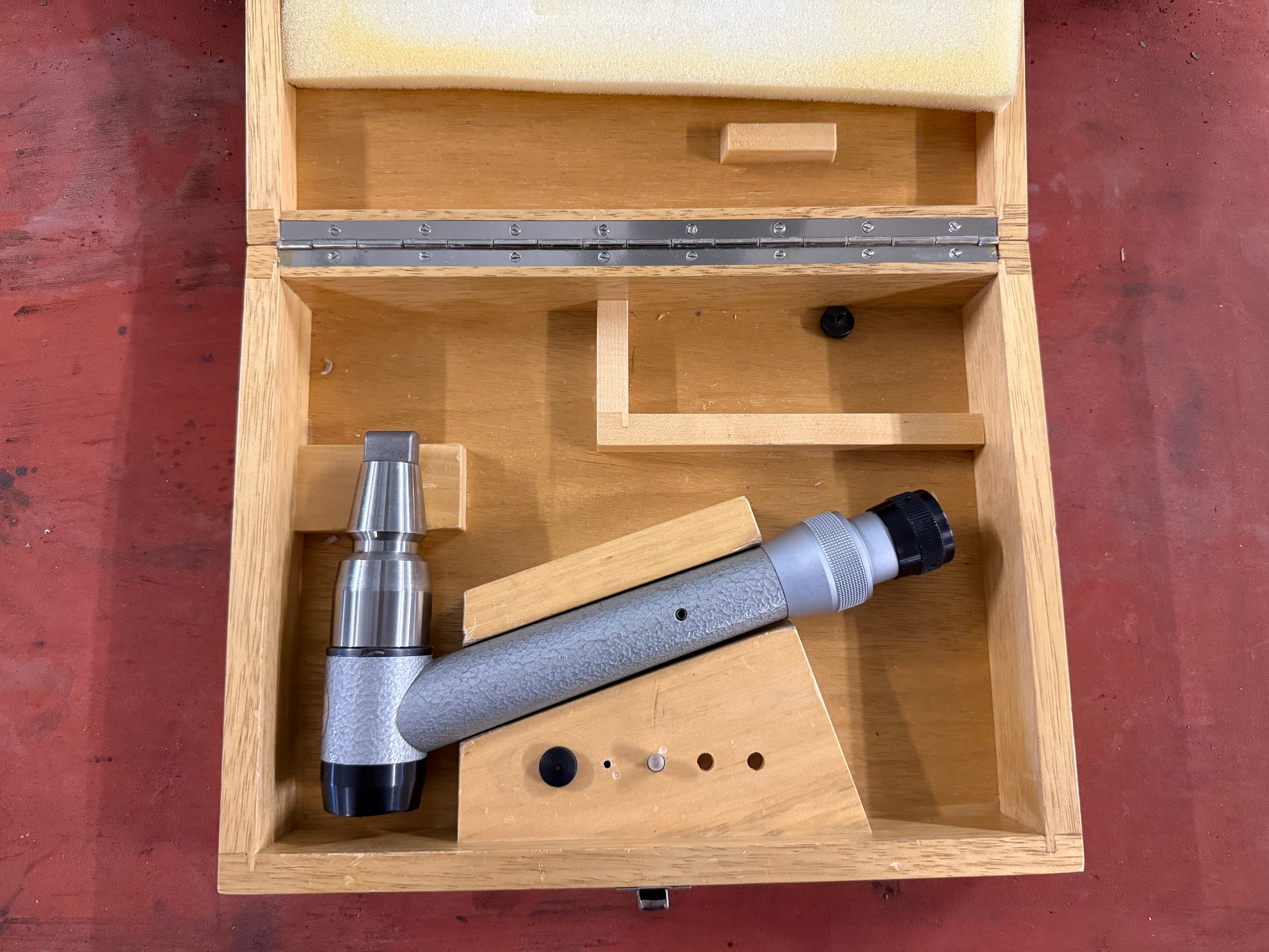

Centering microscop
