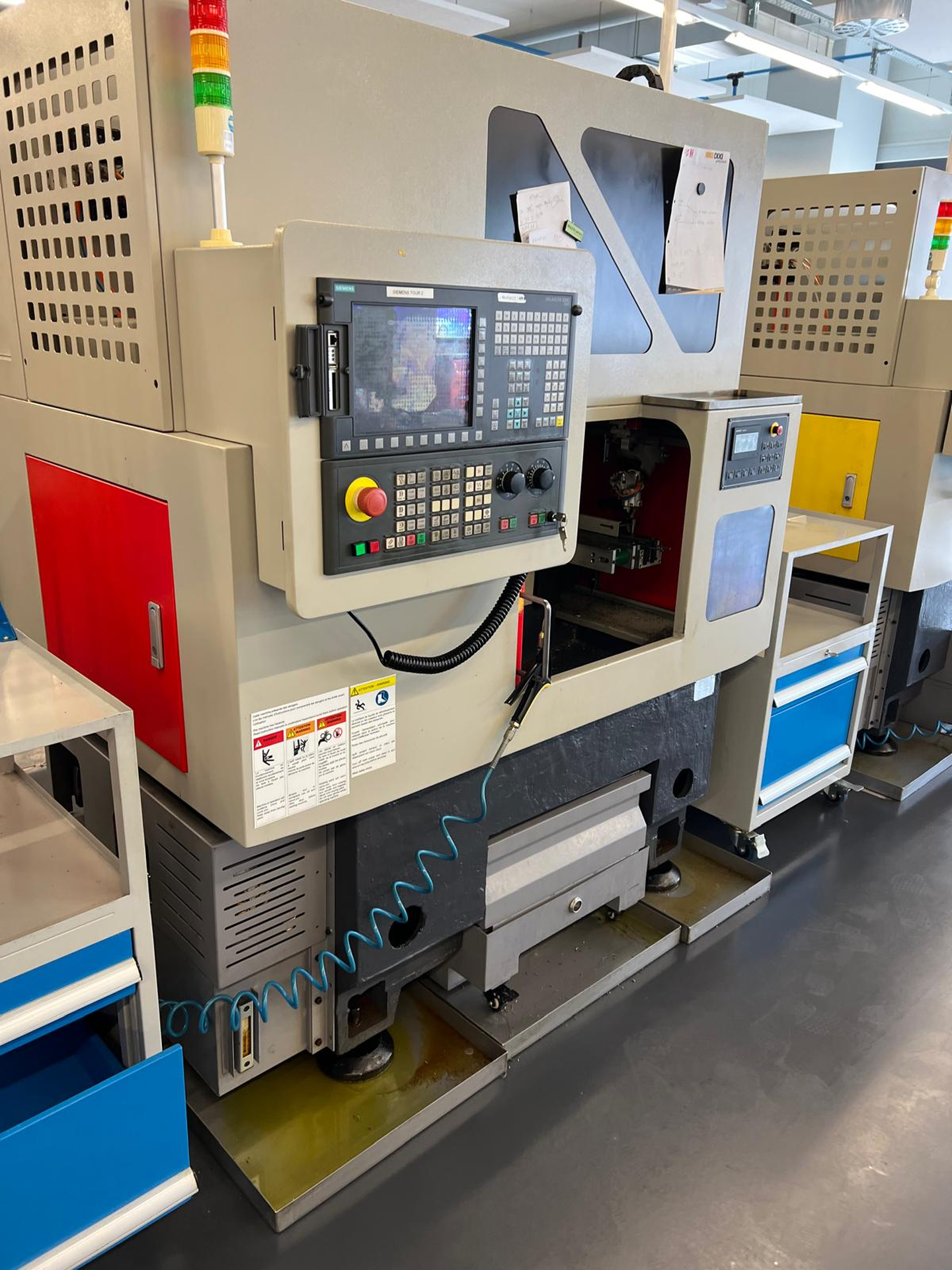

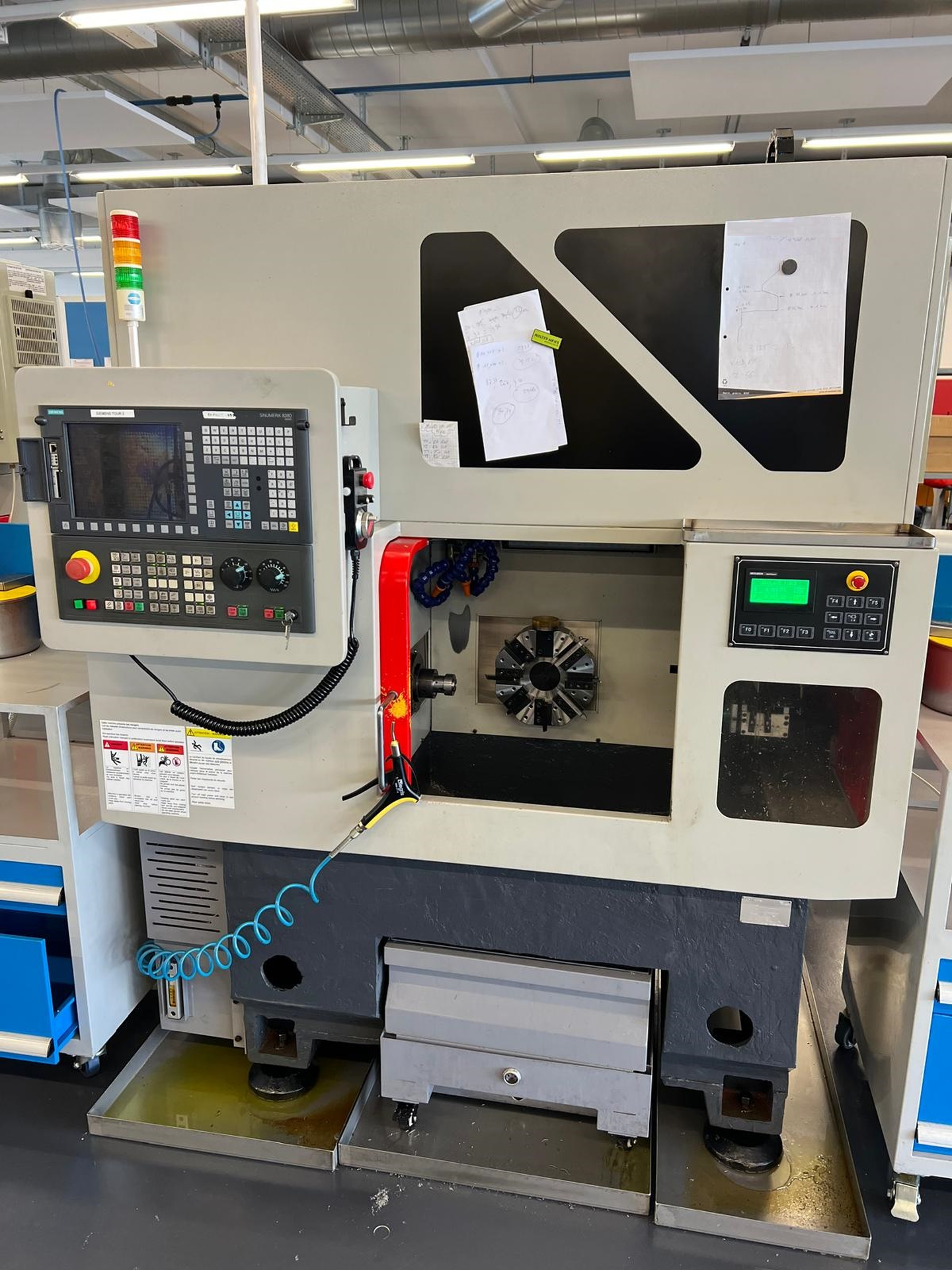

JING YE CK09-R is a CNC Frontal lathe, designed for precision, high accuracy and reliable operation. Working capacities: 2 axes total, 1 spindle, 1 turret with 8 positions and 8 fixed tools. Main specifications: 50 Hz 3x 380 Volt supply, total power 5 kW; overall dimensions L1900×W1600×H1900 mm; machine weight approx. 1550 kg. Accessories: lamp, coolant system, workpiece loader, electronic handwheel, Ethernet and USB interfaces, workpiece conveyor, switch‑cabinet air conditioner, status light. Enables tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 2 |
| Number of spindles | 1 |
| Number of revolvers | 1 |
| Turret slide: | |
| Number of positions | 8 |
| Fixed tools turret | 8 |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 5 kW |
| Machine's weight about | 1550 kg |
| Overall dimensions machine: | |
| Length | 1900 mm |
| Width | 1600 mm |
| Height | 1900 mm |
| Various accessories: | |
| Lamp | |
| Coolant system | |
| Workpiece loader | |
| Handwheel electroinic | |
| Interface Ethernet | |
| Interface USB | |
| Workpiece conveyor | |
| Switch cabinet Air conditioner | |
| Status light |
