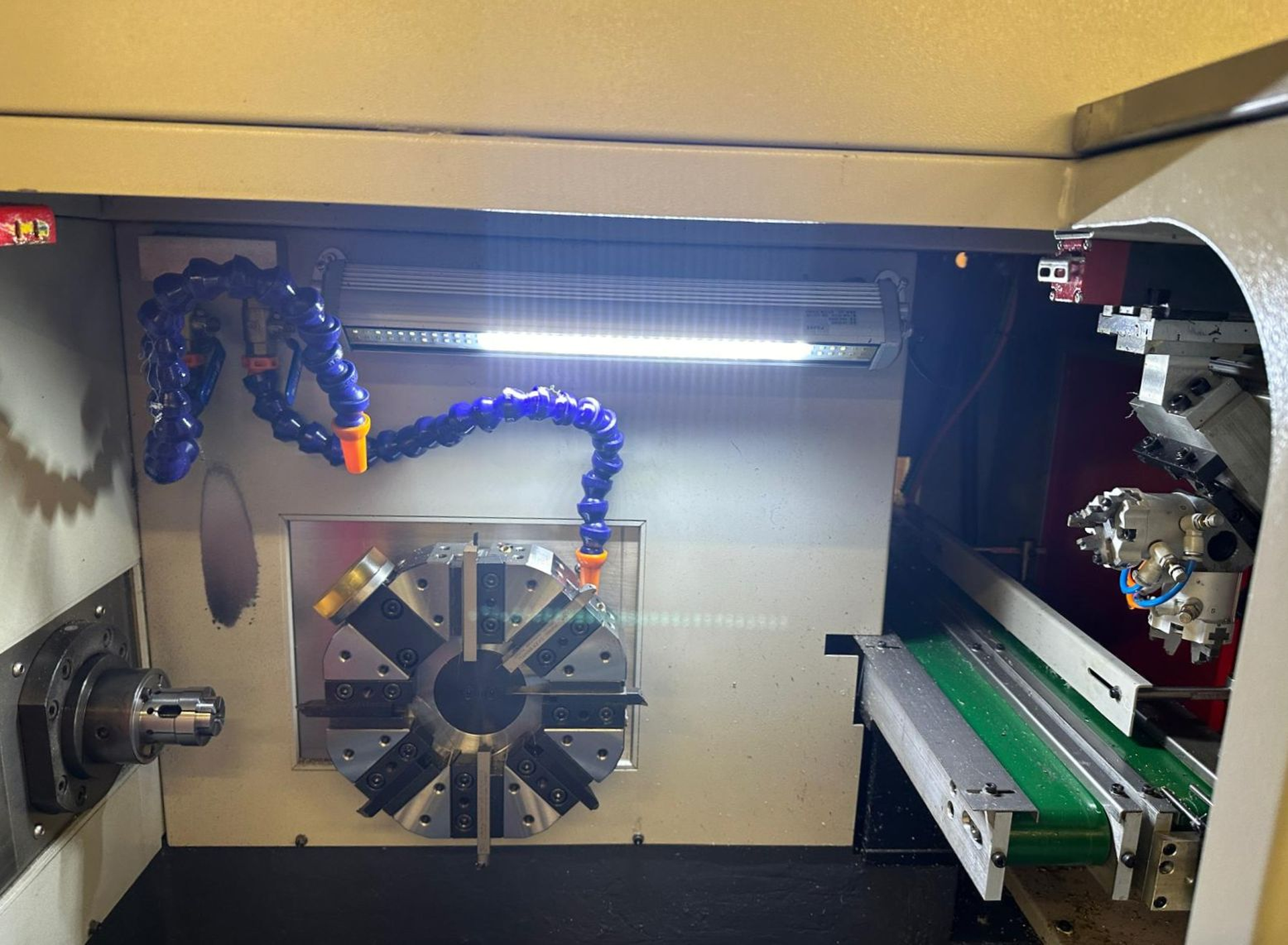

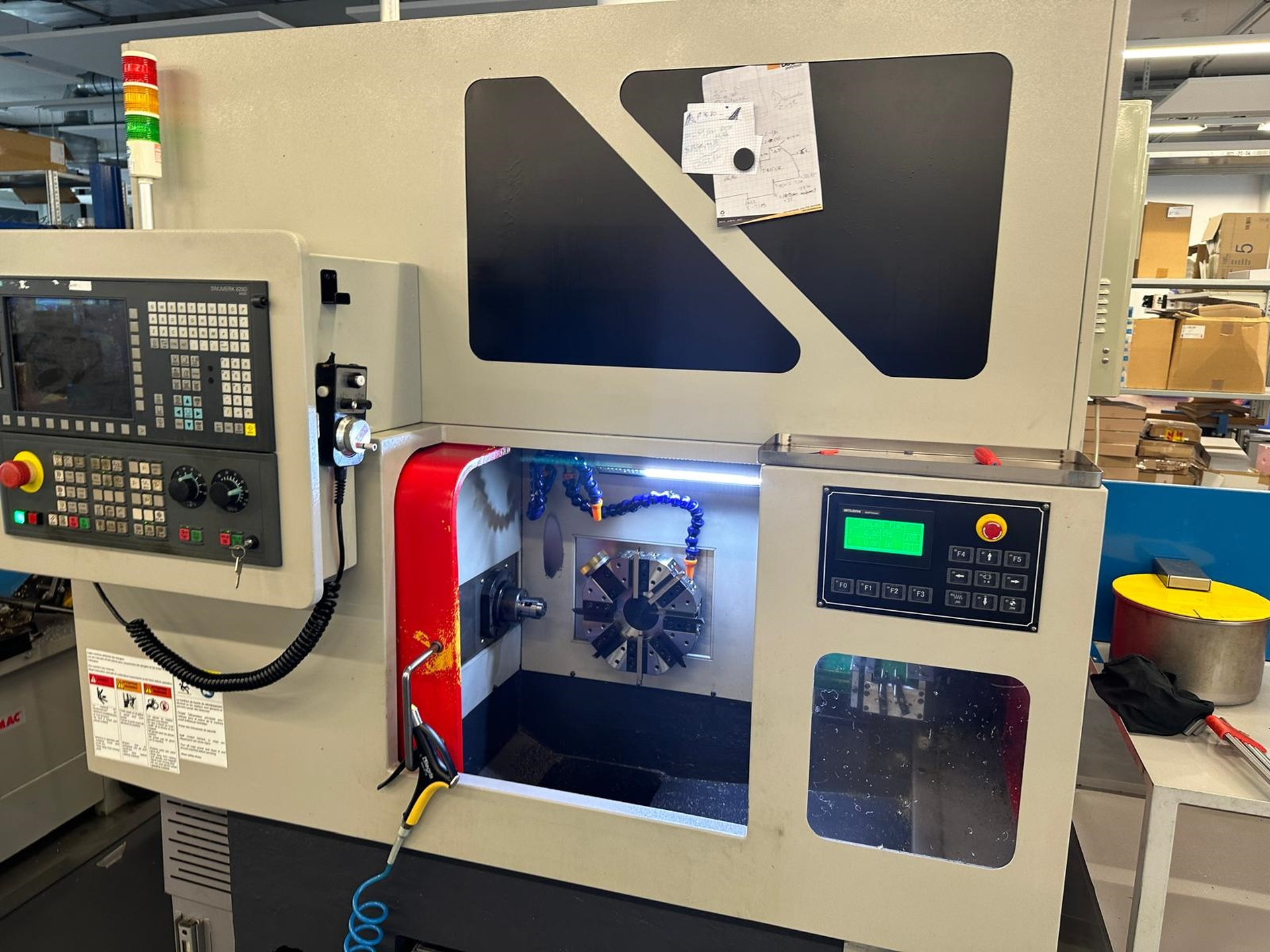

JING YE CK09-R is a CNC frontal lathe for precision, high accuracy and reliability. 2 axes, 1 spindle, turret 1×8 positions with 8 fixed tools. Supply 3×380V 50Hz, total power 5 kW; weight ~1550 kg; dims 1900×1600×1900 mm. Accessories: lamp, coolant, workpiece loader, electronic handwheel, Ethernet, USB, conveyor, status light. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 2 |
| Number of spindles | 1 |
| Number of revolvers | 1 |
| Turret slide: | |
| Number of positions | 8 |
| Fixed tools turret | 8 |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 5 kW |
| Machine's weight about | 1550 kg |
| Overall dimensions machine: | |
| Length | 1900 mm |
| Width | 1600 mm |
| Height | 1900 mm |
| Various accessories: | |
| Lamp | |
| Coolant system | |
| Workpiece loader | |
| Handwheel electroinic | |
| Interface Ethernet | |
| Interface USB | |
| Workpiece conveyor | |
| Status light |
