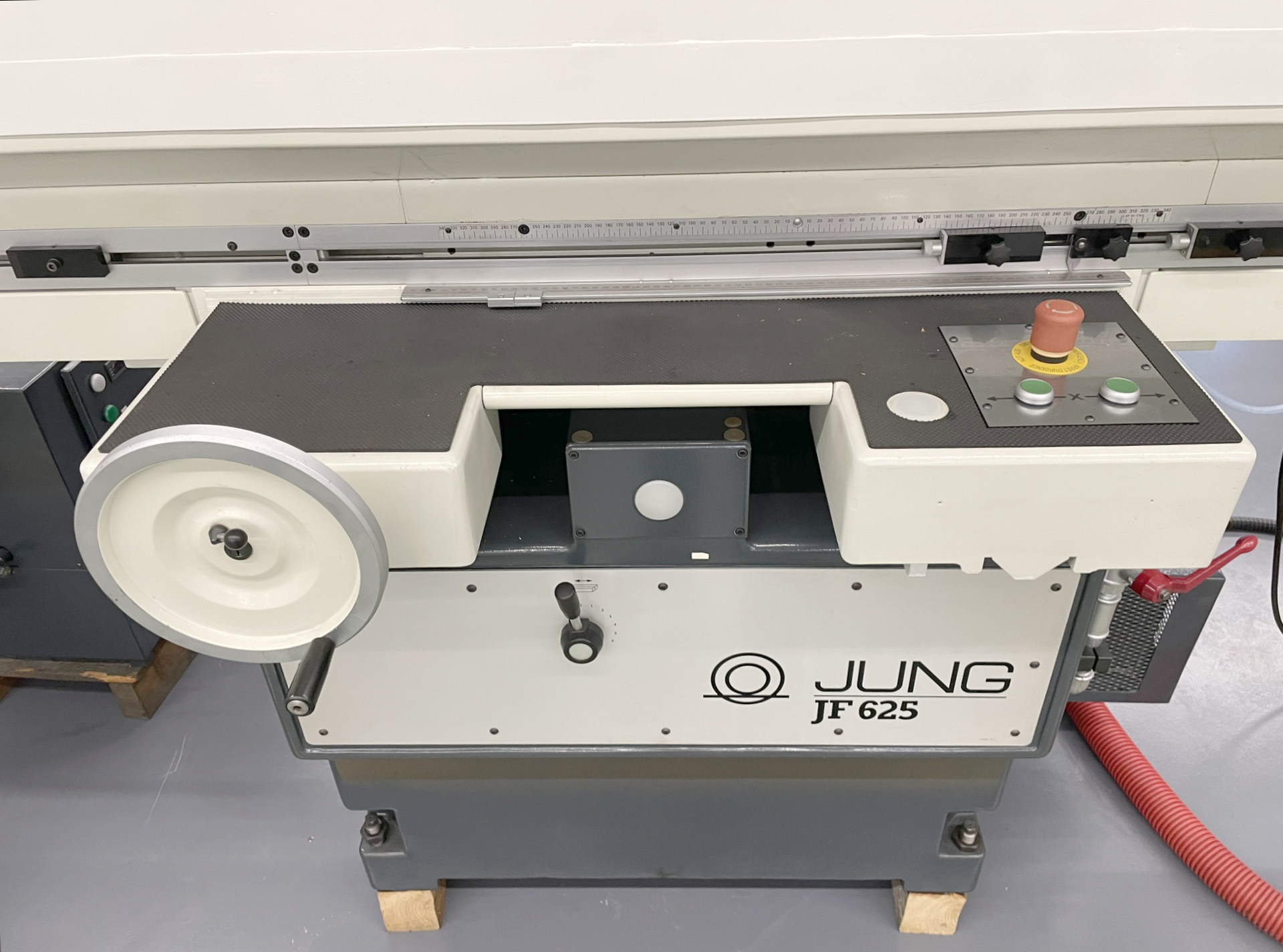

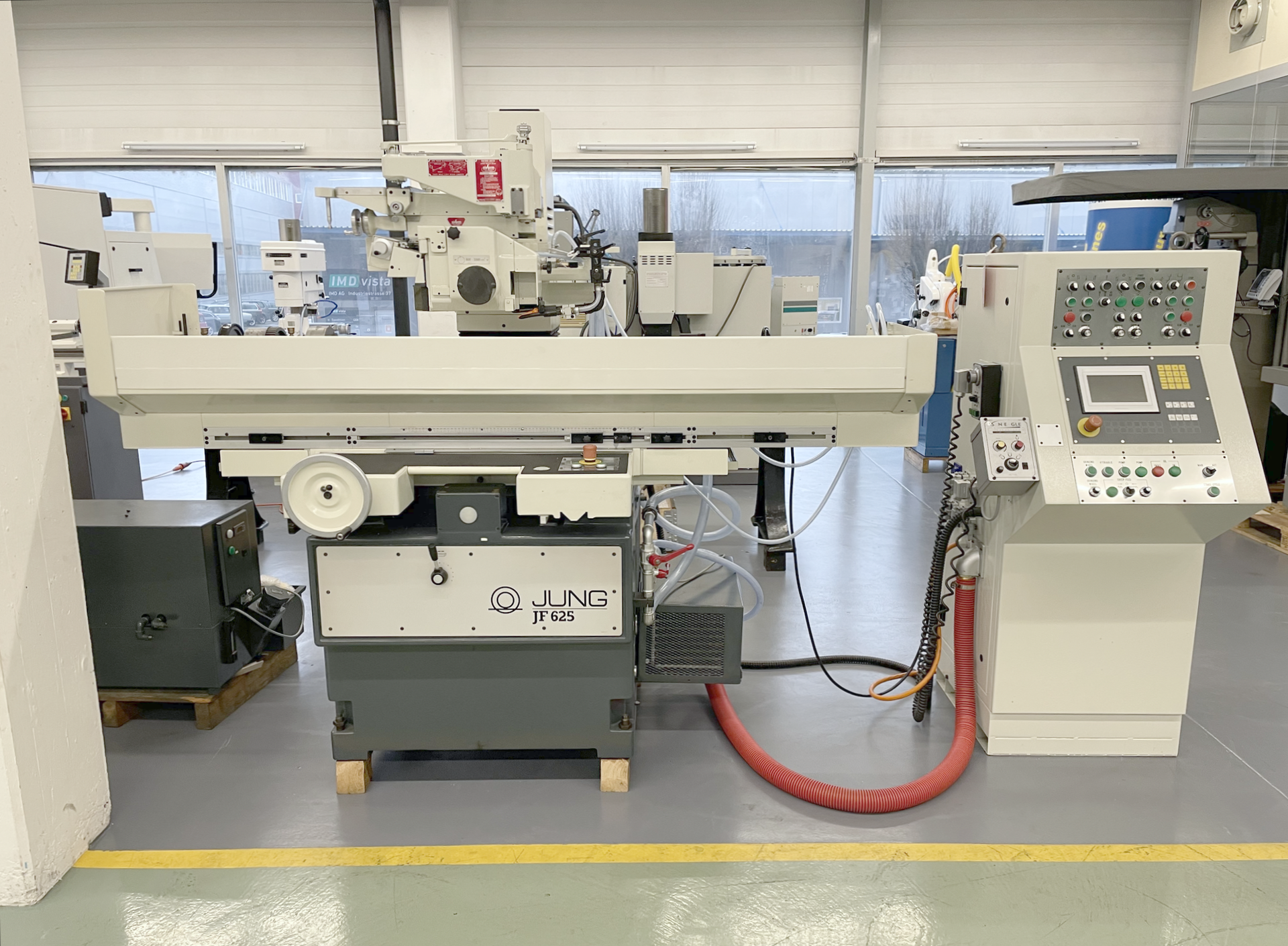

JUNG JF 625 CNC-B is an NC Surface grinder engineered for precision, high accuracy and reliable performance. Working capacity: table 600 x 250 mm; longitudinal travel (X) 600 mm, cross travel (Z) 280 mm; max. distance table to spindle centreline 500 mm; grinding length 600 mm. Key specs: stepless table speeds 1–24 m/min; automatic cross feed up to 10000 mm/min; voltage 50 Hz 3x380 V; grinding spindle motor 9.5 kW; total power 13 kVA; machine weight approx. 2500 kg; overall dimensions 2910 x 2320 x 1840 mm. Accessories: coolant system, high‑pressure coolant device, paper filtration system, electrical magnetic chuck 500 x 200 mm, Diaform profiling device (ratio 5:2), electronic handwheel, automatic central lubrication. Achieves tight tolerances; ideal for industries demanding high precision (automotive, aerospace, medical, watchmaking, machine tools)
| Table length | 600 mm |
| Table width | 250 mm |
| Axial motion: | |
| Longitudinal travel (X-axis) | 600 mm |
| Cross travel (z-axis) | 280 mm |
| Max. distance from table | |
| to spindle centreline | 500 mm |
| Grinding length | 600 mm |
| Table speeds: | |
| stepless | |
| from | 1 m/min |
| up to | 24 m/min |
| Creep feed: | |
| from | m/min |
| up to | m/min |
| Automatic cross feed: | |
| stepless | |
| from | mm/min |
| up to | 10000 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 9.5 kW |
| Total power required | 13 kVA |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2910 mm |
| Width | 2320 mm |
| Height | 1840 mm |
| Various accessories: | |
| Coolant system | |
| High pression colant device | |
| Paper filtration system | |

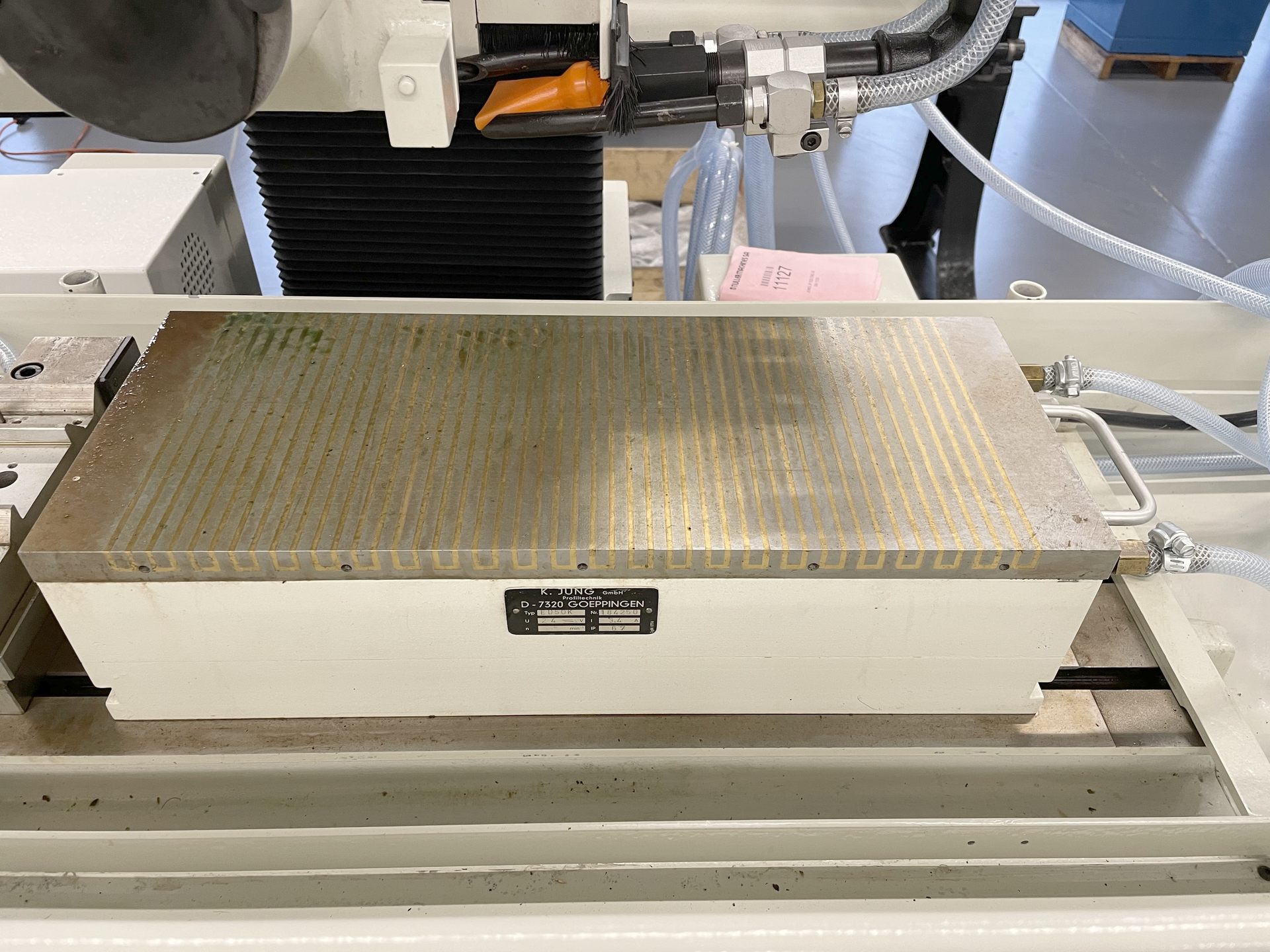

| Electrical magnetic chuck | |
| Length | 500 mm |
| Width | 200 mm |

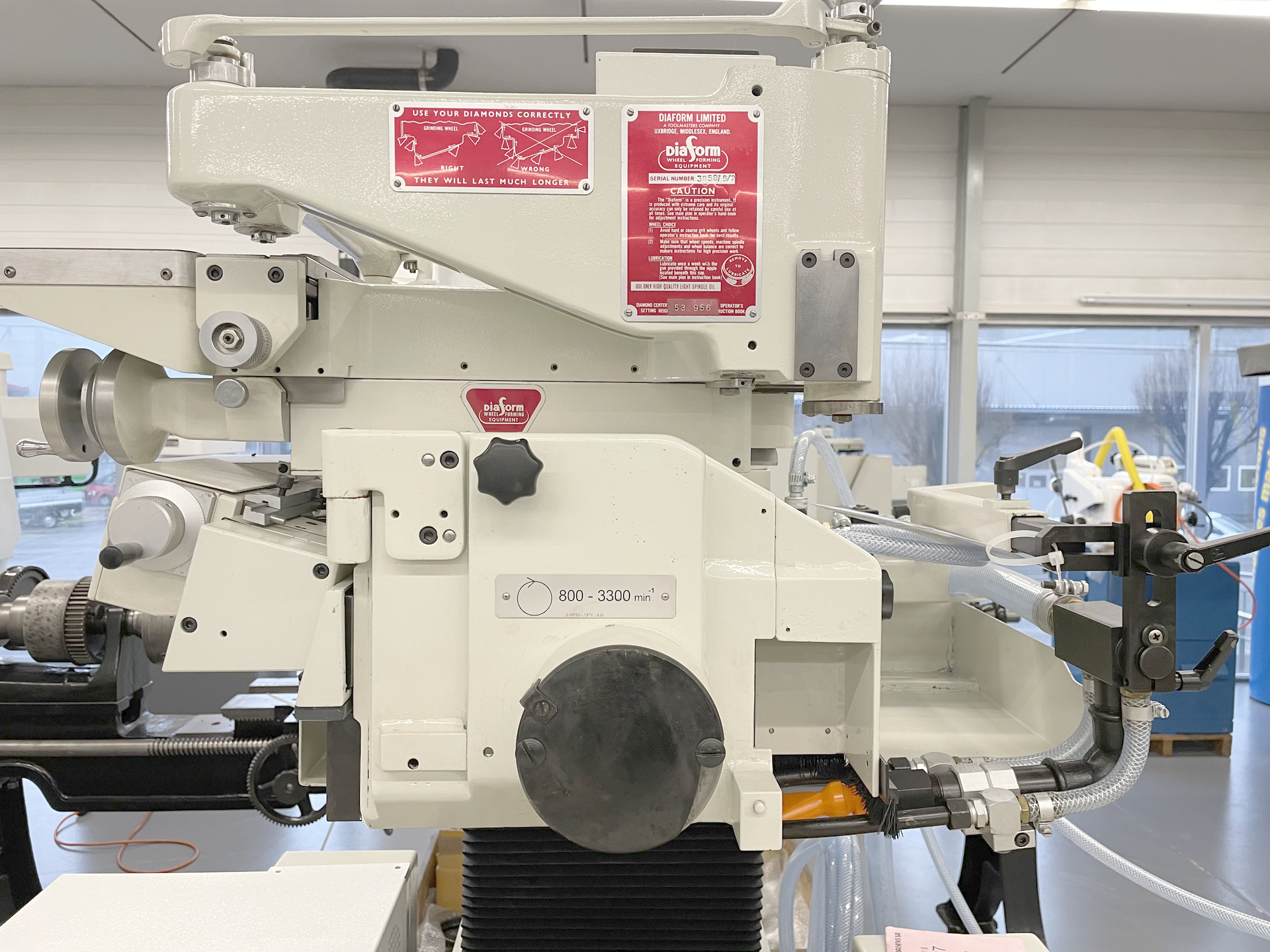

| Diaform profiling device | Rapport 5:2 |

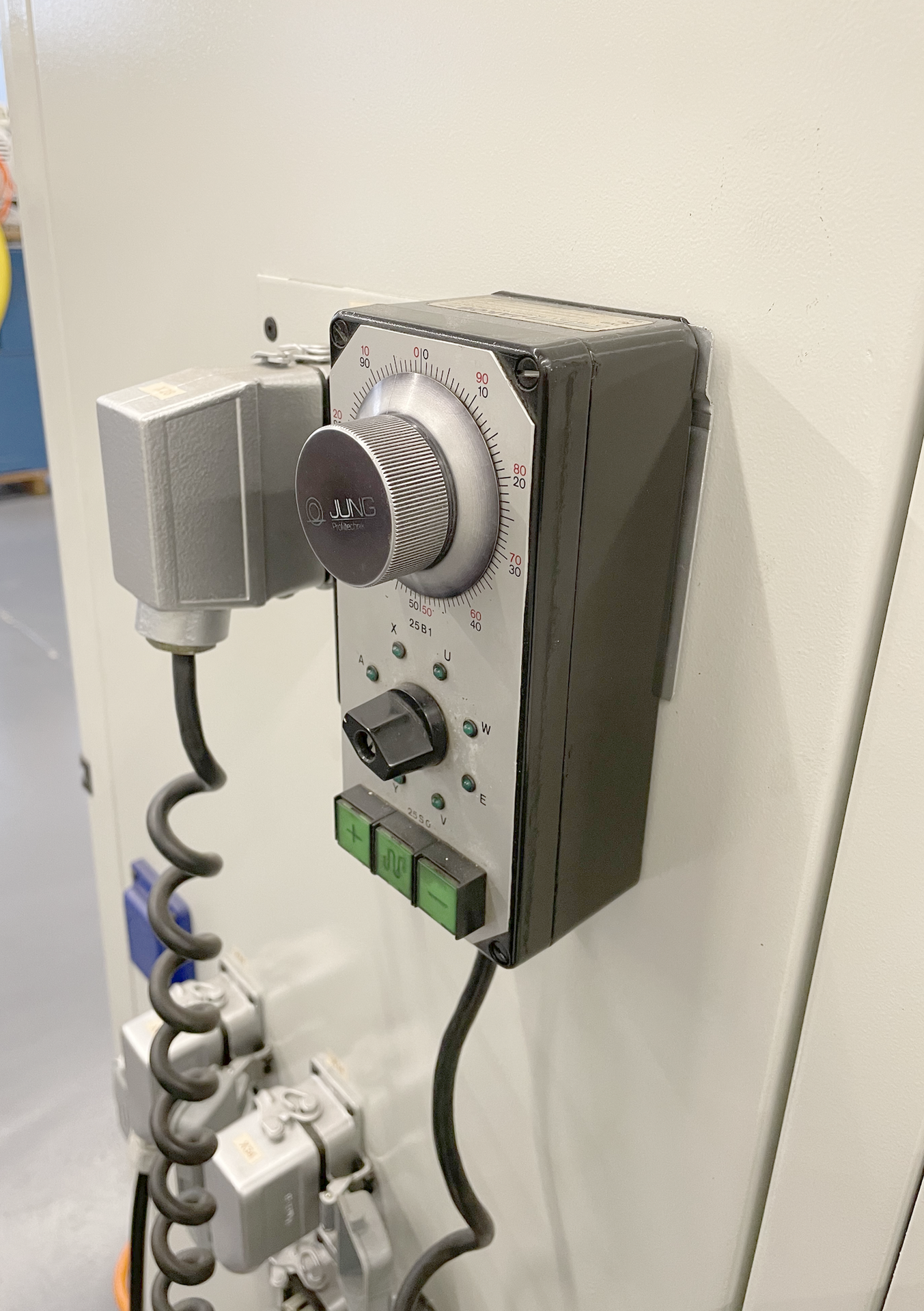

| Handwheel electroinic | |
| Automatic central lubrication |
