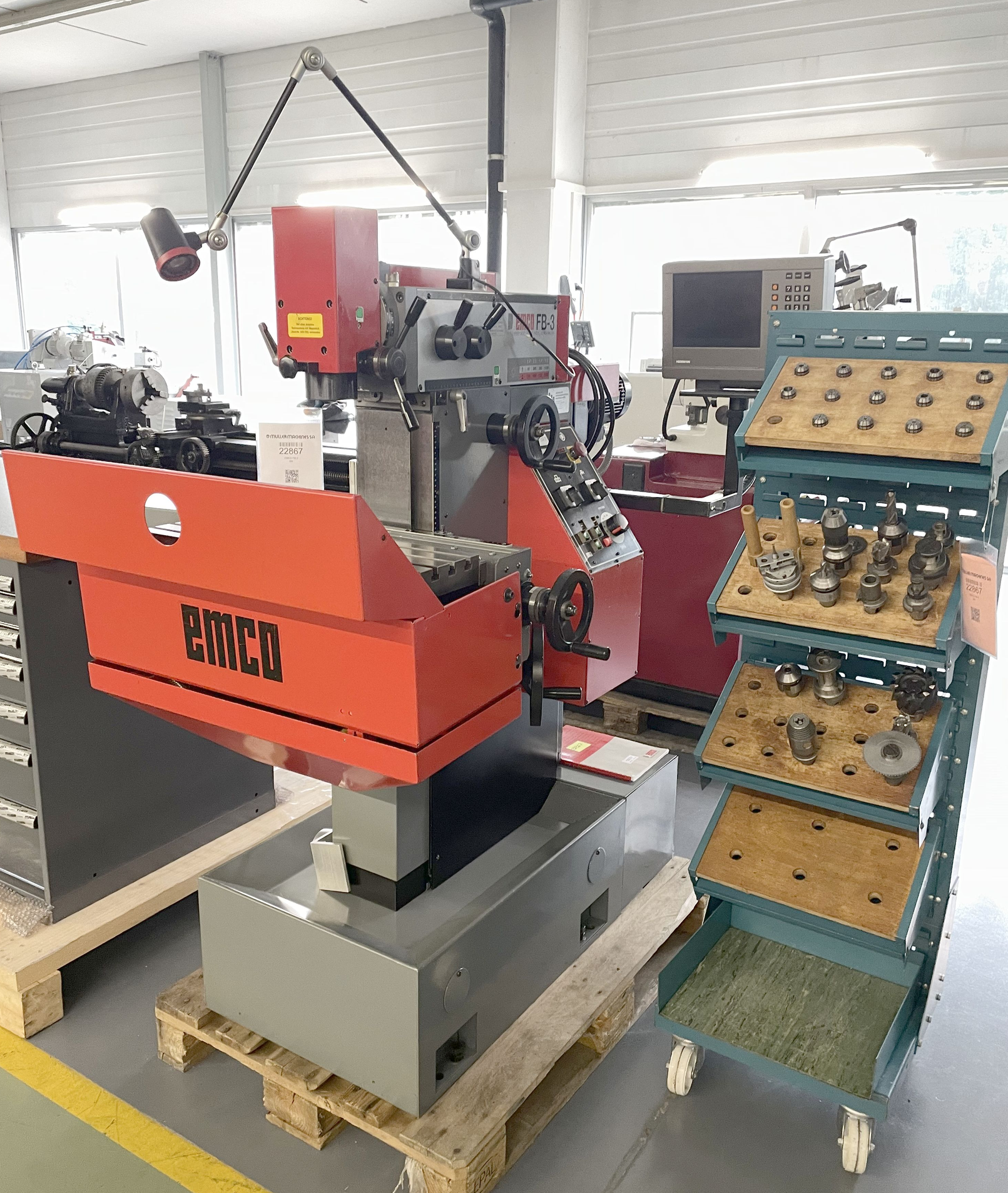

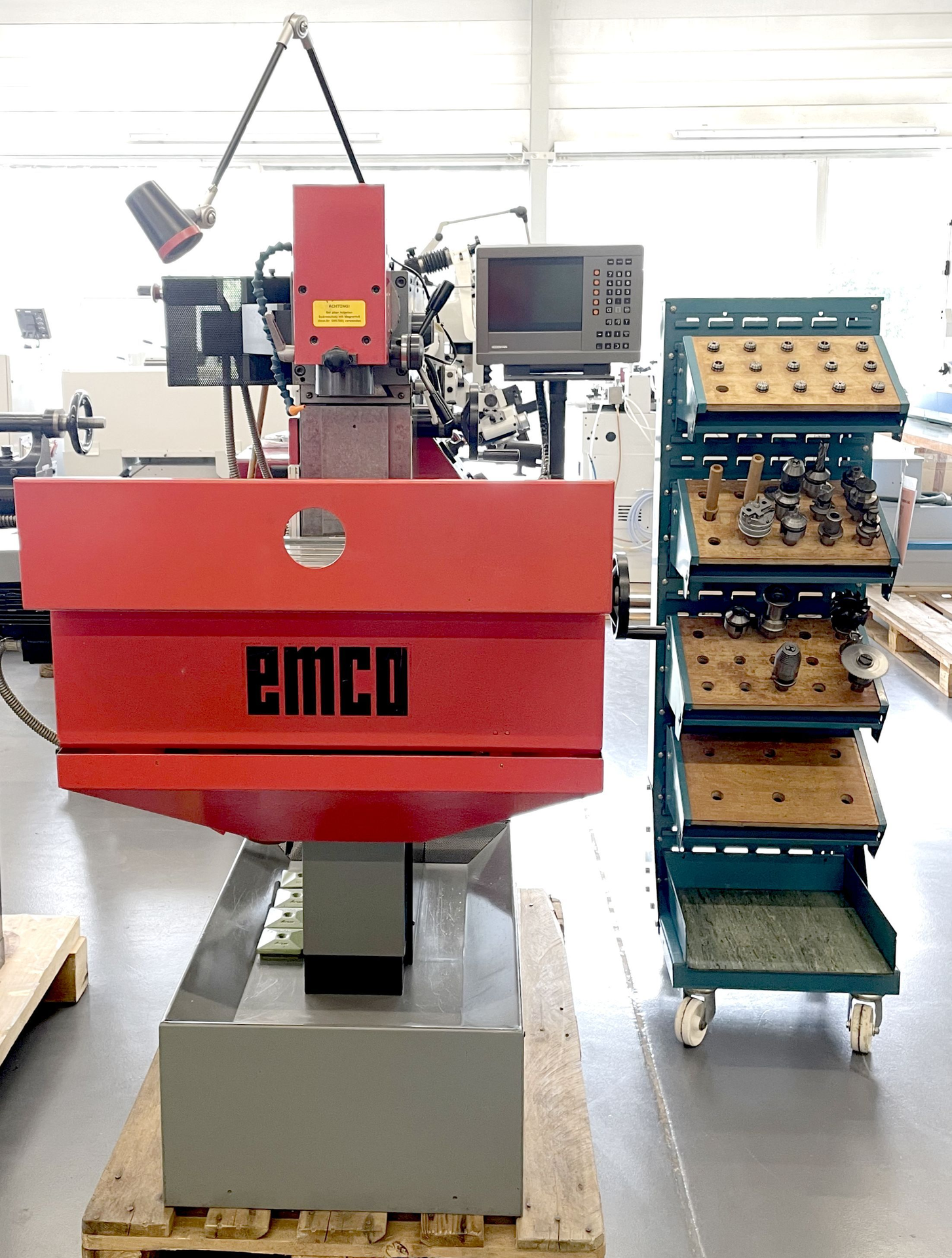

EMCO FB-3 is a Universal milling machine with high precision, designed to deliver excellent accuracy and reliable performance. Table 600×180 mm with 4 T-slots; travels X 300 mm, Y 200 mm, Z 350 mm; spindle stroke 45 mm; table load max. 50 kg; vertical head swivel ±90°. Taper SK30, 6-step spindle (80–2200 t/min); spindle motor 1.1/1.4 kW; rapid traverse 12 m/min; supply 3×380 V 50 Hz; machine weight approx. 500 kg; footprint 1500×1150×1550 mm. 3‑axis digital readout by HEIDENHAIN. Capable of achieving tight tolerances and suited for automotive, watchmaking, machine tool, aerospace and medical applications.
Technical specifications are subject to change without notice

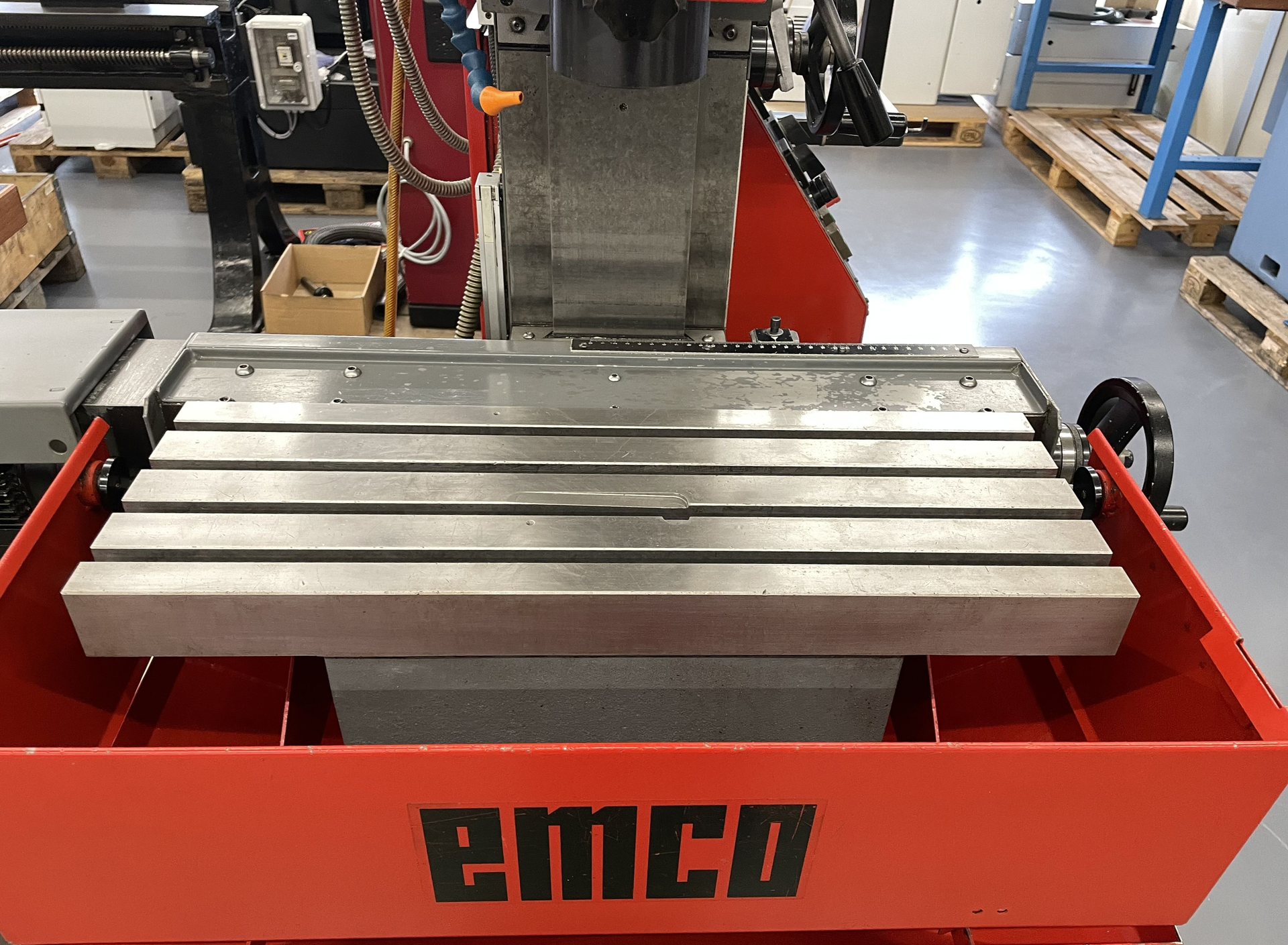

| Table length | 600 mm |
| Table width | 180 mm |
| Number of T-channels | 4 |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 200 mm |
| Vertical travel (z axis) | 350 mm |
| Spindle stroke | 45 mm |
| Table load max. | 50 kg |
| Spindle speeds: | |
| number (steps) | 6 |
| from | 80 t/min |
| up to | 2200 t/min |
| Taper in spindle: | SK 30 |
| Swivel range Vertical milling head | +/-90 ° |
| Rapid traverse: | 12 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.1 / 1.4 kW |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1150 mm |
| Height | 1550 mm |
| Various accessories: | |

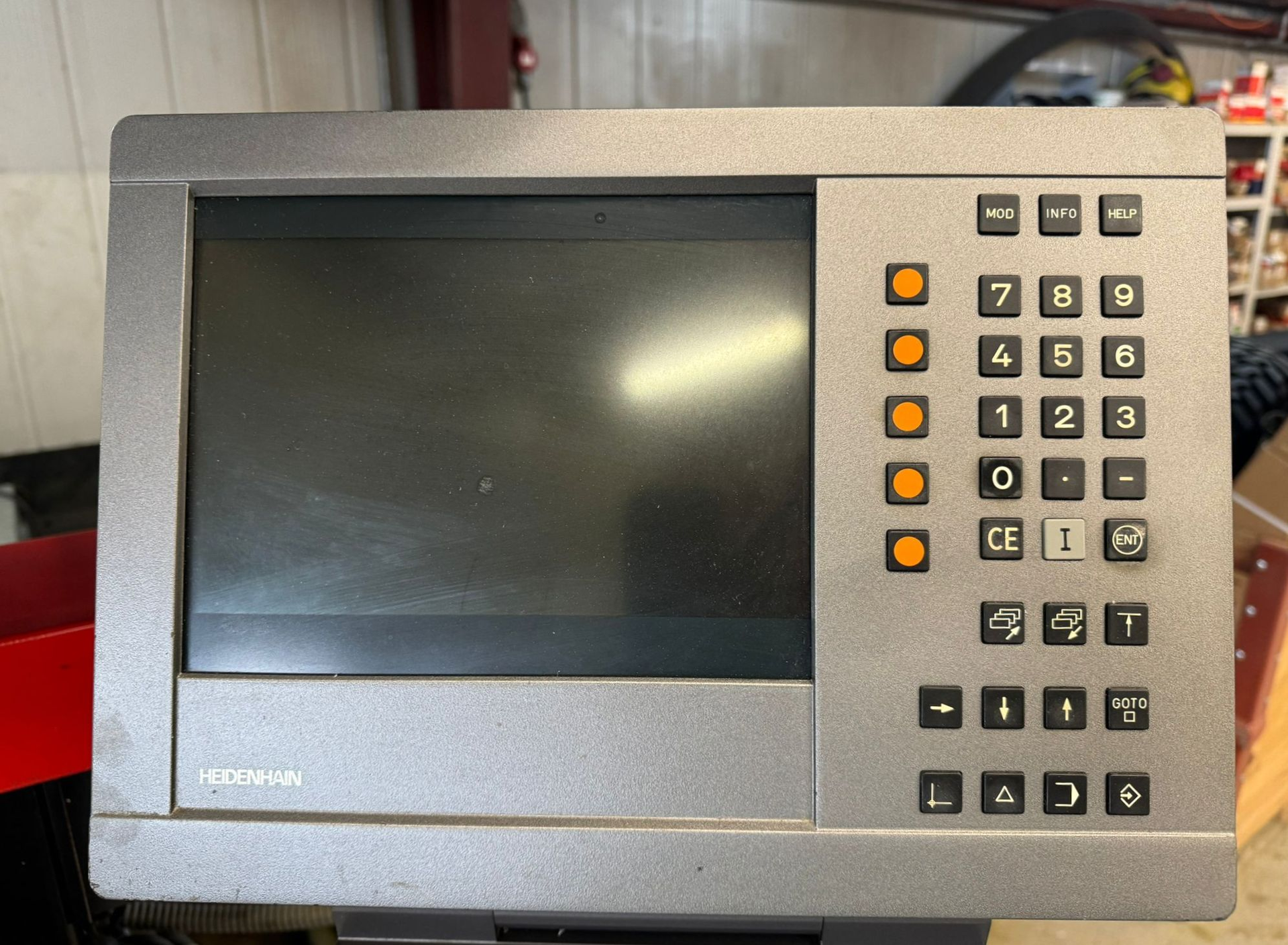

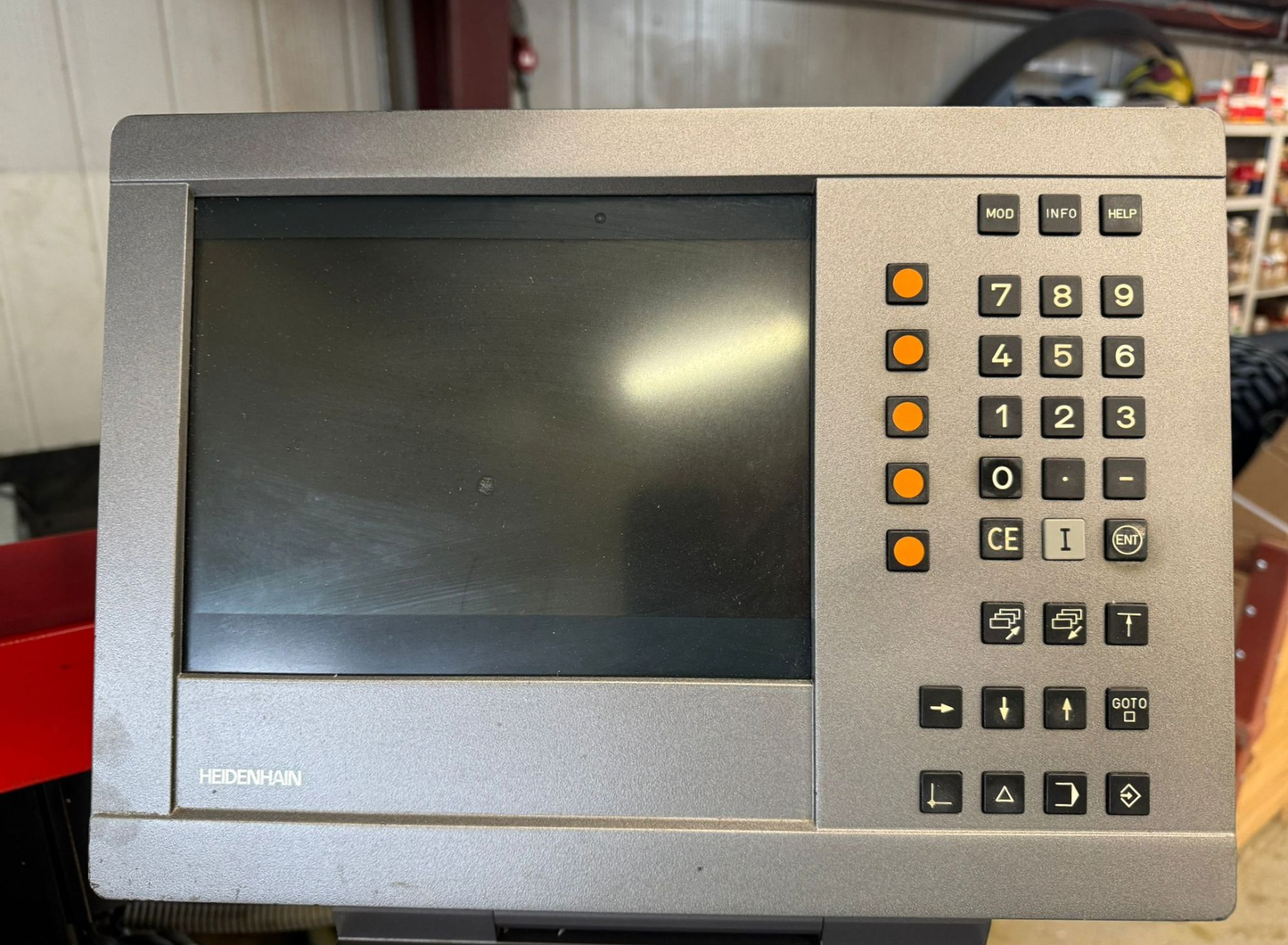

| Digital readout number of axis: | 3 |
| Manufacturer | HEIDENHAIN |
| Coolant system | |
| Boring head | |
| Collet holder | |

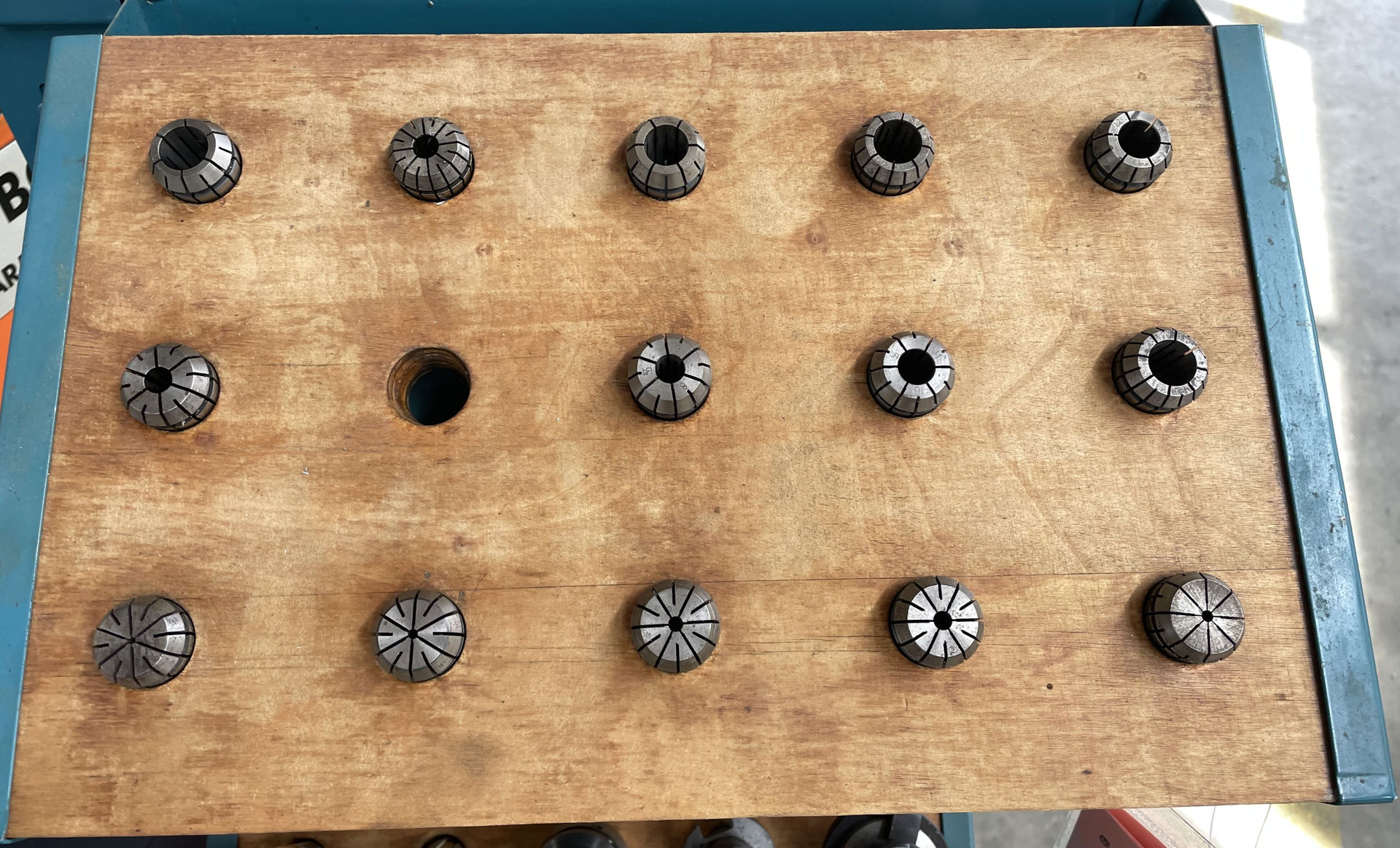

| Set of collets | |

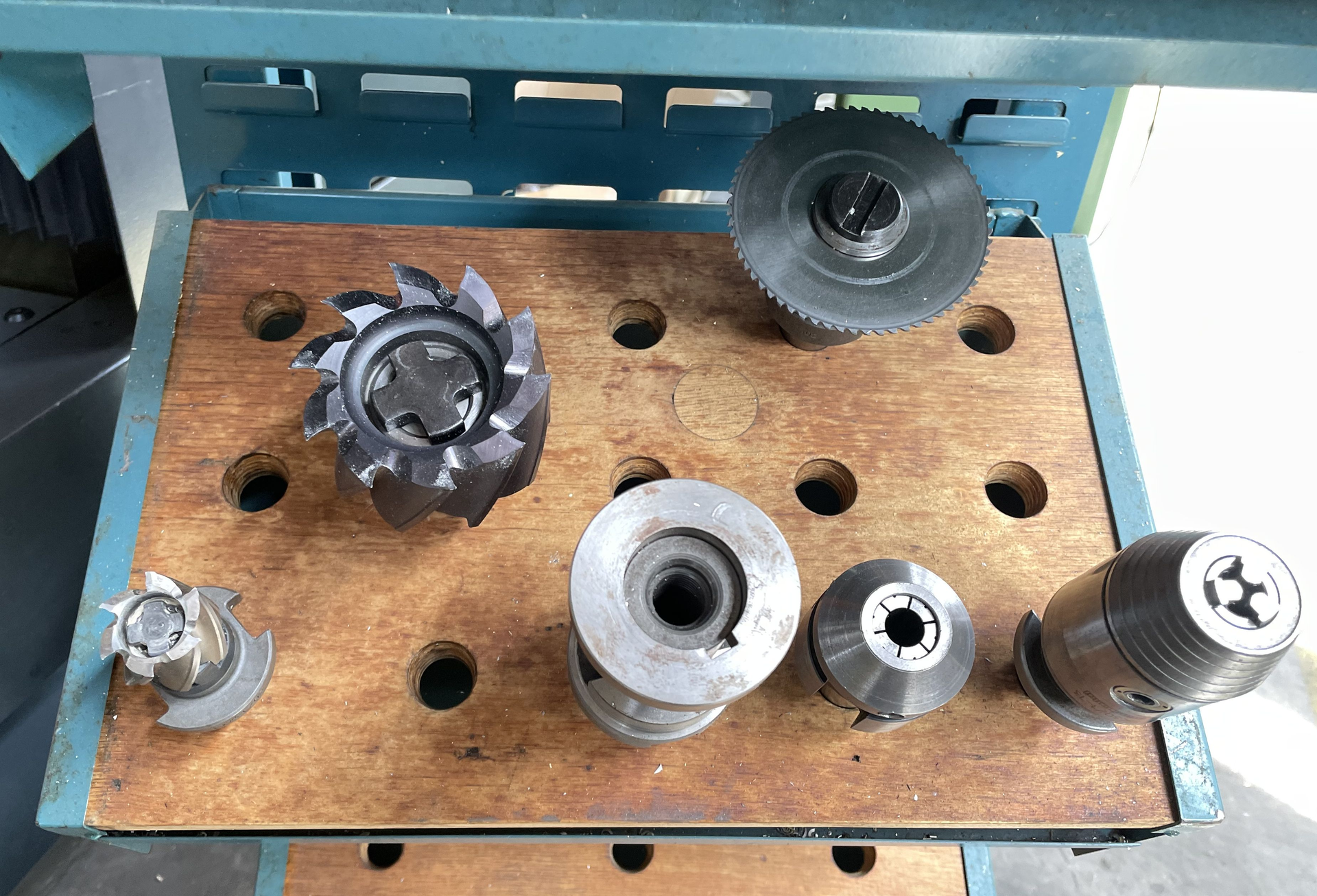

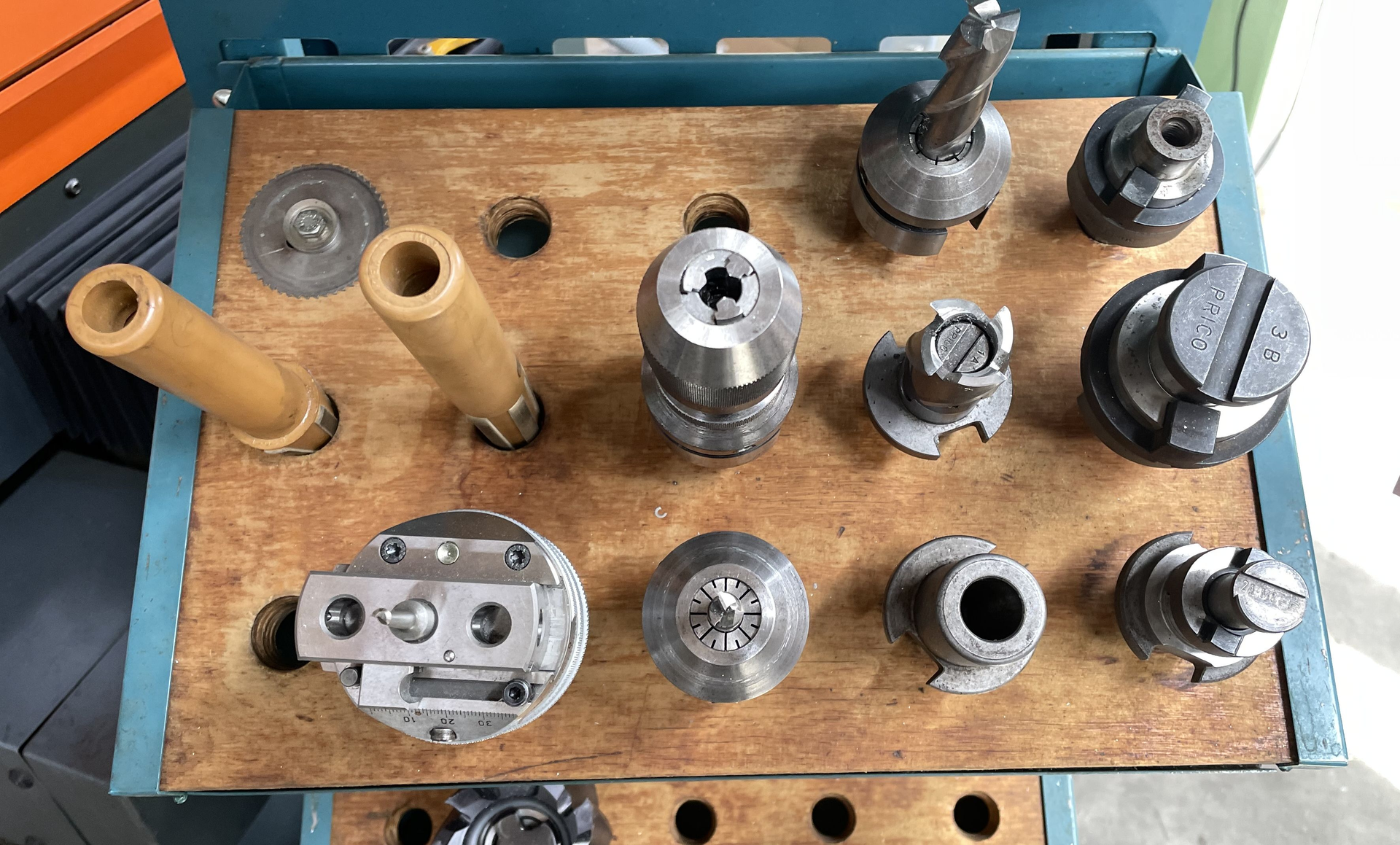

| Set of toolholders | |
| Drill chuck | |
| Tool storage | |
| Lamp |
