CITIZEN CINCOM K16 VII P
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

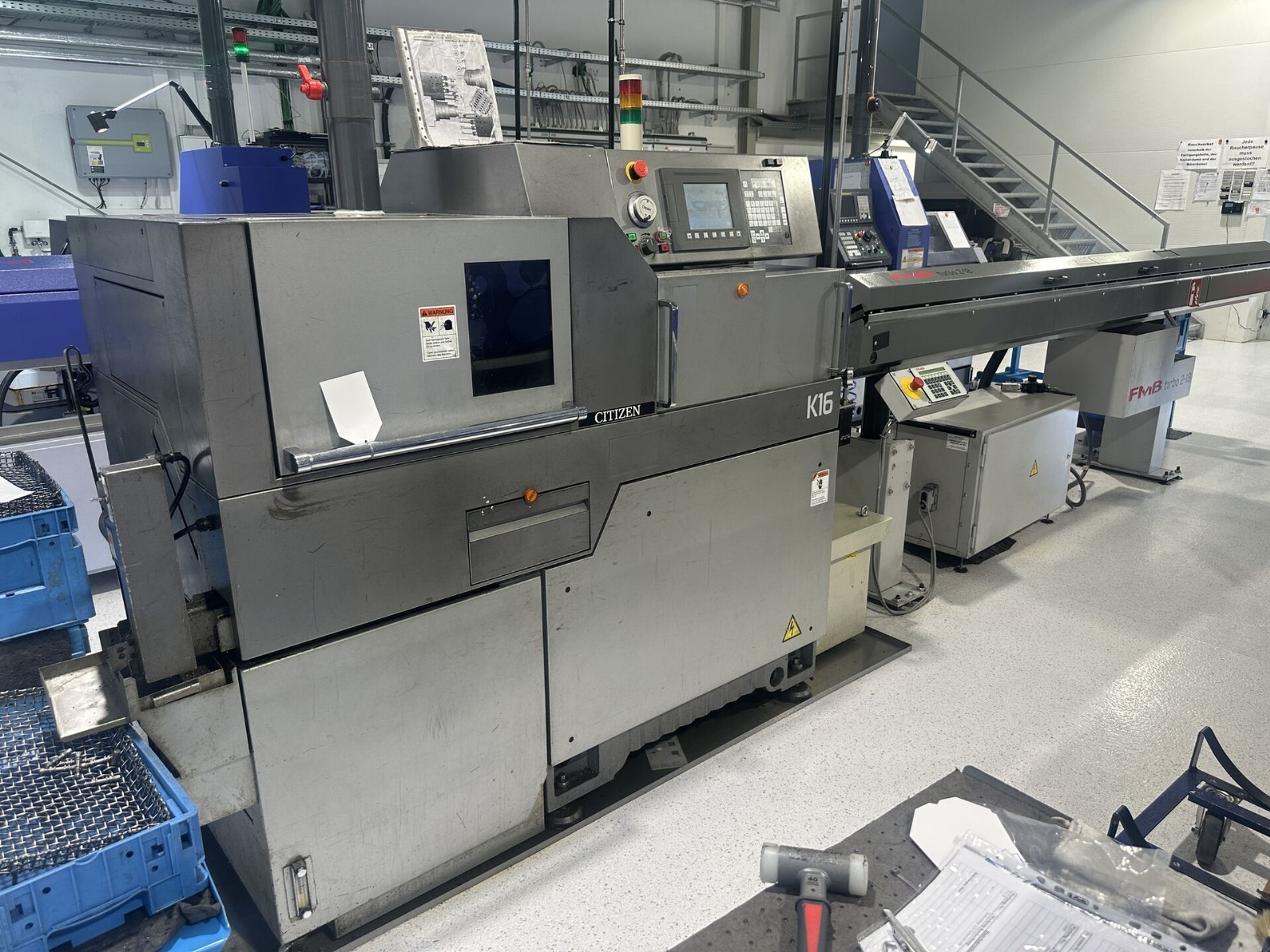

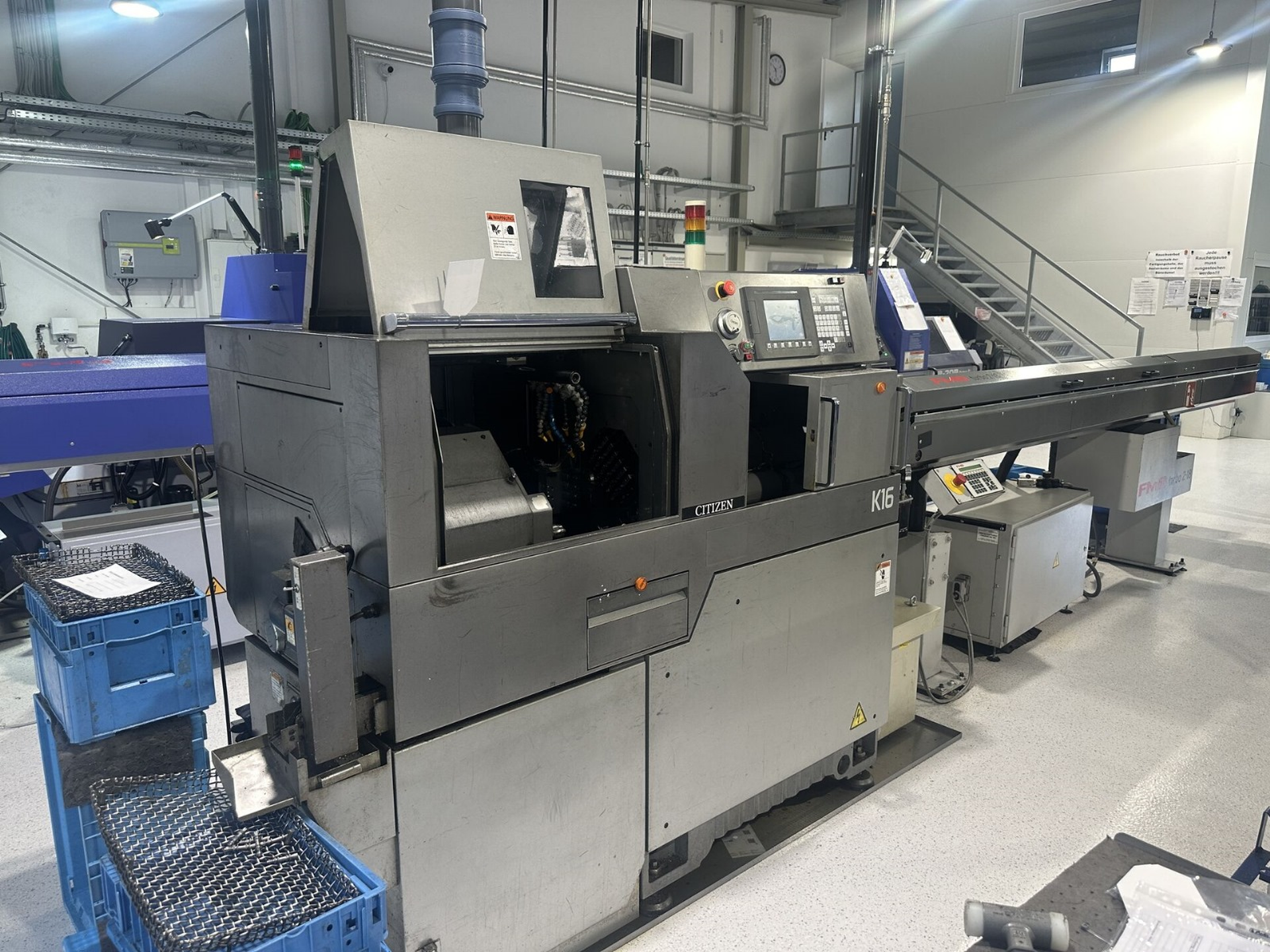

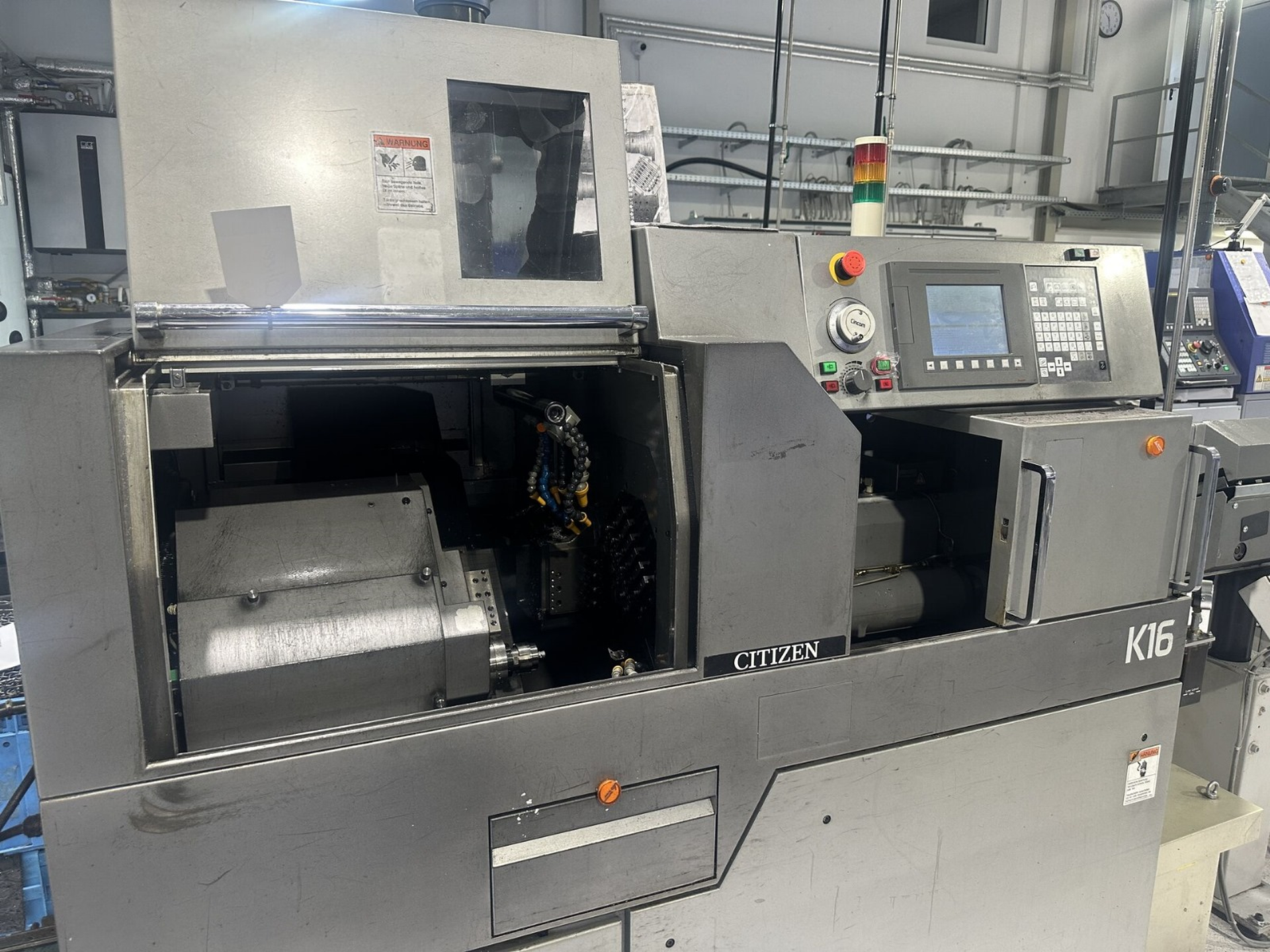

CITIZEN CINCOM K16 VII P is a CNC automatic lathe delivering precision, high accuracy and reliability. Working capacities: total 5+2 axes, 2 spindles, max turning Ø 16 mm, max turning length 200 mm, max drilling Ø 10 mm, max threading Ø 8 M, spindle bore 20 mm. Main specs: main spindle 200–15000 t/min (stepless), back spindle 200–10000 t/min; turning tools 6 pcs, drilling 4 pcs, transverse tools 4 pcs; driven tool speeds up to 6000 t/min. Power 50 Hz 3x200 V; total power 8 kVA; weight ≈2050 kg; footprint L2020×W1070×H1680 mm. Accessories: bar feeder FMB TURBO 2-18 (bar Ø 2–18 mm), set of collets, status light. Capable of tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 5 + 2 |
| Number of spindles | 2 |
| Max. turning diameter | 16 mm |
| Maximum turning length | 200 mm |
| Max. drilling diameter | 10 mm |
| Max. threading diameter | 8 M |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 15000 t/min |

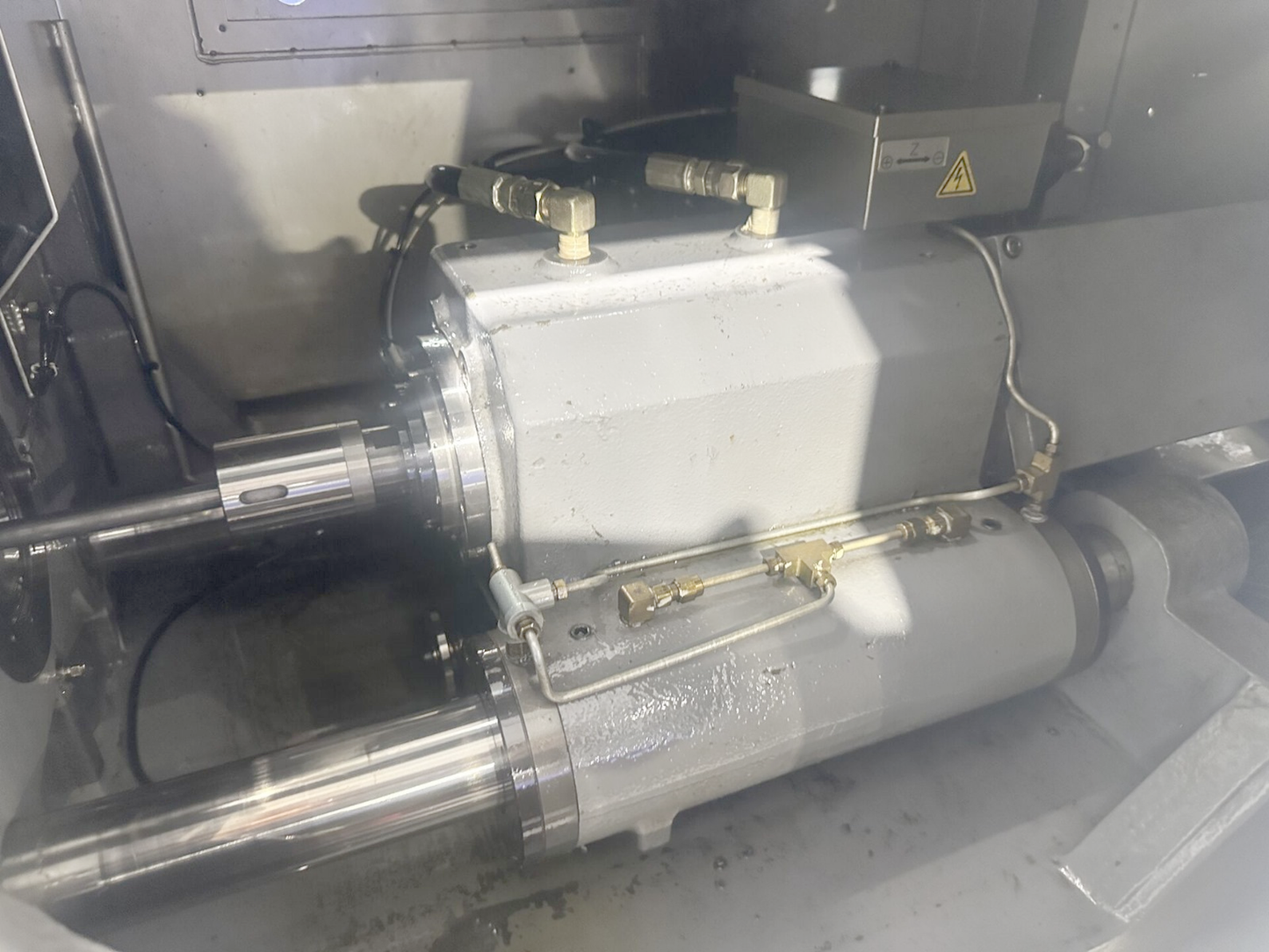

| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 10000 t/min |
| Thread drill diameter | 5 M |

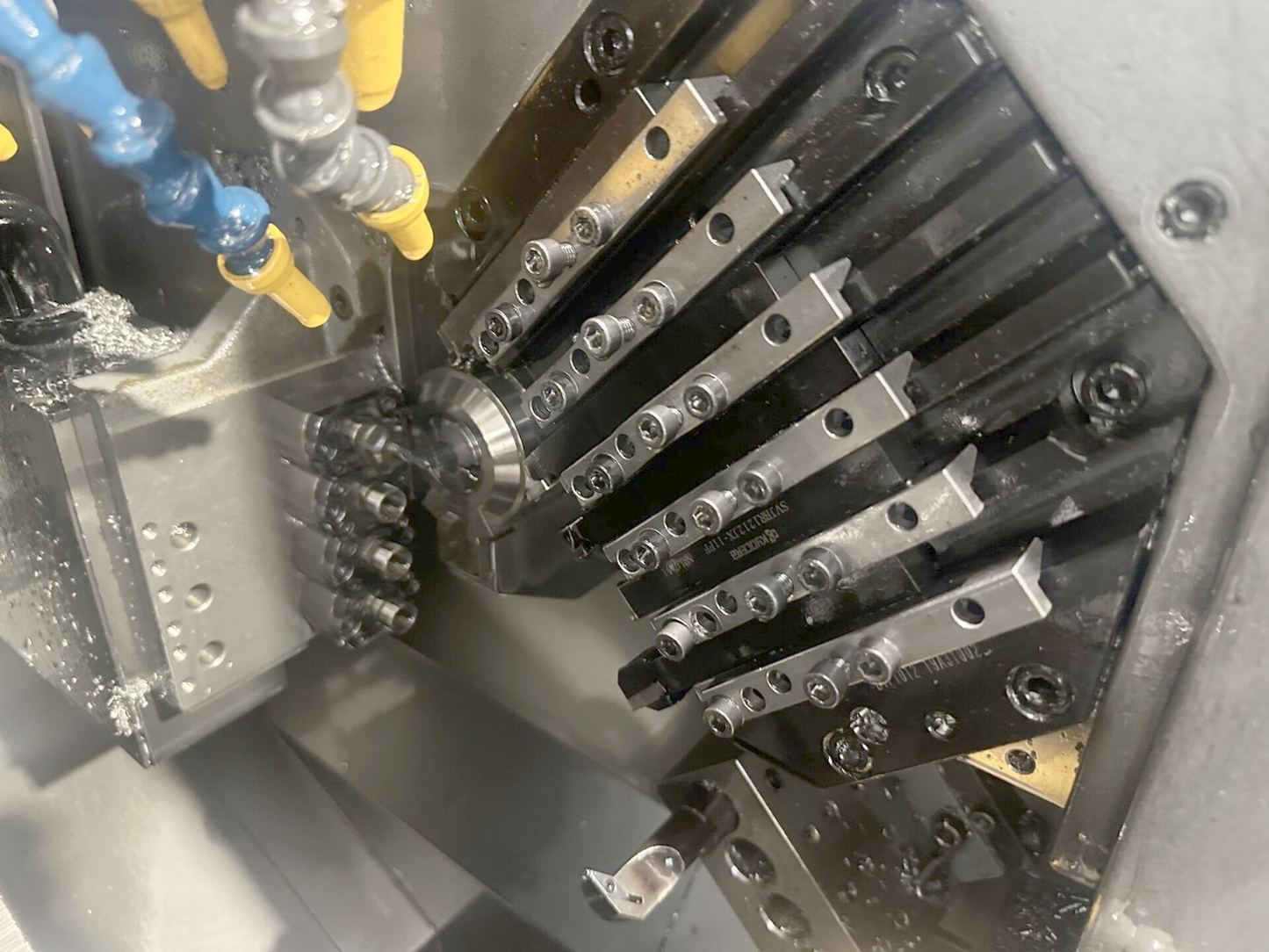

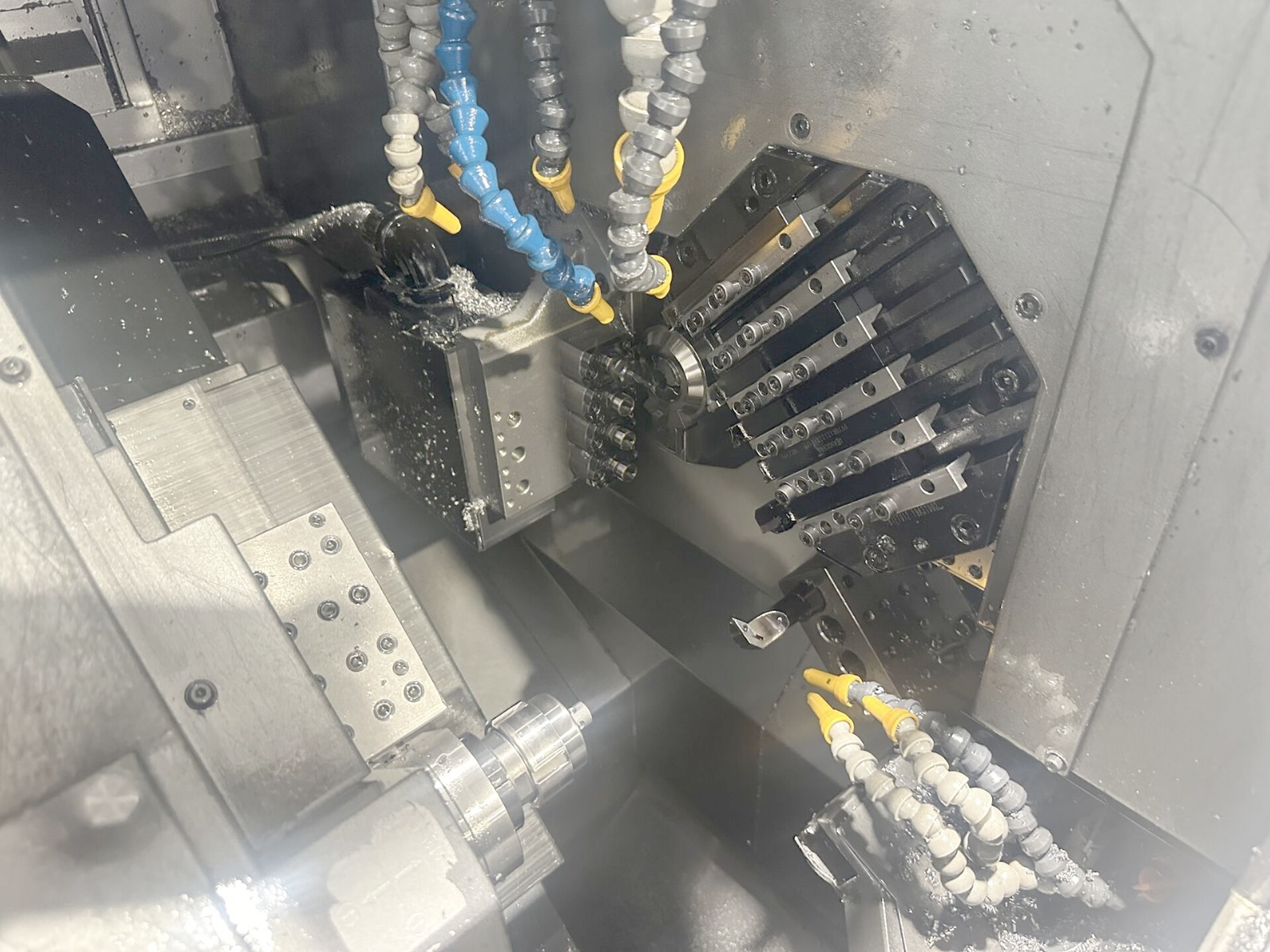

| Tool-holder: | |
| Turning tools | 6 pce |
| Drilling tools | 4 pce |
| Transverse processing tools | 4 pce |
| Spindle speeds (turning tools) | 6000 t/min |
| Counter-operation: | |
| Drilling tools | 4 pce |
| Voltage 50 Hz 3x | 200 Volt |
| Total power required | 8 kVA |
| Machine's weight about | 2050 kg |
| Overall dimensions machine: | |
| Length | 2020 mm |
| Width | 1070 mm |
| Height | 1680 mm |
| Various accessories: | |

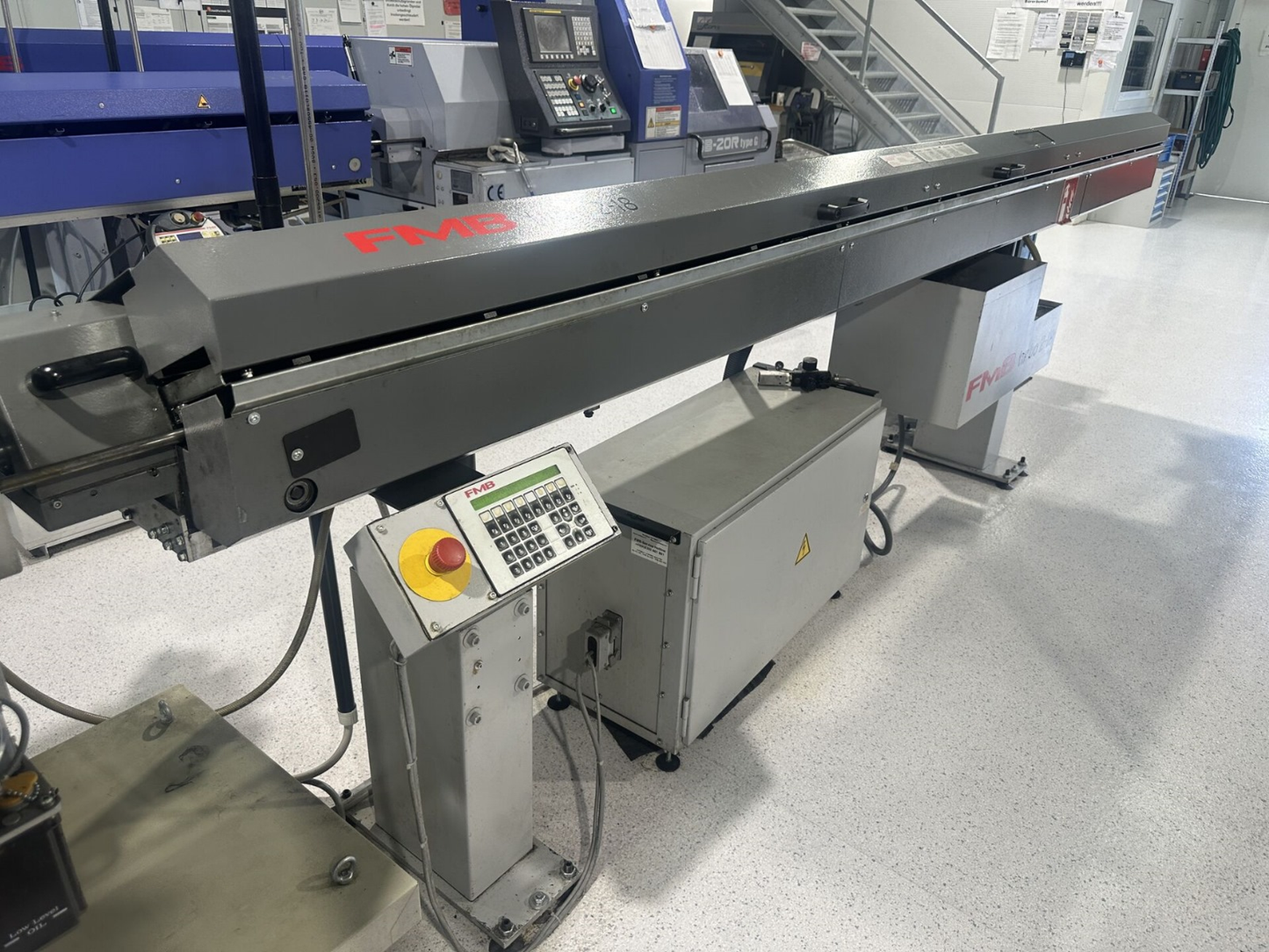

| Bar feeder | |
| Manufacturer | FMB |
| Type | TURBO 2-18 |
| Bar diameter | 2 - 18 mm |

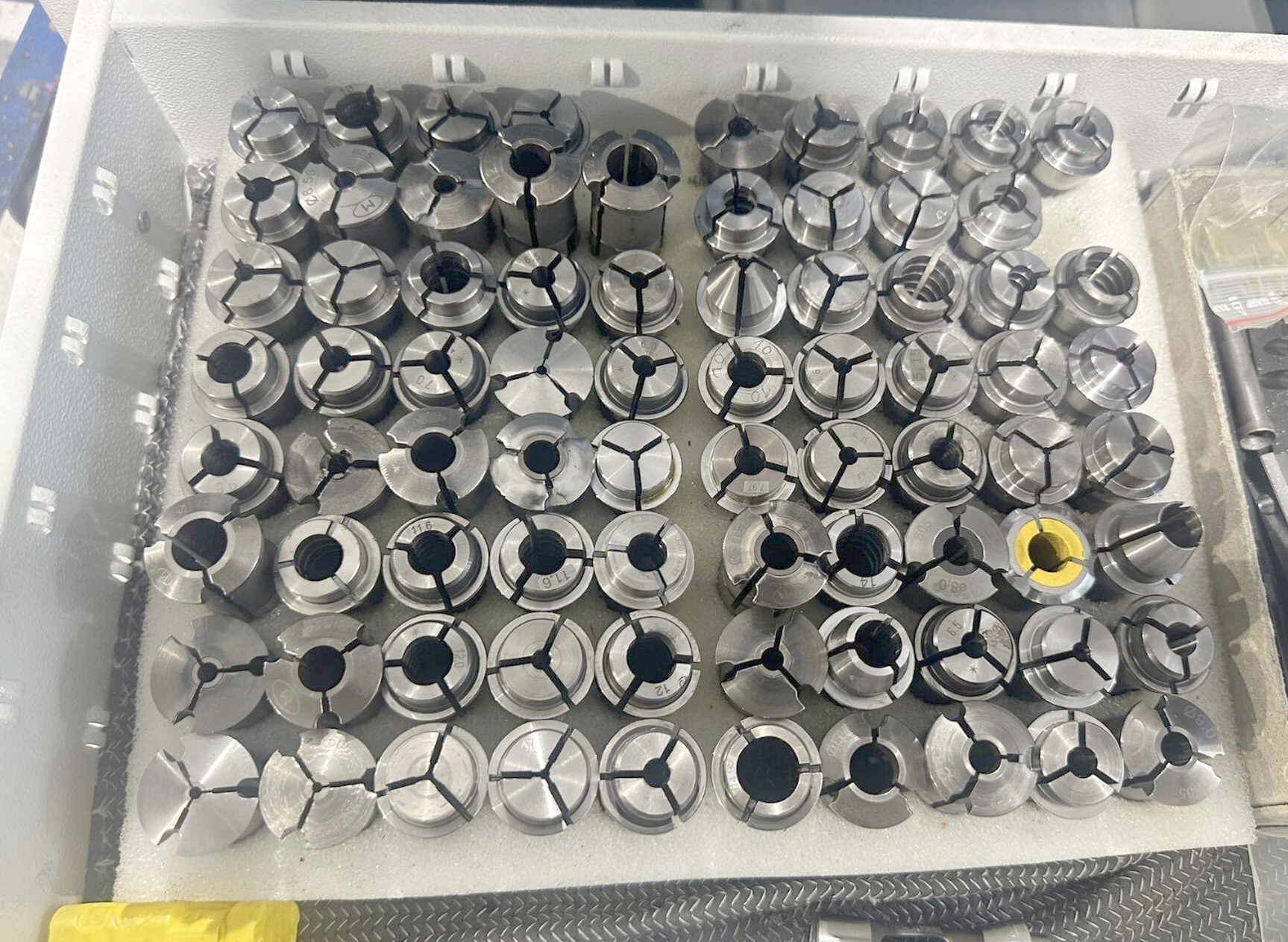

| Set of collets | |
| Status light |
