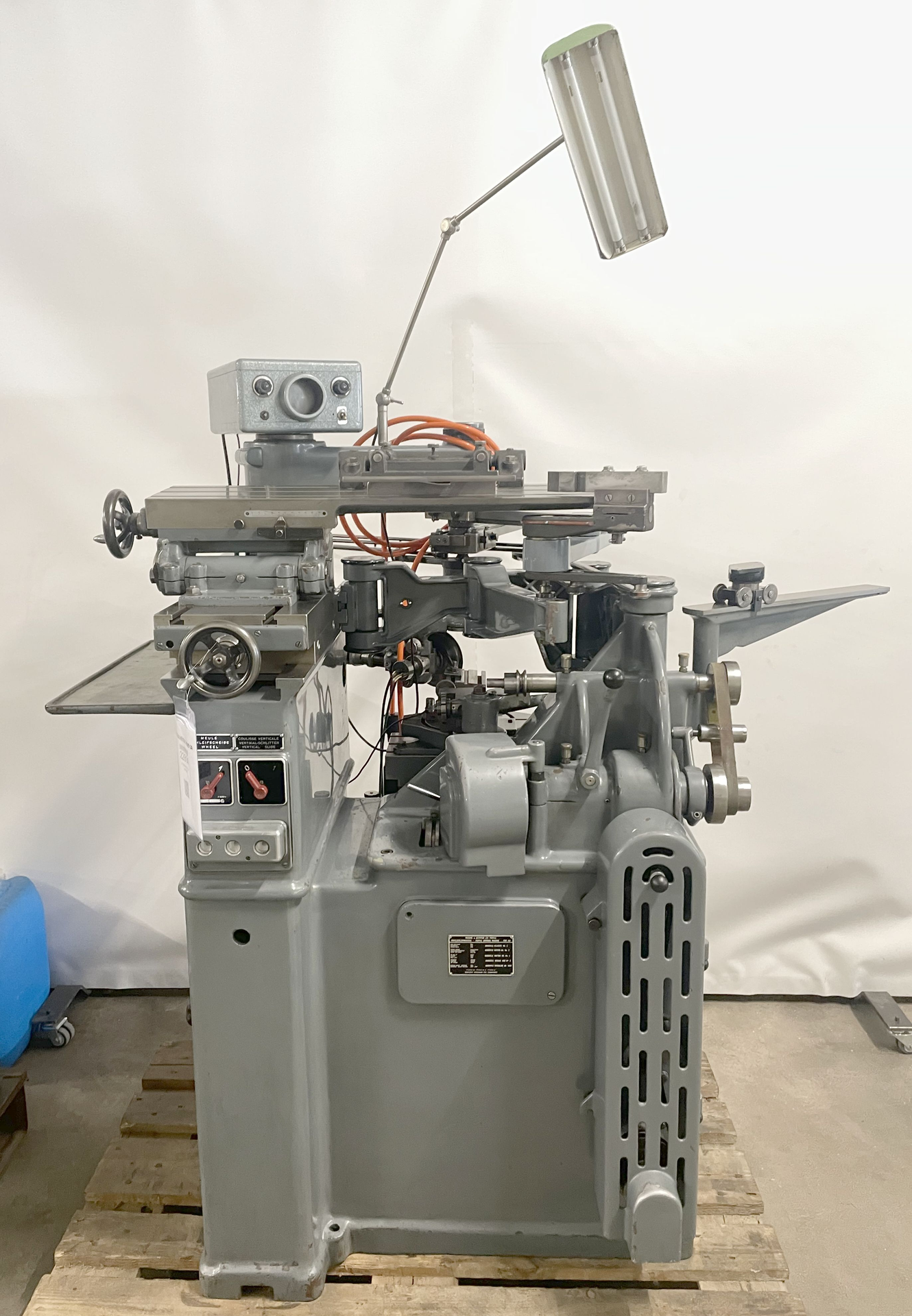

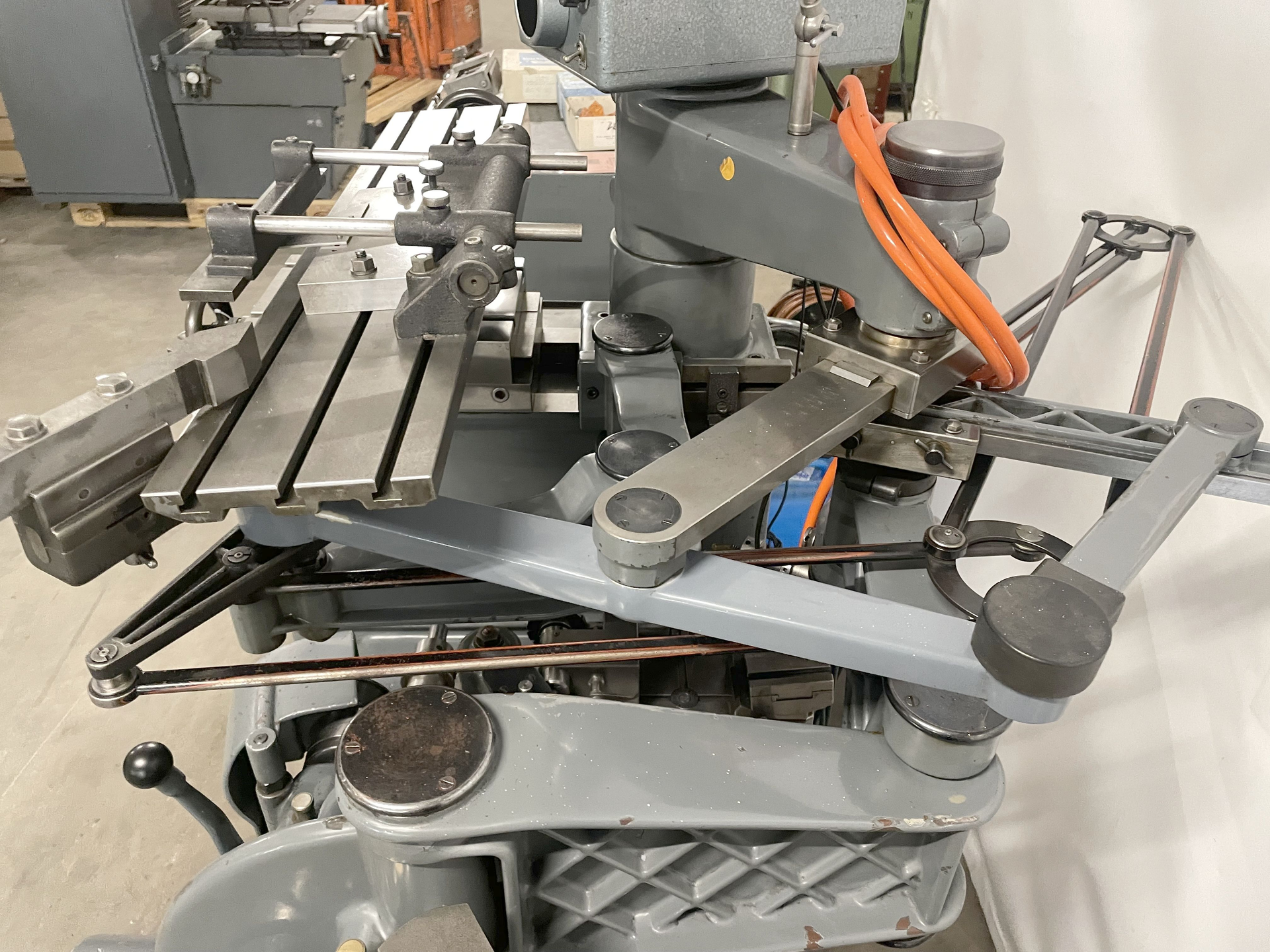

STUDER PSM 130
Type: PSM 130
Manufacturer: STUDER
Group: Profile grinding machine
Subgroup: Profil grinding machine
Stock: 022864
STUDER PSM 130 is a Profile grinding machine designed for high‑precision work, delivering high accuracy and reliable operation. Capacities: table 400×150 mm, longitudinal travel (X) 150 mm, grinding slide 80 mm; wheel Ø150×3 mm, bore 32 mm; max machinable length 150 mm, max height 78 mm. Key specs: grinding spindle speeds 3100–7600 t/min; supply 50 Hz 3x: 380 Volt; weight ≈800 kg; overall dimensions L1200×W1100×H1500 mm. Accessories: set of grinding wheels, set of flanges, tool cabinet, dividing attachment. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.

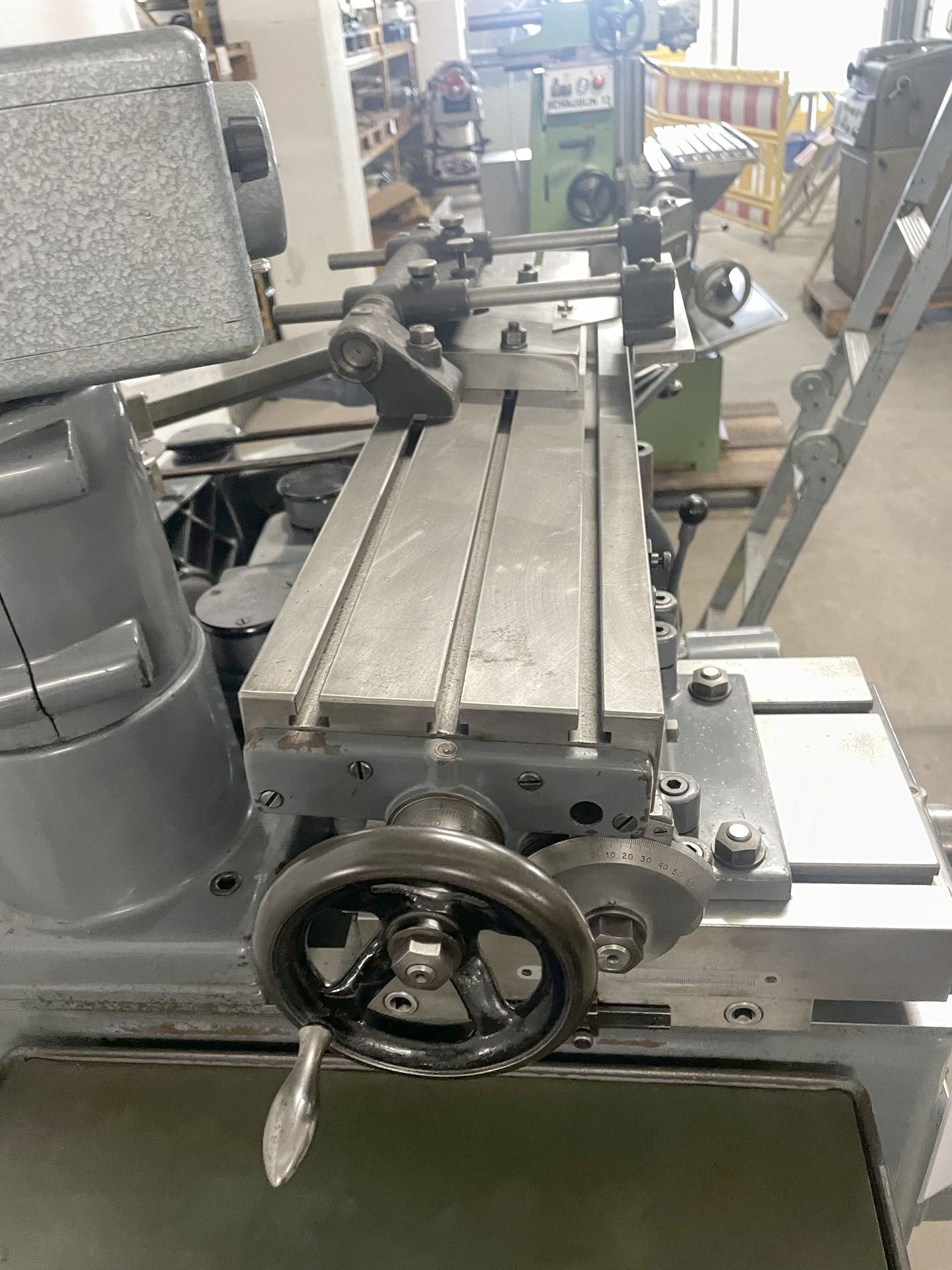

| Table length | 400 mm |
| Table width | 150 mm |
| Travels: | |
| Longitudinal travel (X-axis) | 150 mm |
| Grinding wheel: | |
| Diameter | 150 mm |
| Width | 3 mm |
| Bore | 32 mm |
| Work-pieces: | |
| max. machinable length | 150 mm |
| max. machinable height | 78 mm |
| Grinding spindle speeds: | |
| from | 3100 t/min |
| up to | 7600 t/min |
| Height of stroke: | |
| grinding slide | 80 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1100 mm |
| Height | 1500 mm |

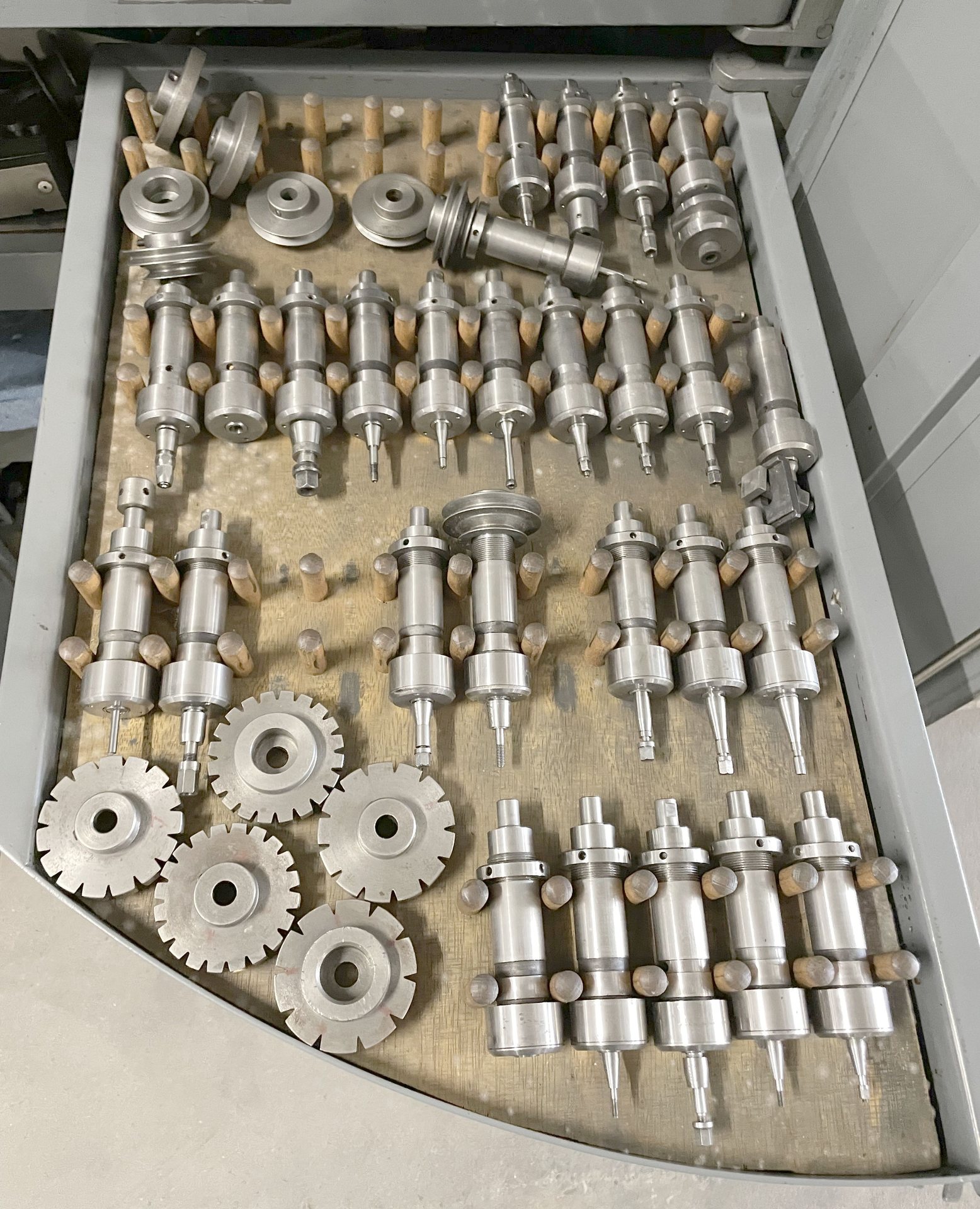

| Various accessories: | |

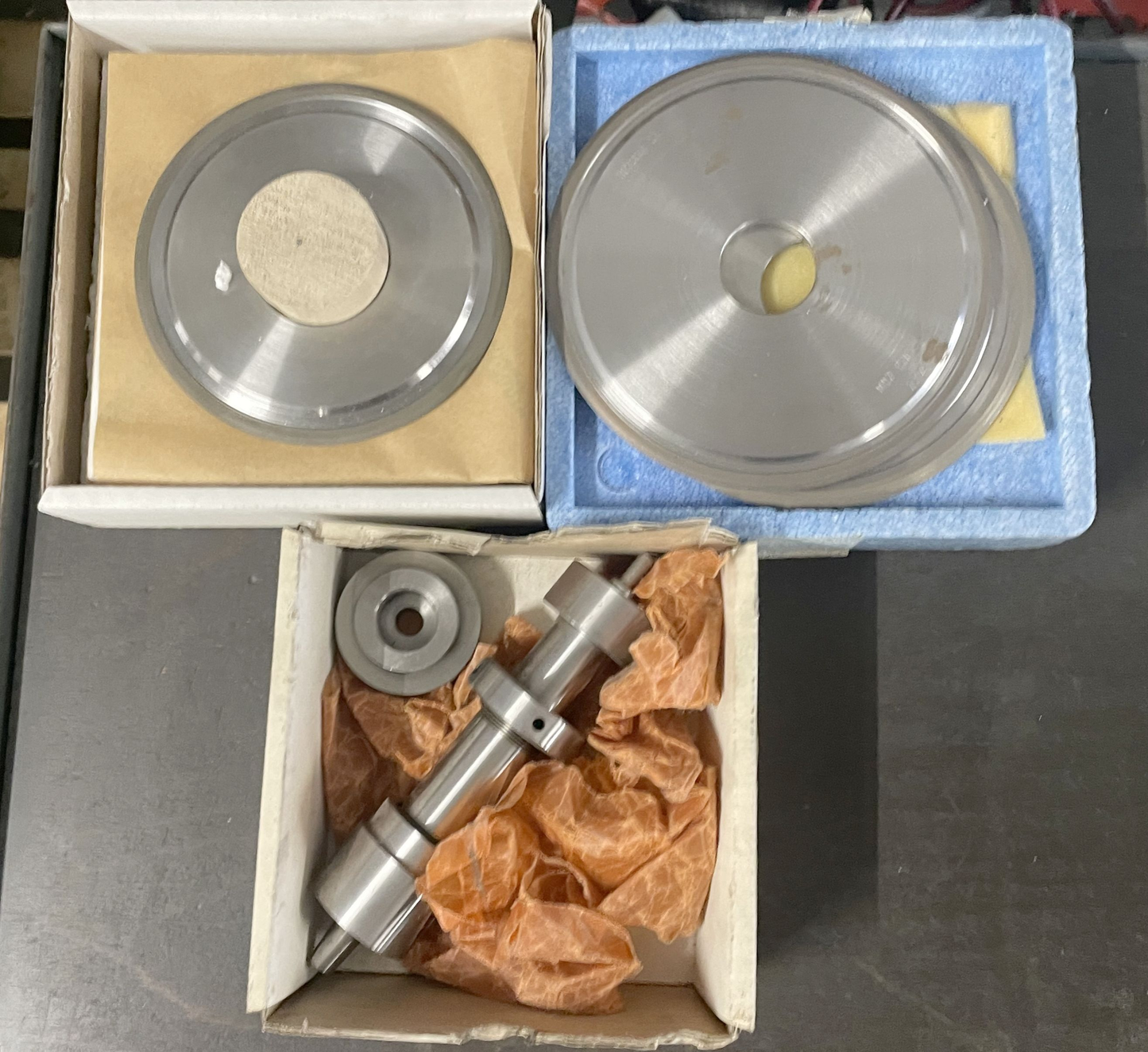

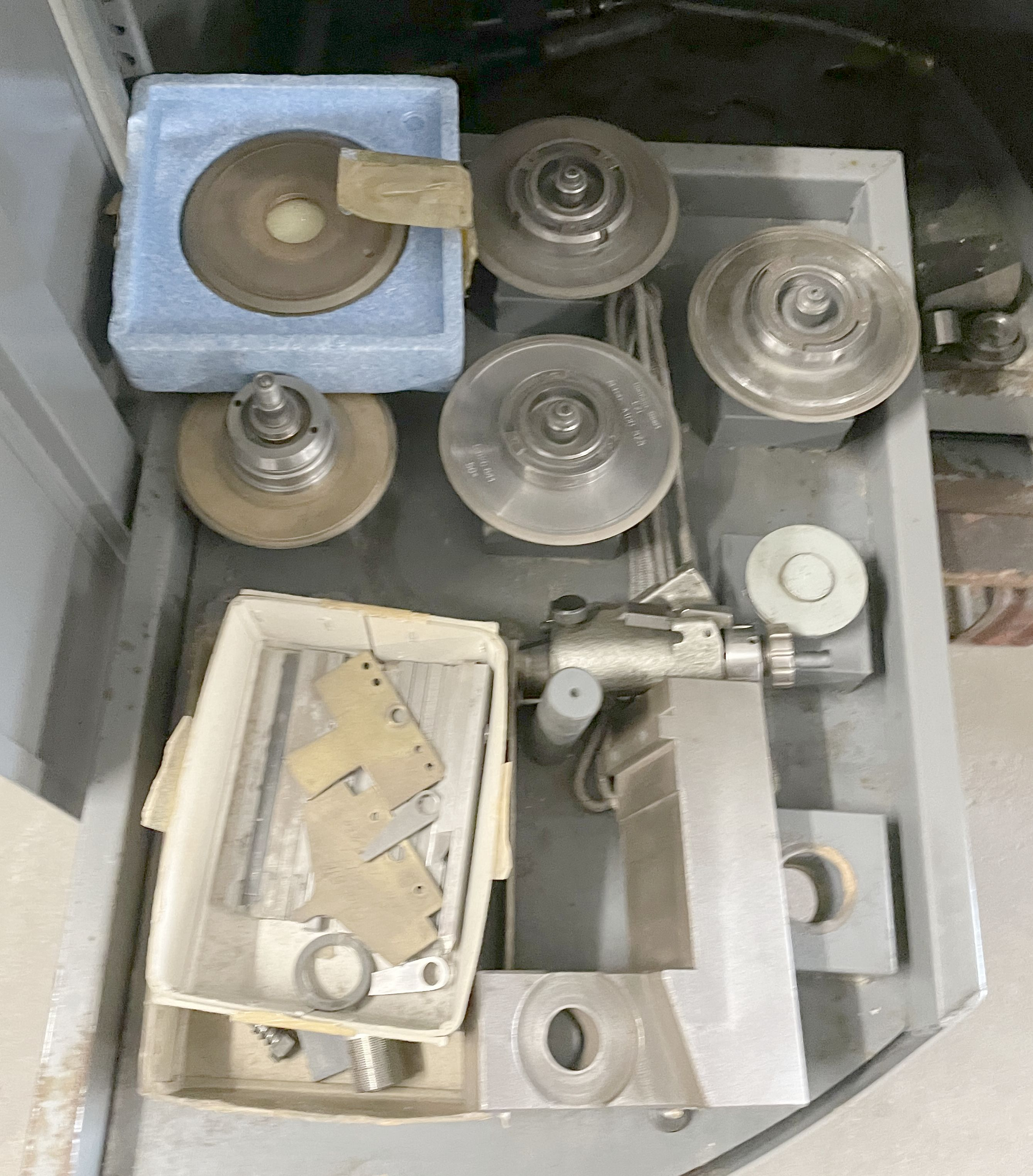

| Set of grinding wheels | |
| Set of flanges | |

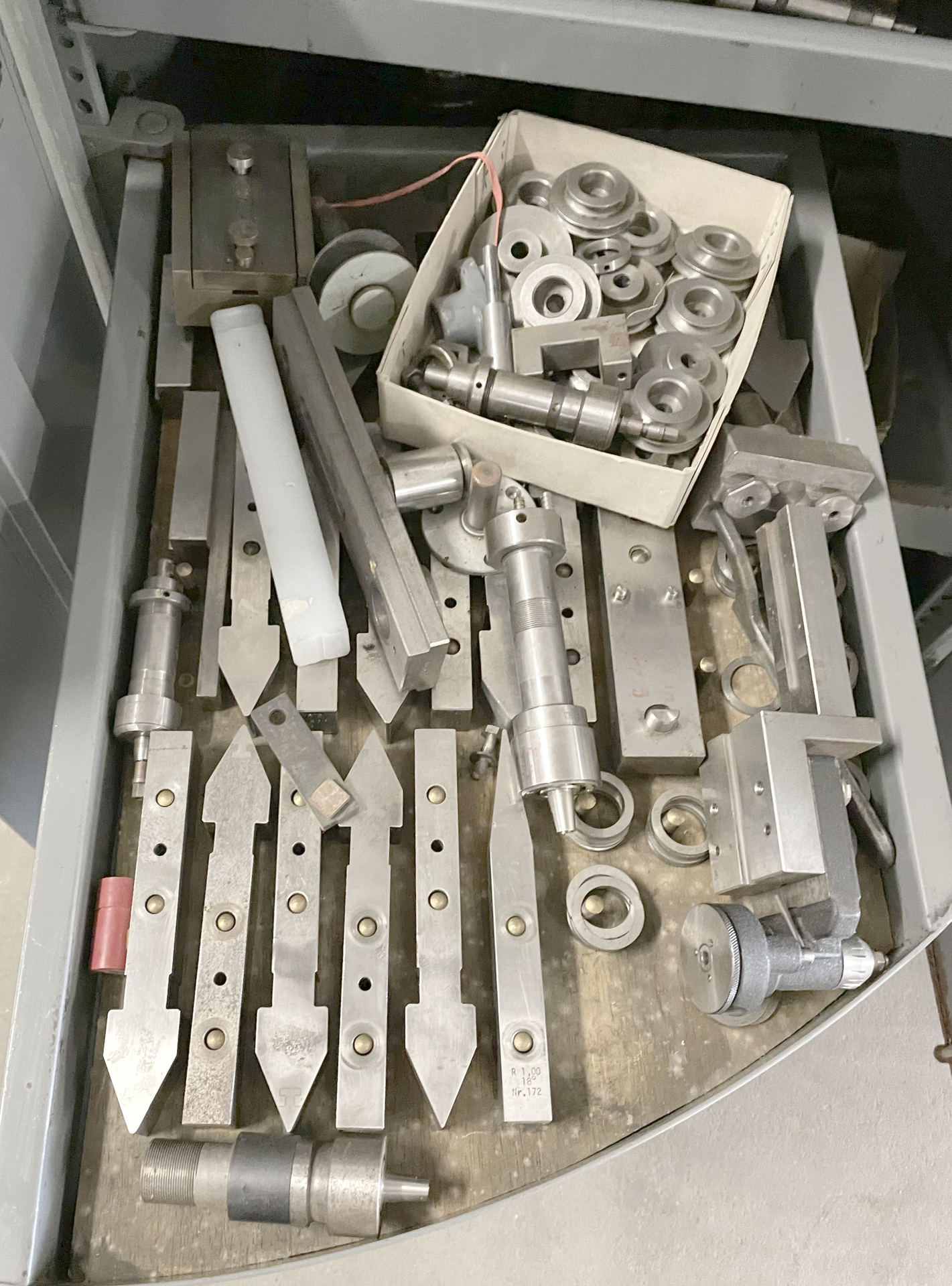

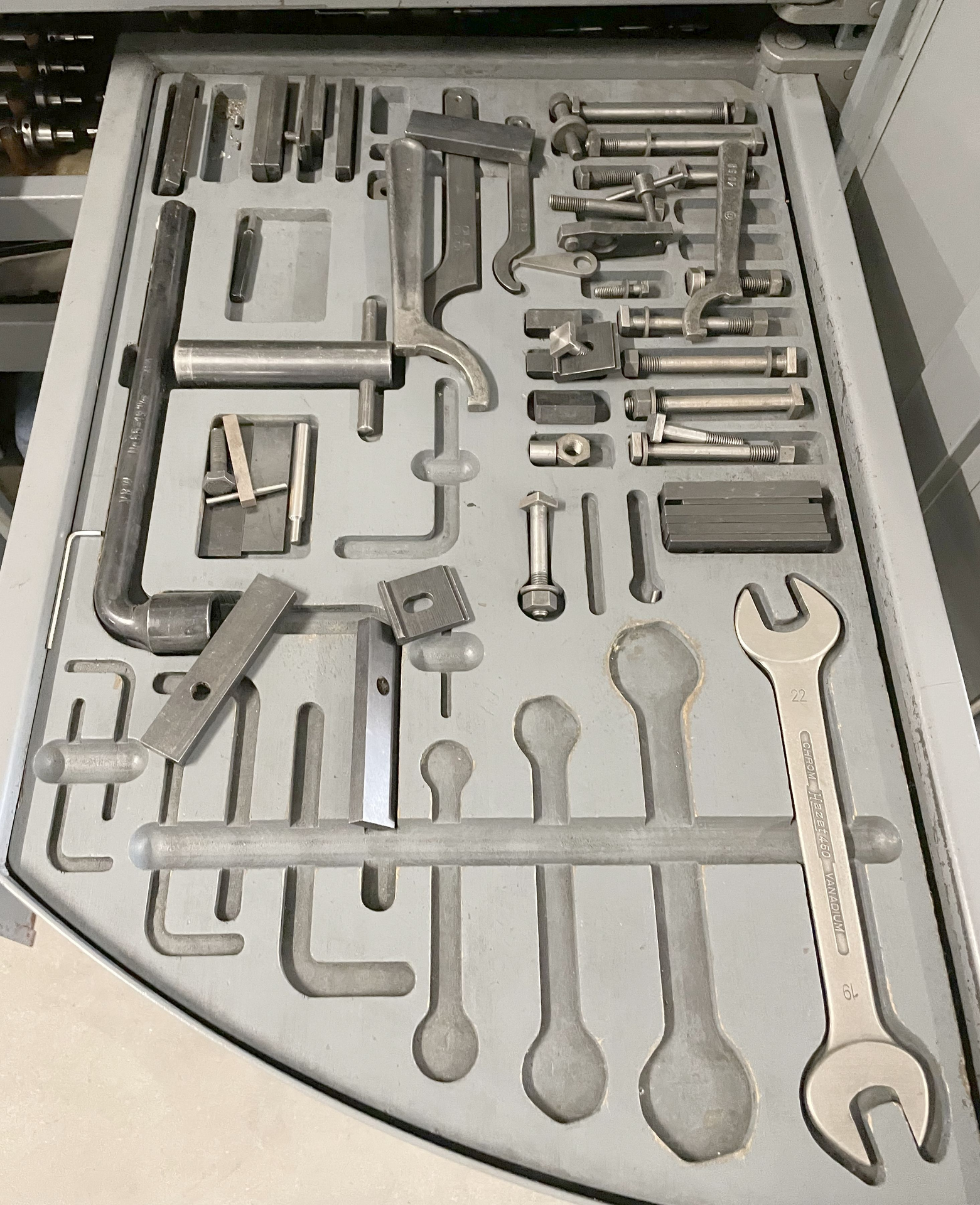

| Tool cabinet | |
| Dividing attachment |
