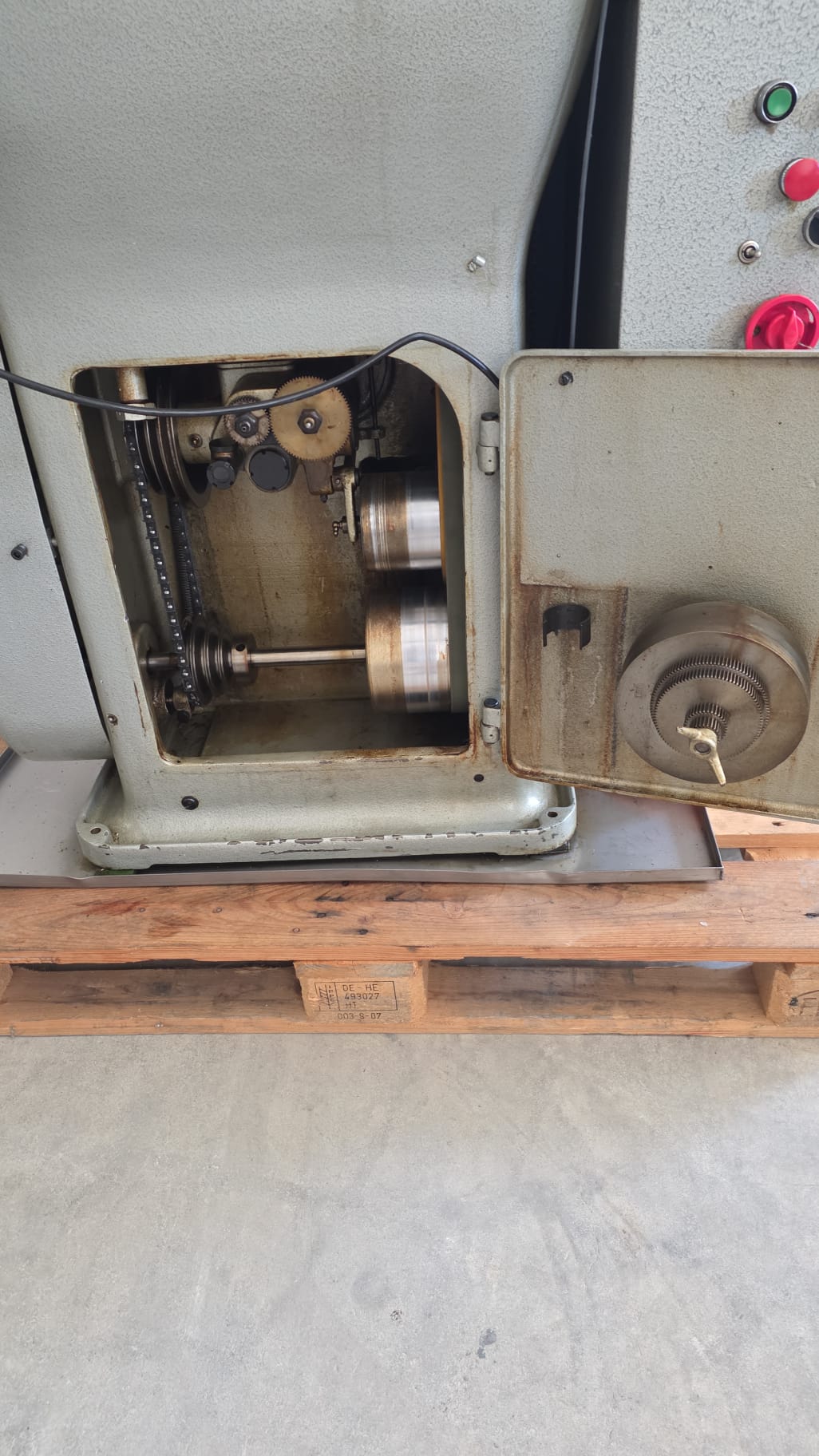

TORNOS M 4 is an Automatic lathe, characterized by precision, high accuracy and reliability. Work diameter max 4 mm; with flat cames turning length 28 mm; spindle hole 6 mm; max threading diameter 4 M; 5 tool cutters. Spindle: 14 speeds, 2000–12000 t/min. Voltage 50 Hz 3x 380 Volt; total power 1.5 CV; weight ~350 kg; dimensions L1000×W700×H1300 mm. Designed to achieve tight tolerances; typical applications: watchmaking, medical, automotive, aerospace and machine tool industries
Technical specifications are subject to change without notice
| Diameter of work admitted | 4 mm |
| Max. turning length: | |
| with flat cames | 28 mm |
| Spindle hole | 6 mm |
| Max. treading diameter | 4 M |
| Number of tool cutters | 5 |
| Spindle speeds: | |
| Number of spindle speeds | 14 |
| from | 2000 t/min |
| up to | 12000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 1.5 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1300 mm |
