DMG HSC 55 linear
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

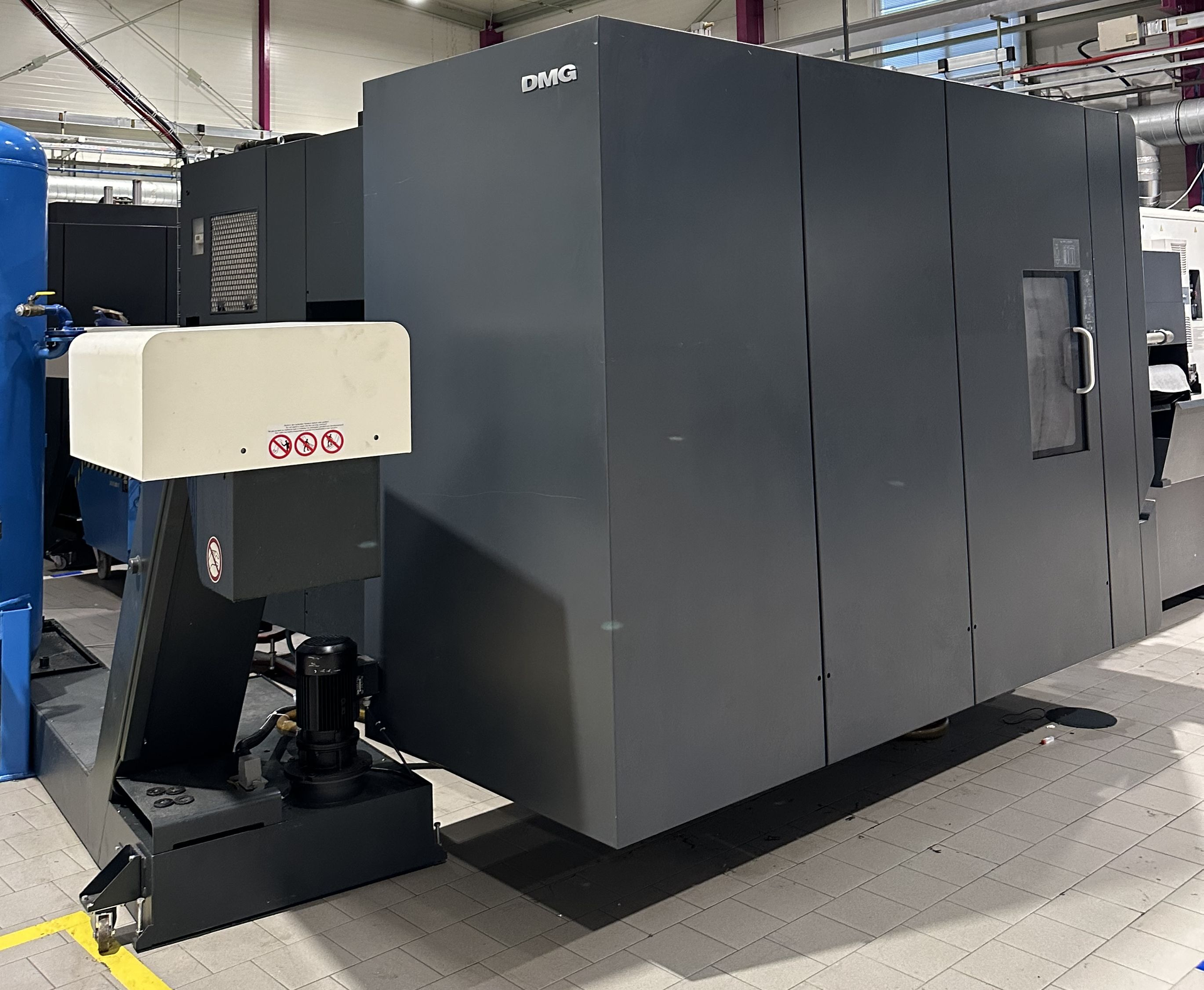

DMG HSC 55 linear is a 5-axis machining center with high precision, superior accuracy and reliability. Travels X450 mm, Y650 mm, Z460 mm; A -10/+110°; tool magazine 120 places; tool Ø 80 mm; tool length 250 mm; max tool weight 6 kg; spindle taper HSK63. Spindle 2–28000 t/min, spindle power 38/28 kW; 50Hz 3x400 V; total installed power 70 kVA; machine weight ≈9500 kg; overall dims L3210×W2930×H2900 mm. Delivers tight tolerances; typical for automotive, aerospace, medical, watchmaking and machine-tool manufacture.
| Number of axis total | 5 |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y-axis) | 650 mm |
| Vertical travel (z axis) | 460 mm |

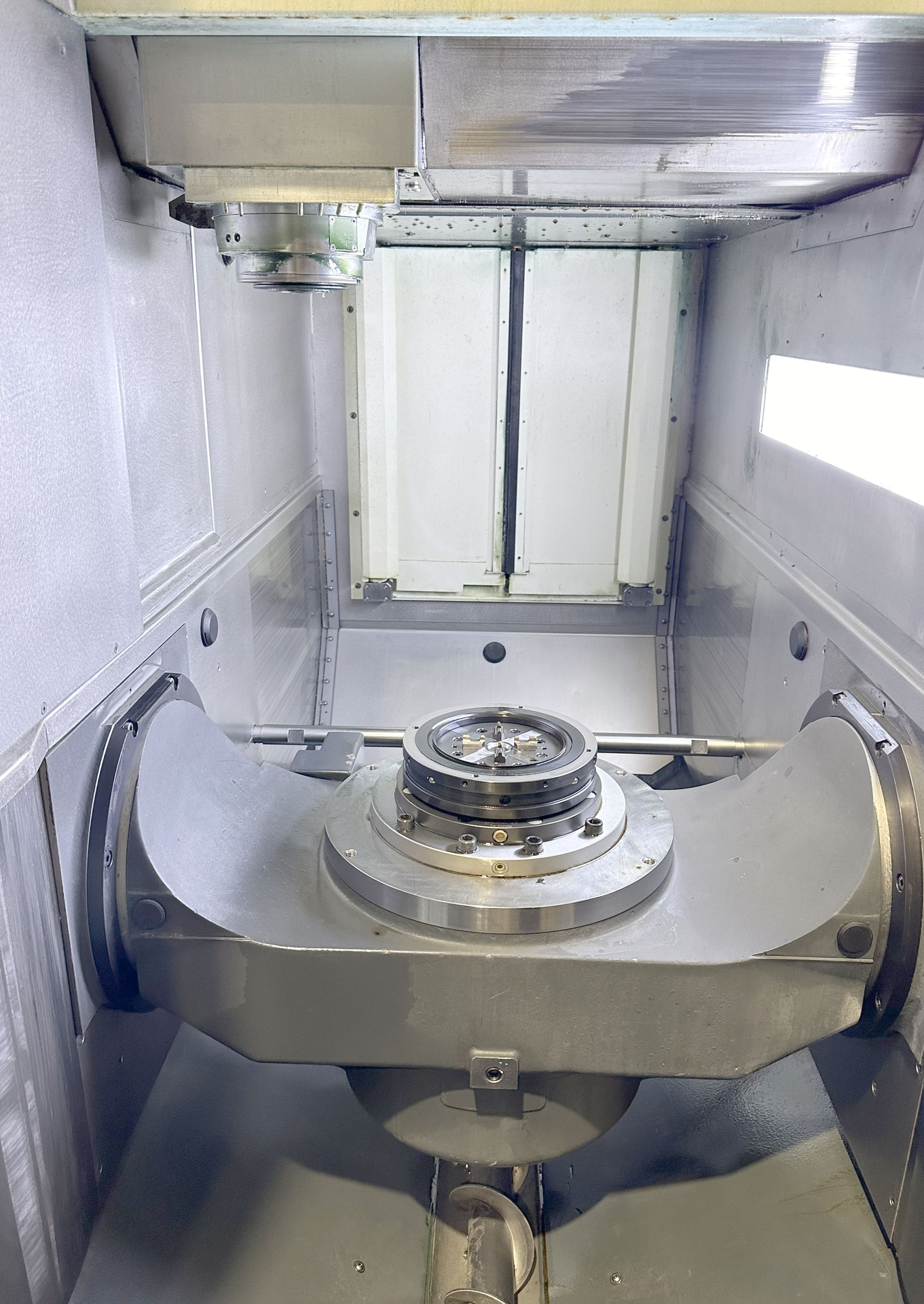

| Swivel angle (a-axis) | -10 / +110 ° |

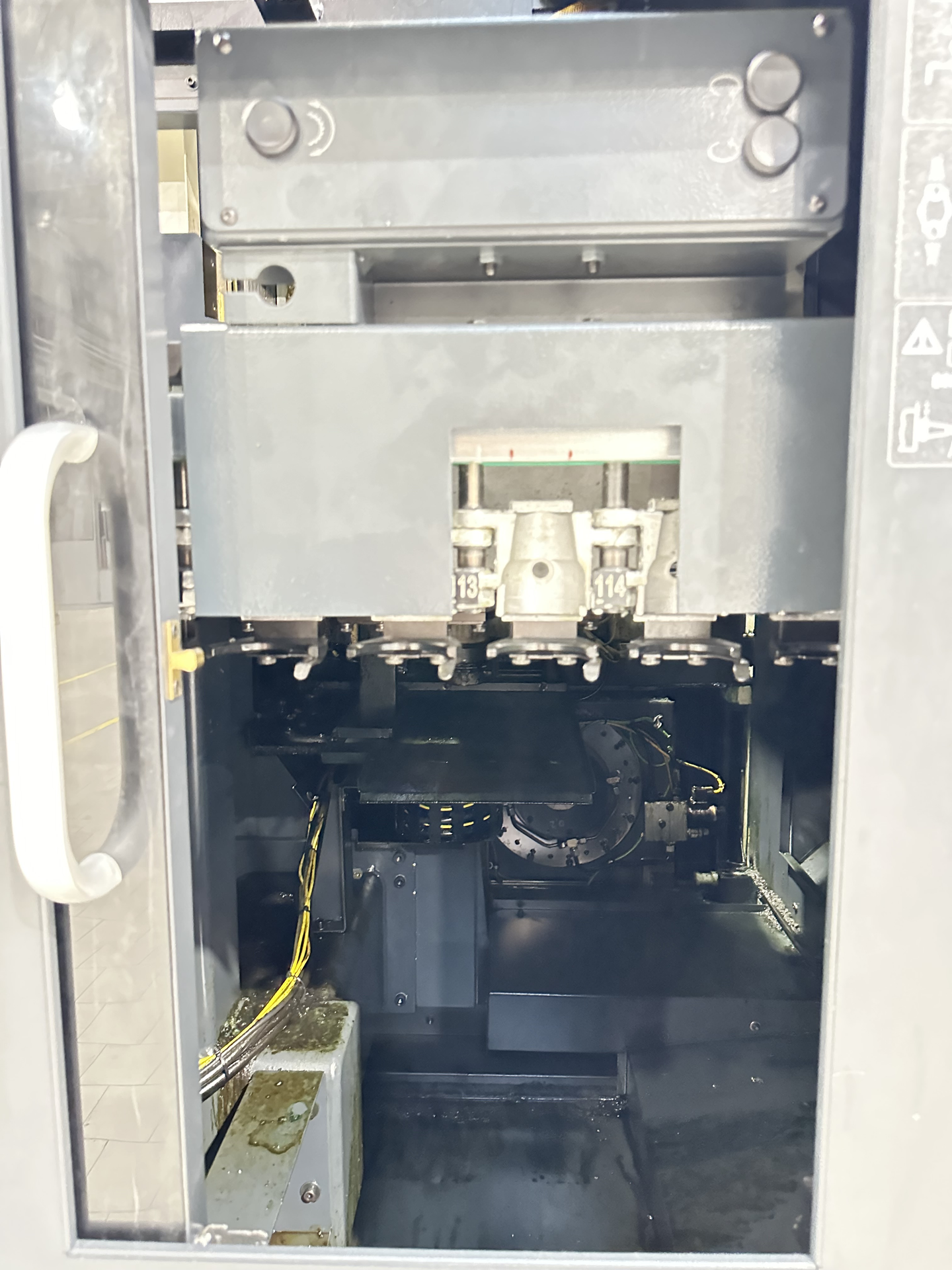

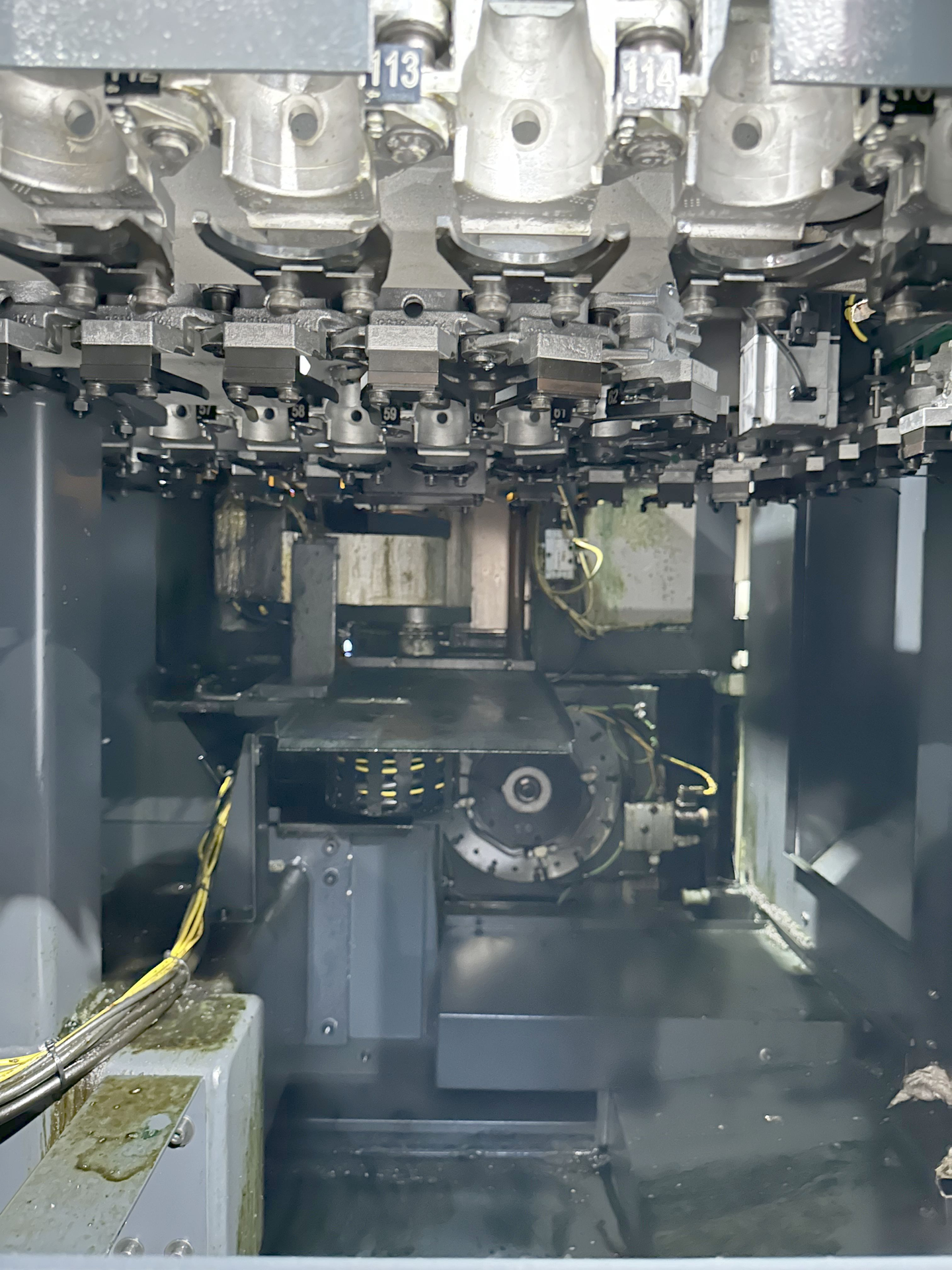

| Tool magazine number of tool places | 120 |
| Tool diameter max. | 80 mm |
| Tool lenght | 250 mm |
| Max. tool-weight | 6 kg |
| Spindle nose: HSK | 63 |
| Spindle speeds: | |
| stepless | |
| from | 2 t/min |
| up to | 28000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 38 / 28 kW |
| Total power required | 70 kVA |
| Machine's weight about | 9500 kg |
| Overall dimensions machine: | |
| Length | 3210 mm |
| Width | 2930 mm |
| Height | 2900 mm |
