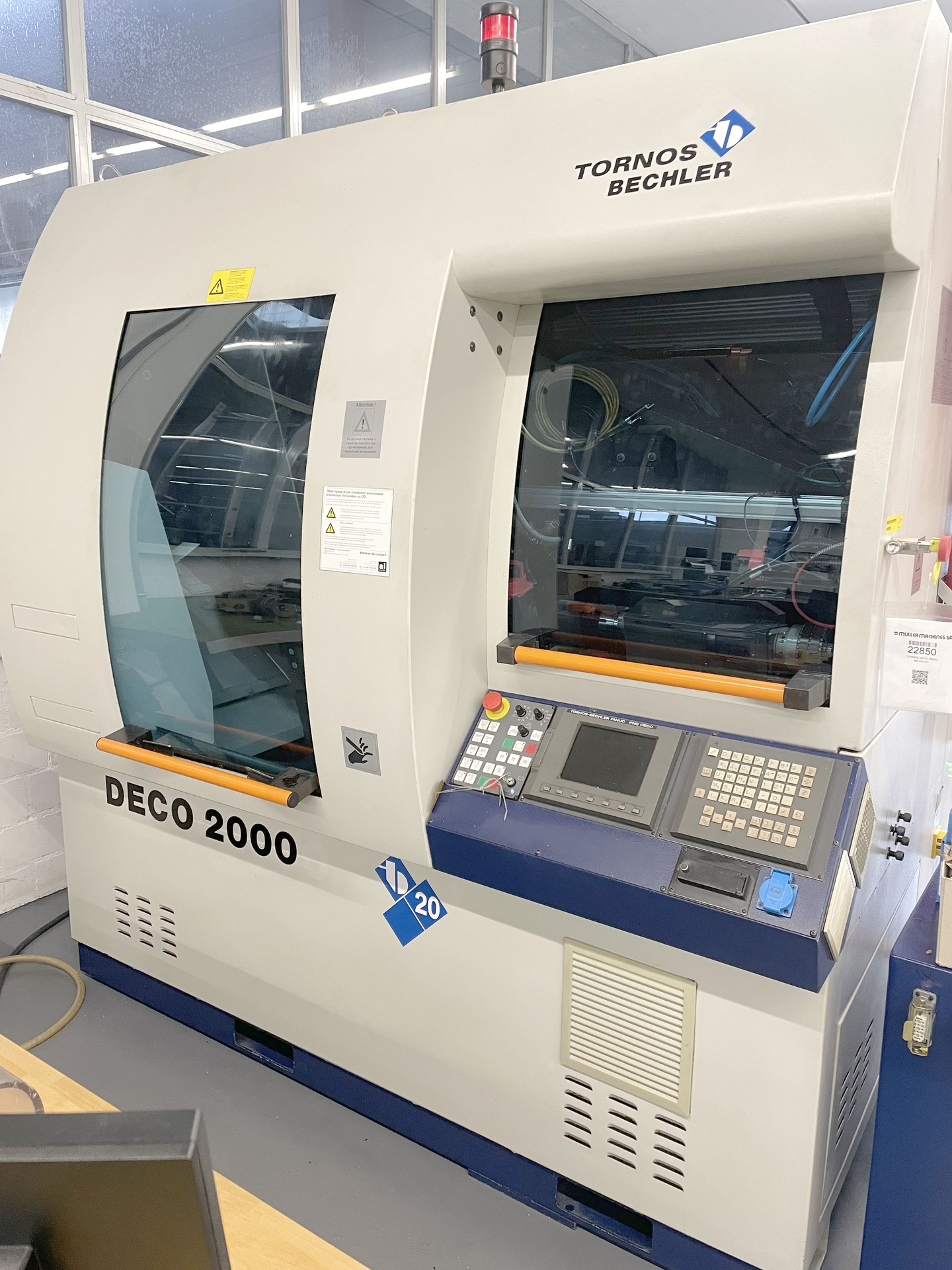

TORNOS DECO 2000/20
Type: DECO 2000/20
Manufacturer: TORNOS
Group: CNC automatic lathe
Subgroup: CNC automatic lathe

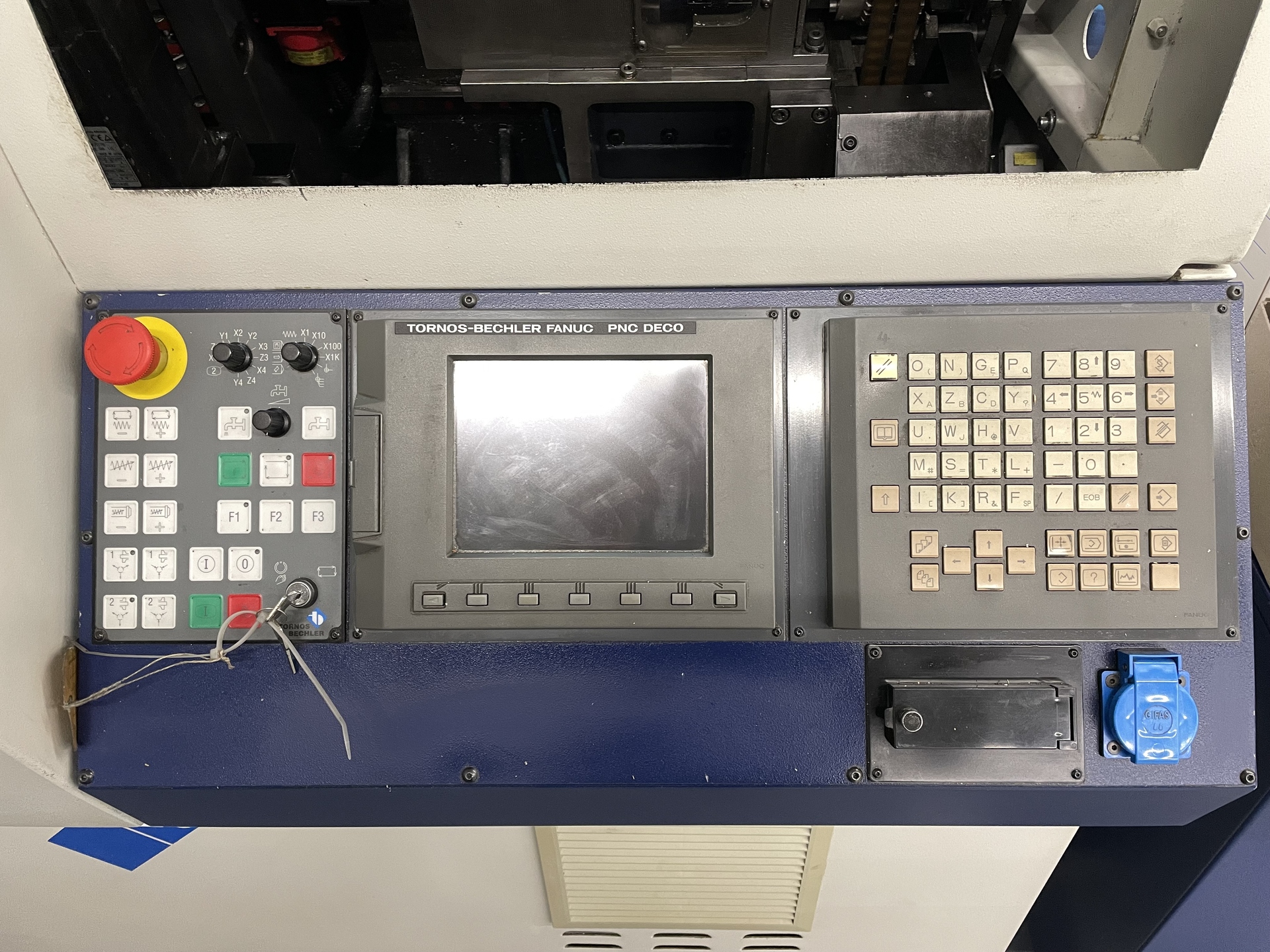

Control: TORNOS BECHLER PNC DECO
Stock: 022850

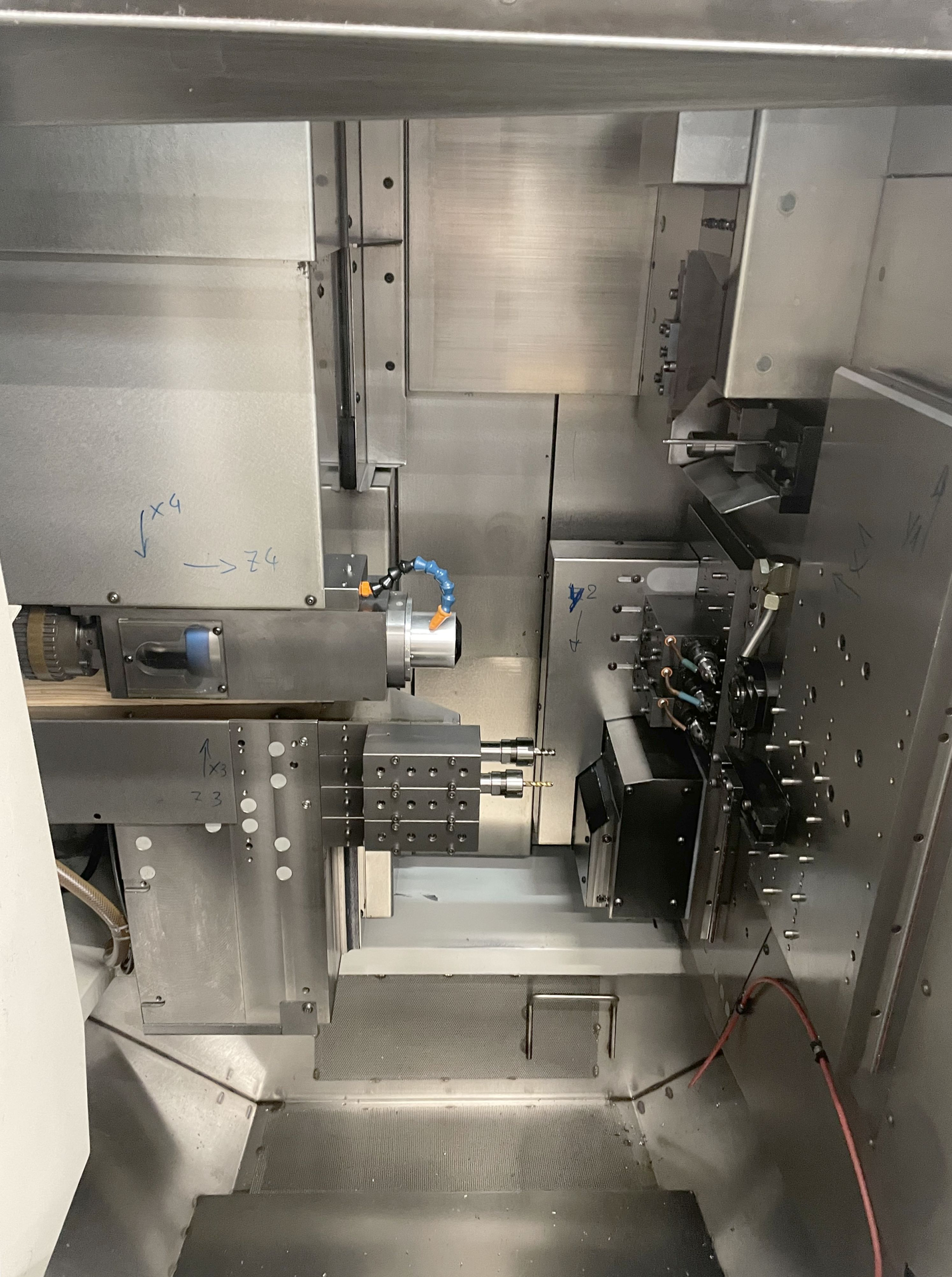

TORNOS DECO 2000/20 is a CNC automatic lathe delivering high precision, excellent accuracy and reliable performance. It features 10 axes, an internal spindle bore Ø20 mm, two independent carriages (X1‑Y1, X2‑Y2) with 5 positions each, 4 driven tools and a back spindle (3) up to 10,000 rpm for compact, flexible machining. Key specs: spindle stepless up to 10,000 rpm, spindle motor 2.2 kW, C‑axis resolution 0.1°, voltage 50 Hz 3x380‑420 V, total power 11 kVA, machine weight ≈3000 kg, overall L2950×W1100×H2300 mm. Accessories: SBF bar feeder Type 535, parts catcher and tool pre‑setting device. Capable of achieving tight tolerances; suited to automotive, watchmaking, tooling, aerospace and medical sectors.
| Number of axis total | 10 |
| Number of axis total | |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| stepless | |
| up to | 10000 t/min |

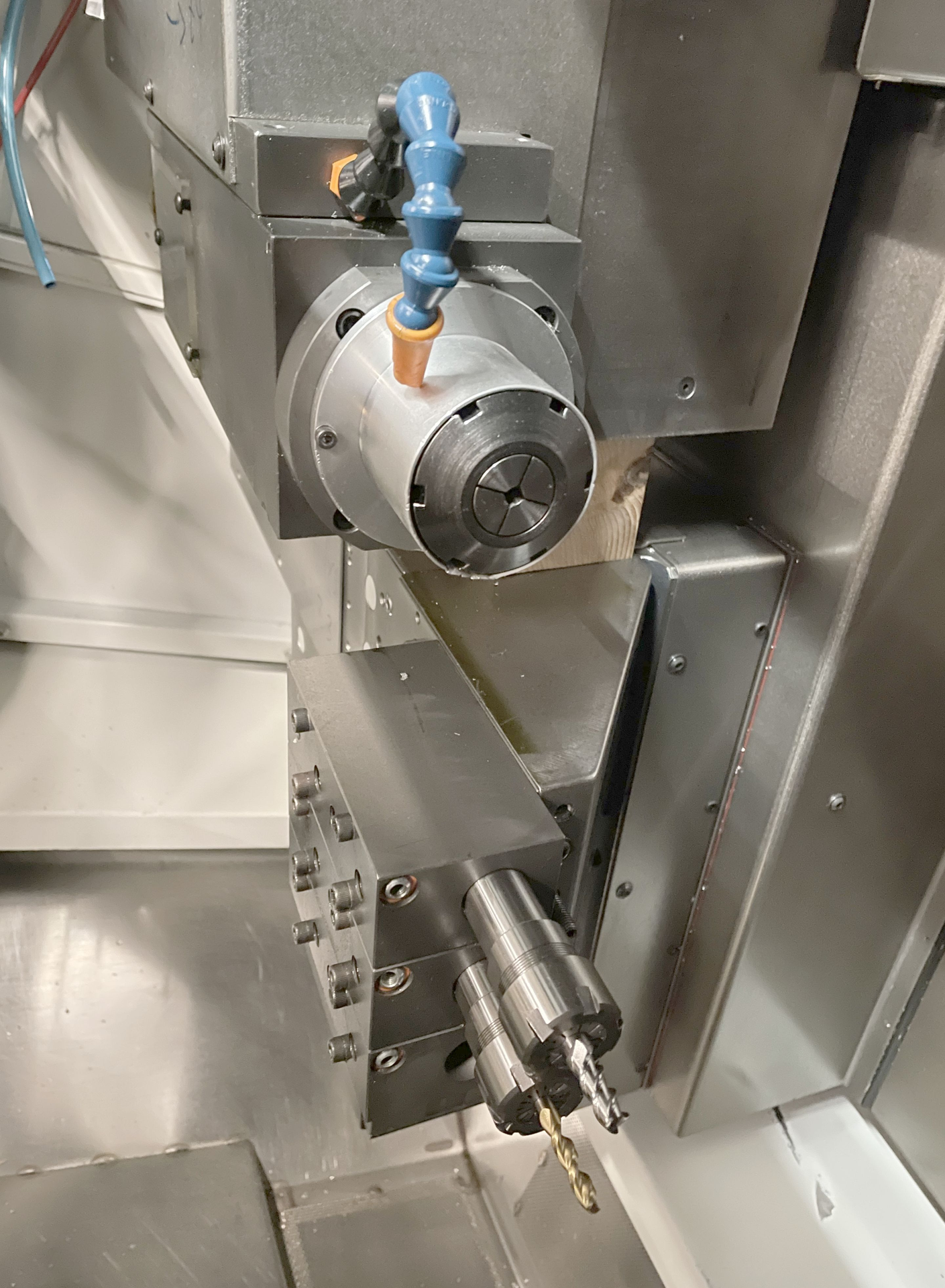

| Independent carriage: | (X1-Y1) |
| Number of positions | 5 |
| number of driven tools | 4 |

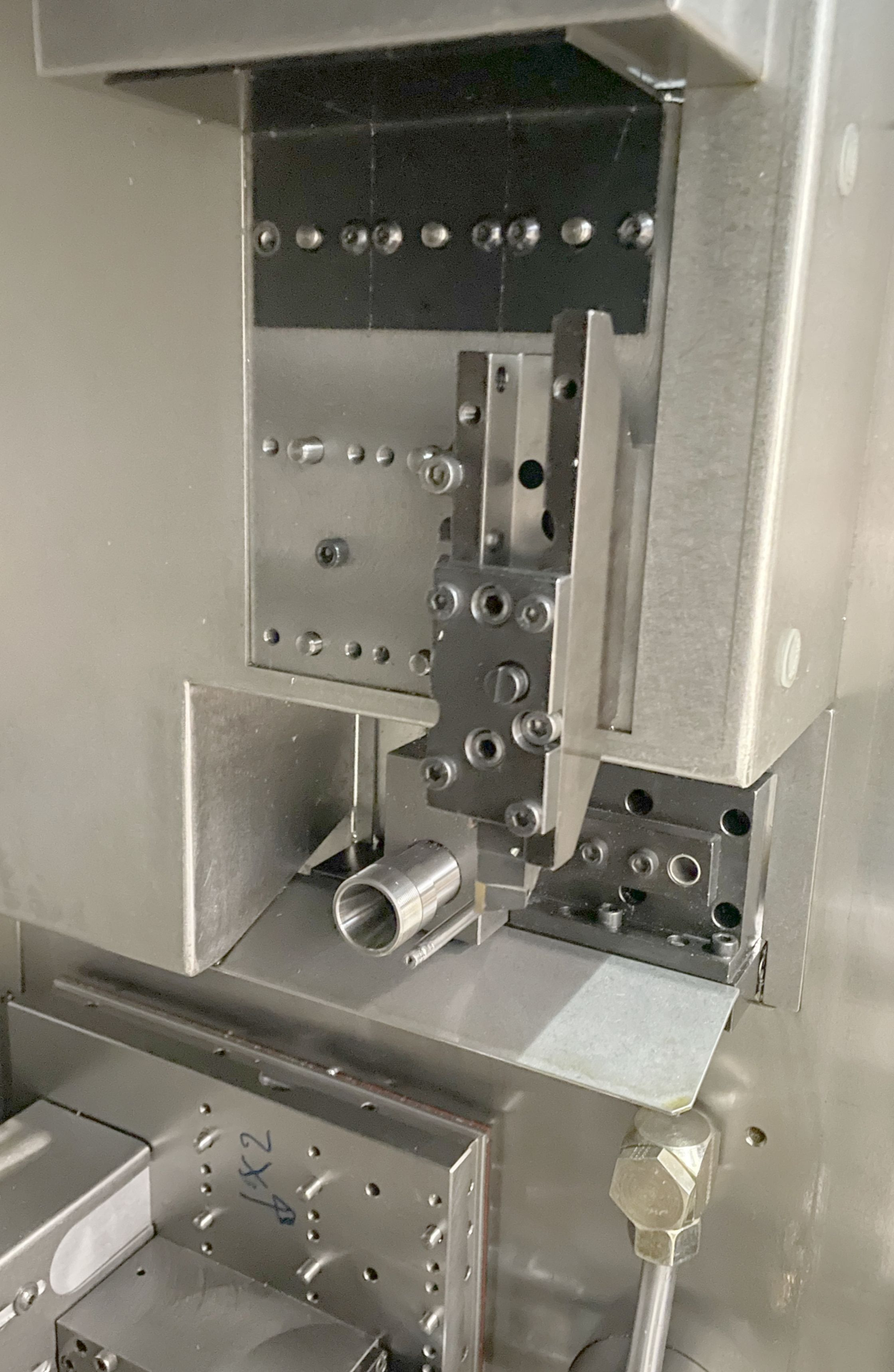

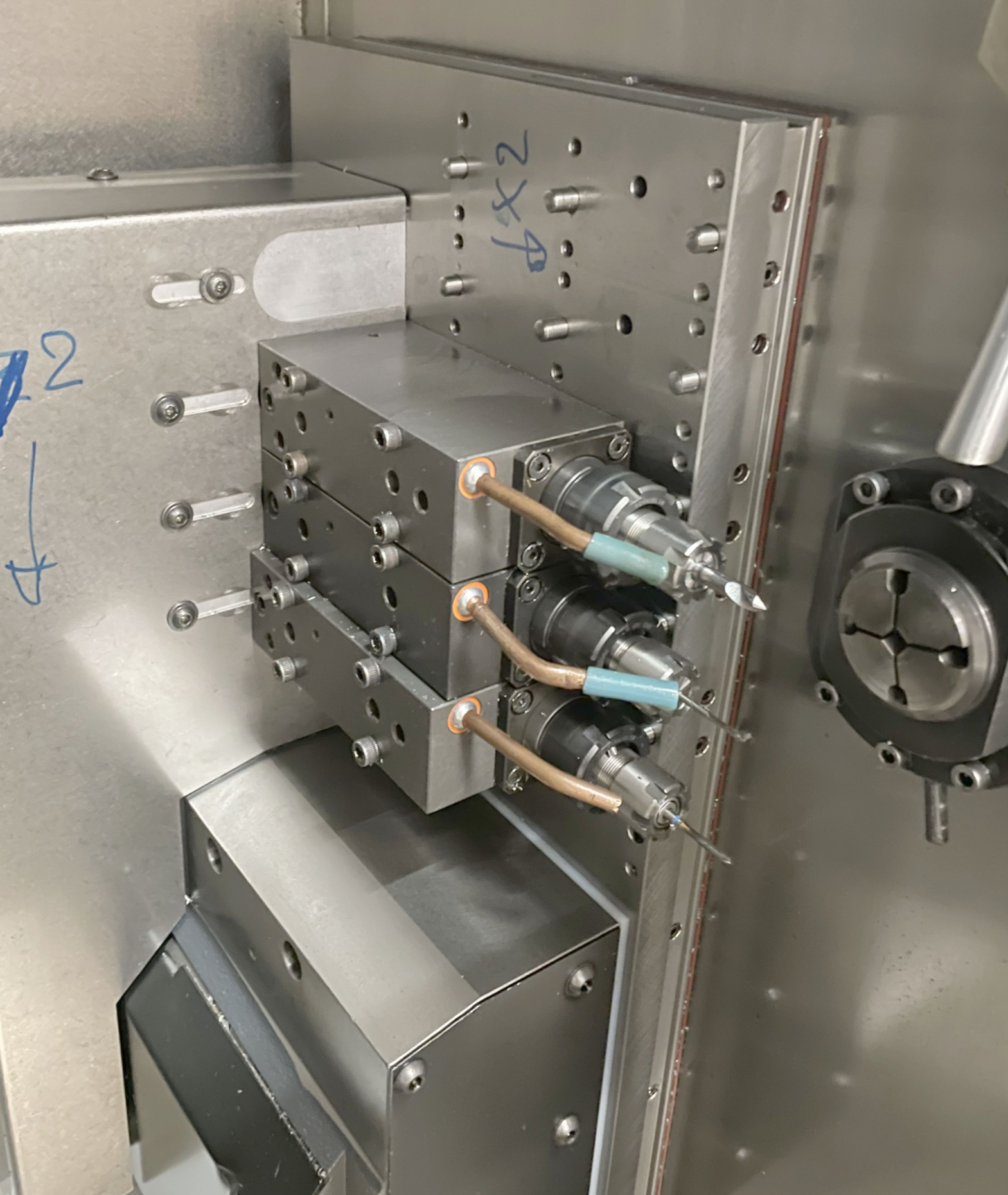

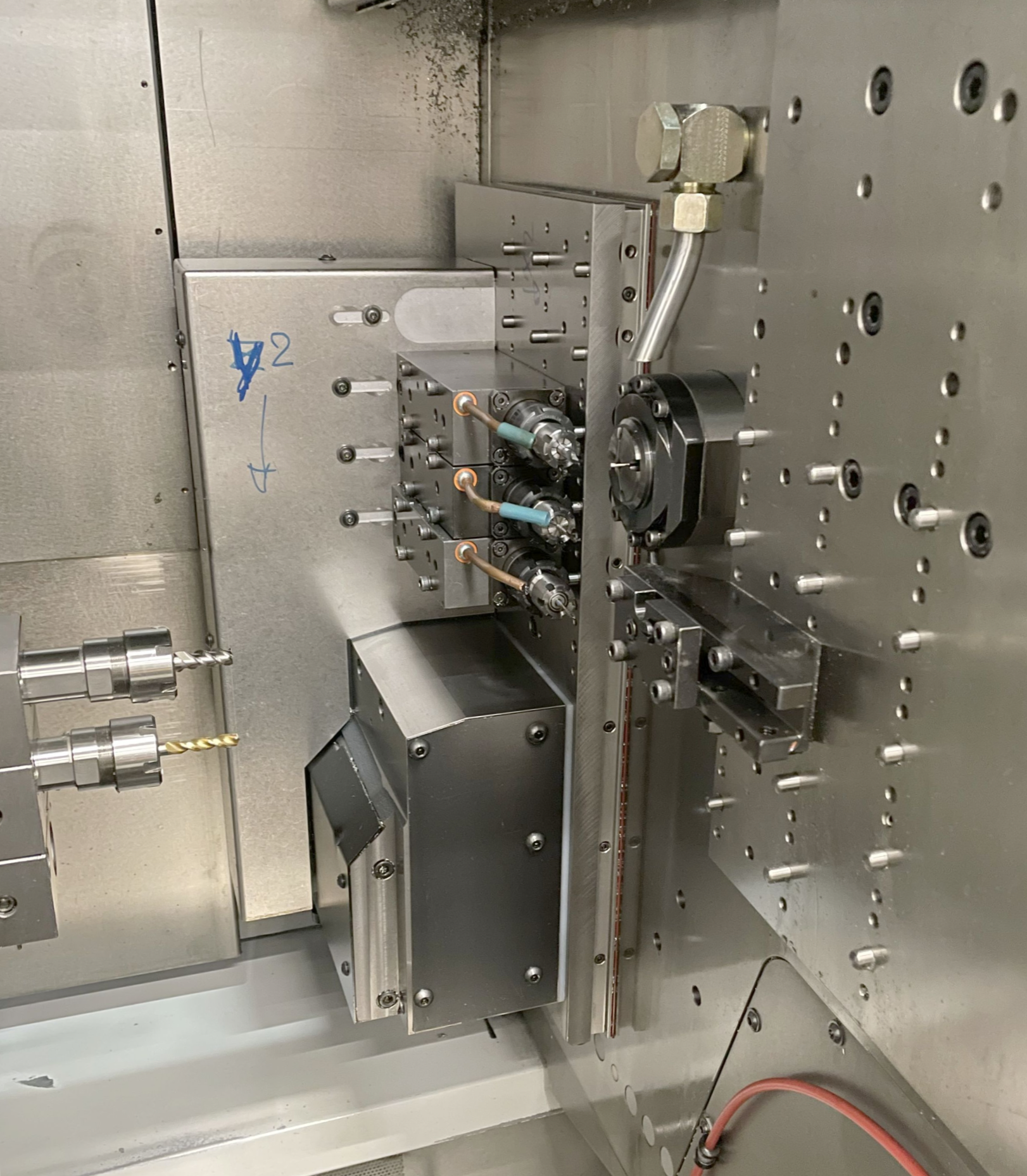

| Independent carriage: | (X2-Y2) |
| Number of positions | 5 |
| Back spindle: | 3 |
| speeds: | |
| up to | 10000 t/min |
| Inner taper type | F25 |
| Spindle speeds (turning tools) | 8000 t/min |
| C axis (spindle,resolution) | 0.1 ° |
| Voltage 50 Hz 3x | 380-420 Volt |
| Spindle motor | 2.2 kW |
| Total power required | 11 kVA |
| Machine's weight about | 3000 kg |
| Overall dimensions machine: | |
| Length | 2950 mm |
| Width | 1100 mm |
| Height | 2300 mm |
| Various accessories: | |

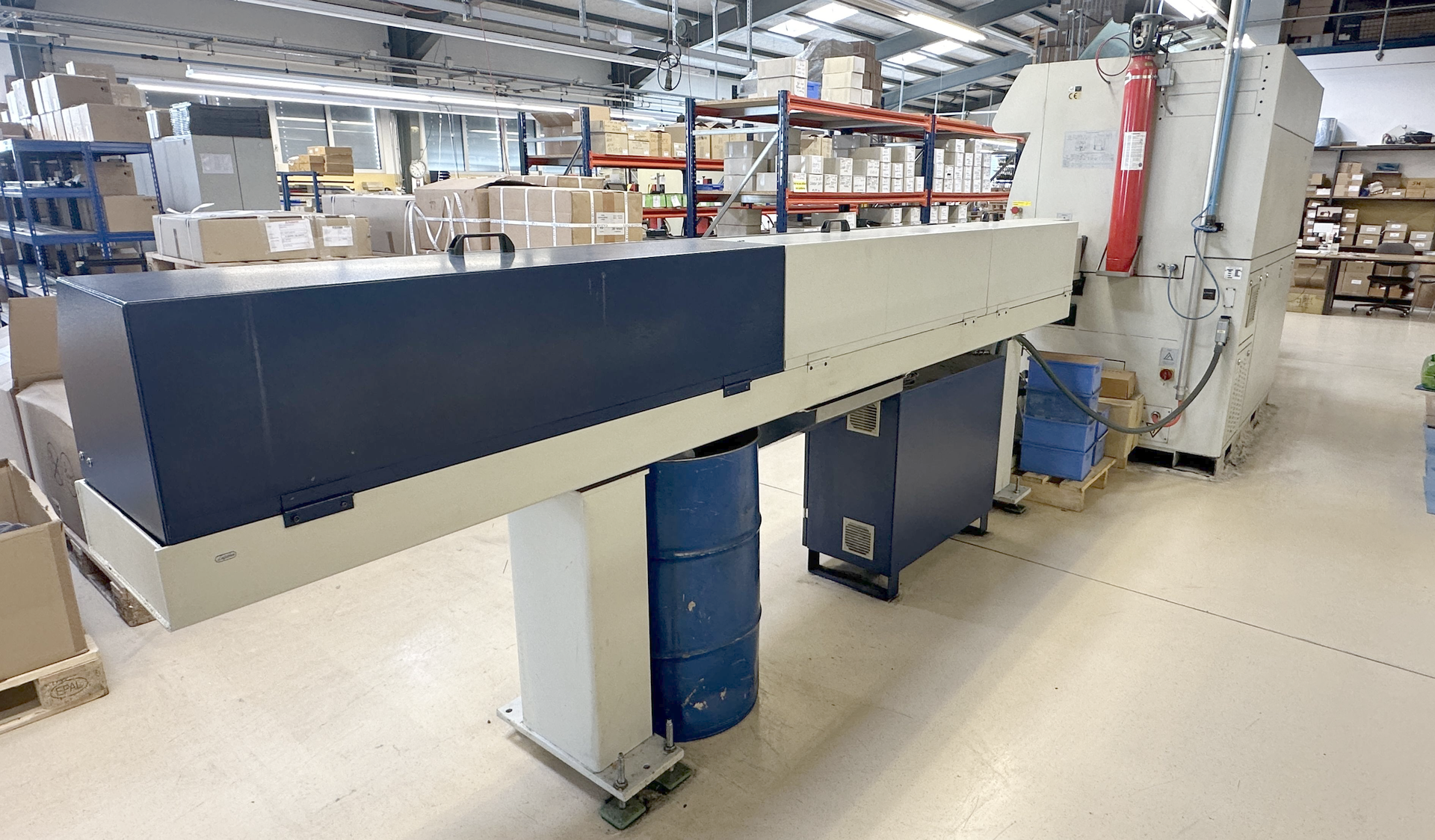

| Bar feeder | |
| Manufacturer | SBF |
| Type | 535 |

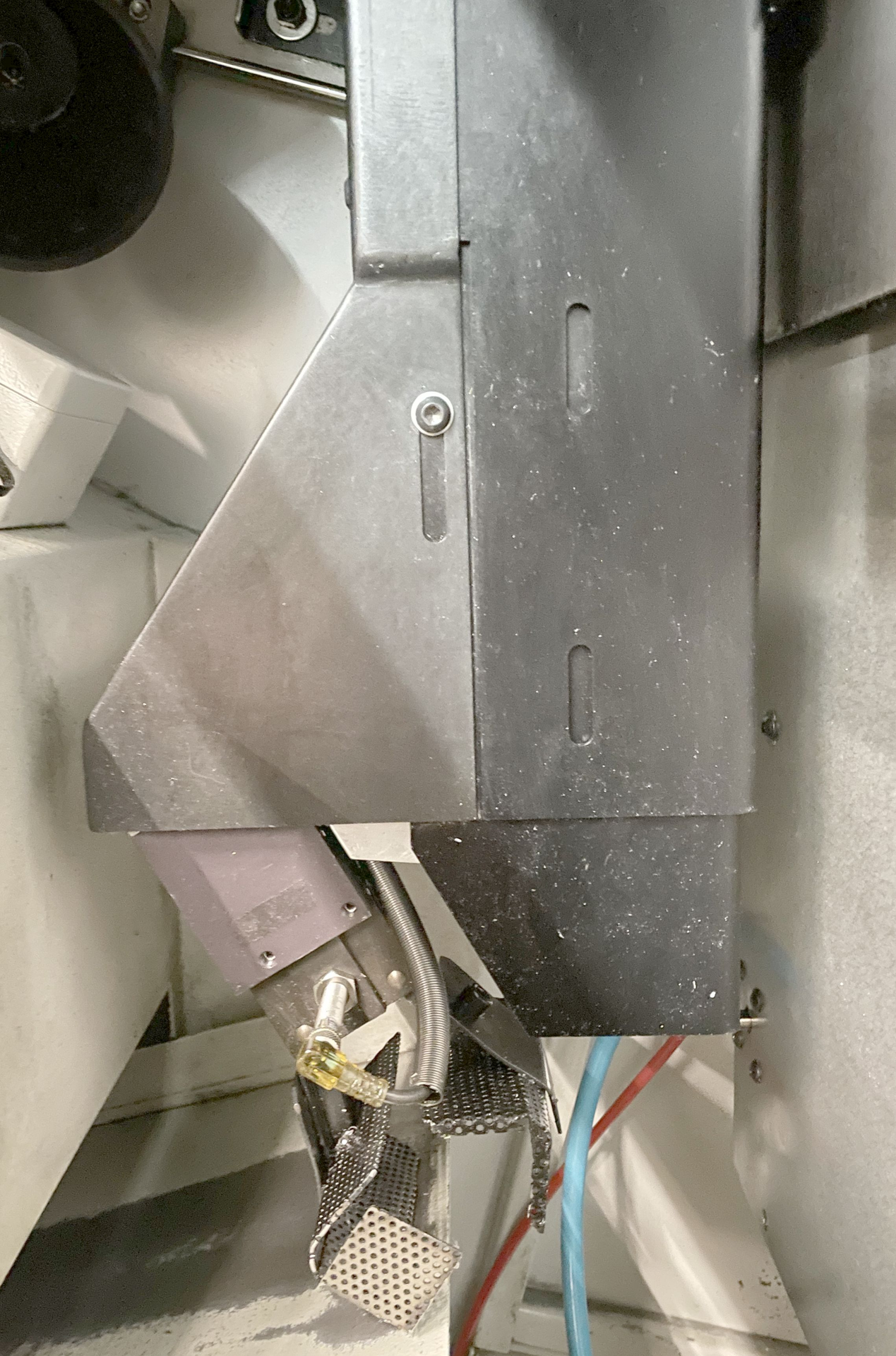

| Parts catcher | |

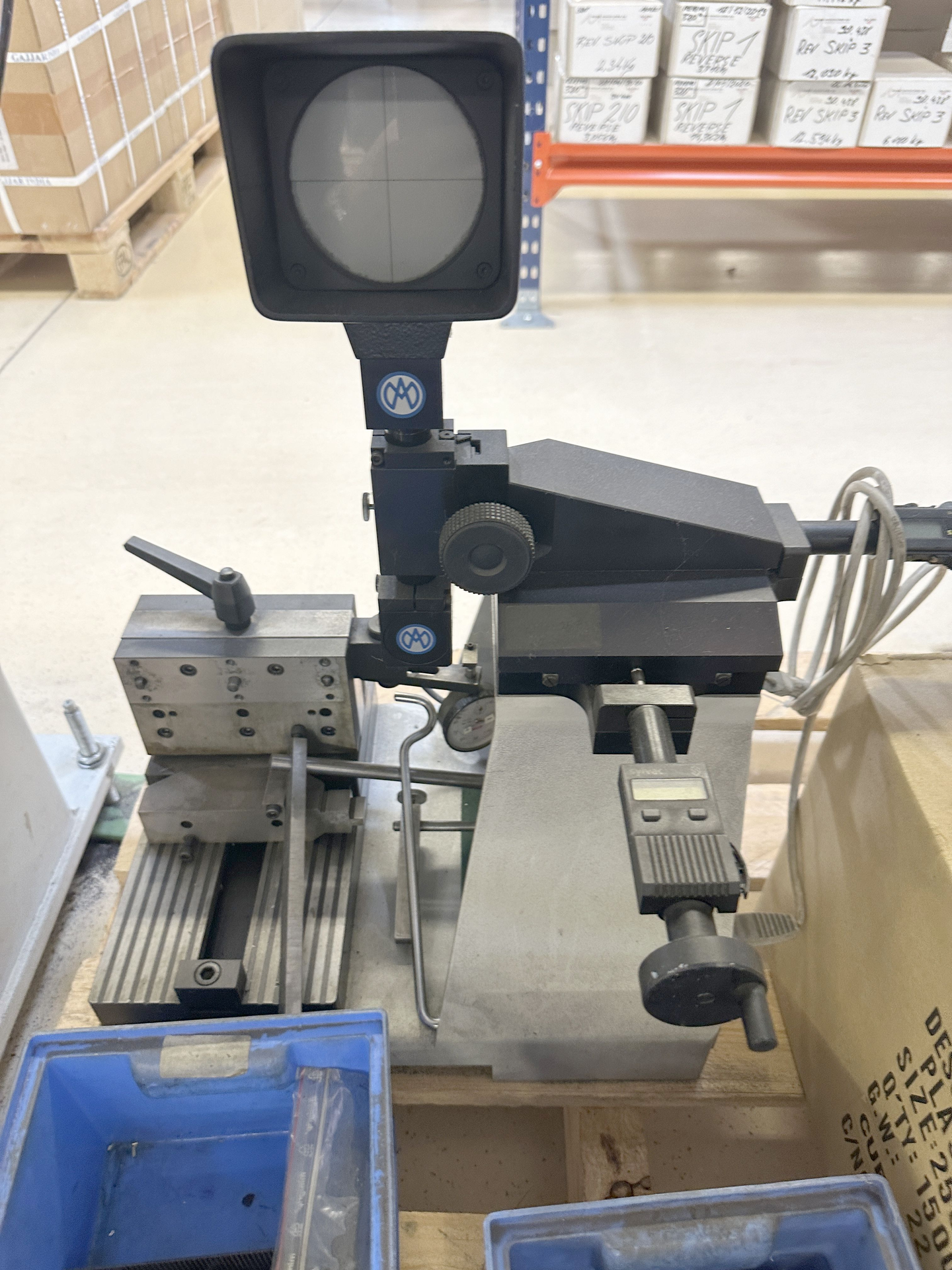

| Tool pre-setting device |
