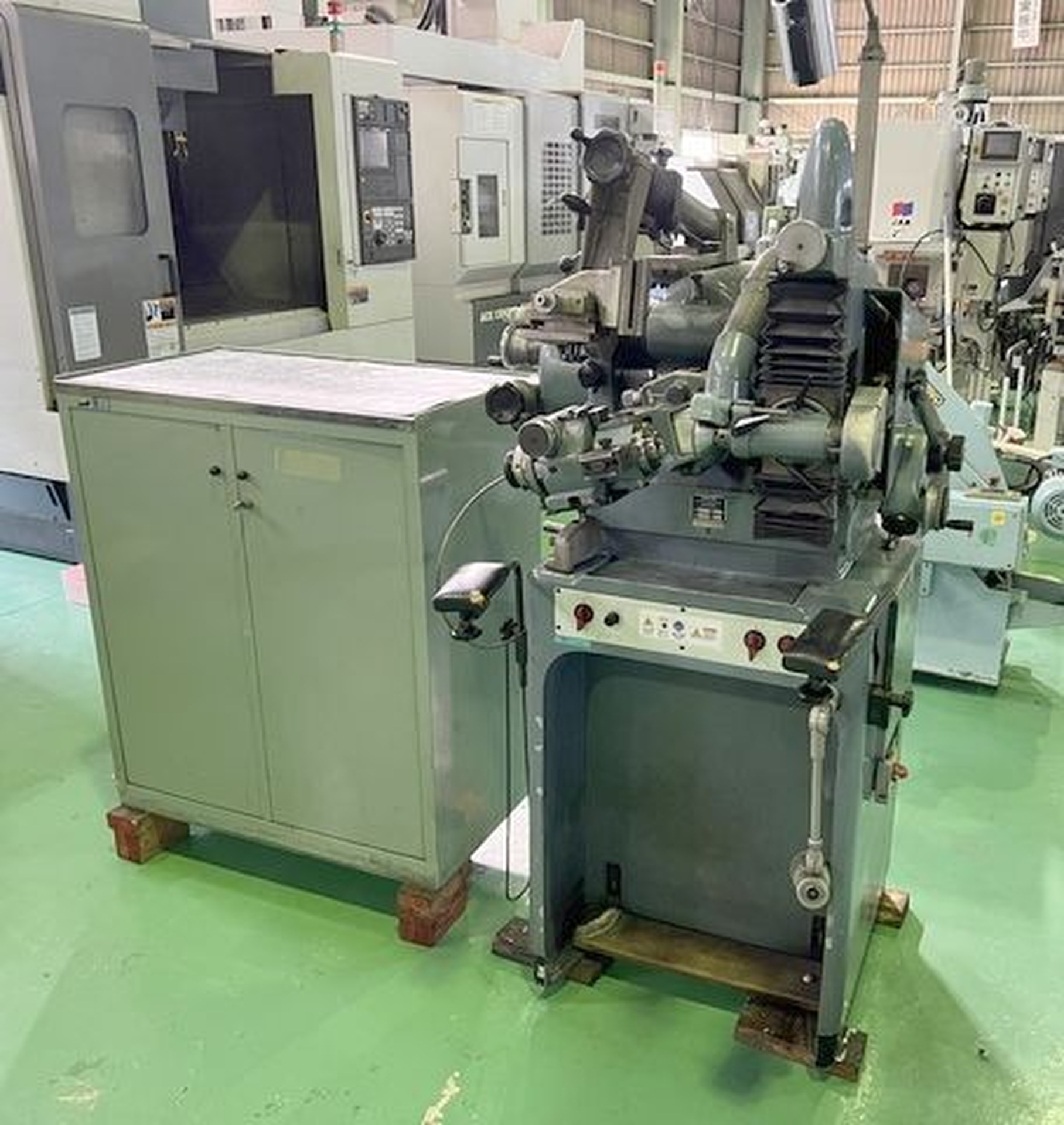

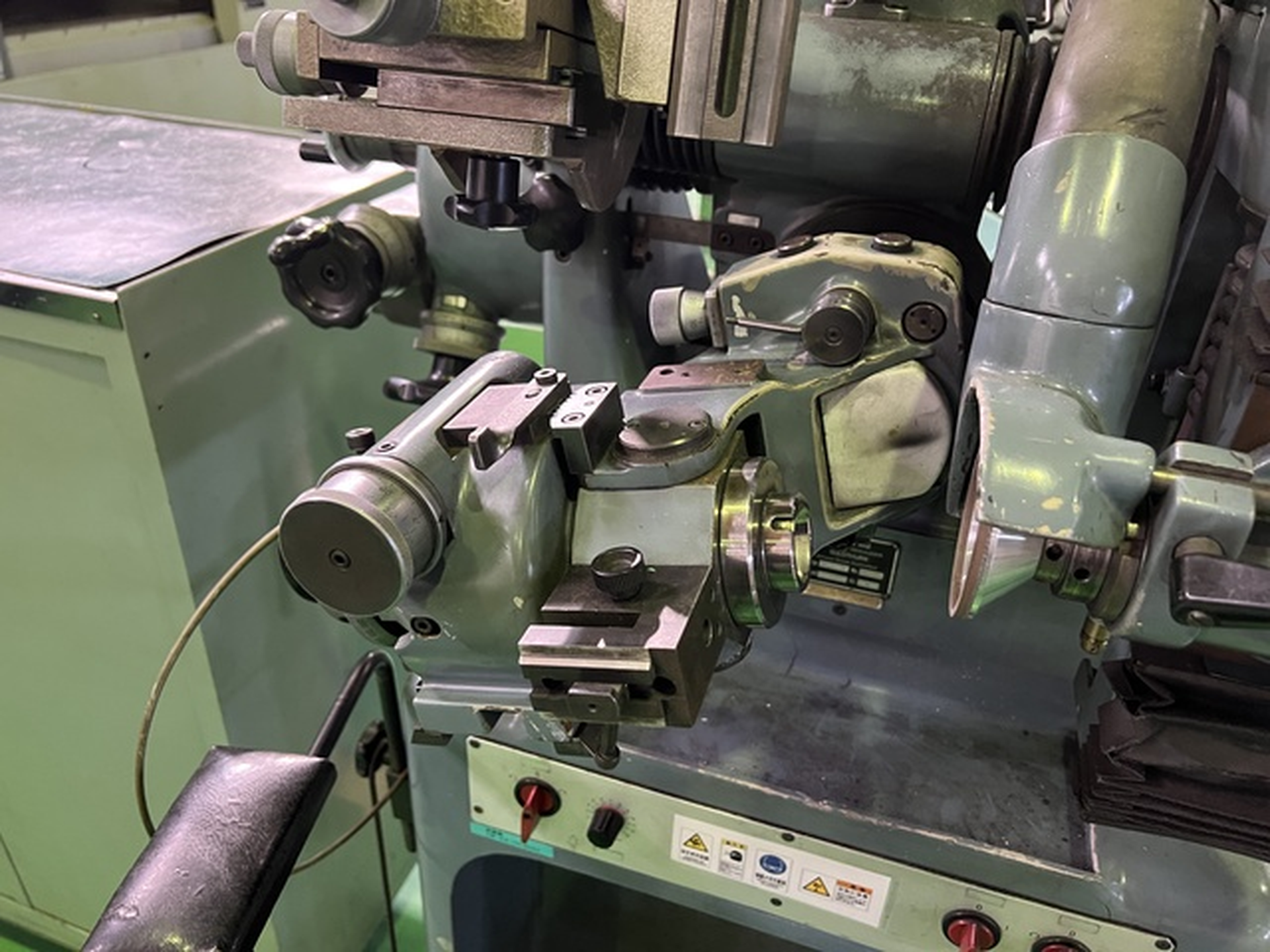

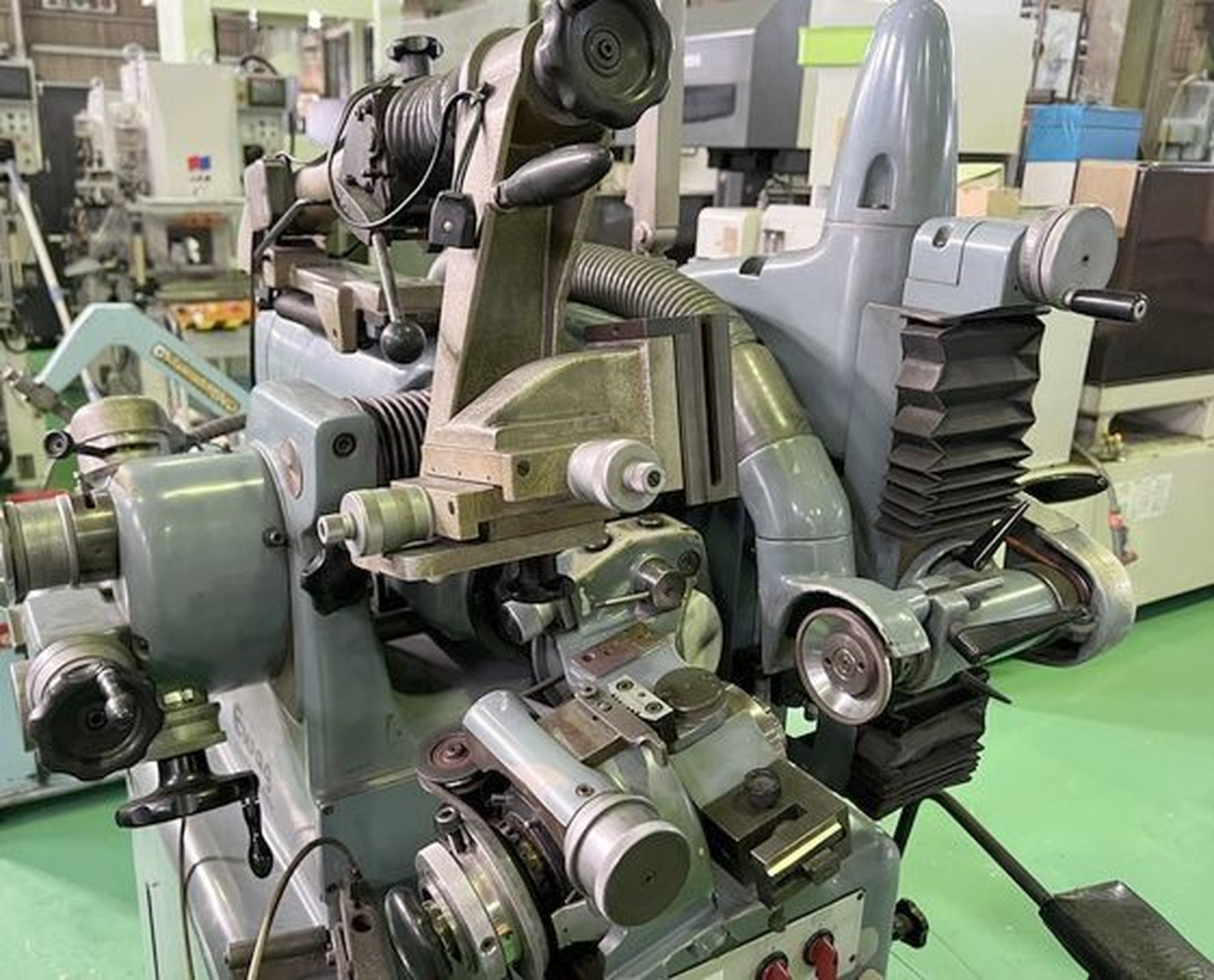

EWAG WS 11 SP is a tool and cutter grinder delivering precision, high accuracy and reliability. Working capacities: X/Y/Z travel 100 mm, grinding-wheel Ø 75 mm, workpiece spindle 100–1300 t/min, vertical grinding-head adjustment 100 mm, head slewing horizontal 165°. Main specs: grinding spindle speeds 2500–7100 t/min, collet attachment 25 W, voltage 50 Hz 3x380 V, total power 2 kVA, machine weight ≈400 kg, dimensions L850×W850×H1580 mm. Accessories: tool cabinet and lamp. Achieves tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| X axis | 100 mm |
| Y axis | 100 mm |
| Z axis | 100 mm |
| Grinding-wheel diameter | 75 mm |
| Work piece spindle speed | 100 - 1300 t/min |
| Vertical adjustment of grinding head | 100 mm |

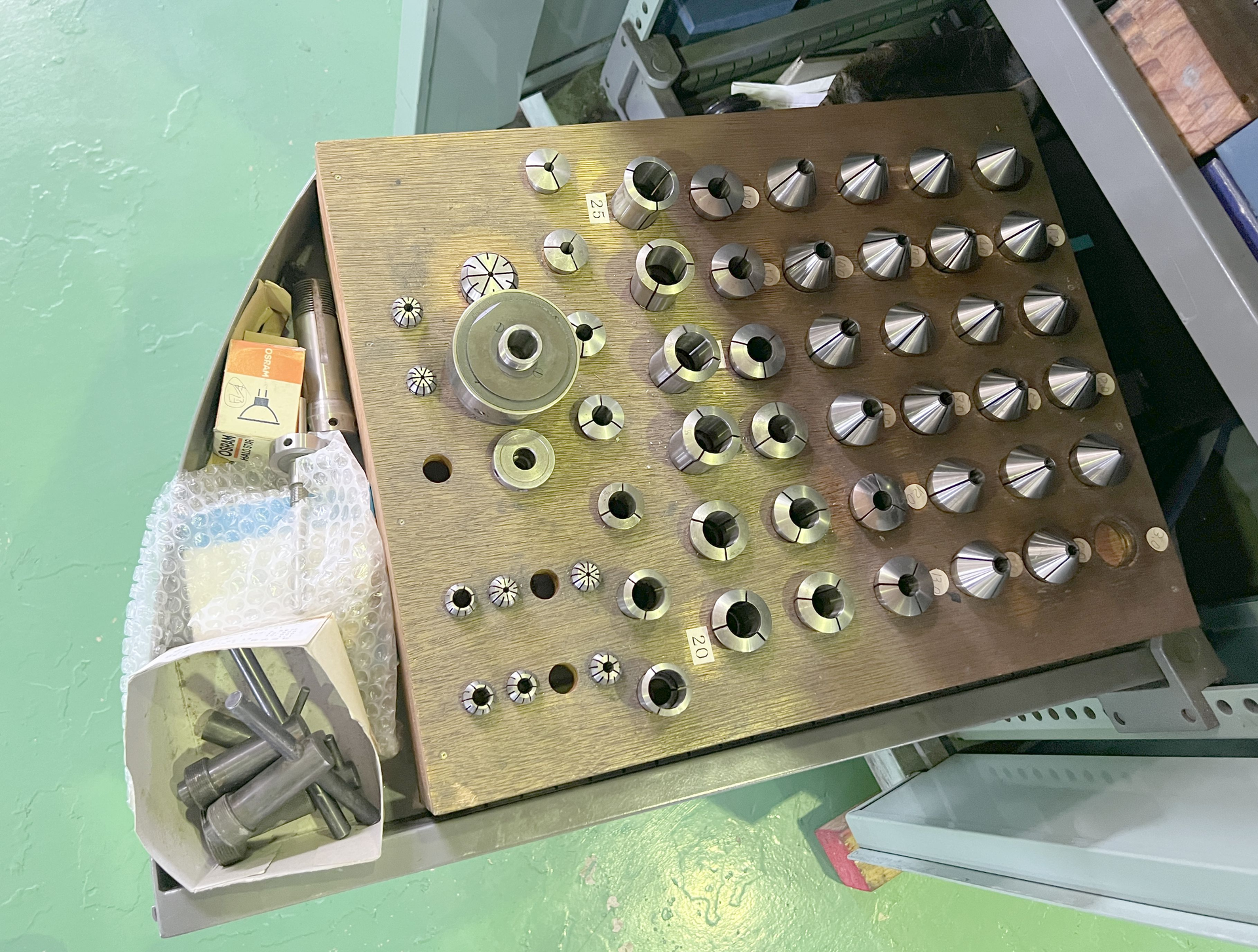

| Collet attachment | 25 W |
| Slewing range of grinding head: | |
| horizontal | 165 ° |
| Grinding spindle speeds: | |
| from | 2500 t/min |
| up to | 7100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Workpiece spindle motor | kW |
| Total power required | 2 kVA |
| Machine's weight about | 400 kg |
| Overall dimensions machine: | |
| Length | 850 mm |
| Width | 850 mm |
| Height | 1580 mm |

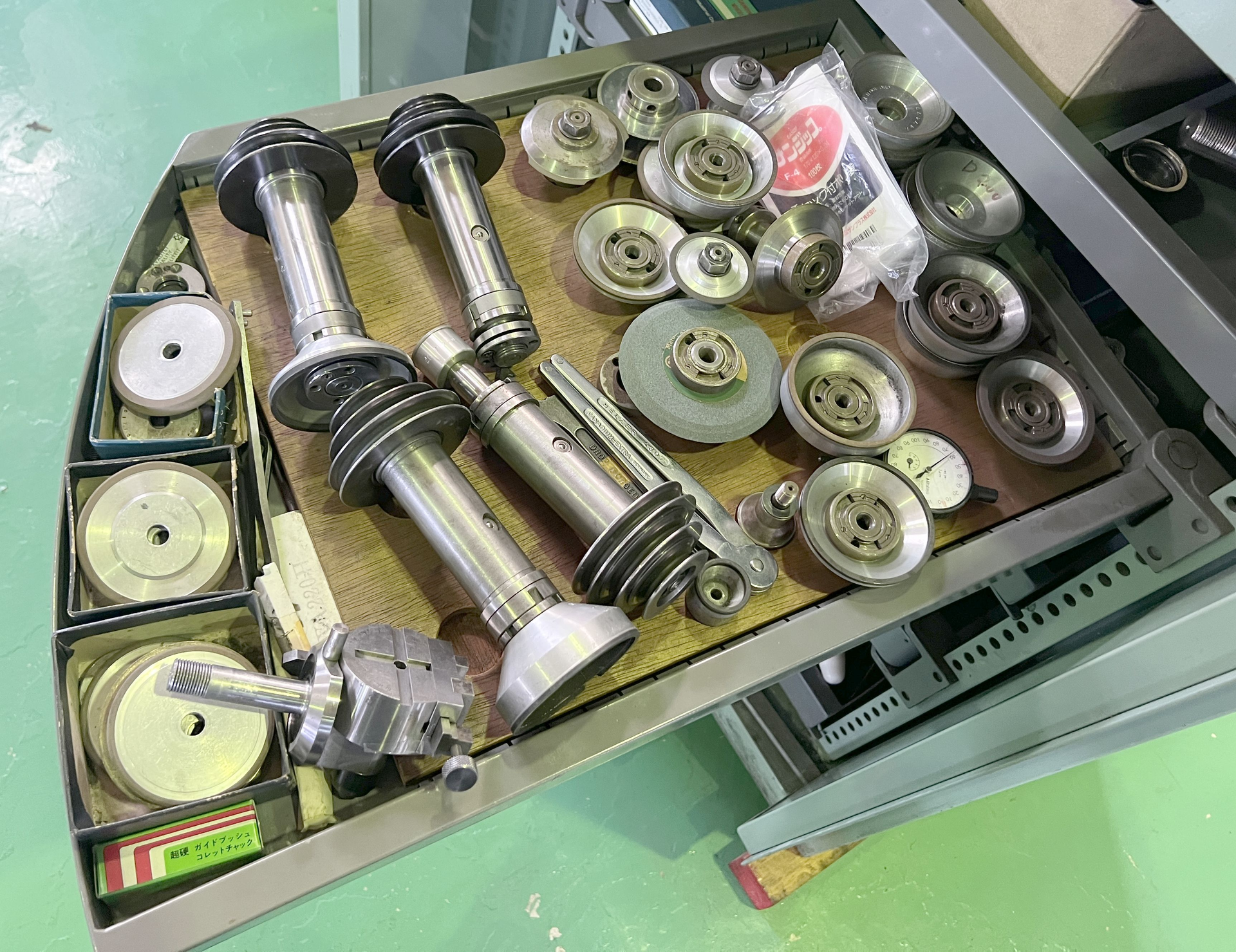

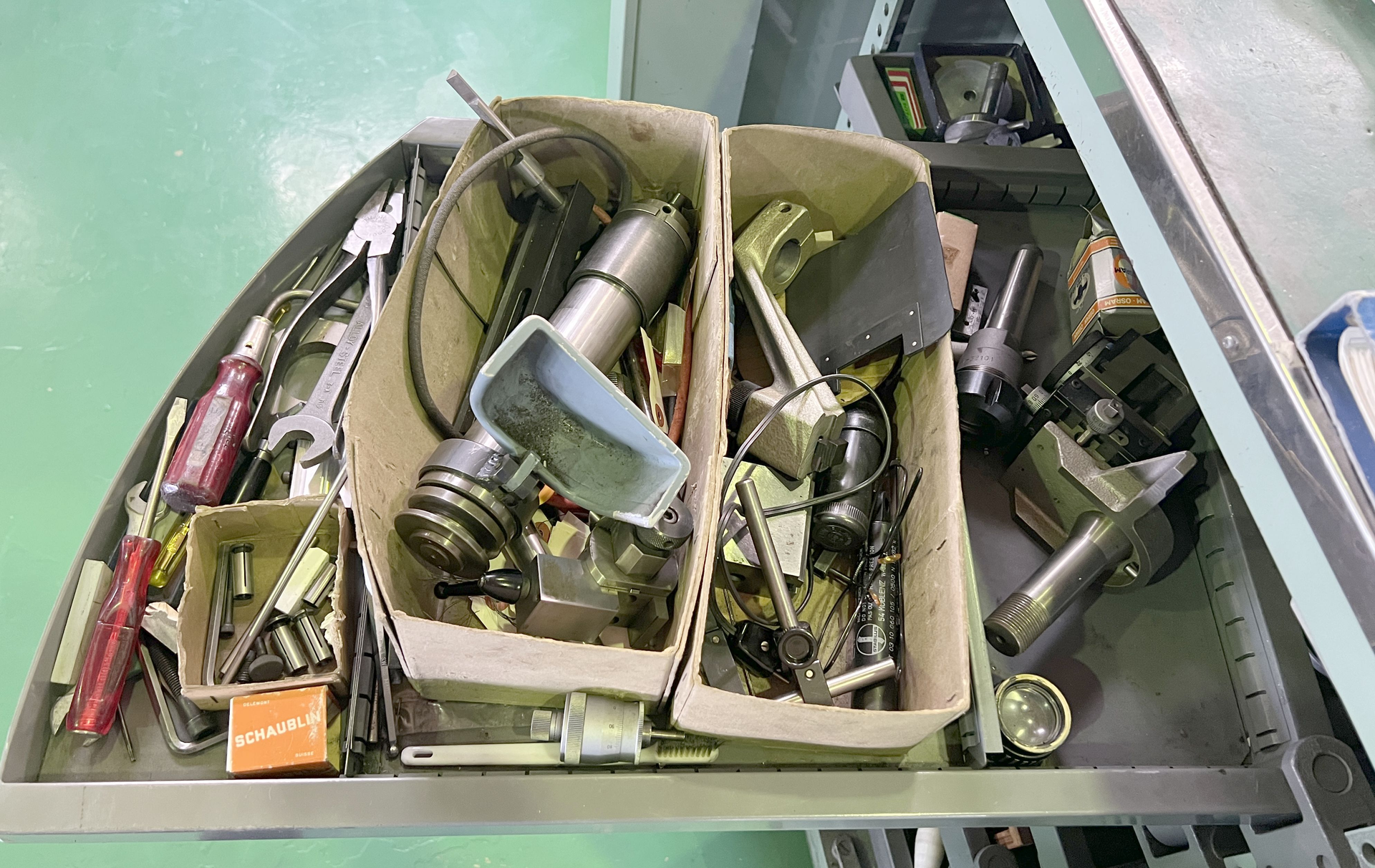

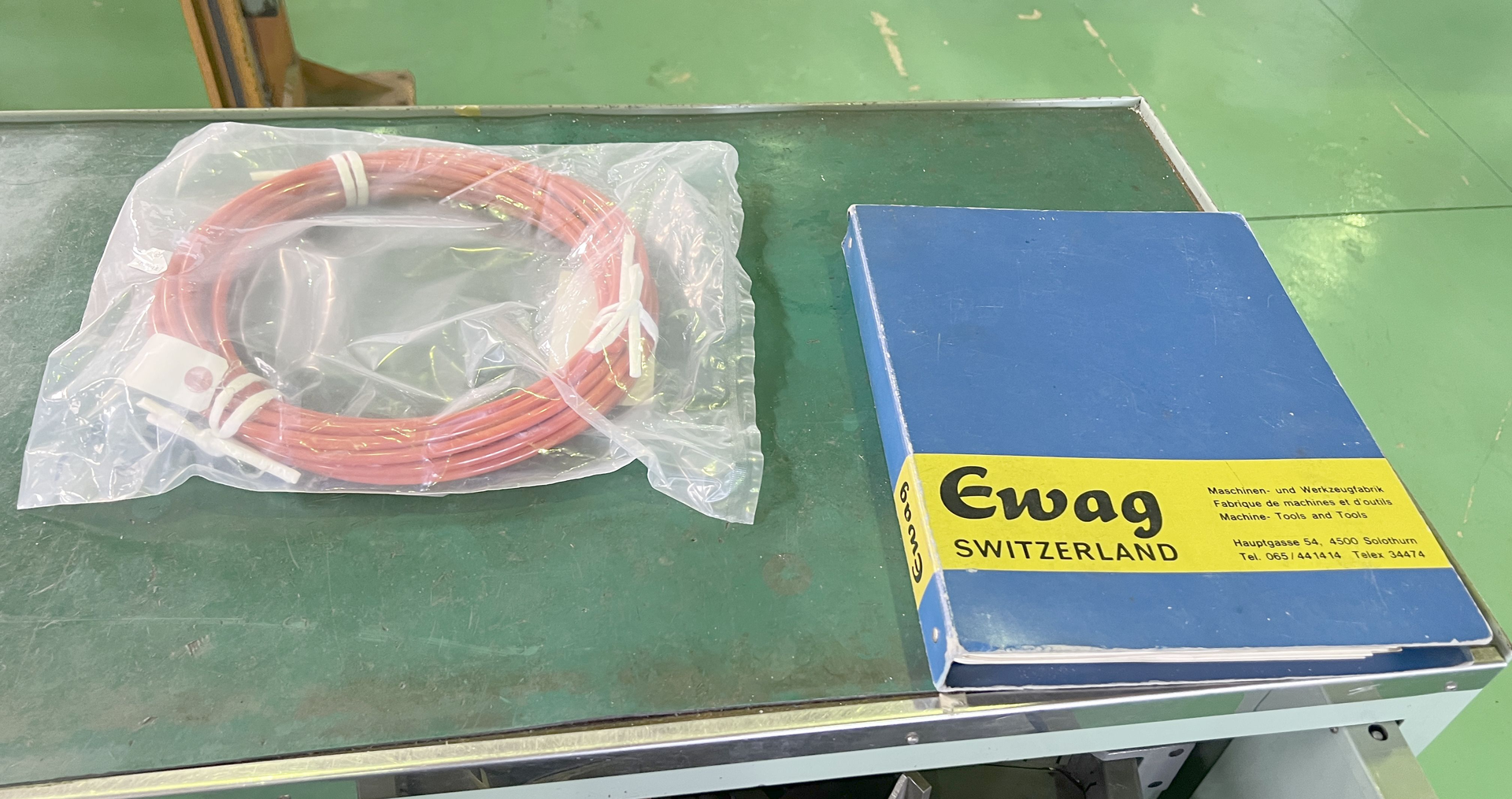

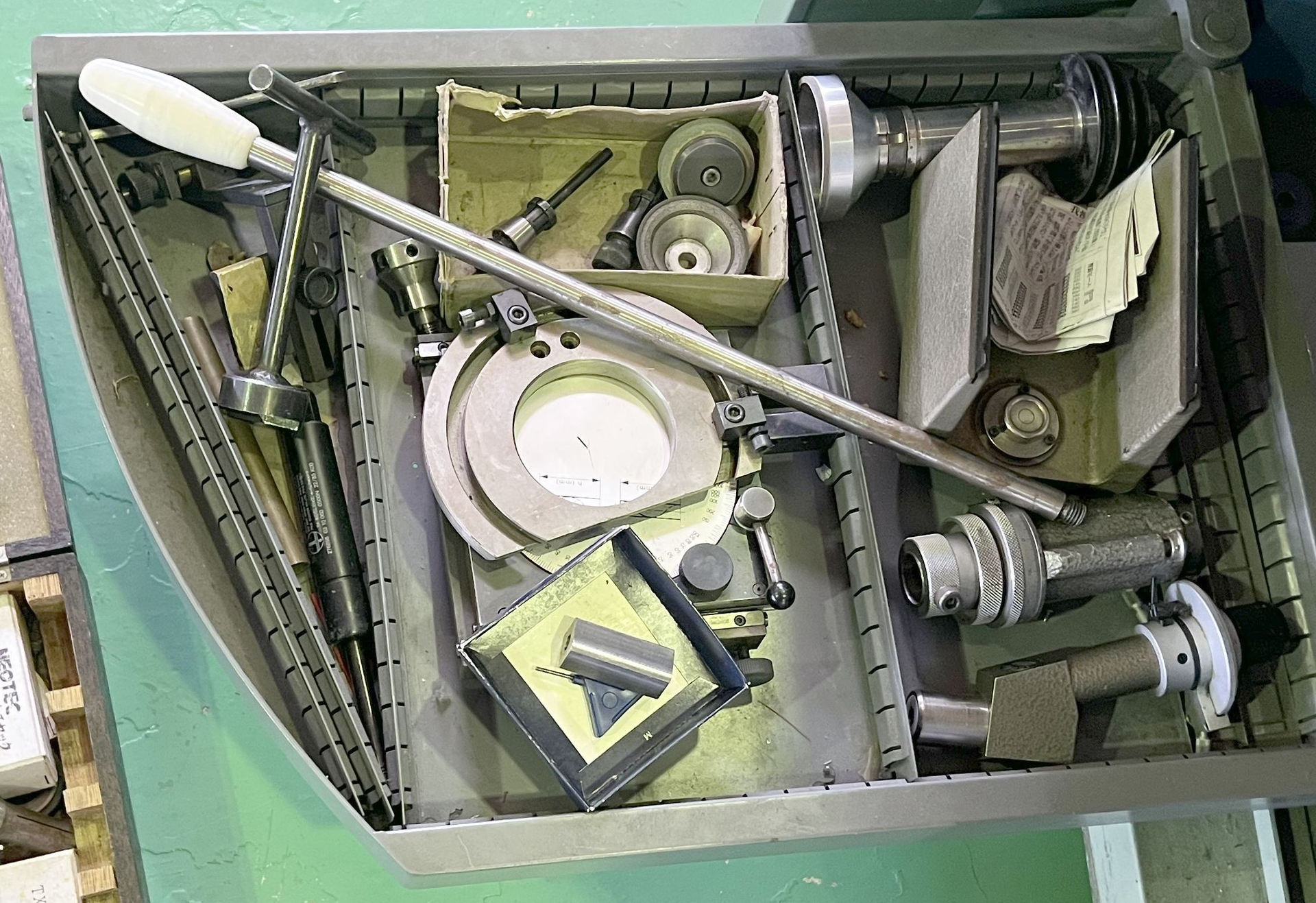

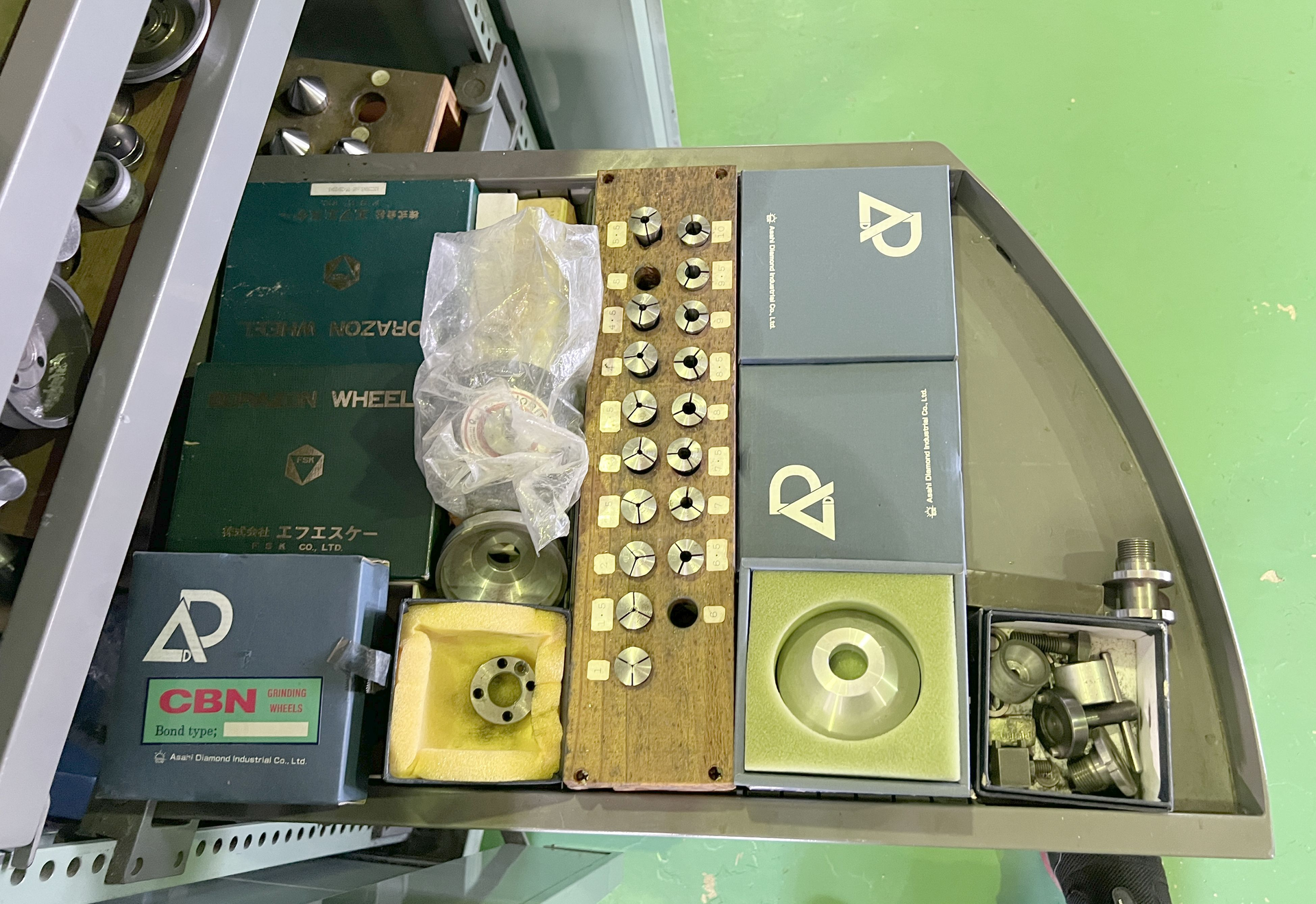

| Various accessories: | |

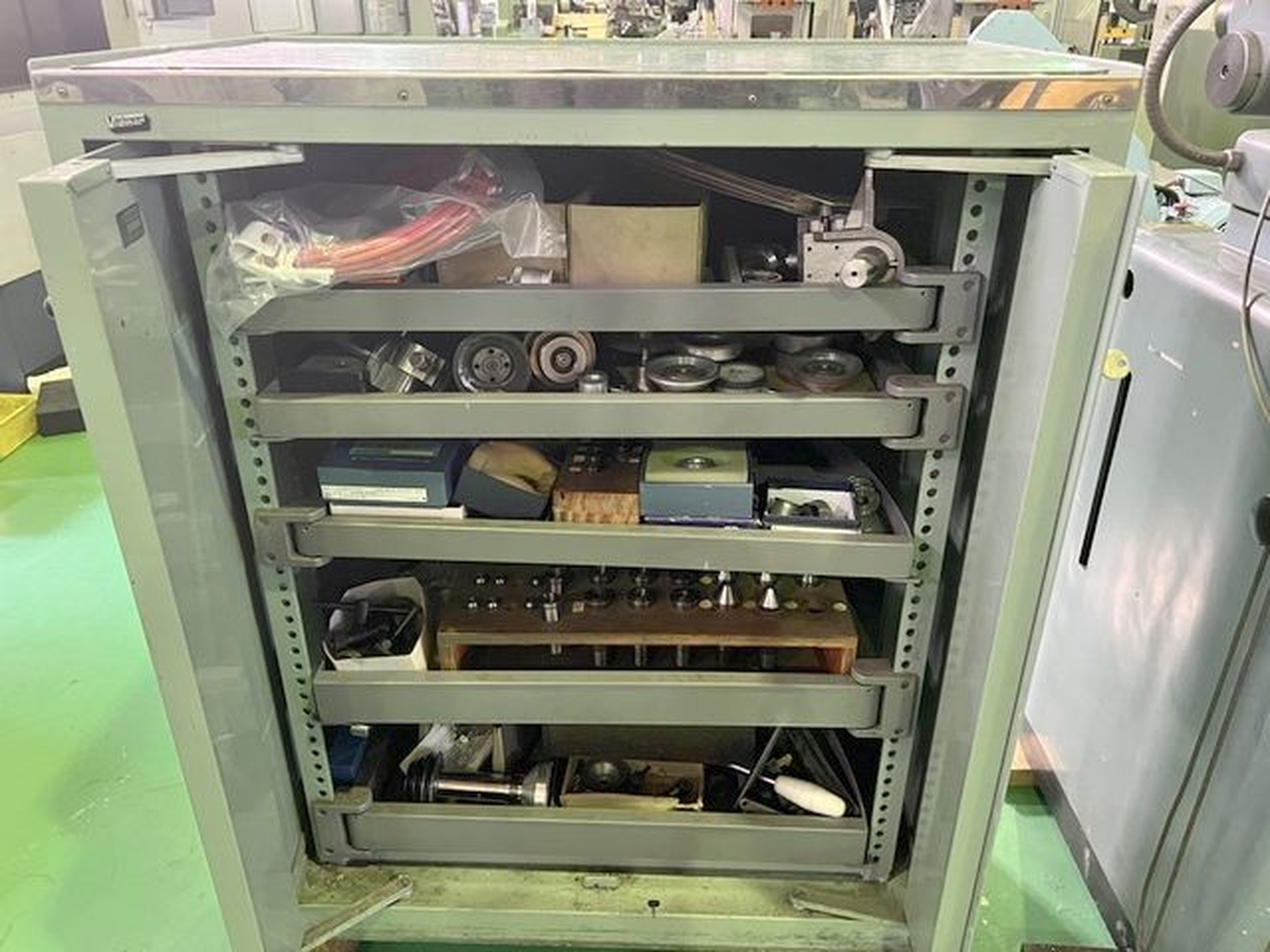

| Tool cabinet | |
| Lamp | |
| Grinding stroke 3 H |
