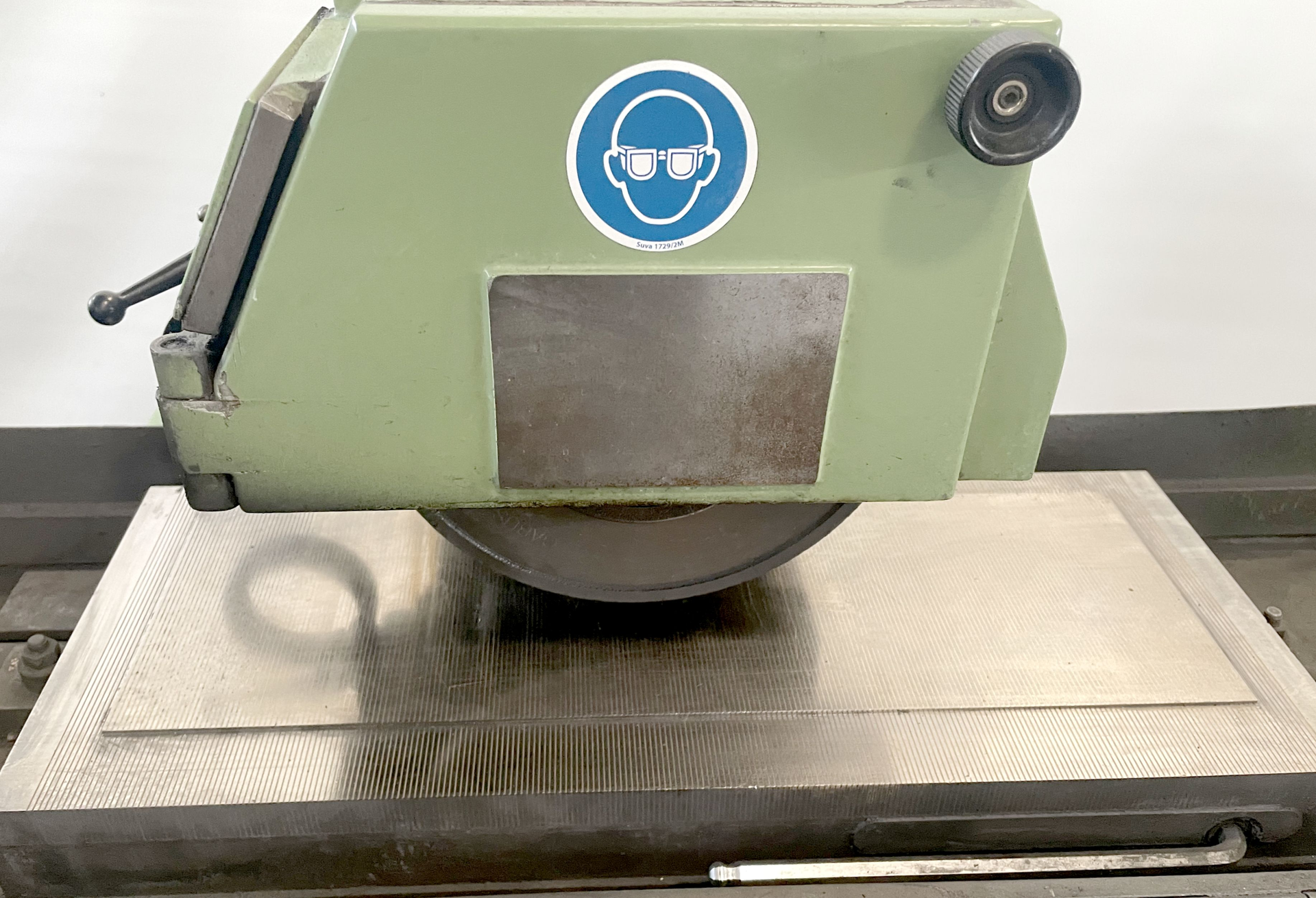

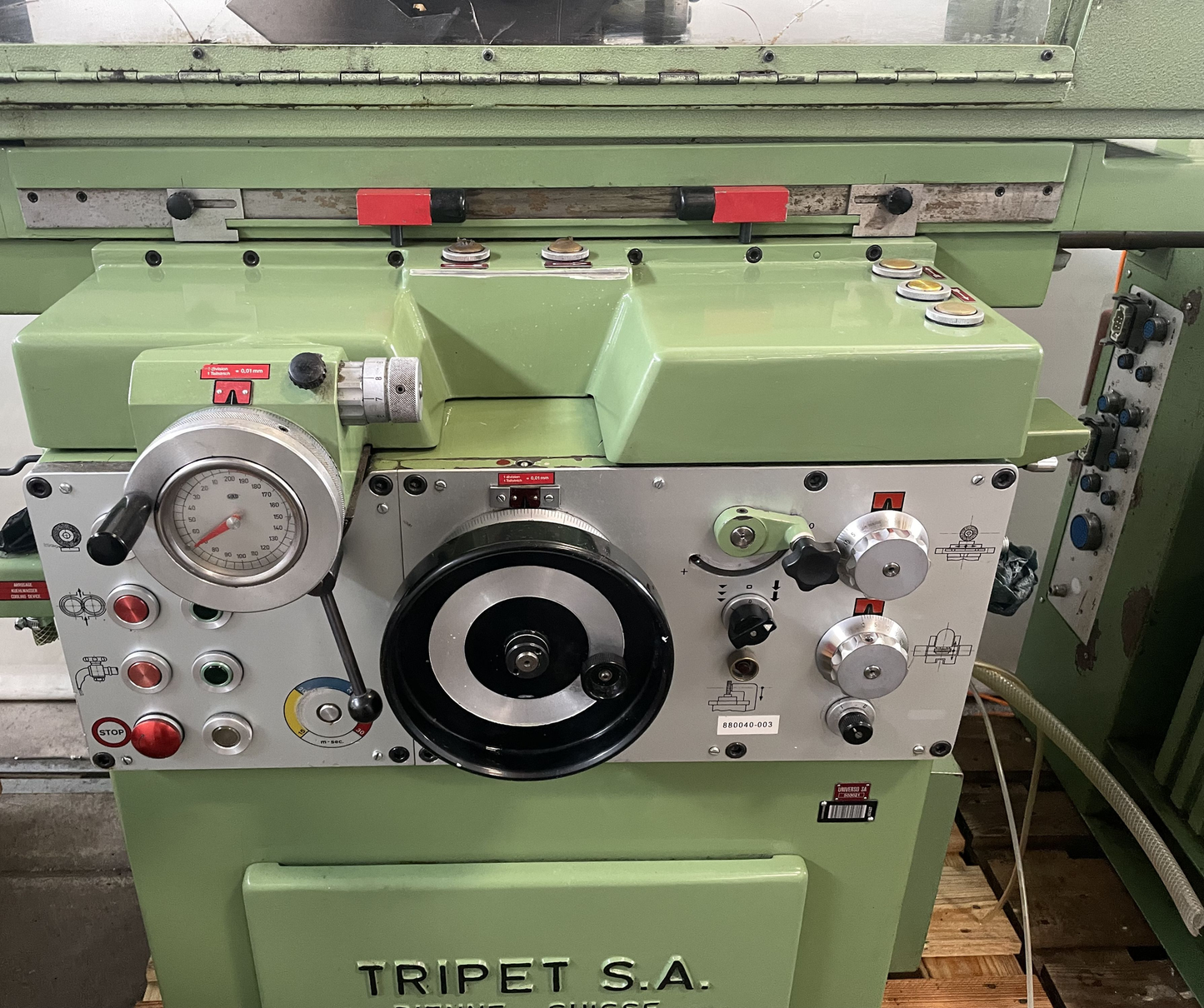

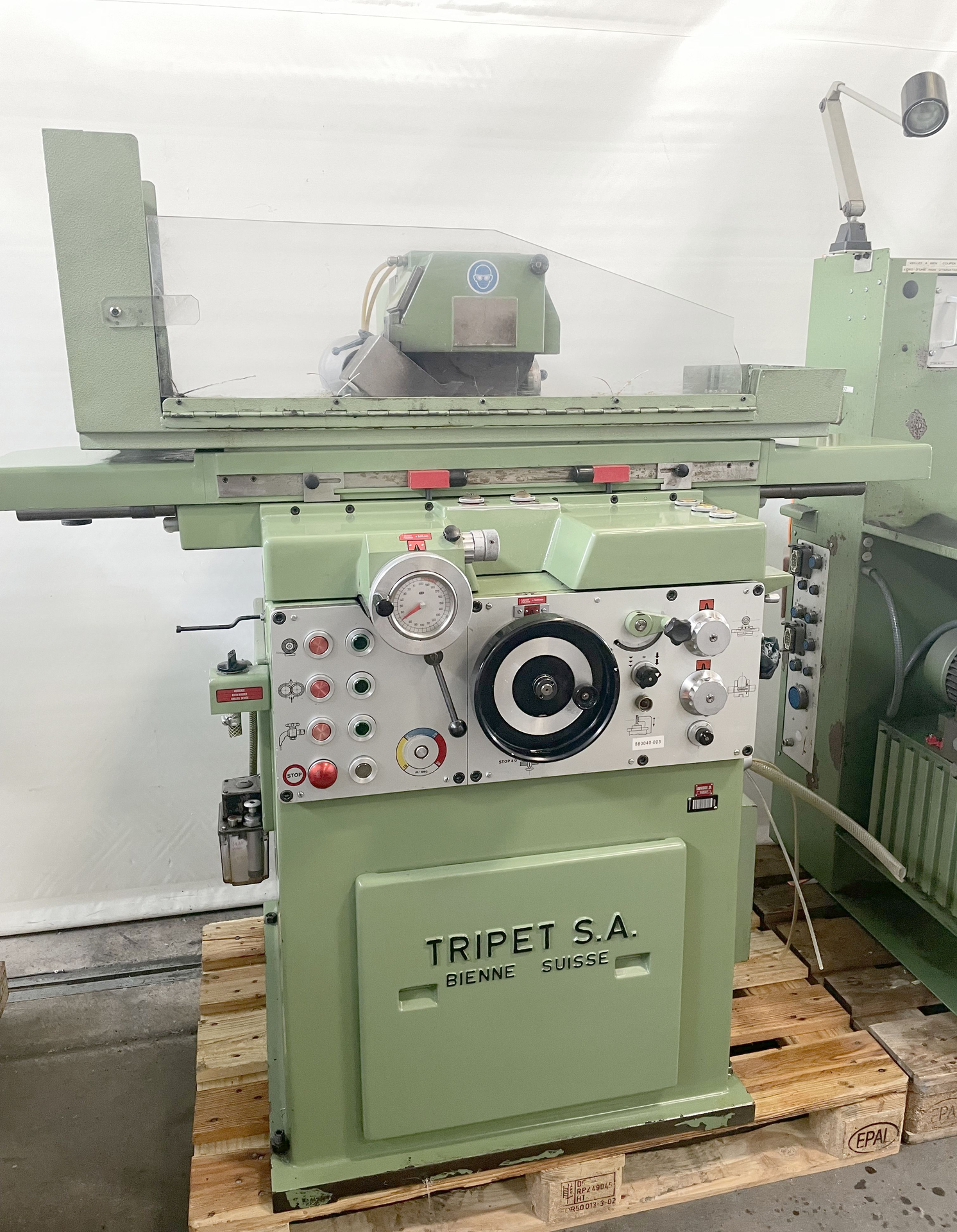

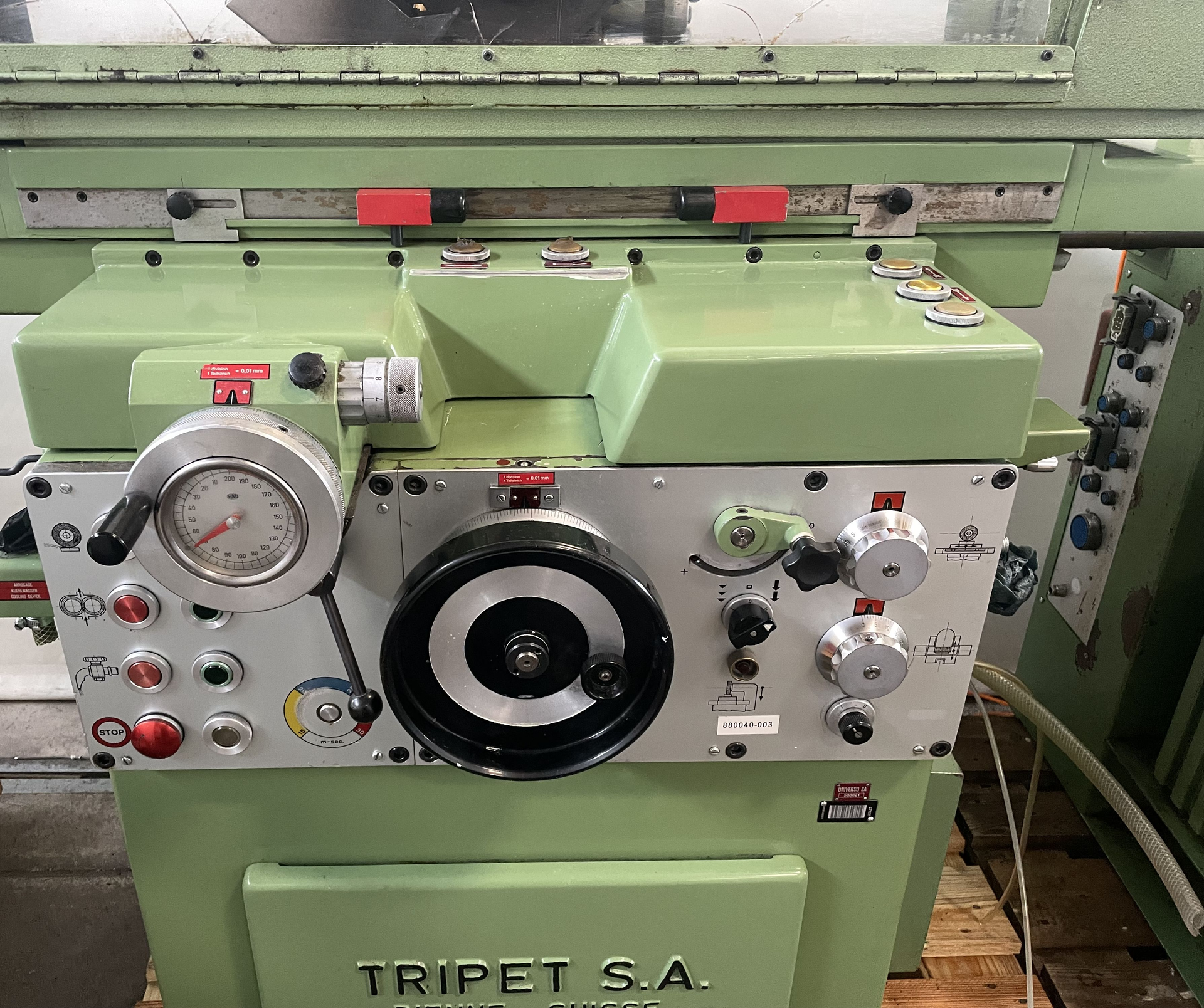

TRIPET MHPE 500 is a surface grinder of high precision, delivering strong accuracy and reliable performance. Capacities: table 600×200 mm; grinding length 500×200 mm; grinding height 300 mm; travels X 530 mm, Y 220 mm; wheel Ø225×25 mm. Specs: wheel speeds 1,000–2,700 rpm; spindle motor 1.8 kW; stepless feeds (cross ≤9 m/min, table ≤21 m/min); creep 0.5–8,000 mm/min; supply 3×380 V 50 Hz; weight ≈800 kg; machine 1000×700×1500 mm. Accessories: hydro‑electric cabinet, coolant system, lamp, central lubrication, splash guard. Achieves tight tolerances; suited to automotive, watchmaking, machine tools and aerospace.
Technical specifications are subject to change without notice
| Table length | 600 mm |
| Table width | 200 mm |
| Grinding length | 500 mm |
| Grinding width | 200 mm |
| Grinding height | 300 mm |
| Execution: | |
| hydraulic | |
| Longitudinal travel (X-axis) | 530 mm |
| Transversal travel (y axis) | 220 mm |
| Automatic cross-feed: | |
| stepless | |
| up to | 9 m/min |
| Table speeds: | |
| stepless | |
| up to | 21 m/min |
| Creep feed: | |
| from | 0.5 mm/min |
| up to | 8000 mm/min |
| Automatic vertical feed: | |

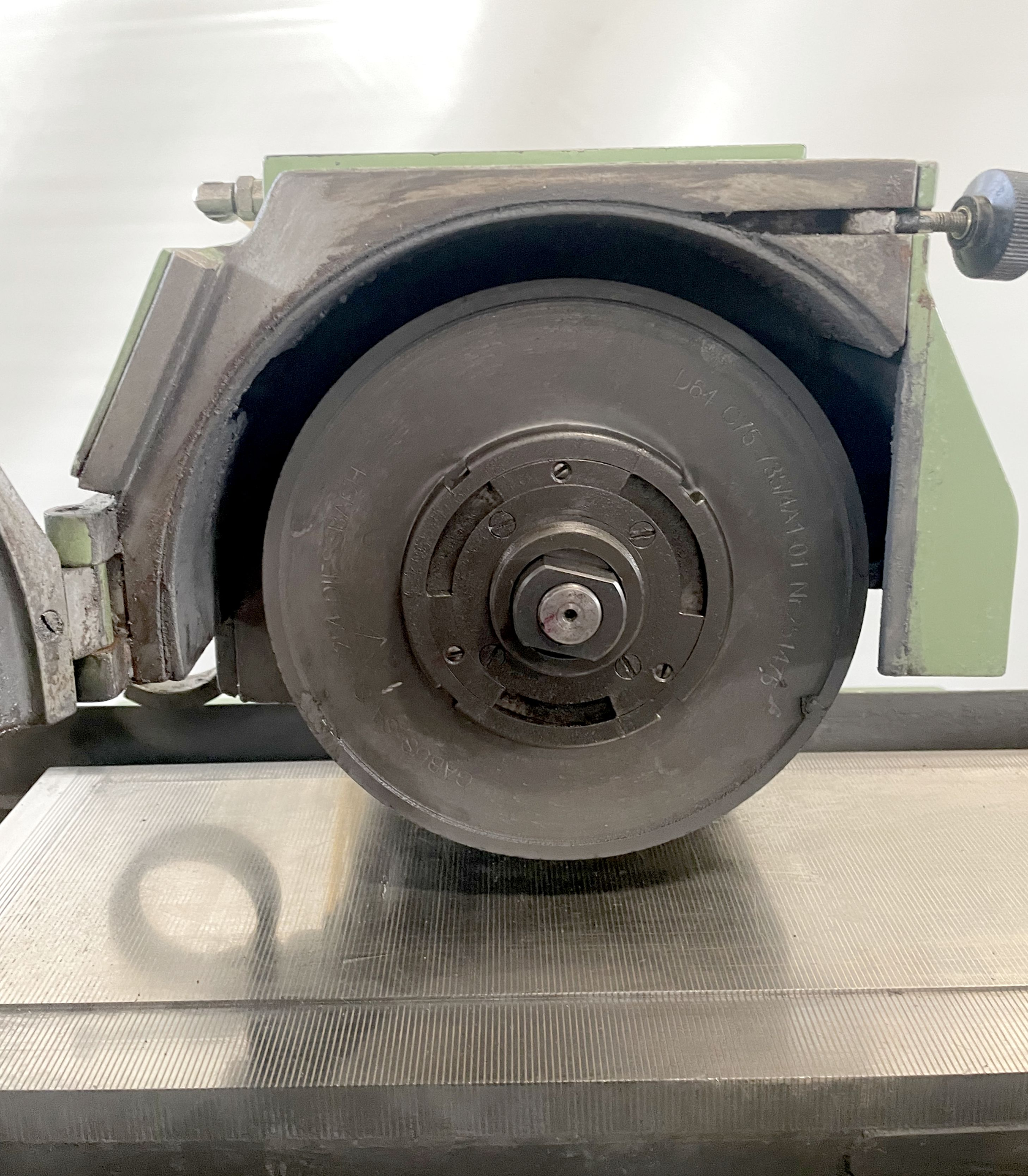

| Diameter of grinding wheel | 225 mm |
| Width of the grinding wheel | 25 mm |
| Grinding wheel speeds: | |
| from | 1000 t/min |
| up to | 2700 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1.8 kW |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1500 mm |
| Dimensions electric cabinet: | |
| Length | 800 mm |
| Width | 600 mm |
| Height | 1500 mm |
| Various accessories: | |

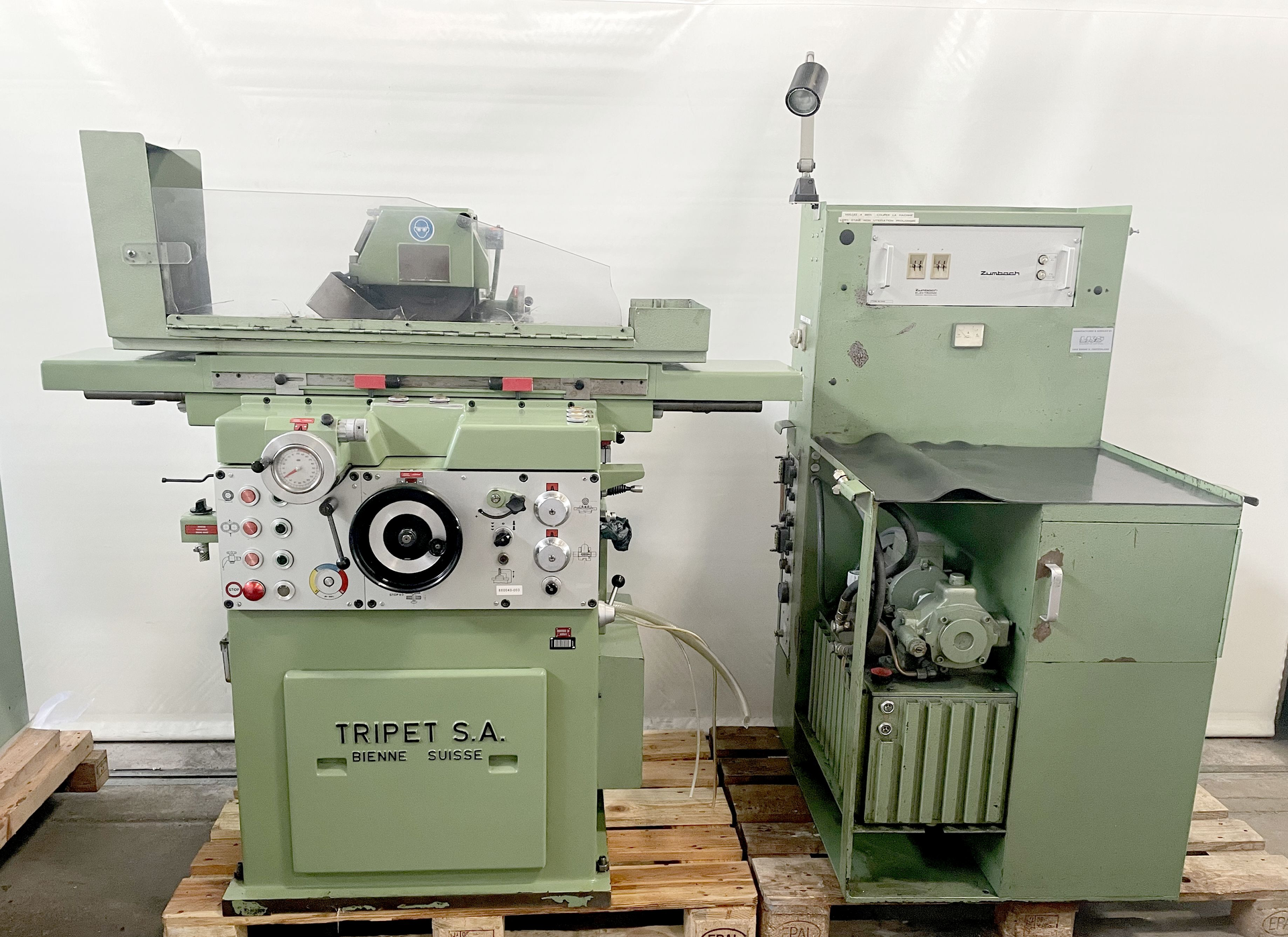

| Hydro-electric cabinet | |
| Coolant system | |
| Lamp | |
| Central lubrification | |
| Splash guard | |
| Notes: | |
| Machine refurbished | 2013 |
