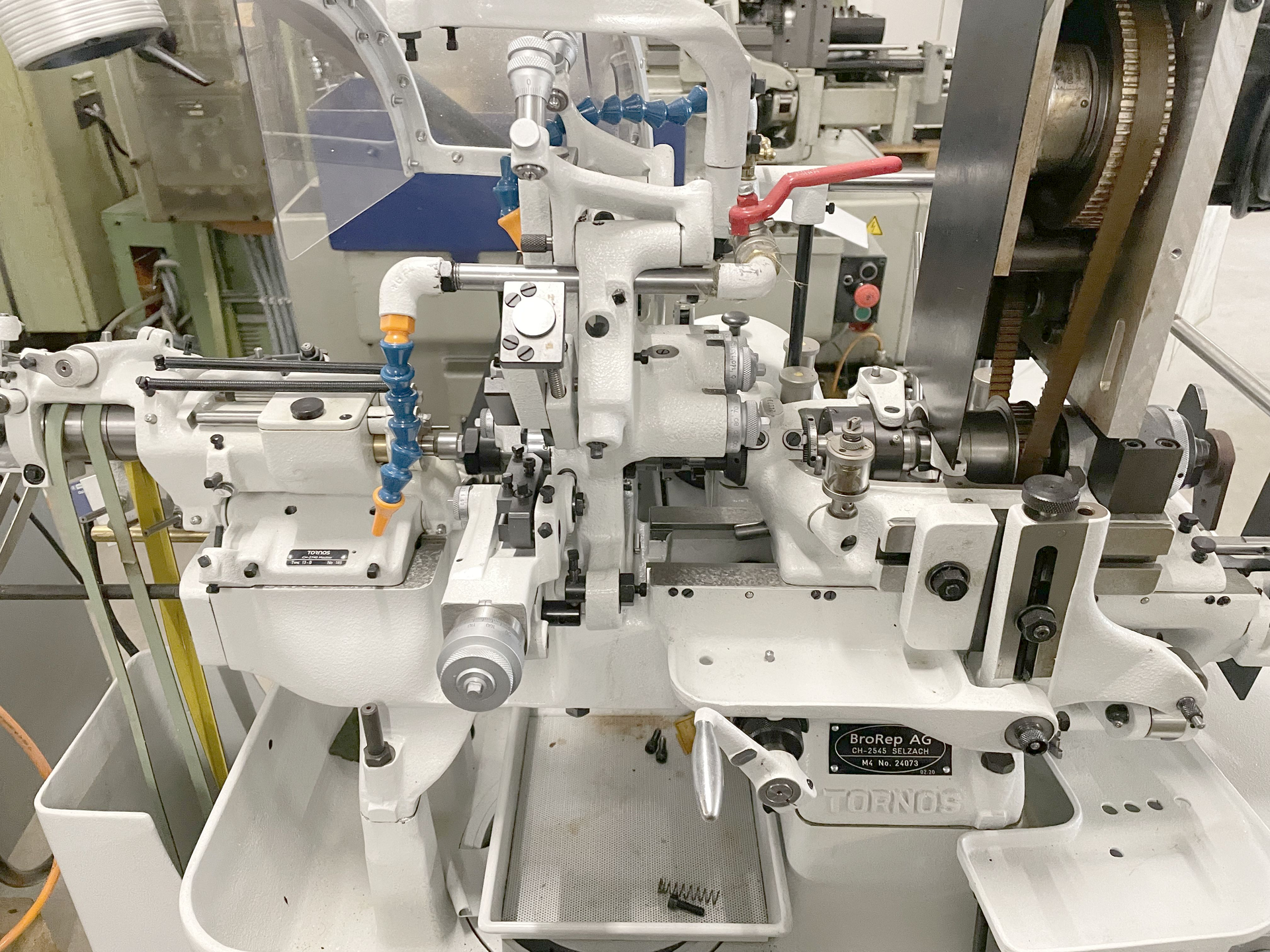

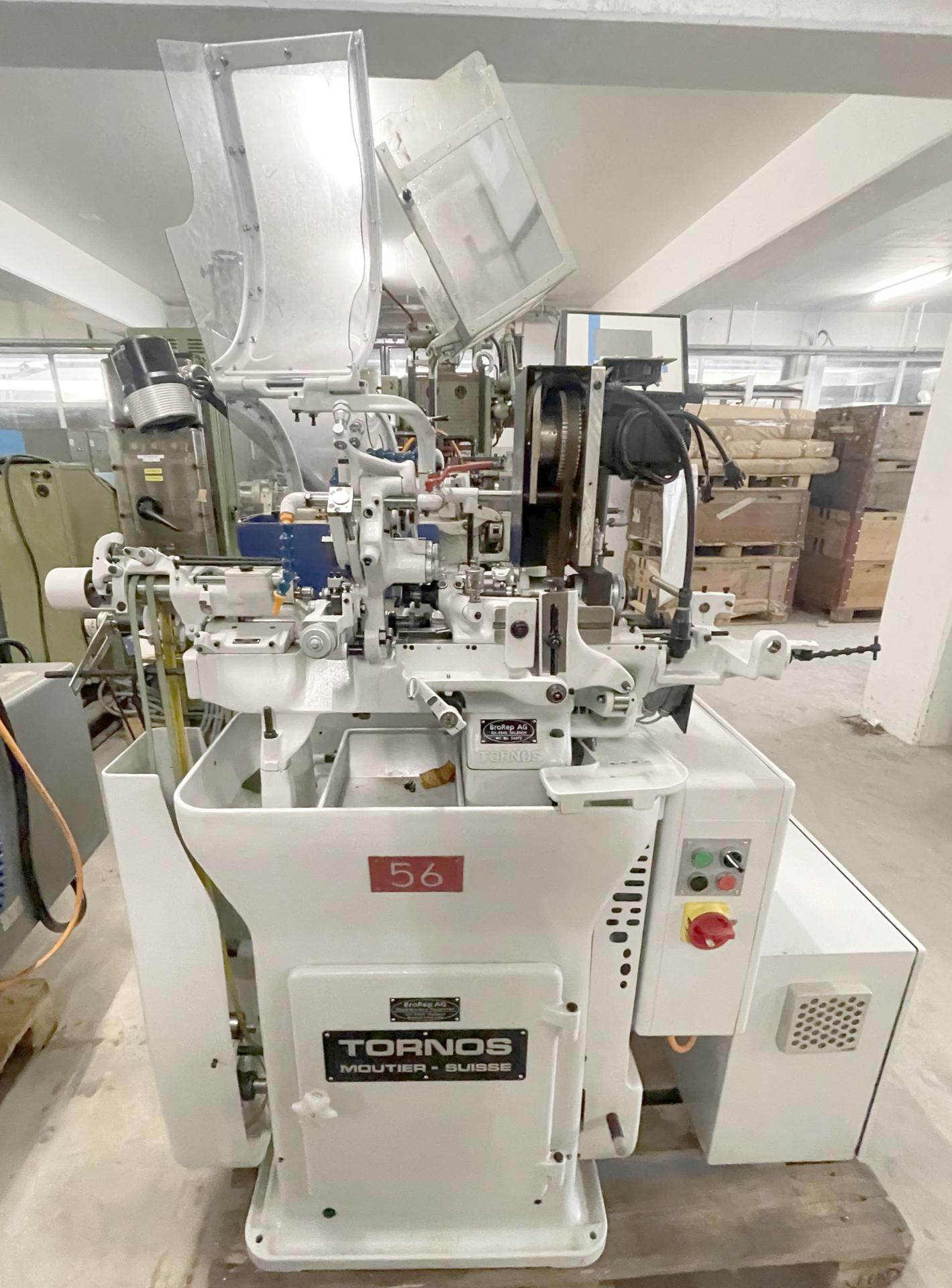

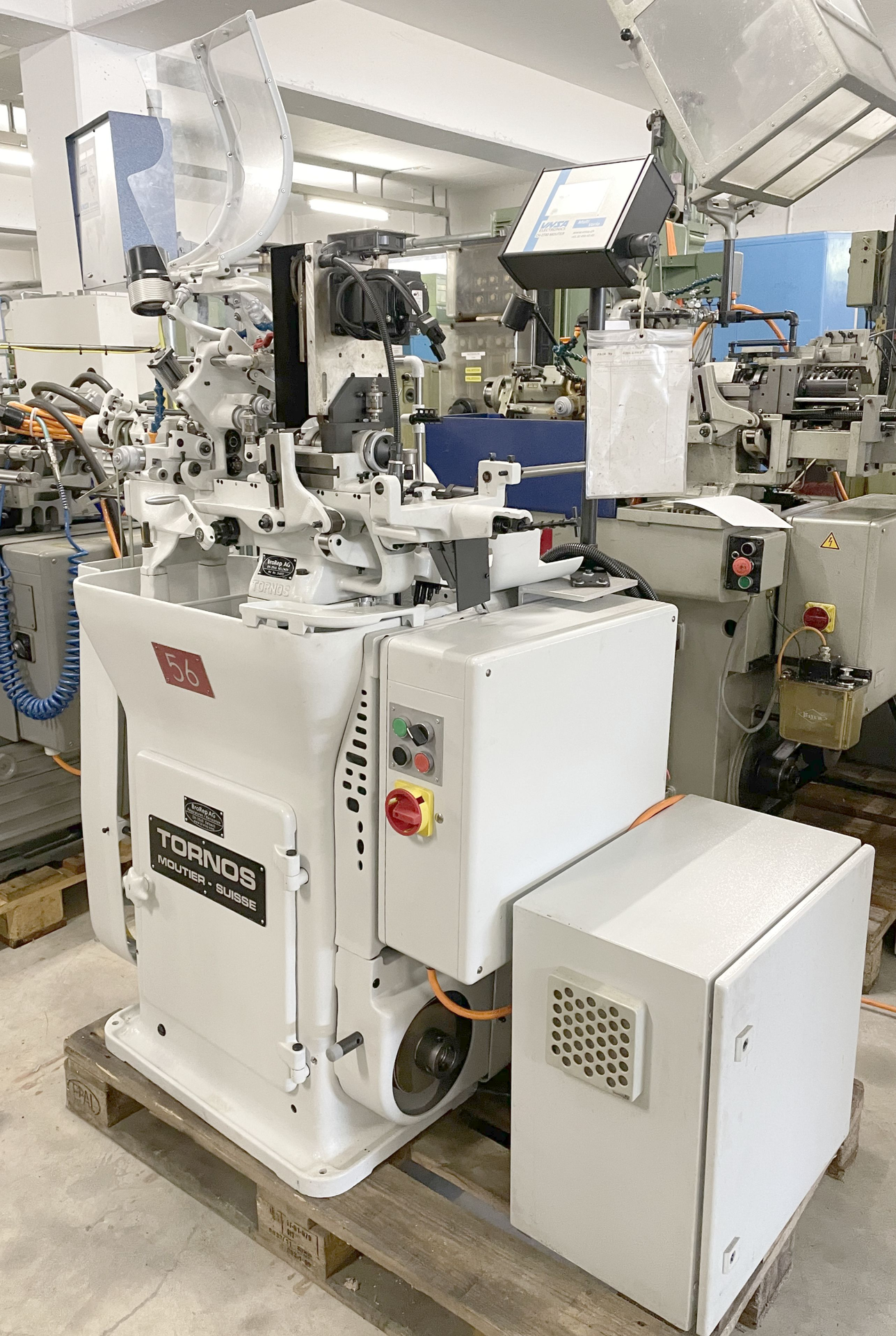

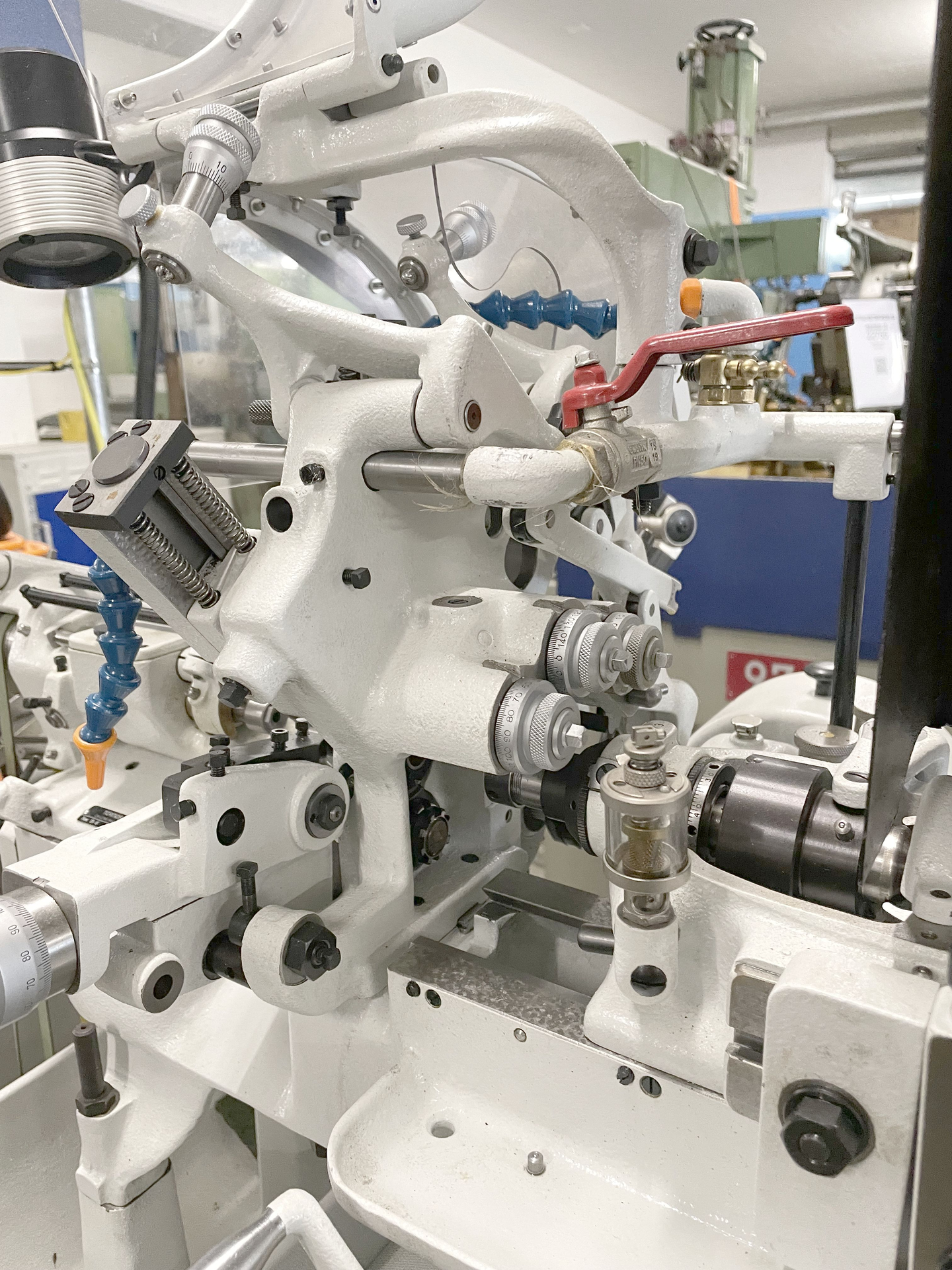

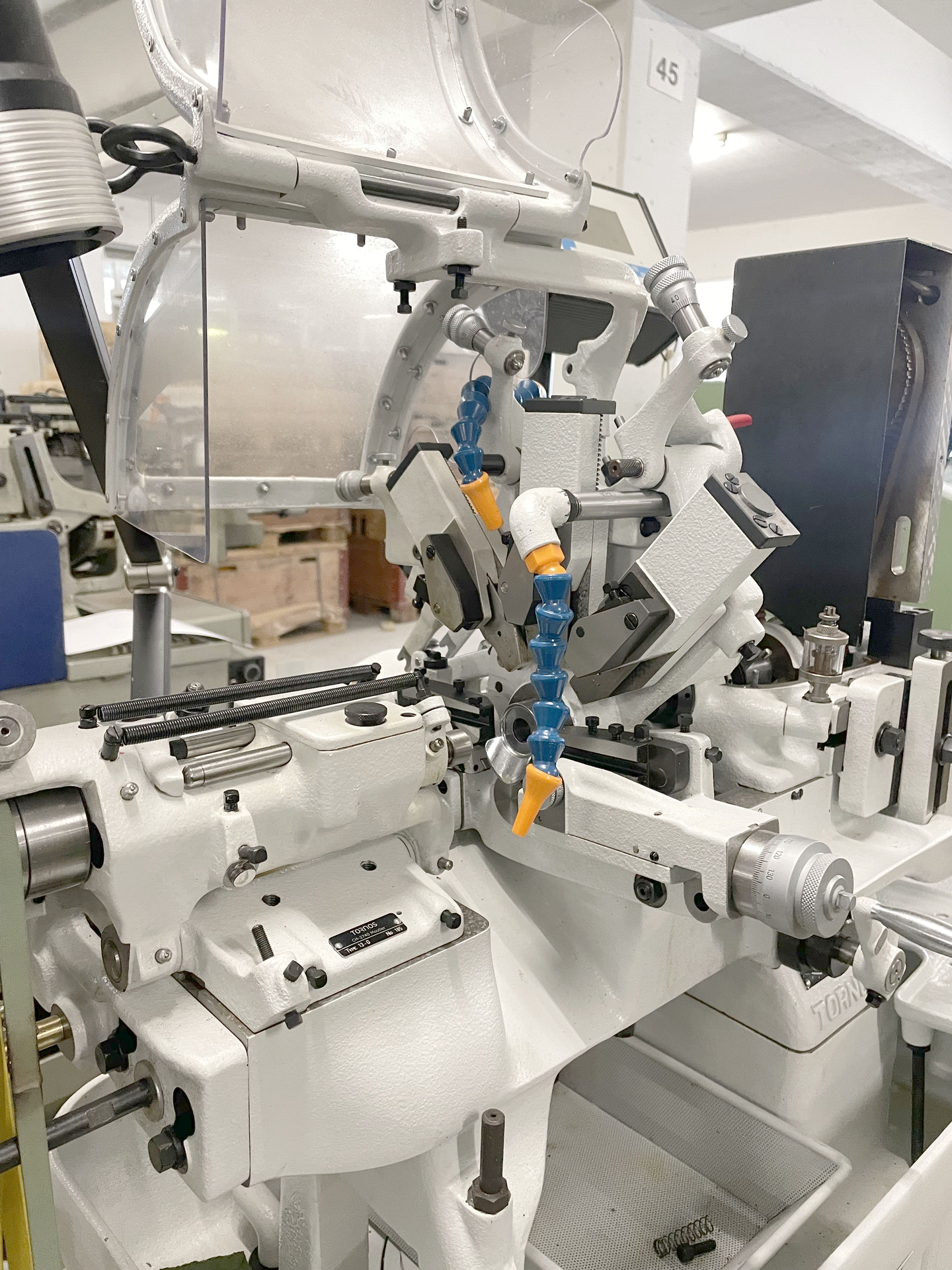

TORNOS M 4 is an Automatic lathe designed for precision, high accuracy and reliable operation. Capacities: admits work Ø up to 4 mm, with flat cames turning length 28 mm, spindle hole 6 mm, max threading diameter 4 M; 5 tool cutters. Specifications: 14 spindle speeds from 2000 to 12000 t/min, voltage 50 Hz 3x380 V, total power 1.5 CV, weight approx. 350 kg, dimensions L1000×W700×H1300 mm. Accessories: controlled spindle stop, lamp, drilling/tapping attachment, protective cover, rocker arm to 1/1000 mm. Achieves tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Diameter of work admitted | 4 mm |
| Max. turning length: | |
| with flat cames | 28 mm |
| Spindle hole | 6 mm |
| Max. treading diameter | 4 M |
| Number of tool cutters | 5 |
| Spindle speeds: | |
| Number of spindle speeds | 14 |
| from | 2000 t/min |
| up to | 12000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 1.5 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1300 mm |
| Various accessories: | |
| Controlled spindle stop device N | |
| Lamp | |
| Drilling / milling attachment | |
| Protective cover | |
| Rocker arm with 1/1000 mm |
