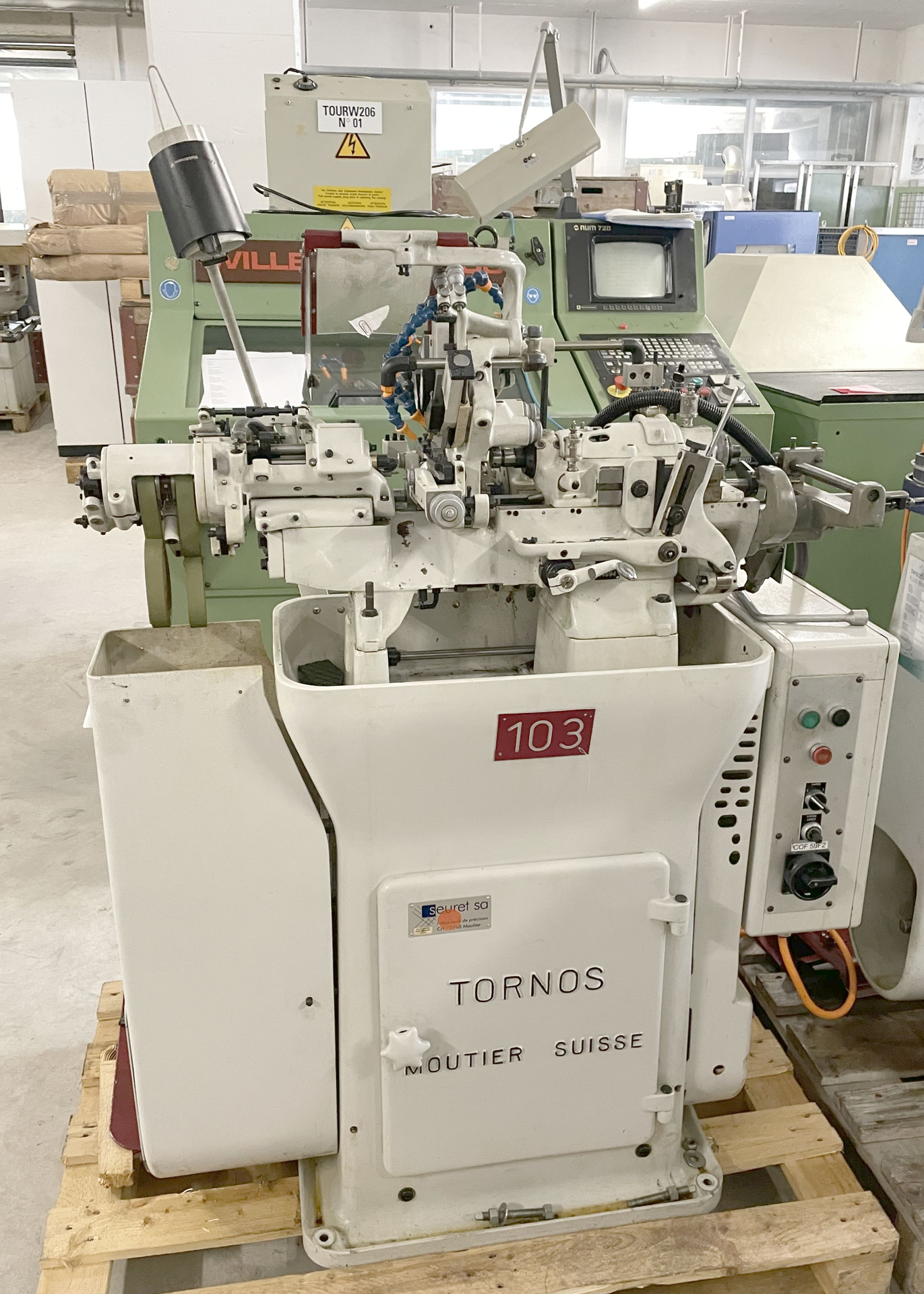

TORNOS M 4 is an automatic lathe (mobile tailstock) engineered for precision, high accuracy and reliability. Admits Ø 4 mm; with flat cames 28 mm; spindle hole 6 mm; max thread 4 M; 5 tool cutters. Spindle: 14 speeds 2000–12000 t/min. Voltage 50 Hz 3×380 V; total power 1.5 CV; weight ≈350 kg; dimensions L1000×W700×H1300 mm. Accessories: 3‑spindle drilling attachment, lamp, protective cover, rocker arm 1/1000 mm. Achieves tight tolerances; suitable for automotive, watchmaking, tooling, aerospace and medical sectors.
| Diameter of work admitted | 4 mm |
| Max. turning length: | |
| with flat cames | 28 mm |
| Spindle hole | 6 mm |
| Max. treading diameter | 4 M |
| Number of tool cutters | 5 |
| Spindle speeds: | |
| Number of spindle speeds | 14 |
| from | 2000 t/min |
| up to | 12000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 1.5 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1300 mm |
| Various accessories: | |
| 3-spindle drilling attachment | |
| Lamp | |
| Protective cover | |
| Rocker arm with 1/1000 mm |
