PROTH PSGS-2550AH
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

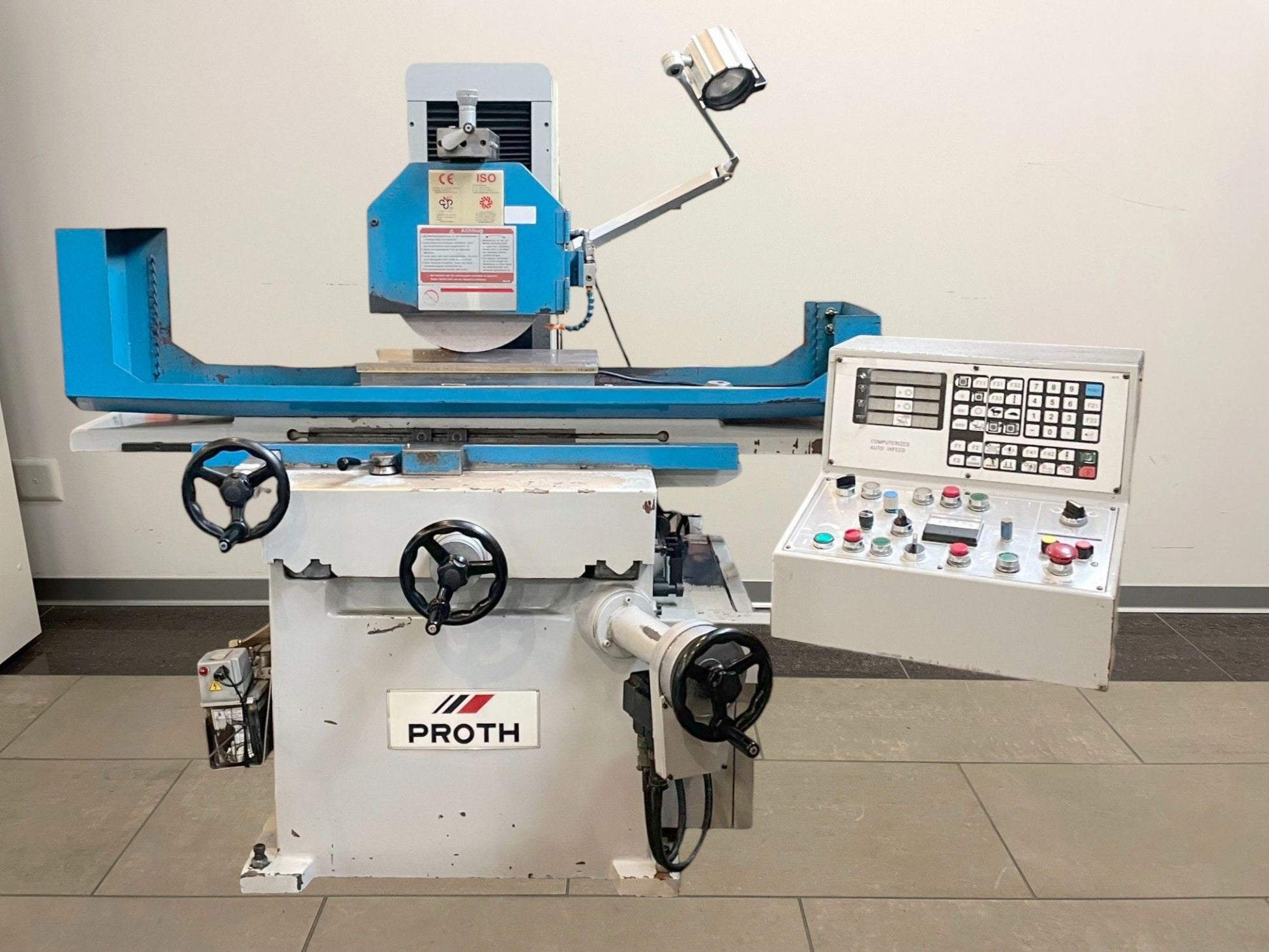

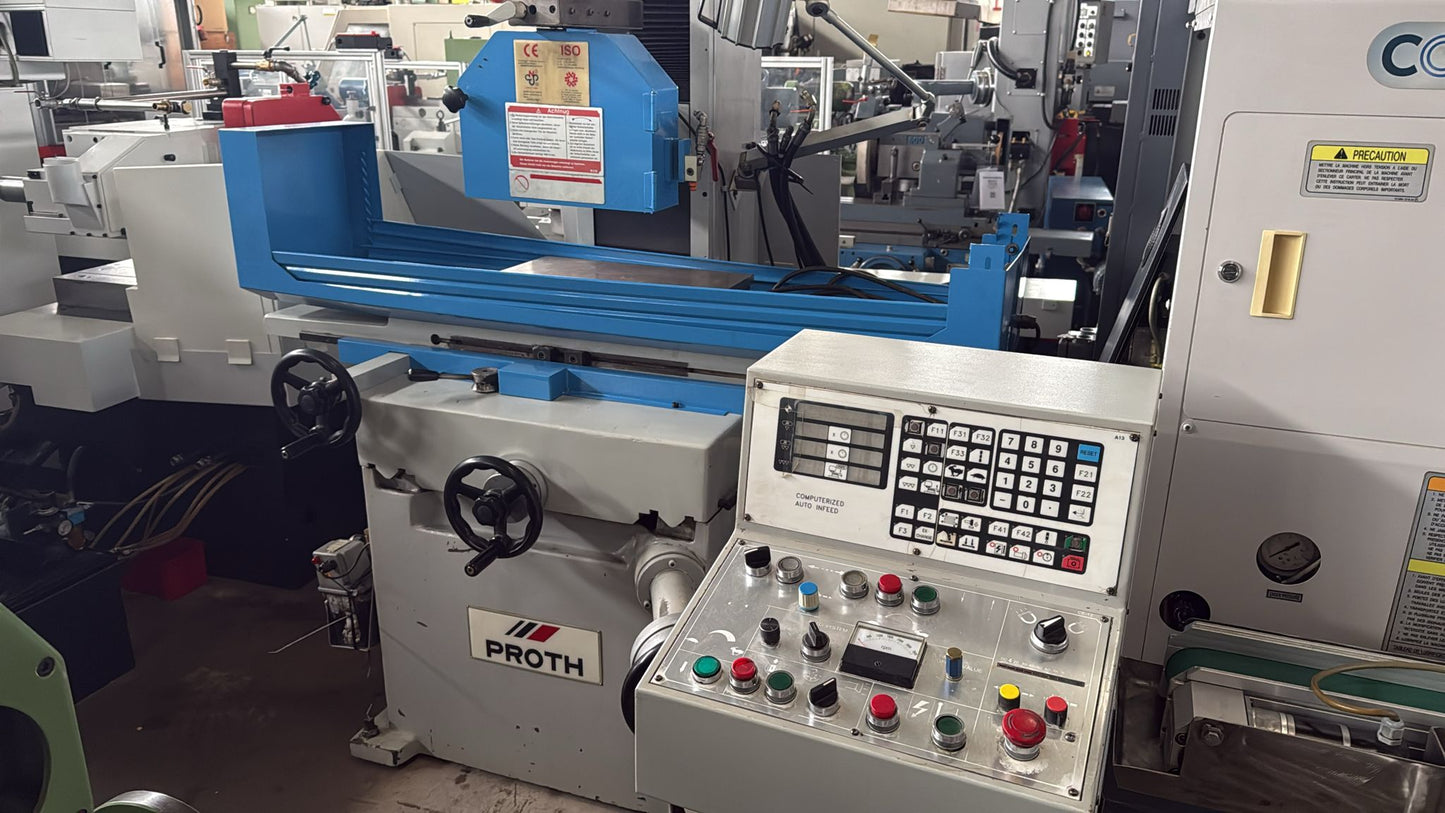

PROTH PSGS-2550AH is a surface grinder engineered for precision, high accuracy and reliability. Table 500×250 mm; max distance table to spindle centre 500 mm; travels X 600 mm, Z 340 mm, Y 280 mm. Table speed stepless 5–25 m/min; grinding wheel fixed 2900 rpm, Ø350×25 mm, bore 31.75 mm. Supply 50 Hz 3×400 V; spindle motor 2 CV; weight ≈1350 kg; overall 1770×1500×1900 mm. Accessories: paper filtration system, magnetic plate 500×250 mm, redressing device, lamp. Achieves tight tolerances; suitable for automotive, aerospace, medical, machine tools and watchmaking.
| Table length | 500 mm |
| Table width | 250 mm |
| Max. distance from table | |
| to spindle-centreline | 500 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Cross travel (z-axis) | 340 mm |
| Vertical travel (Y-axis) | 280 mm |
| Table speeds: | |
| stepless | |
| from | 5 m/min |
| up to | 25 m/min |
| Grinding wheel speeds fix | 2900 t/min |

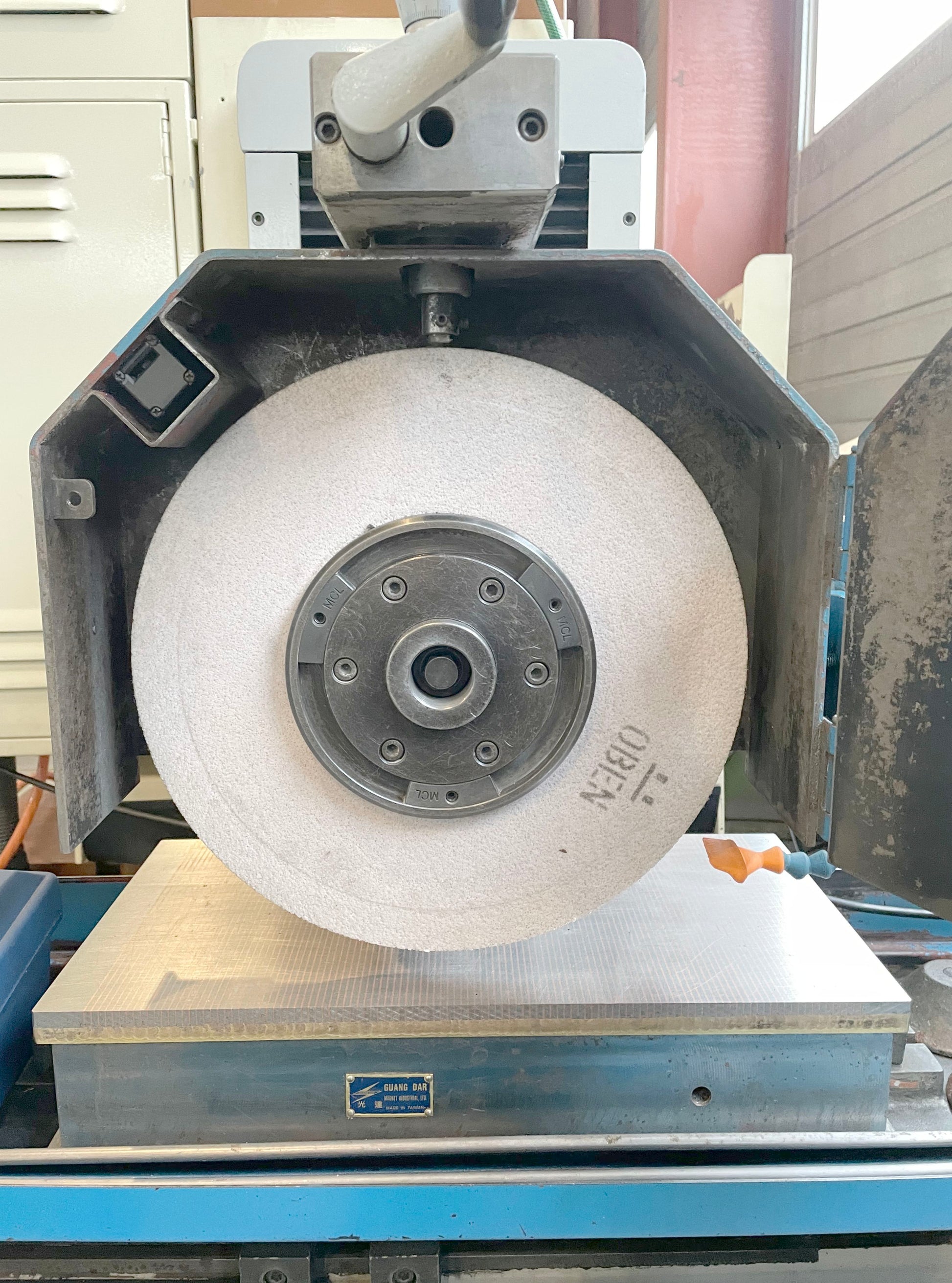

| Diameter of grinding wheel | 350 mm |
| Width of the grinding wheel | 25 mm |
| Drilling cap. of grind.wheel | 31.75 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 2 CV |
| Machine's weight about | 1350 kg |
| Overall dimensions machine: | |
| Length | 1770 mm |
| Width | 1500 mm |
| Height | 1900 mm |
| Various accessories: | |
| Paper filtration system | |

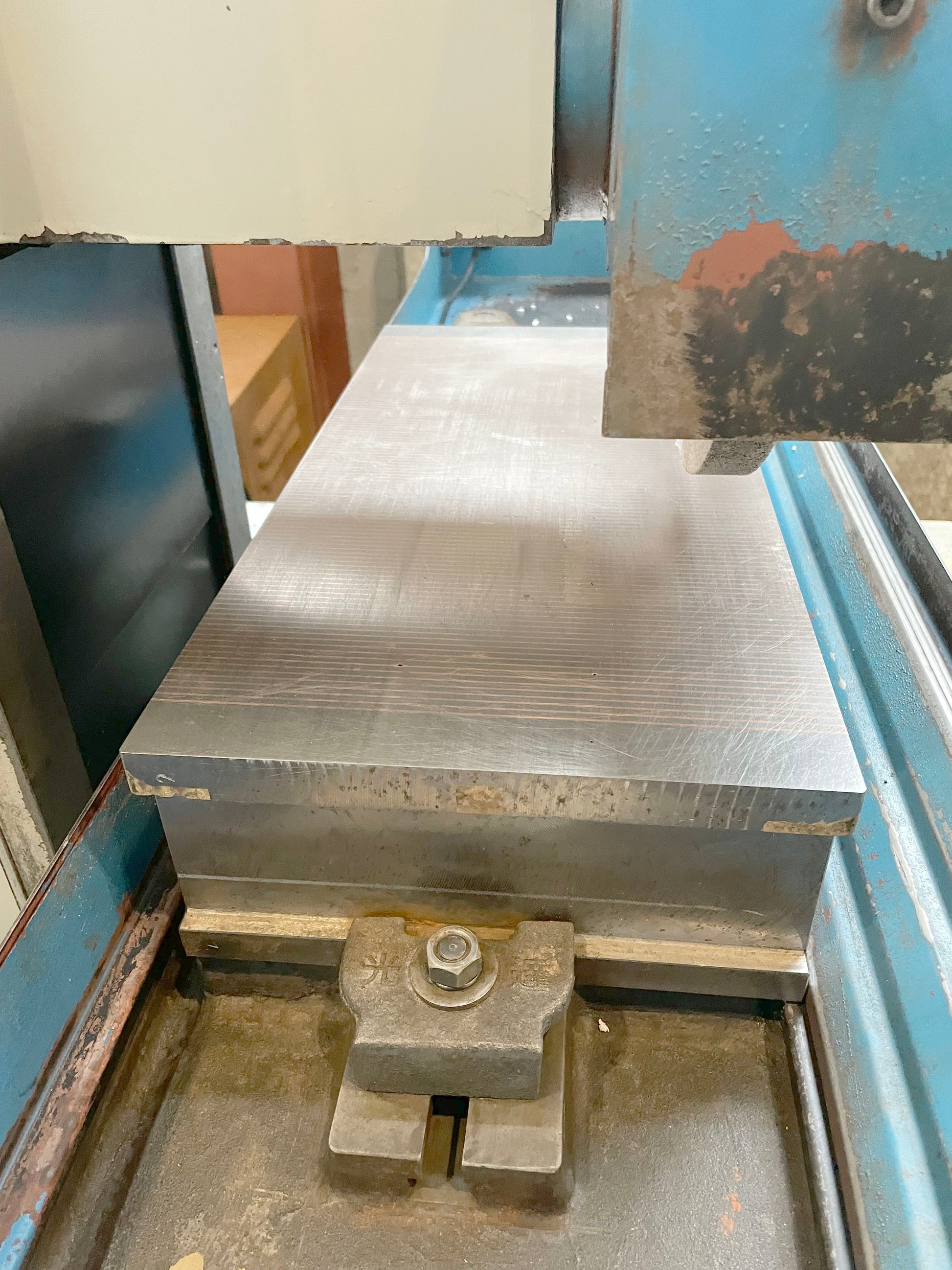

| Magnetic plate: | |
| Length | 500 mm |
| Width | 250 mm |

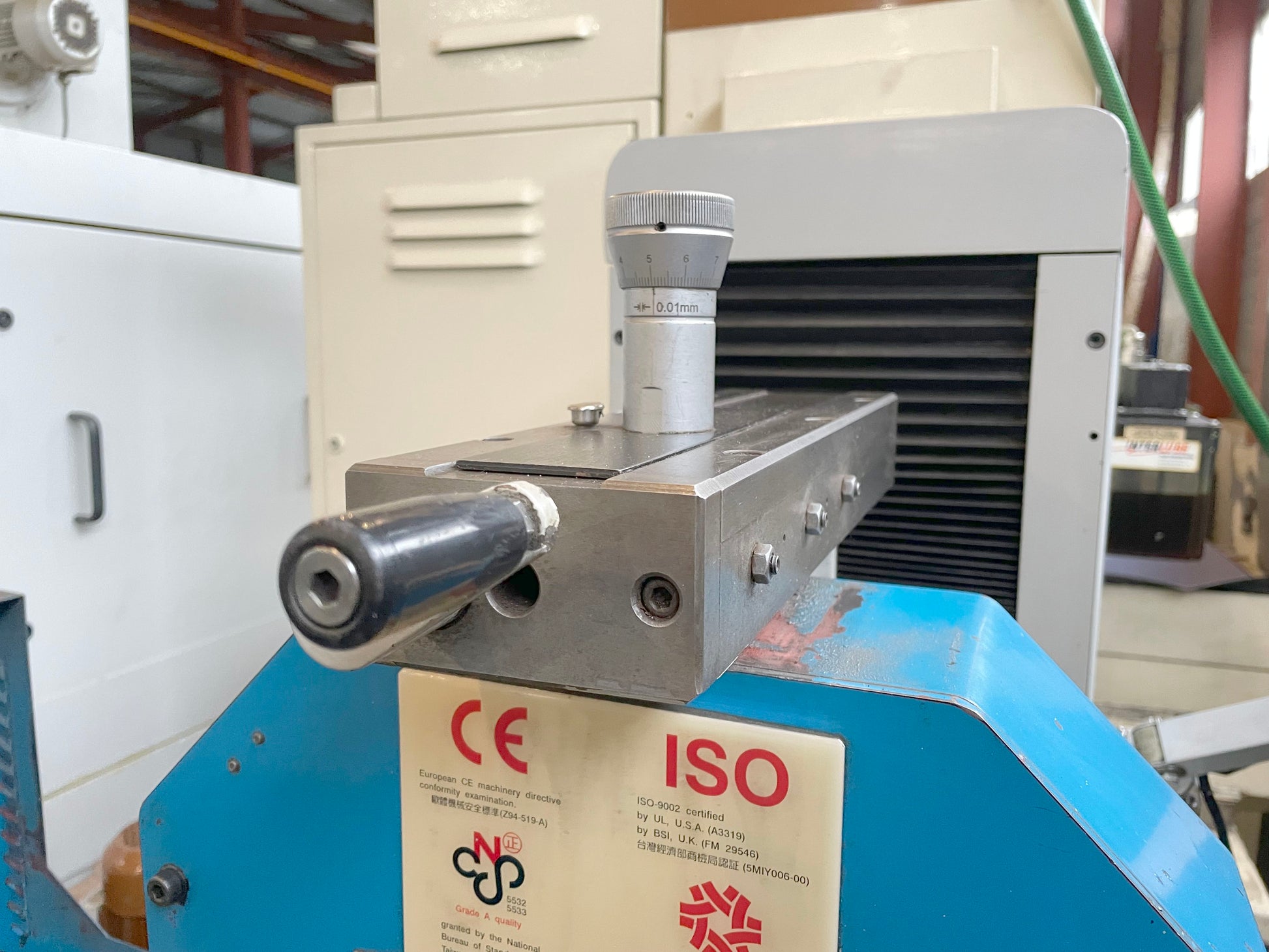

| Redressing device | |
| Lamp |
