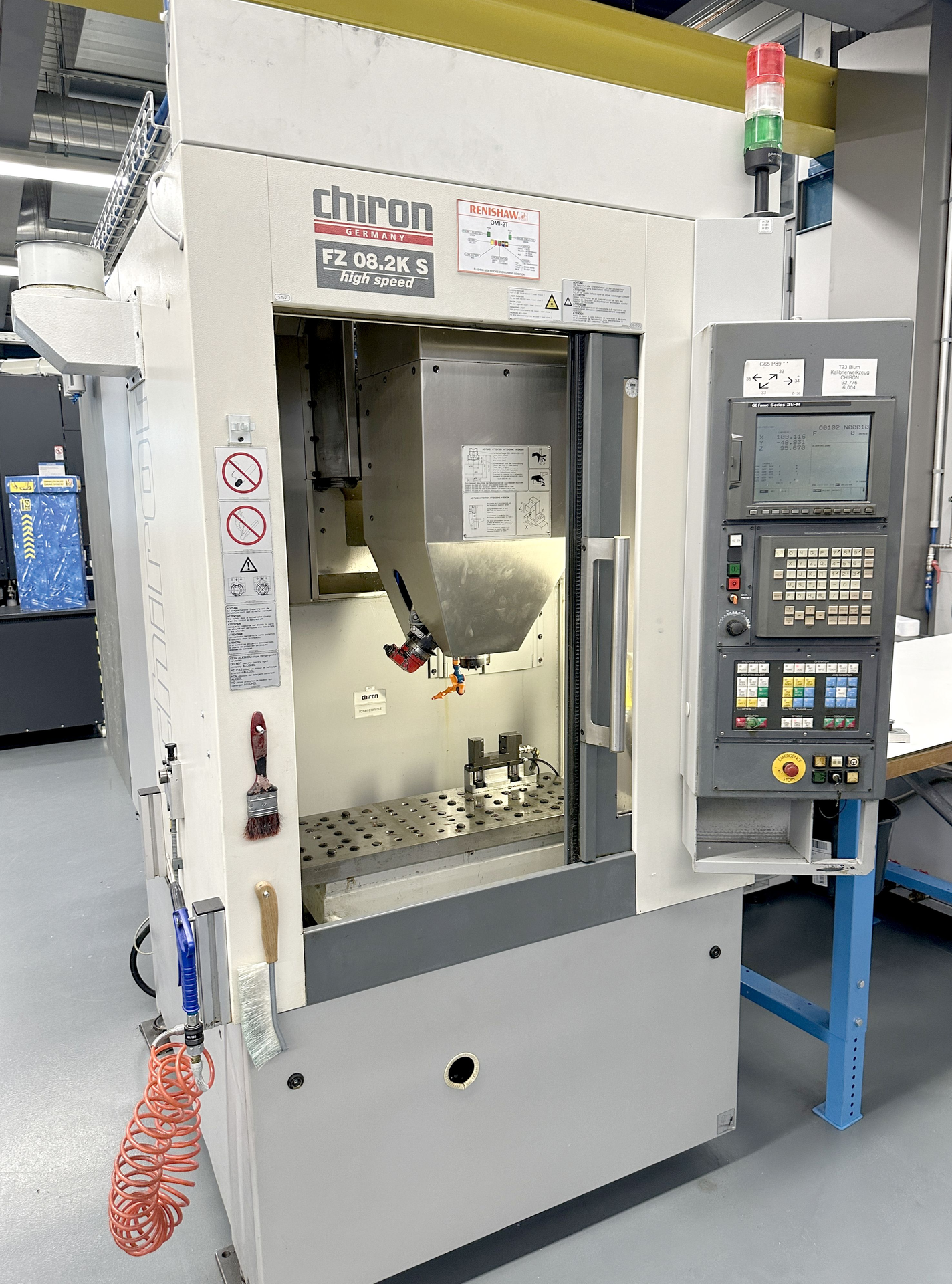

022835 - CHIRON FZ 08 08.2 S
Download technical sheet (PDF)
Message us on WhatsApp
| Number of axis total | 4 |
| Number of spindles | 1 |
| Table length | 770 mm |
| Table width | 290 mm |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y-axis) | 270 mm |
| Vertical travel (z axis) | 310 mm |
| Drill capacity | 12 mm |
| Max. taping diameter M | 8 |
| Tool changer: | |
| Number of tools | 23 |
| Tool diameter max. | 45 mm |
| Diameter with free adjacent pockets | 100 mm |
| Tool lenght | 160 mm |
| Max. tool-weight | 1 kg |
| Time of tool changing | 0.8 / 2.3 s |
| Average chip-to-chip time | 2.2 s |
| Spindle nose: HSK-A | 32 DIN 69893 |
| Distance spindle nose to table | 170 - 450 mm |
| Spindle speeds: | |
| from | 0 t/min |
| up to | 30000 t/min |
| Rapid traverse: | 75 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 7 kW |
| Total power required | 15 kVA |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2308 mm |
| Width | 1405 mm |
| Height | 2447 mm |
| Various accessories: | |
| Set of collets | |
| Tool break control | |
| Chip conveyor | |

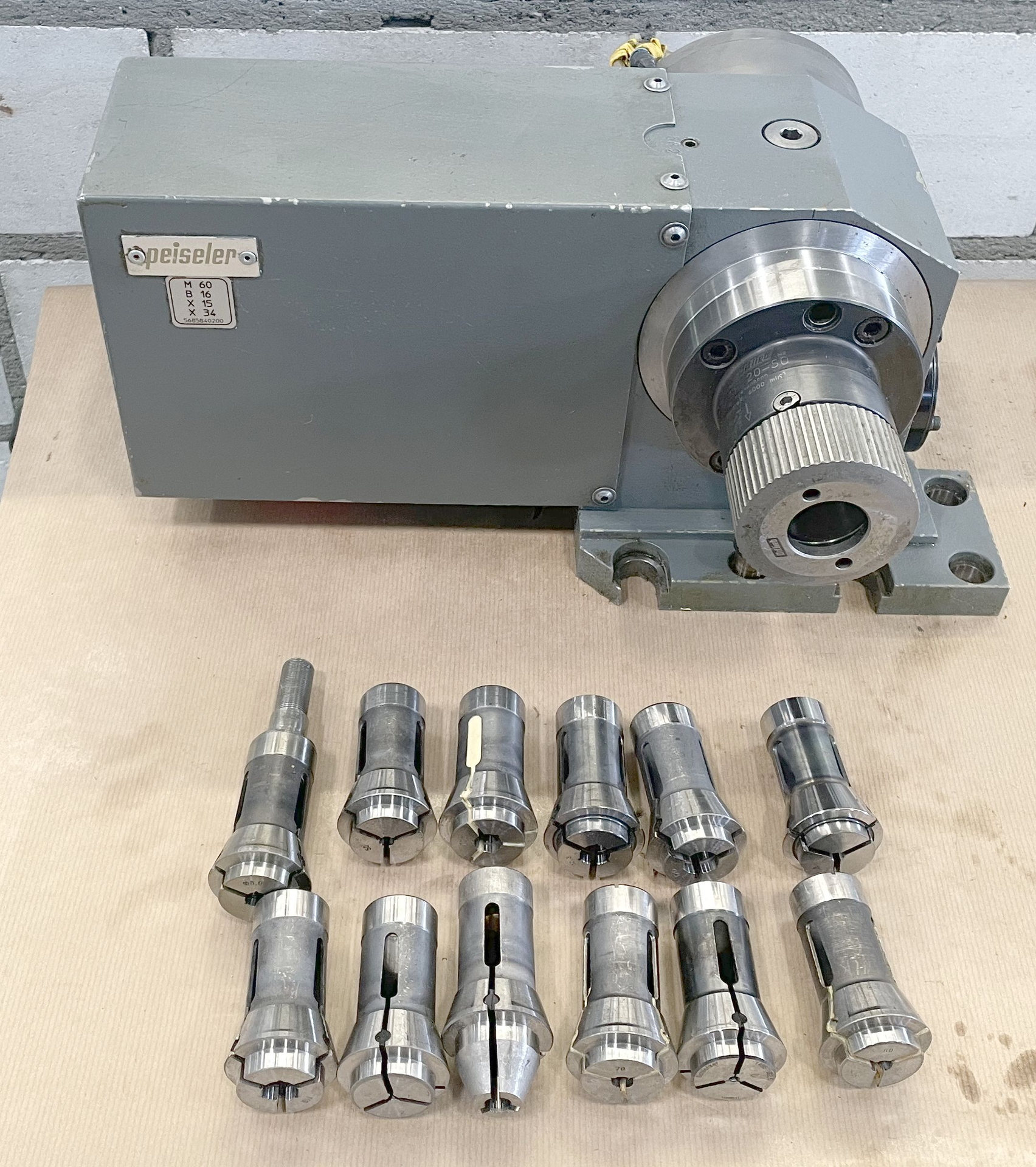

| Dividing attachment 4th axis | peiseler |
| Type | AWUP 100 |

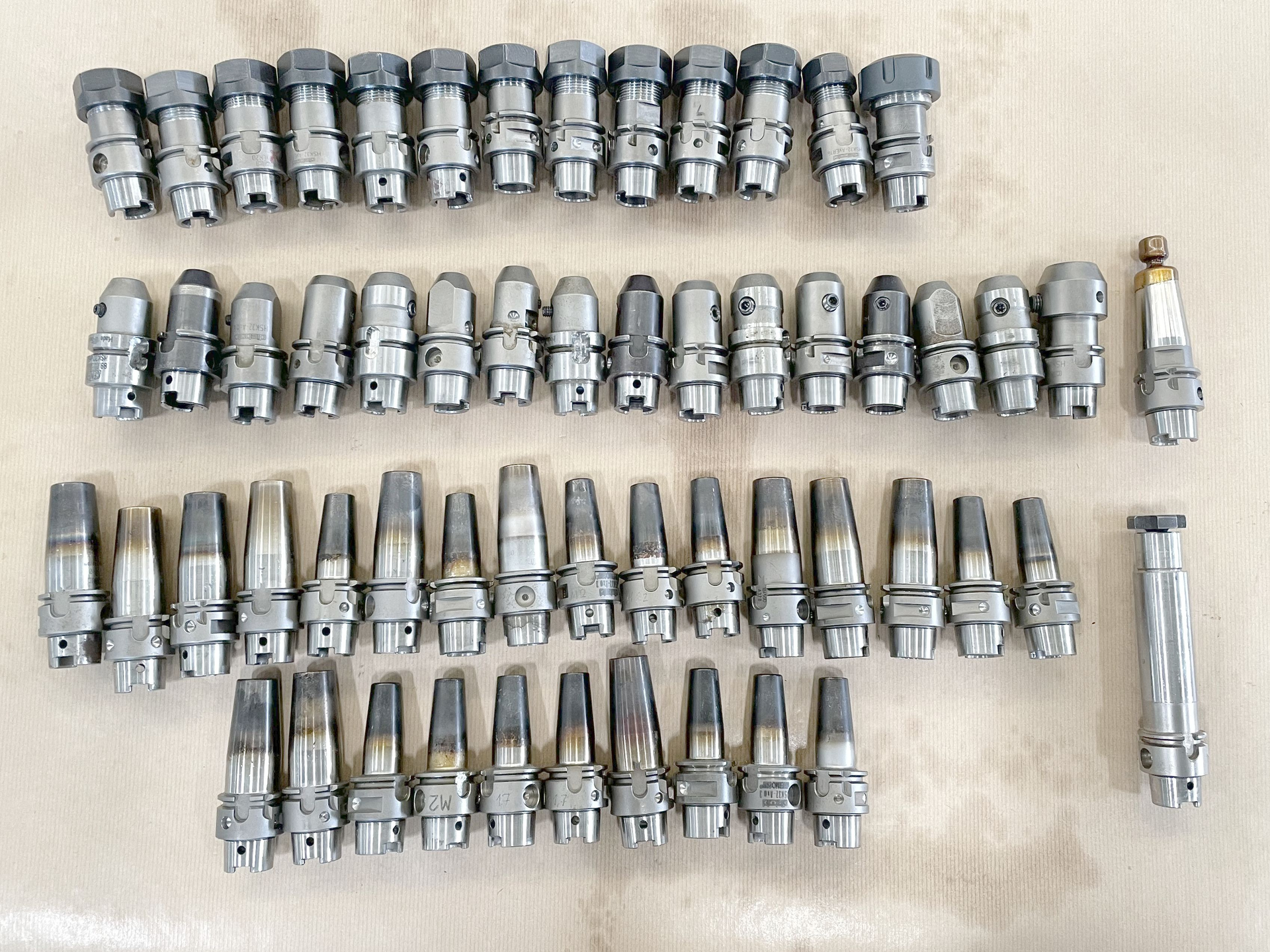

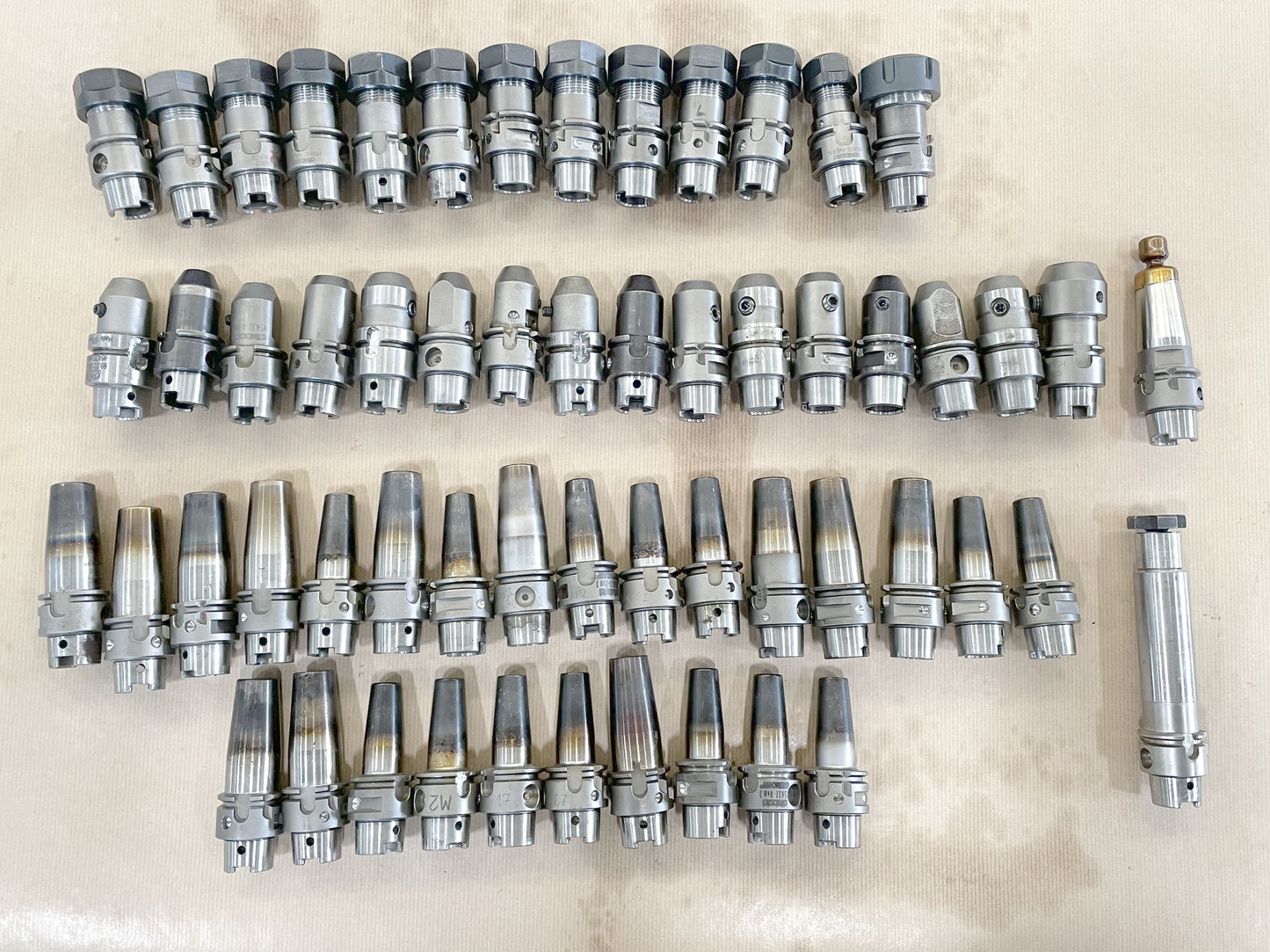

| Set of toolholders | |
| Lamp | |
| Rinsing Guns | |
| Interface serial port RS 232 | |

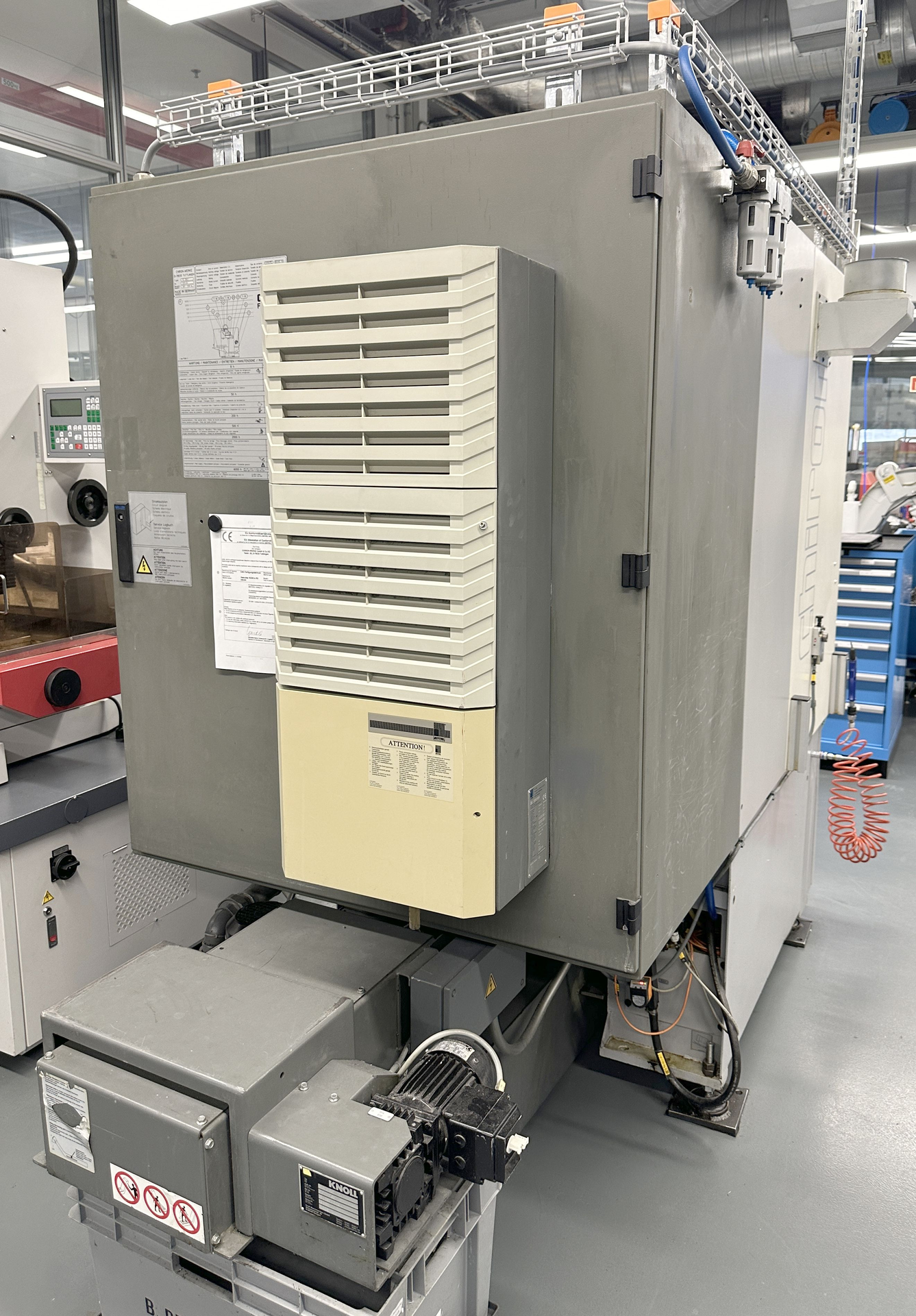

| Switch cabinet Air conditioner | |
| Status light |
