| X axis | 100 mm |
| Y axis | 100 mm |
| Z axis | 100 mm |
| Grinding-wheel diameter | 75 mm |
| Work piece spindle speed | 100 - 1300 t/min |
| Vertical adjustment of grinding head | 100 mm |
| Collet attachment | 20 W |
| Slewing range of grinding head: | |
| horizontal | 165 ° |
| Grinding spindle speeds: | |
| from | 2500 t/min |
| up to | 7100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Workpiece spindle motor | kW |
| Total power required | 2 kVA |
| Machine's weight about | 400 kg |
| Overall dimensions machine: | |
| Length | 850 mm |
| Width | 850 mm |
| Height | 1580 mm |
| Various accessories: | |

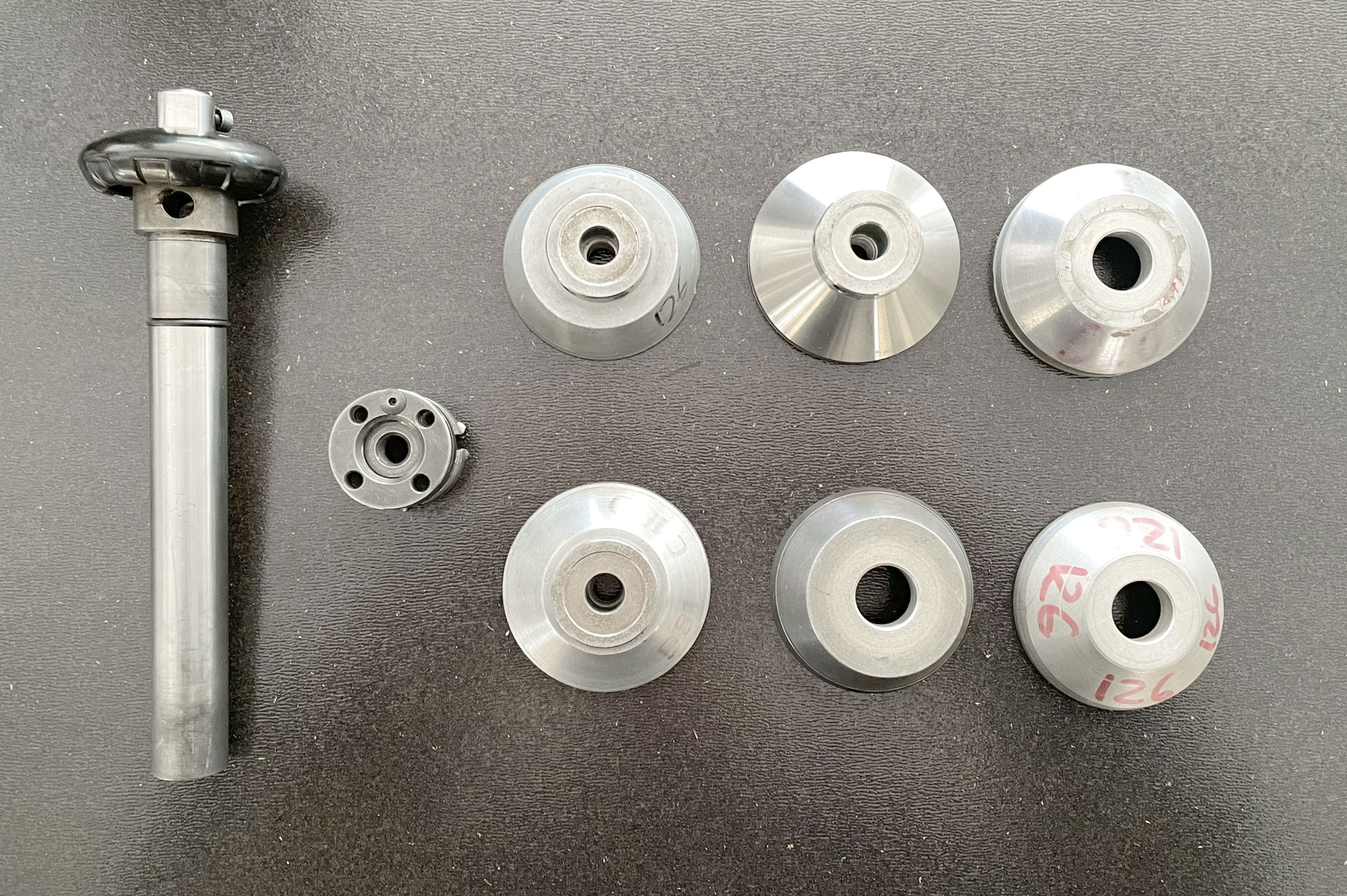

| Flange for wheel | |

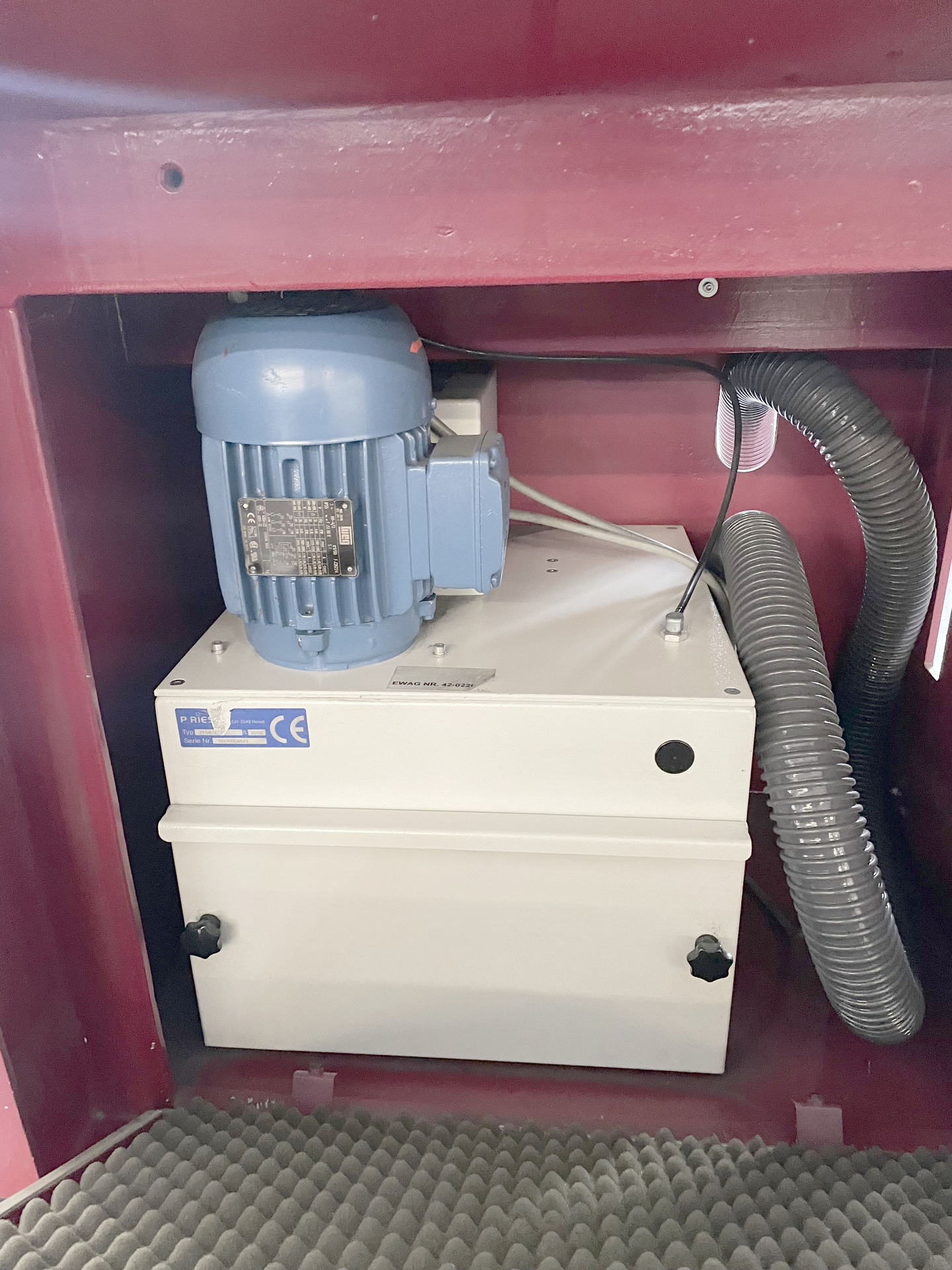

| Dust extraction | |
| Set of grinding wheels | |
| Lamp | |
| Helical grinding device W20 | |
| Feed unit (Z-axis) | 4 E-M |
| Grinding stroke 3 J |
