CITIZEN CINCOM M 20
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
CITIZEN CINCOM M 20 is a CNC automatic lathe engineered for high‑precision machining, superior accuracy and long‑term reliability. Key capacities: max turning Ø 20 mm, turning length 320 mm, max drilling Ø 10 mm, max threading 8 M, spindle bore 24 mm; bar feeder support up to 3200 mm (bar Ø 2–26 mm). Main specs: spindle speeds 200–10000 rpm, back spindle 200–5000 rpm, spindle motor 3.7/7.5 kW, back spindle power 1.5/3.7 kW, driven tool power 1.5/2.2 kW, rapid traverse X/Y 20 m/min, supply 3x400 V 50 Hz, total 8 kVA, weight ~2500 kg, footprint L2800×W1370×H1800 mm. Equipment: NORDMANN process control device, 3 driven radial tool holders, LNS Hydrobar Express 226 bar feeder (1999), chip conveyor, fire suppression, status light. Delivers tight tolerances; suited to automotive, watchmaking, machine‑tool, aerospace and medical sectors
Technical specifications are subject to change without notice
| Max. turning diameter | 20 mm |
| Turning length | 320 mm |
| Max. drilling diameter | 10 mm |
| Max. threading diameter | 8 M |
| Internal spindle diameter | 24 mm |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 10000 t/min |
| Turret slide: | |
| Number of positions | 10 |
| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 5000 t/min |
| Tool-holder: | |
| numbers | 2 |
| number of driven tools | 3 |
| Turning tools | 5 pce |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 3.7 / 7.5 kW |
| Power of back spindle | 1.5 / 3.7 kW |
| Power of driven tools | 1.5 / 2.2 kW |
| Total power required | 8 kVA |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2800 mm |
| Width | 1370 mm |
| Height | 1800 mm |
| Various accessories: | |
| Process controling device | NORDMANN |
| Driven tool holder radial (nbr.) | 3 |

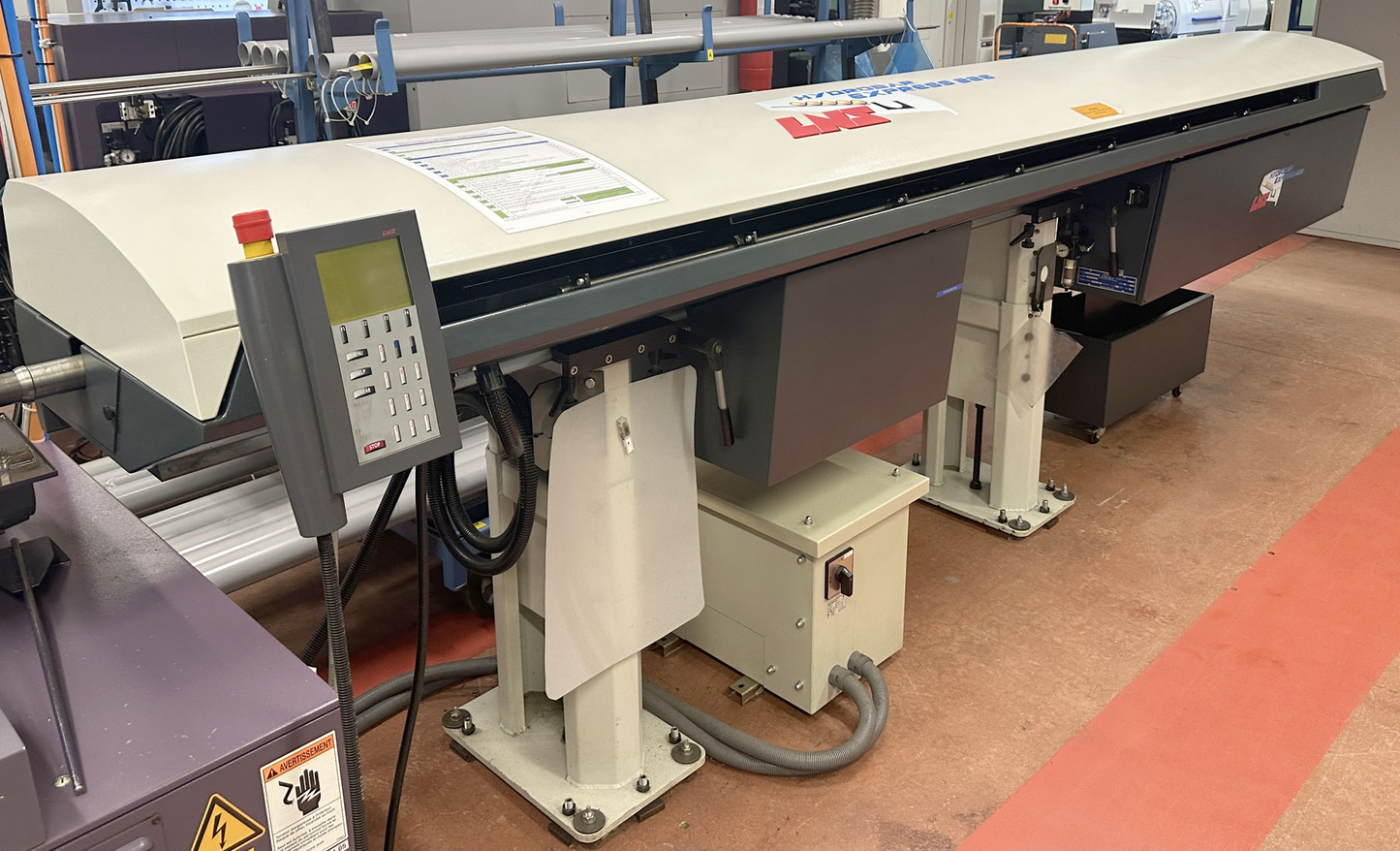

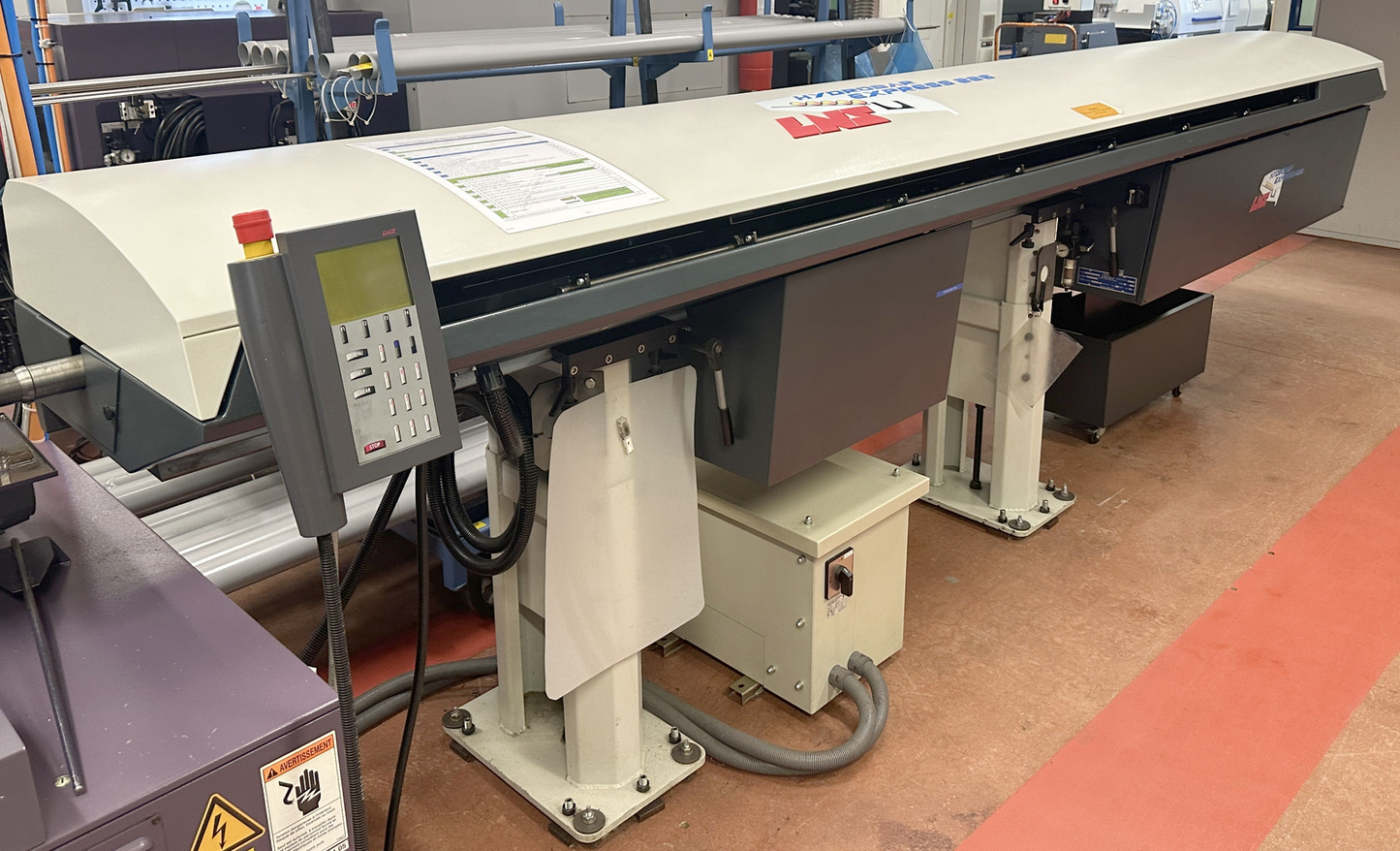

| Bar feeder | |
| Manufacturer | LNS |
| Type | Hydrobar Express 226 |
| year of manufacture | 1999 |
| Length of bars max. | 3200 mm |
| Bar diameter | 2 - 26 mm |
| Lamp | |
| Chip conveyor | |
| Fire extinguishing system | |
| Status light |
