SCHAUBLIN 102 TO
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
SCHAUBLIN 102 TO is a Toolmakers lathe designed for precision, high accuracy and reliability. Centre height 102 mm; distance between centres 375 mm; swing over cross-slide 120 mm; swing over bed 200 mm; inner taper type 20 W. Spindle 12 steps 45–2800 t/min; spindle motor 0.5 CV; 3×380 V 50 Hz; machine weight approx. 300 kg; overall L1000×W900×H1500 mm. Bench version with bench L2000×W800×H900 mm; 3 drawers; driving system and belt-tensioning for milling/grinding attachment; set of hard jaws; milling attachment. Achieves tight tolerances; ideal for watchmaking, toolmaking, aerospace, medical and automotive.
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 20 W |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 45 t/min |
| up to | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 900 mm |
| Height | 1500 mm |
| Various accessories: | |
| On work bench: | |
| Working bench: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 900 mm |
| Rear drive | |

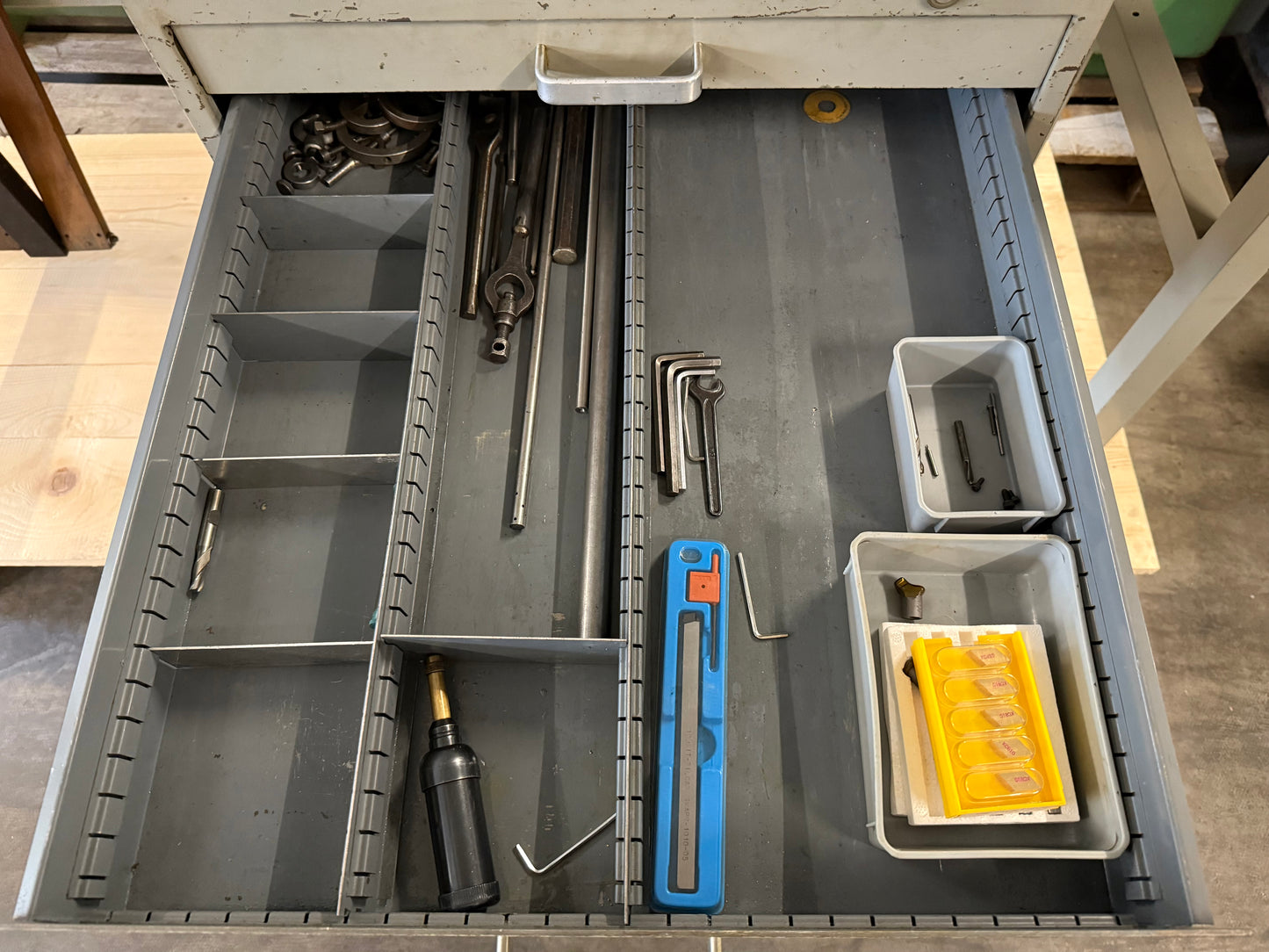

| Drawer(s) | 3 |
| Driving system for milling and grinding attachment | |
| Belt-tensioning device for milling/grinding att. | |
| Set of hard jaws | |
| Milling attachment |
