SUNNEN MBC-1806 is a honing machine engineered for extreme precision, high accuracy and dependable reliability. Capacities: min Ø 2 mm, max Ø 254 mm, max honing length 406 mm. Technical specs: spindle with 12 steps 200–2500 t/min; stroke with 5 steps 80–310 c/min; supply 3x380 V 50 Hz; spindle motor 0.73 kW; approx. 450 kg; footprint L1500×W1300×H1600 mm. Measuring device: MICRO-JET. Designed to achieve tight tolerances for automotive, aerospace, medical, watchmaking and machine-tool applications.
Technical specifications are subject to change without notice
| Min. diameter | 2 mm |
| Max. diameter | 254 mm |
| Max. honing length | 406 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 200 t/min |
| up to | 2500 t/min |
| Stroke speed: | |
| number (steps) | 5 |
| from | 80 c/min |
| up to | 310 c/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.73 kW |
| Machine's weight about | 450 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1300 mm |
| Height | 1600 mm |
| Various accessories: | |
| Coolant system | |

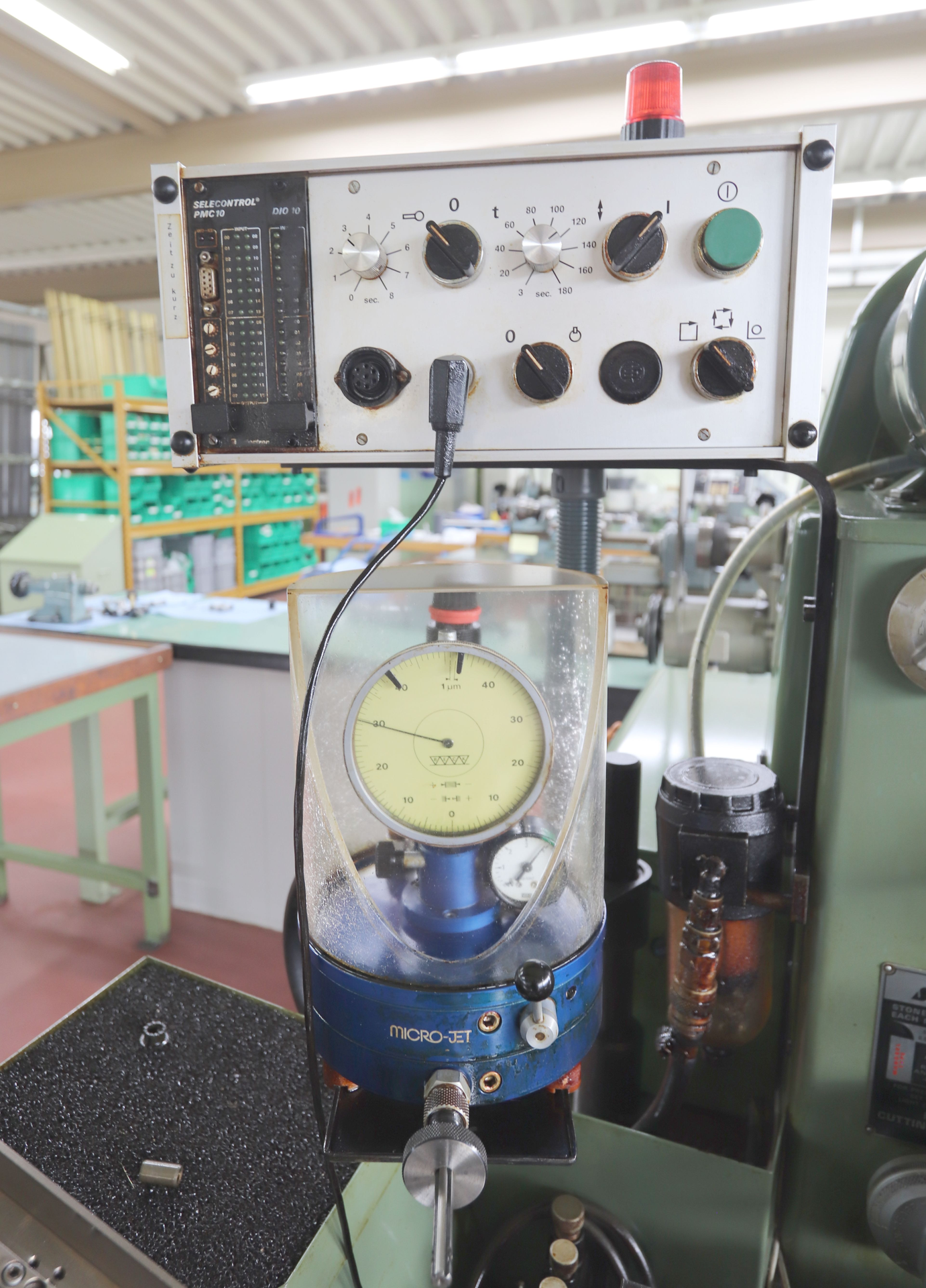

| Measuring device | MICRO-JET |
| Automatic workpiece honing unit | |
| Active control | |
| Automatic loading and unloading device |
