| Table length | 1000 mm |
| Table width | 500 mm |
| Grinding length | 1000 mm |
| Grinding width | 600 mm |
| Table load max. | 1000 kg |
| to spindle-centreline | 700 mm |
| Longitudinal travel (X-axis) | 1300 mm |
| Cross travel (z-axis) | 600 mm |
| Transversal travel (y axis) | 530 mm |
| Automatic longitudinal feeds: | |
| stepless | |
| from | 2000 mm/min |
| up to | 35000 mm/min |
| Automatic cross-feed: | |
| stepless | |
| from | 1 mm/min |
| up to | 5000 mm/min |
| Automatic vertical feed: | |
| from | 1 mm/min |
| up to | 3000 mm/min |
| Diameter of grinding wheel | 400 mm |
| Width of the grinding wheel | 60 mm |
| Max. grinding wheel width | 80 mm |
| Wheel int. diameter | 127 mm |
| Grinding wheel speeds: | |
| stepless | |
| from | 1000 t/min |
| up to | 2600 t/min |
| Fine feed: | |
| Smallest step | 1 µm |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 11 kW |
| Machine's weight about | 5600 kg |
| Overall dimensions machine: | |
| Length | 2850 mm |
| Width | 1750 mm |
| Height | 1850 mm |
| Various accessories: | |
| Coolant system | 250 l |
| Paper filtration system | |
| Magnetic plate: | |
| Length | 1000 mm |
| Width | 500 mm |
| Redressing attachment hydraulic | |
| Central lubrification | |
| Oil mist extractor | AIRTECH |

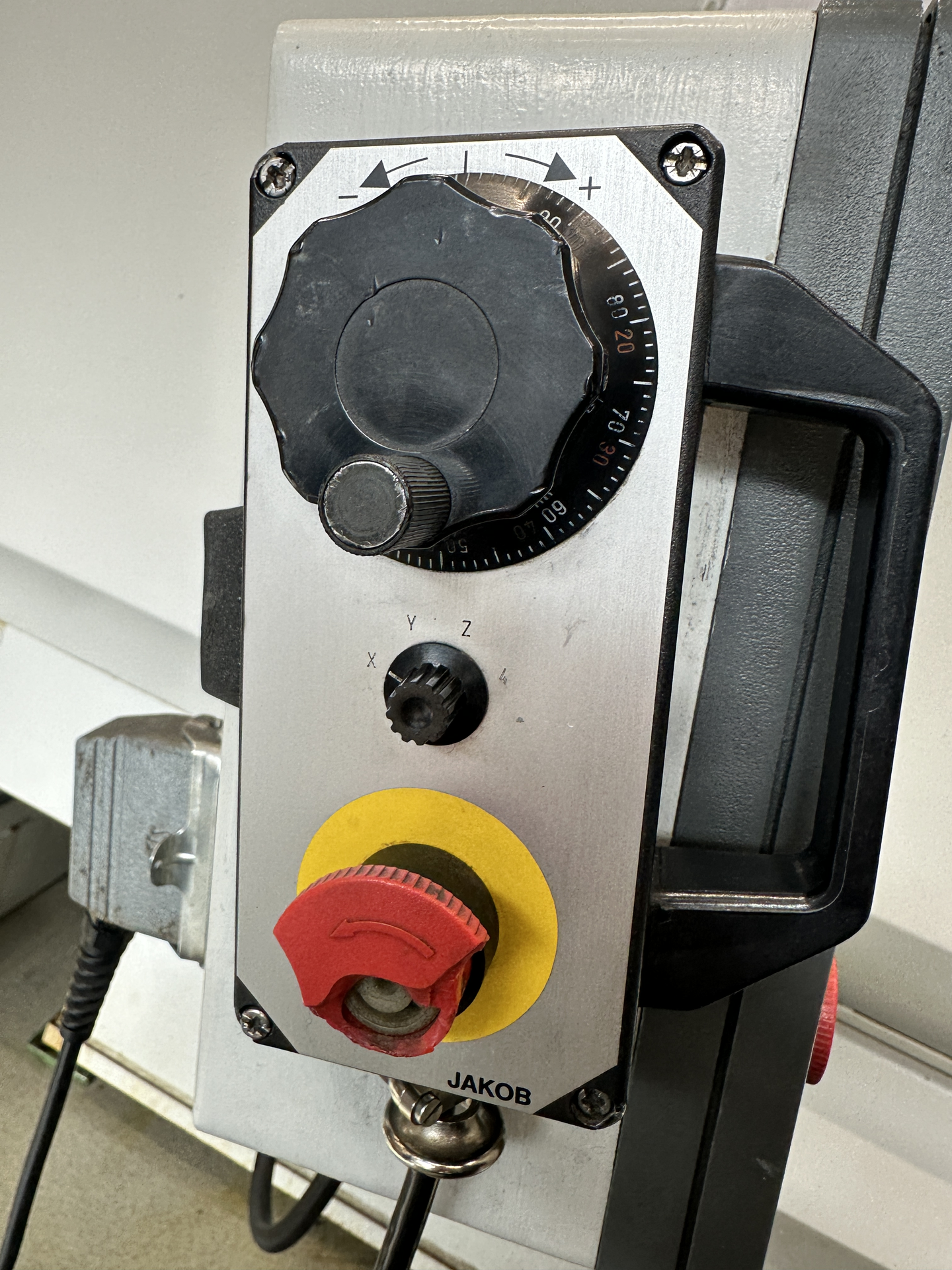

| Handwheel electroinic |
ABA EL 1006 is a Surface and profil grinding machine engineered for precision, high accuracy and reliability. Table 1000×500 mm, grinding 1000×600 mm, table load max 1000 kg, spindle centre 700 mm; travels X 1300 mm, Z 600 mm, Y 530 mm. Feeds: X 2000–35000 mm/min (stepless), Z 1–5000 mm/min, vertical 1–3000 mm/min; wheel Ø400 mm (width 60 mm, max 80 mm), bore 127 mm, 1000–2600 rpm; spindle motor 11 kW; fine feed 1 µm; air 6 bar; 3x400 V 50 Hz; weight ≈5600 kg; dims 2850×1750×1850 mm. Accessories: coolant 250 l, paper filter, magnetic plate 1000×500 mm, hydraulic redressing, central lubrication, oil-mist extractor AIRTECH, electronic handwheel. Achieves tight tolerances; suited for automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
