AWEA BM-1400 is a 4-axis machining center designed for precision, high accuracy and reliability. Table 1500×800 mm; travels X1400 mm, Y800 mm, Z700 mm. Spindle nose ISO 40, 0–12000 t/min (stepless), supply 50Hz 3x400V, total power 40 kVA; weight ≈12000 kg; size L4800×W2850×H3100 mm. Accessories: set of toolholders, high pressure coolant 40 bar, chip conveyor, dividing attachment 4th axis, electronic handwheel, RS‑232 interface, status light. Achieves tight tolerances; typical applications: automotive, aerospace, medical, watchmaking and machine tools.
| Number of axis total | 4 |
| Table length | 1500 mm |
| Table width | 800 mm |
| Longitudinal travel (X-axis) | 1400 mm |
| Transversal travel (y-axis) | 800 mm |
| Vertical travel (z axis) | 700 mm |
| Spindle nose: ISO | 40 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 12000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 40 kVA |
| Machine's weight about | 12000 kg |
| Overall dimensions machine: | |
| Length | 4800 mm |
| Width | 2850 mm |
| Height | 3100 mm |
| Various accessories: | |

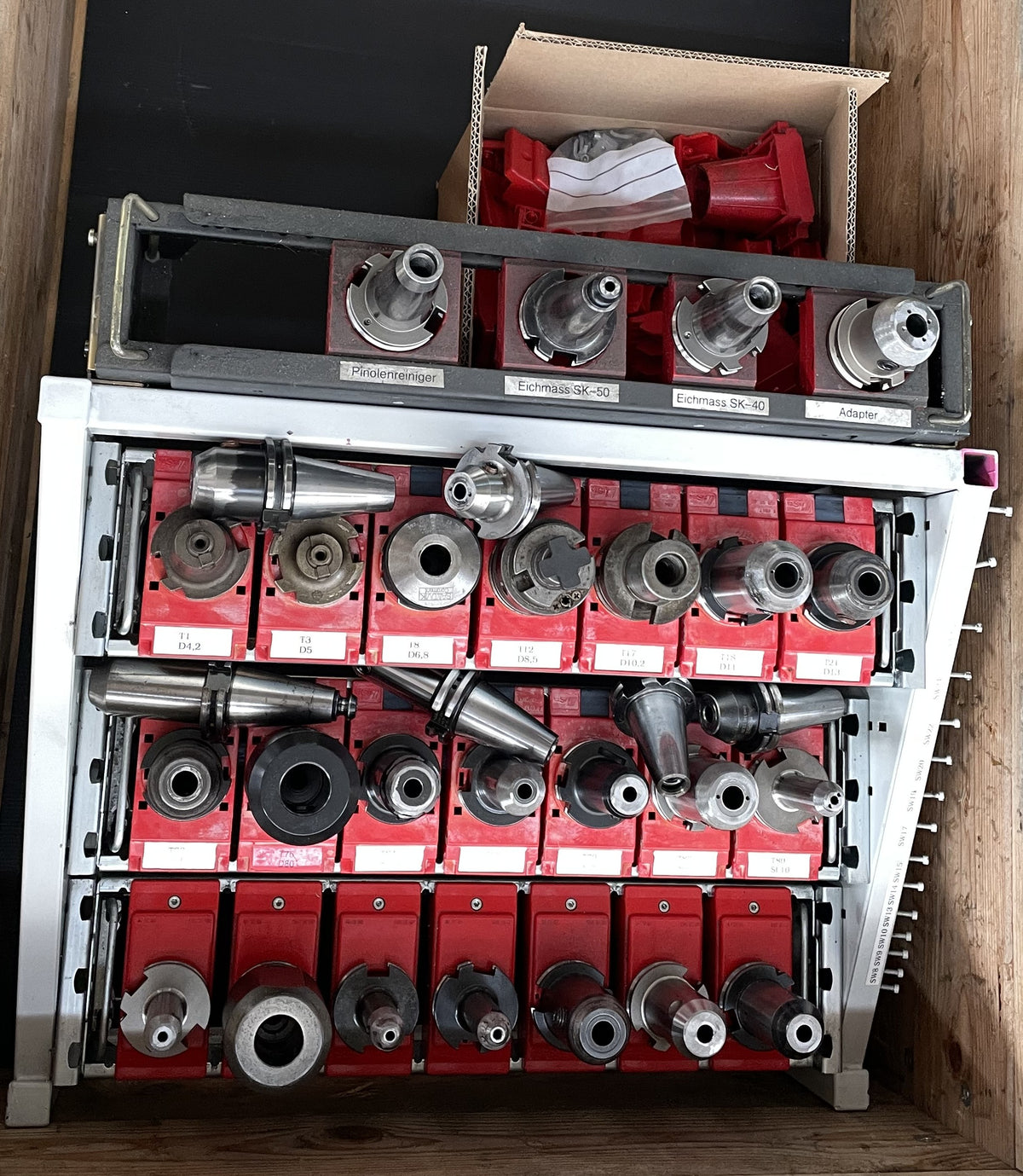

| Set of toolholders | |
| High pression colant device | 40 bar |

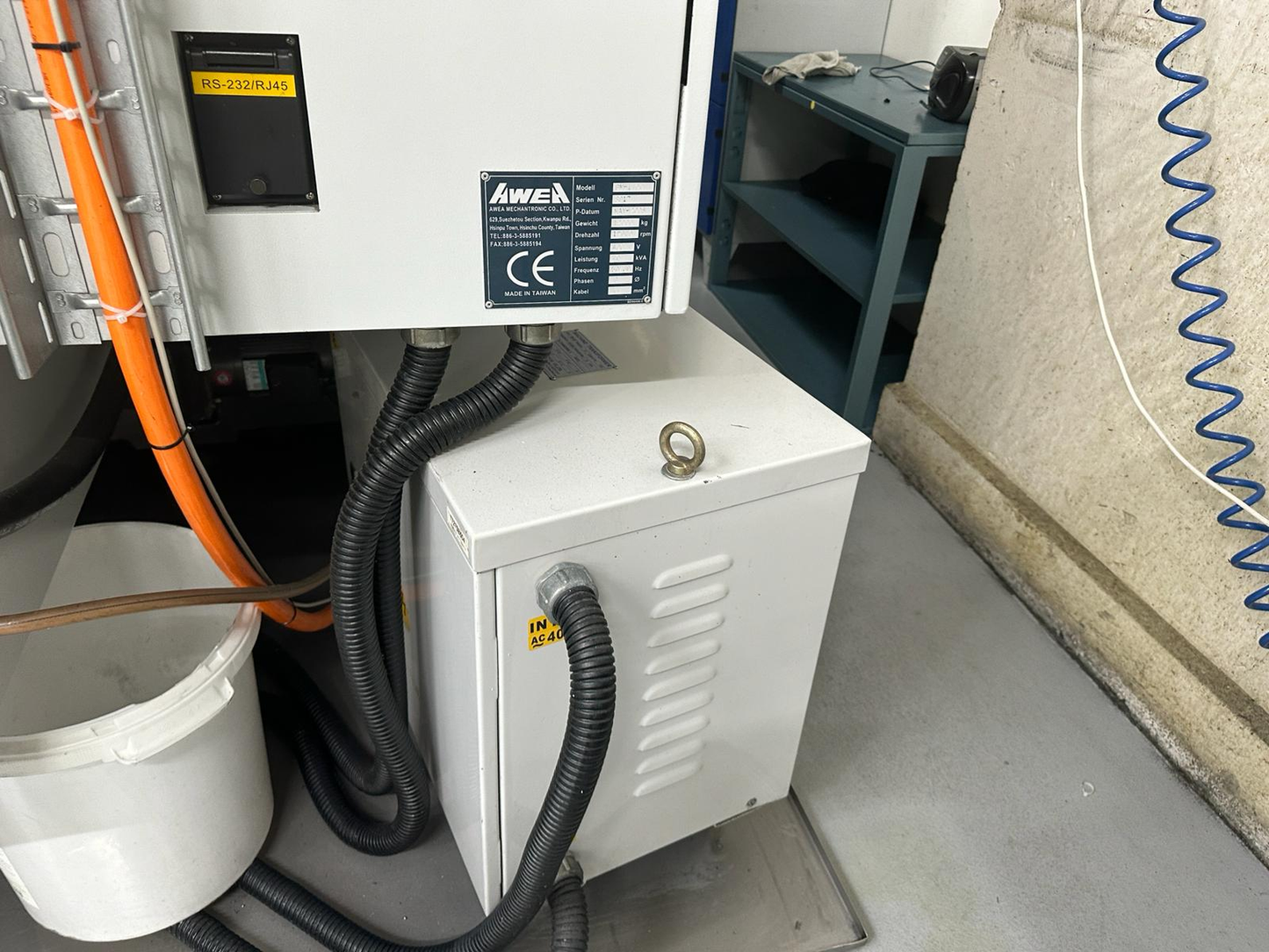

| Water cooler | |
| Chip conveyor | |
| Dividing attachment 4th axis | |
| Handwheel electroinic | |
| RS-232 Interface | |
| Status light |
