022714 - TSUGAMI-MORI BS-12CE(S)-III
Download technical sheet (PDF)
Message us on WhatsApp
| Number of axis total | 6 |
| Number of spindles | 2 |
| Turning diameter | 3 - 12 mm |
| Maximum turning length | 210 mm |
| Max. drilling diameter | 12 mm |
| Max. threading diameter | 6 M |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 12000 t/min |
| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 8000 t/min |
| Tool-holder: | |
| Number of stations | 5 |
| number of tools | 13 |
| Turning tools | 7 pce |
| Drilling tools | 3 pce |
| Transverse processing tools | 3 pce |
| Power of driven tools | 0.9 kW |
| Tool lenght | 85 mm |
| Tool shank cross section | 12 mm |
| Counter-operation: | |
| number of tools | 5 |
| number of driven tools | 2 |
| Turning tools | 3 pce |
| Feeds: | |
| stepless | |
| from | 1 mm/min |
| up to | 6000 mm/min |
| Rapid traverse: | 18 m/min |
| Spindle motor | 1.5 / 2.2 kW |
| Power of back spindle | 0.75 / 1.1 kW |
| Air connect | 4 bar |
| Total power required | 9 kVA |
| Machine's weight about | 2200 kg |
| Overall dimensions machine: | |
| Length | 1870 mm |
| Width | 1150 mm |
| Height | 1685 mm |

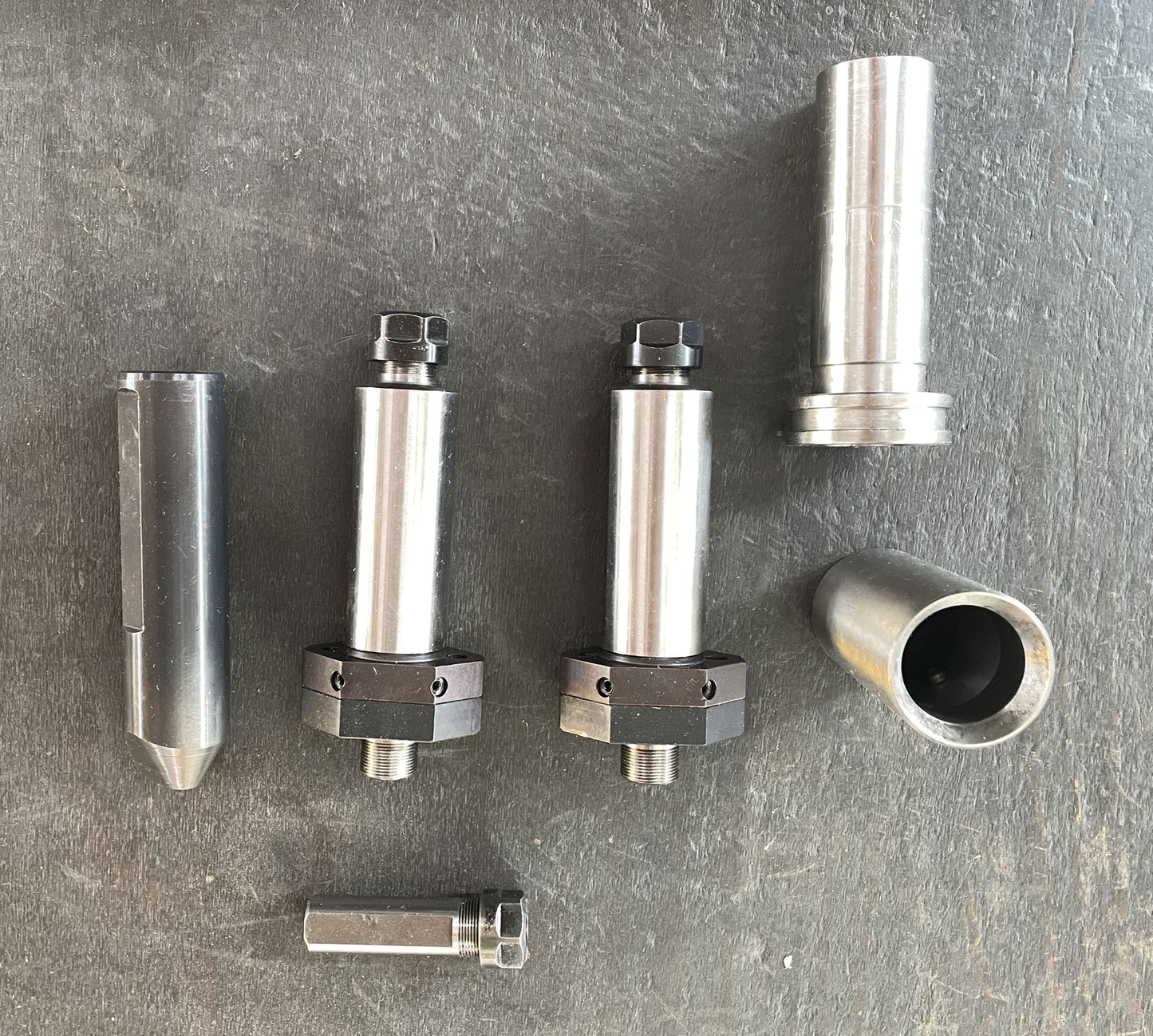

| Various accessories: | |
| Parts catcher | |
| Lamp | |
| Oil mist extractor | |
| Set of collets | |
| Status light |
