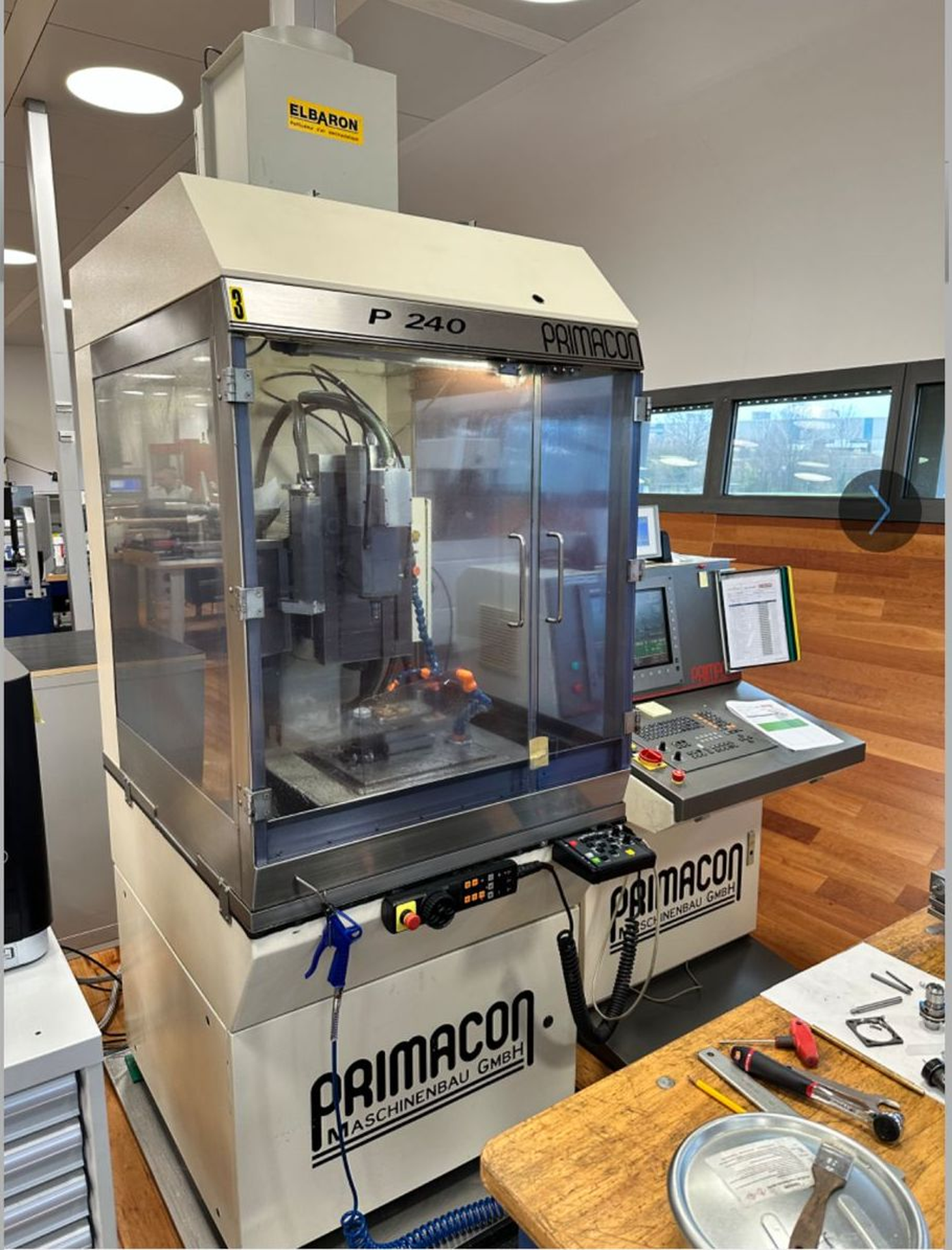

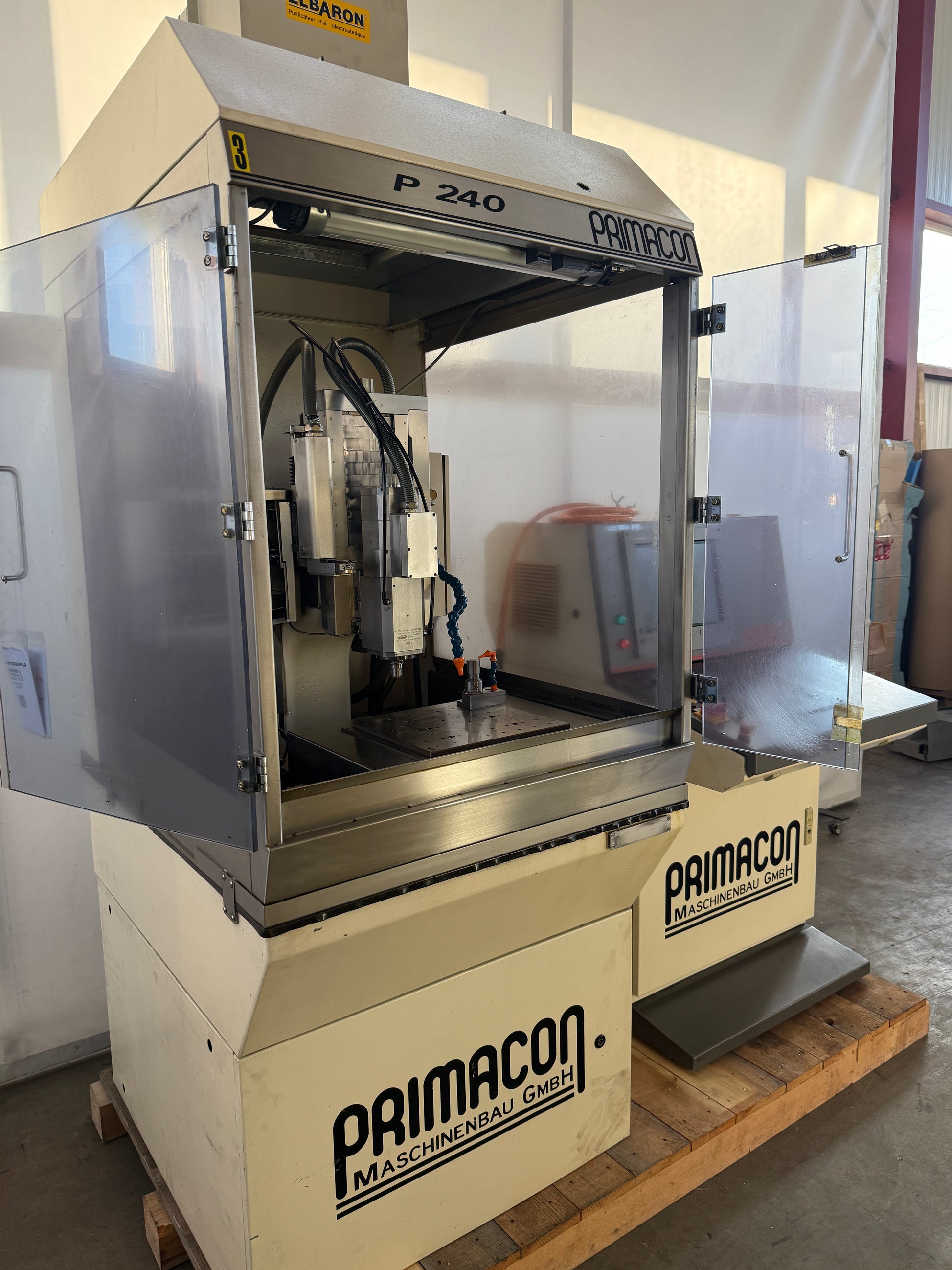

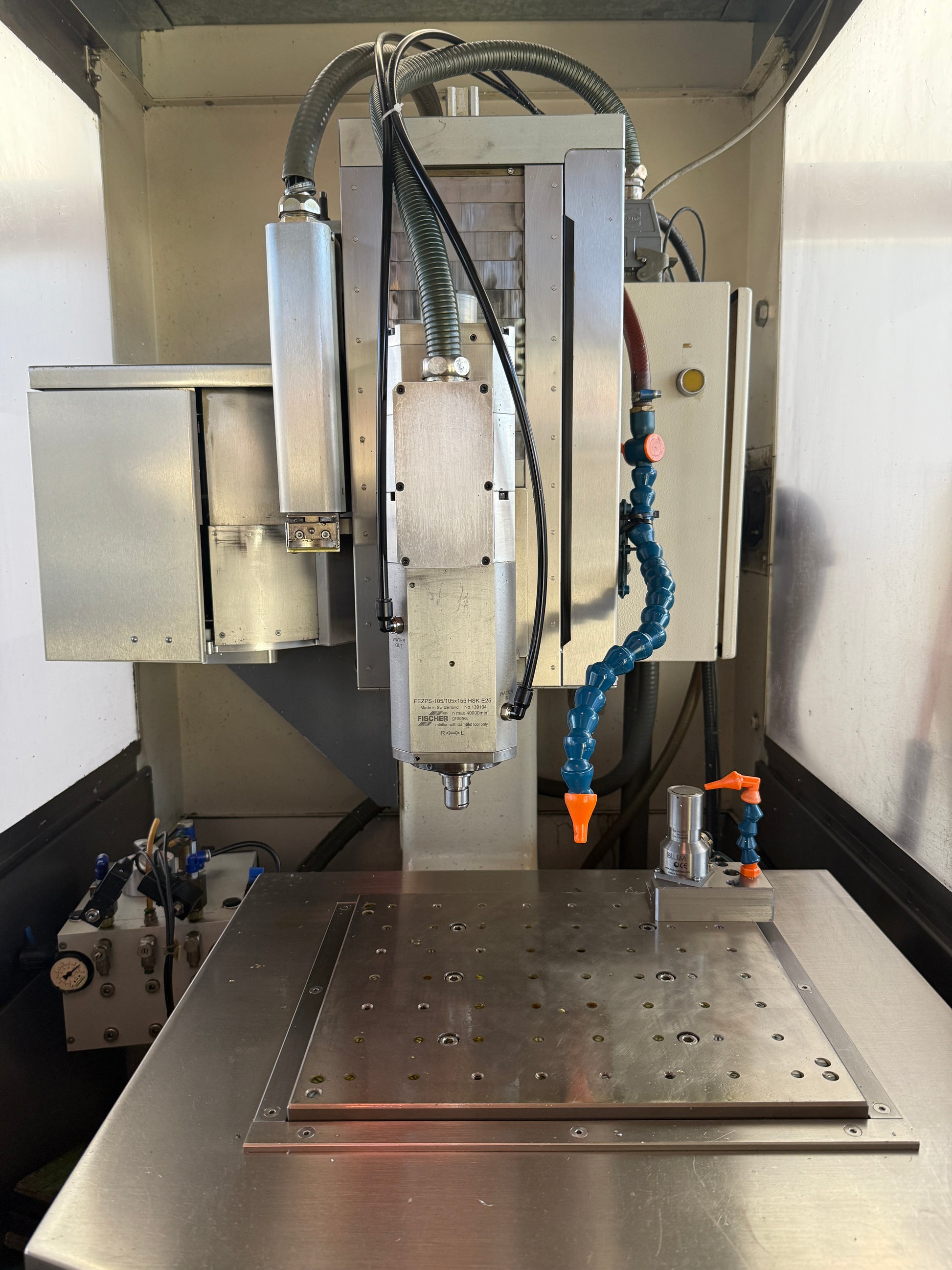

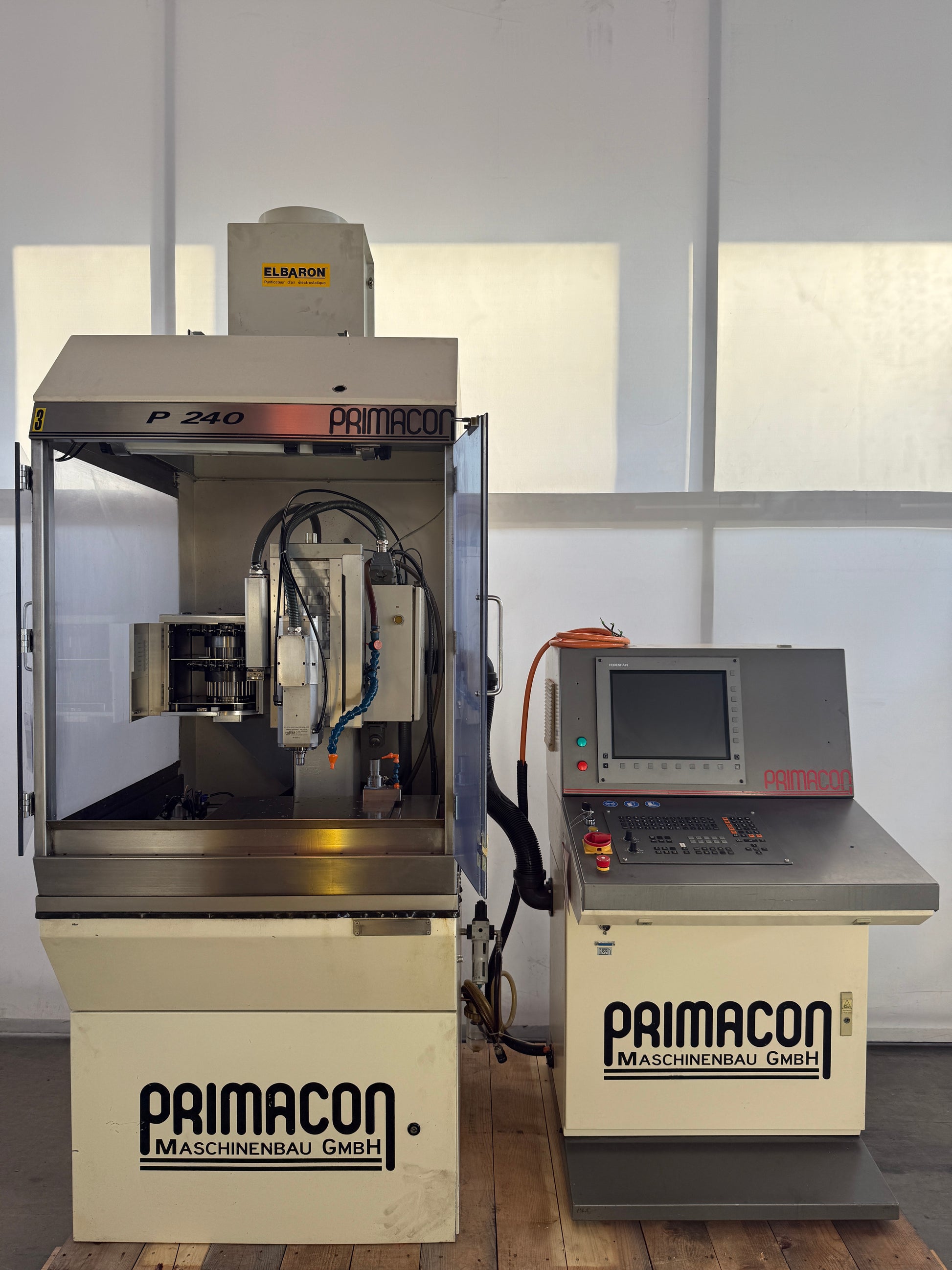

PRIMACON P240 is a Micro-precision milling cell designed for precision, high accuracy and dependable reliability. Working capacities: table 340×300 mm, travels X/Y/Z 240 mm, tool magazine with 32 places. Main specs: stepless spindle up to 20000 t/min; machine overall L1200×W1150×H2200 mm; control dimensions L1000×W800×H1400 mm. Accessories: electronic handwheel and oil mist extractor ELBARON. Enables tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 3 |
| Table length | 340 mm |
| Table width | 300 mm |
| Longitudinal travel (X-axis) | 240 mm |
| Transversal travel (y-axis) | 240 mm |
| Vertical travel (z axis) | 240 mm |

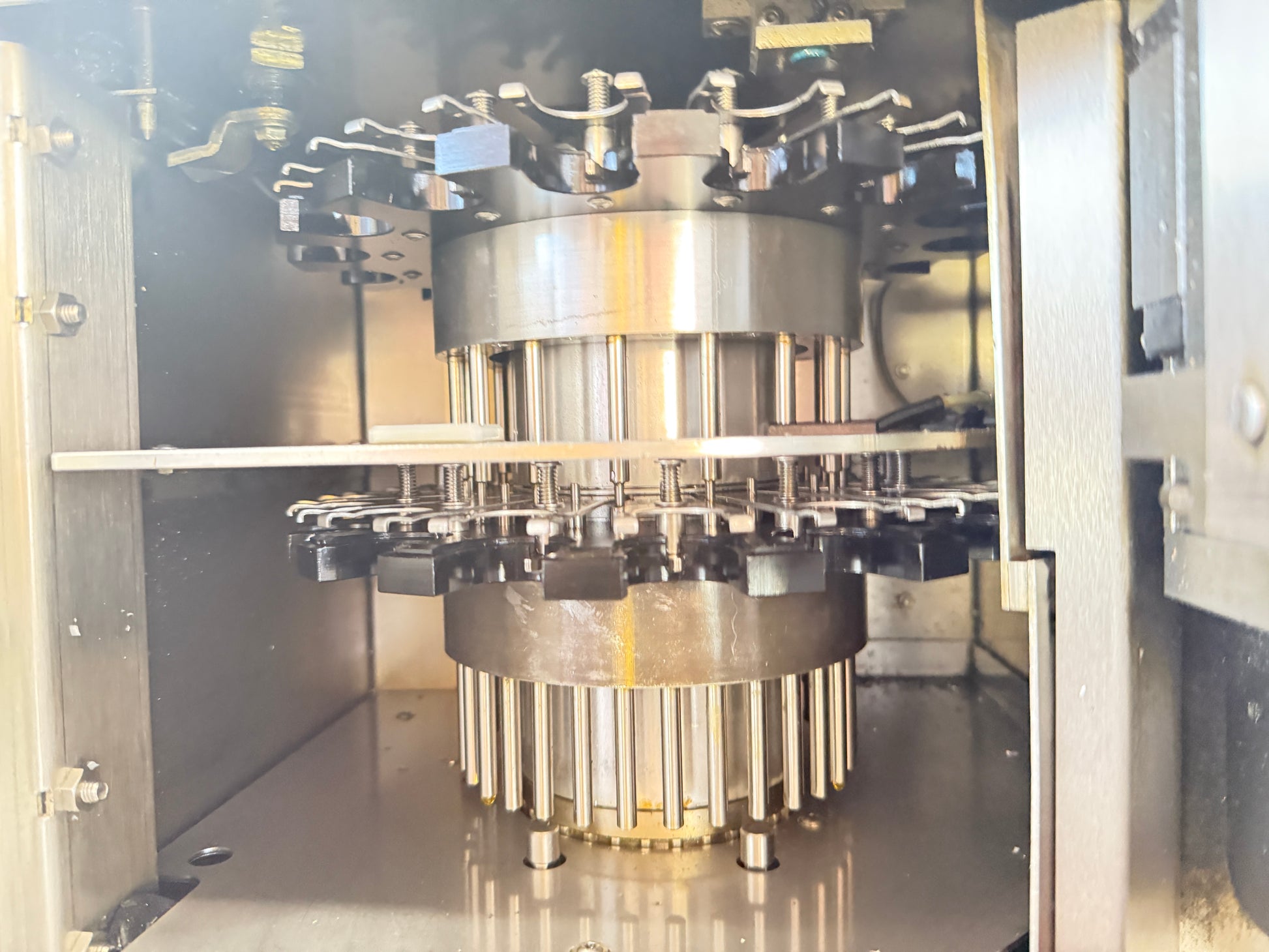

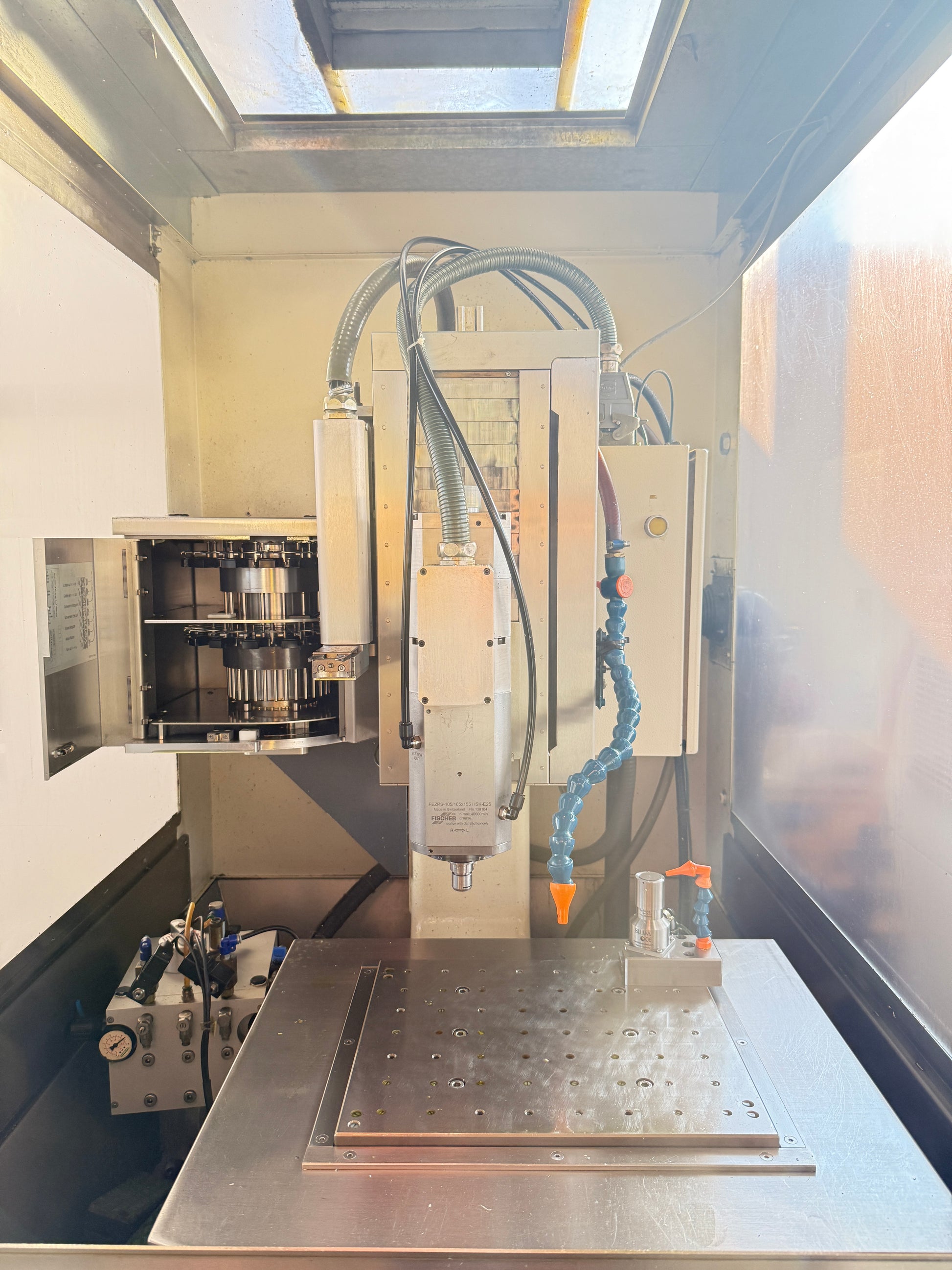

| Tool magazine number of tool places | 32 |

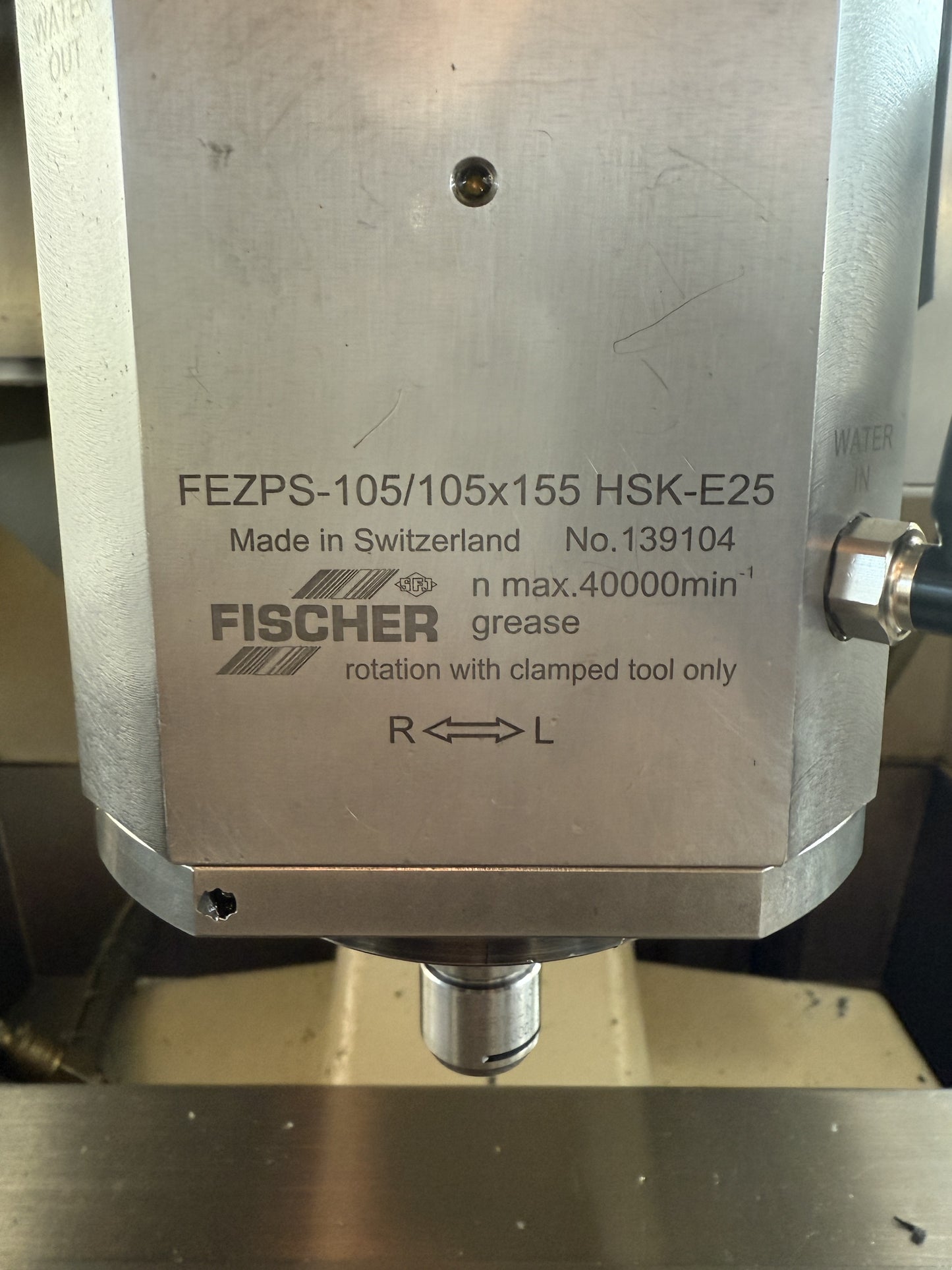

| Spindle nose: | HSK-E25 |
| Spindle speeds: | |
| stepless | |
| up to | 40000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1150 mm |
| Height | 2200 mm |
| Dimensions of the control: | |
| Length | 1000 mm |
| Width | 800 mm |
| Height | 1400 mm |
| Various accessories: | |

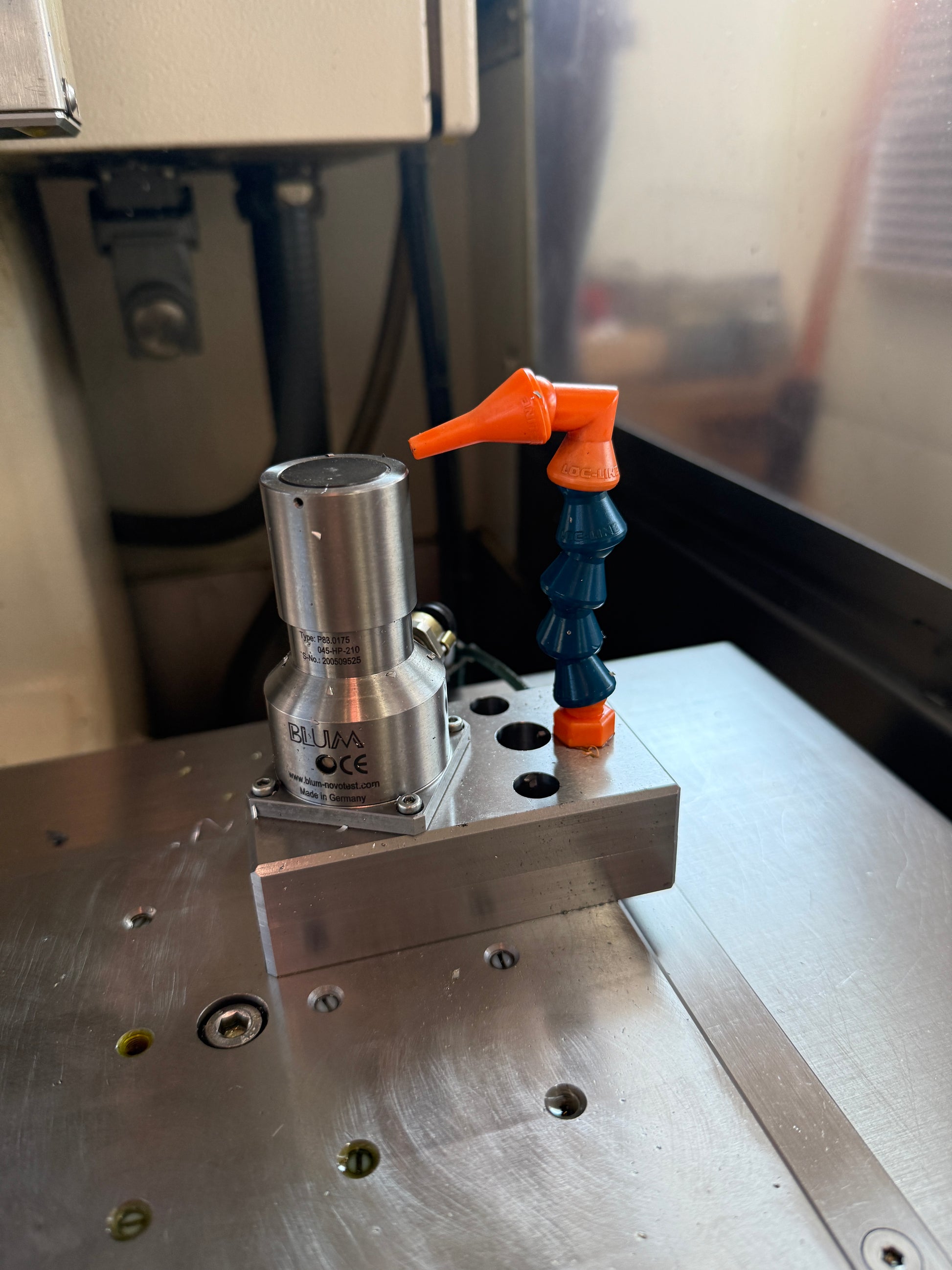

| Workpiece measurement | BLUM P83.0175 |

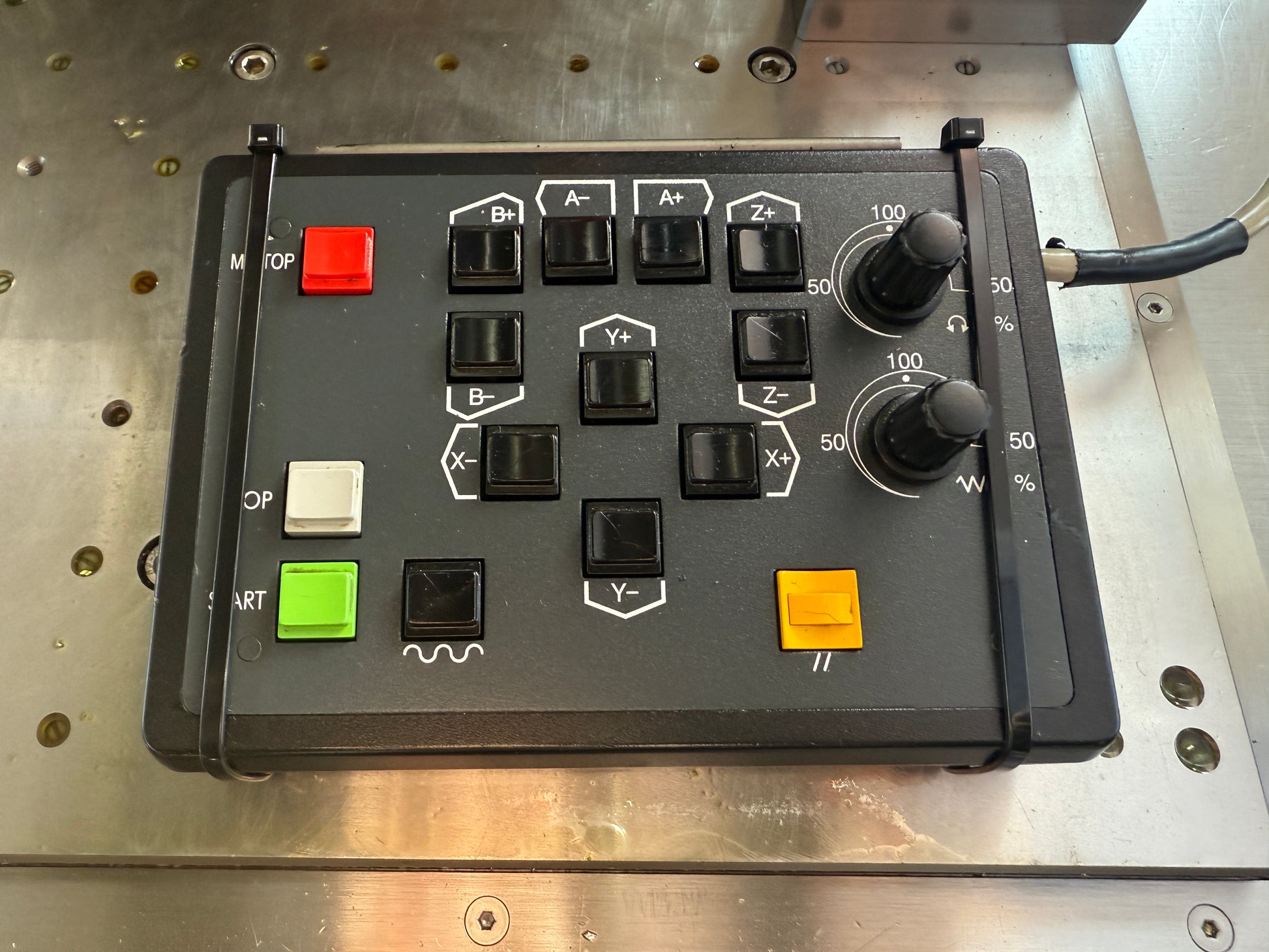

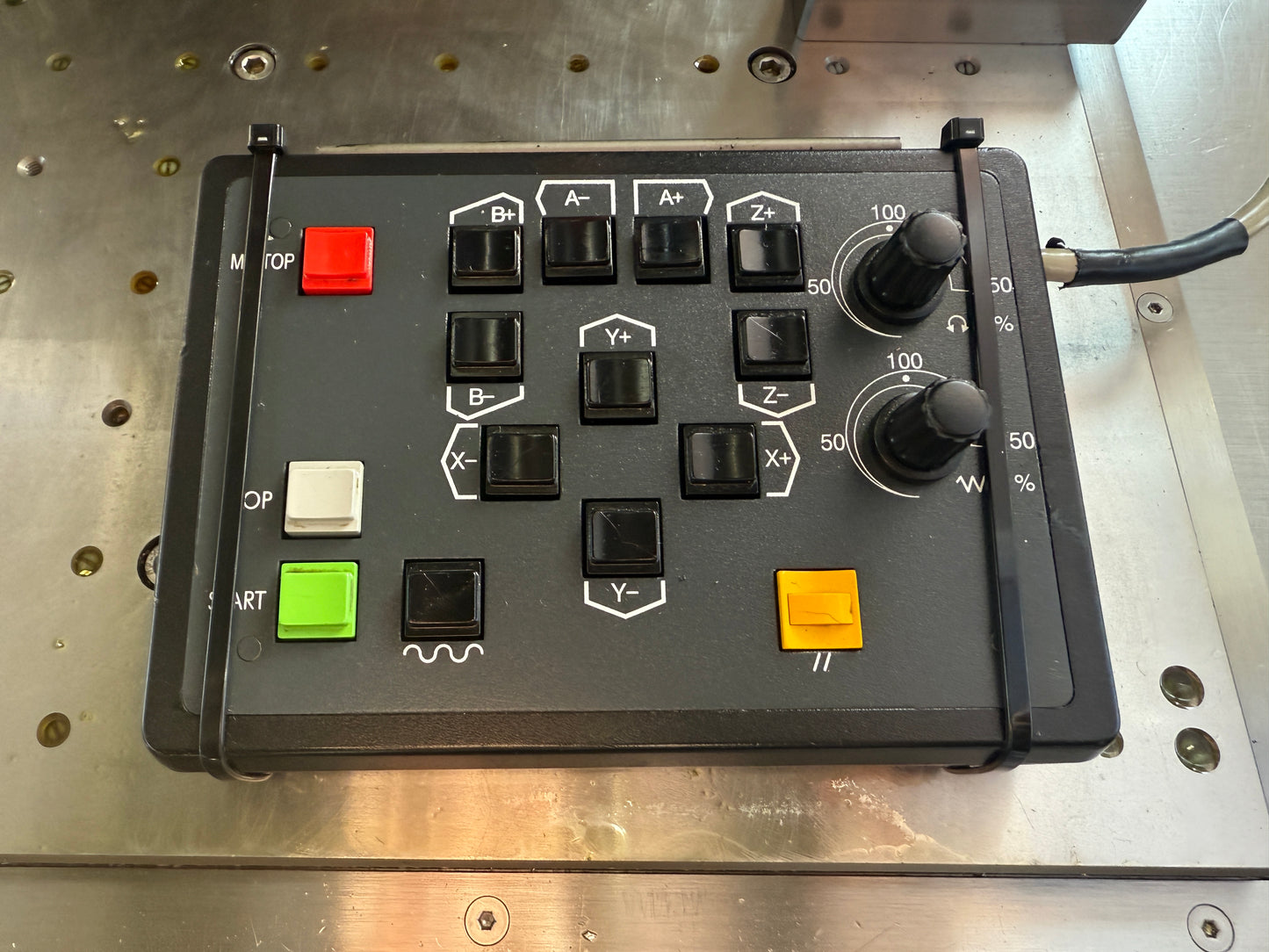

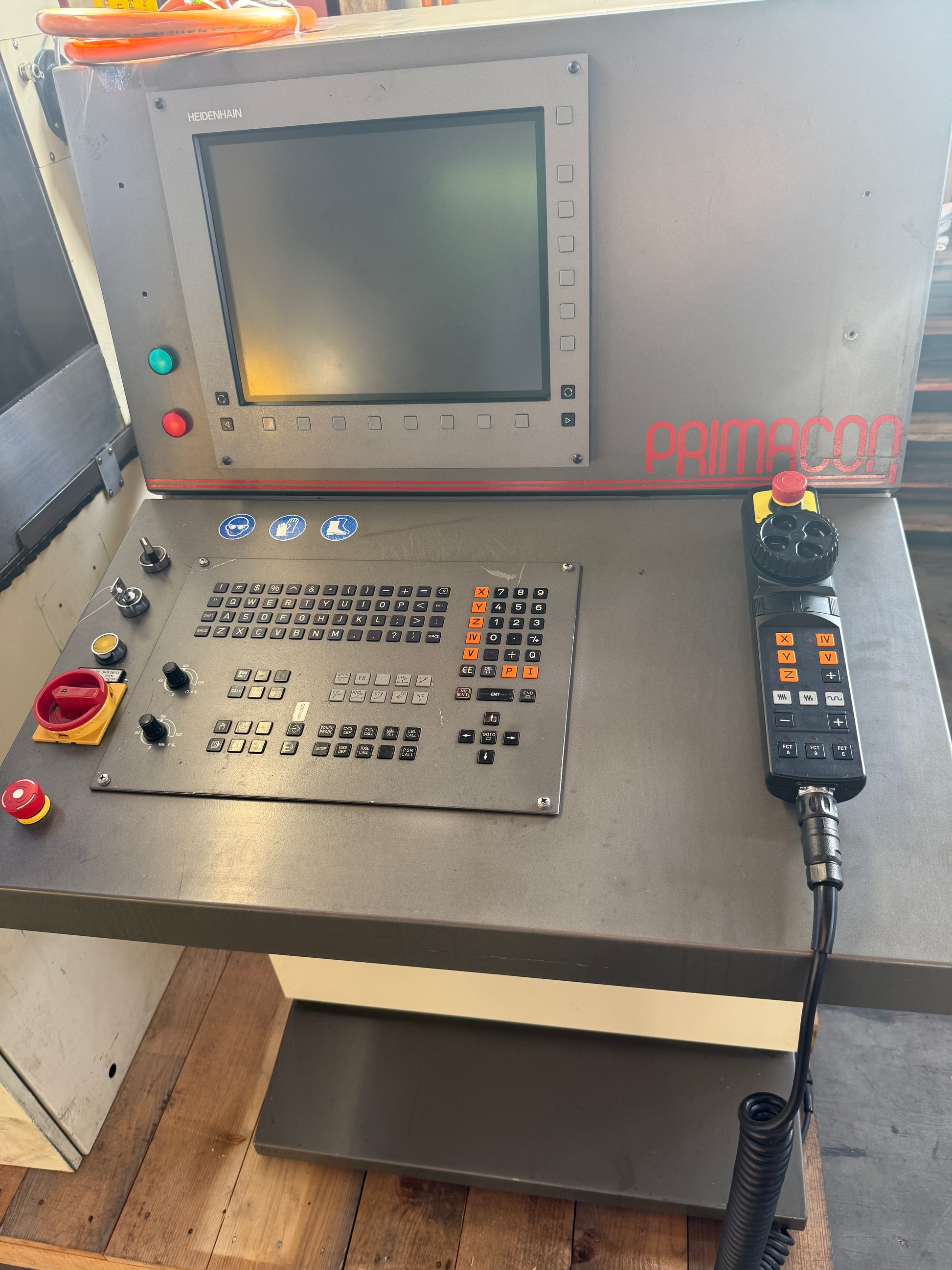

| Electronic hand held control | |
| Handwheel electroinic | |
| Oil mist extractor | ELBARON |
