| Number of spindles | 2 |
| Max. turning diameter | 16 mm |
| Max. drilling diameter | 7 mm |
| Max. threading diameter | 6 M |
| Spindle speeds: | |
| stepless | |
| from | 500 t/min |
| up to | 12000 t/min |
| Spindle power | 2.2 kW |
| Back spindle: | |
| speeds: | |
| from | 500 t/min |
| up to | 9000 t/min |
| Thread drill diameter | 6 M |
| Back machining workpiece length max. | 85 mm |
| Tool-holder: | |
| Turning tools | 6 pce |
| Drilling tools | 4 pce |
| Transverse processing tools | 3 pce |
| Spindle speeds (turning tools) | 7500 t/min |
| Power of driven tools | 0.4 kW |
| Max. drilling diameter | 4 mm |
| Thread drill diameter | 3 M |
| Tool shank cross section | 10 mm |
| Inner taper type | ER 11 |
| Counter-operation: | |
| number of tools | 4 |
| Rapid traverse: | 20 m/min |
| Cutting speed | 10000 mm/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 / 3.7 kW |
| Power of back spindle | 1.1 / 0.5 kW |
| Air connect | 5 bar |
| Total power required | 6 kVA |
| Machine's weight about | 1700 kg |
| Overall dimensions machine: | |
| Length | 2090 mm |
| Width | 770 mm |
| Height | 1660 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | EXPRESS 220 |
| year of manufacture | 2007 |
| Length of bars max. | 3200 mm |
| Bar diameter | 2 - 20 mm |
| Parts catcher | |
| Workpiece conveyor | |
| Lamp | |
| High pression colant device | |
| Coolant system | 80 l |

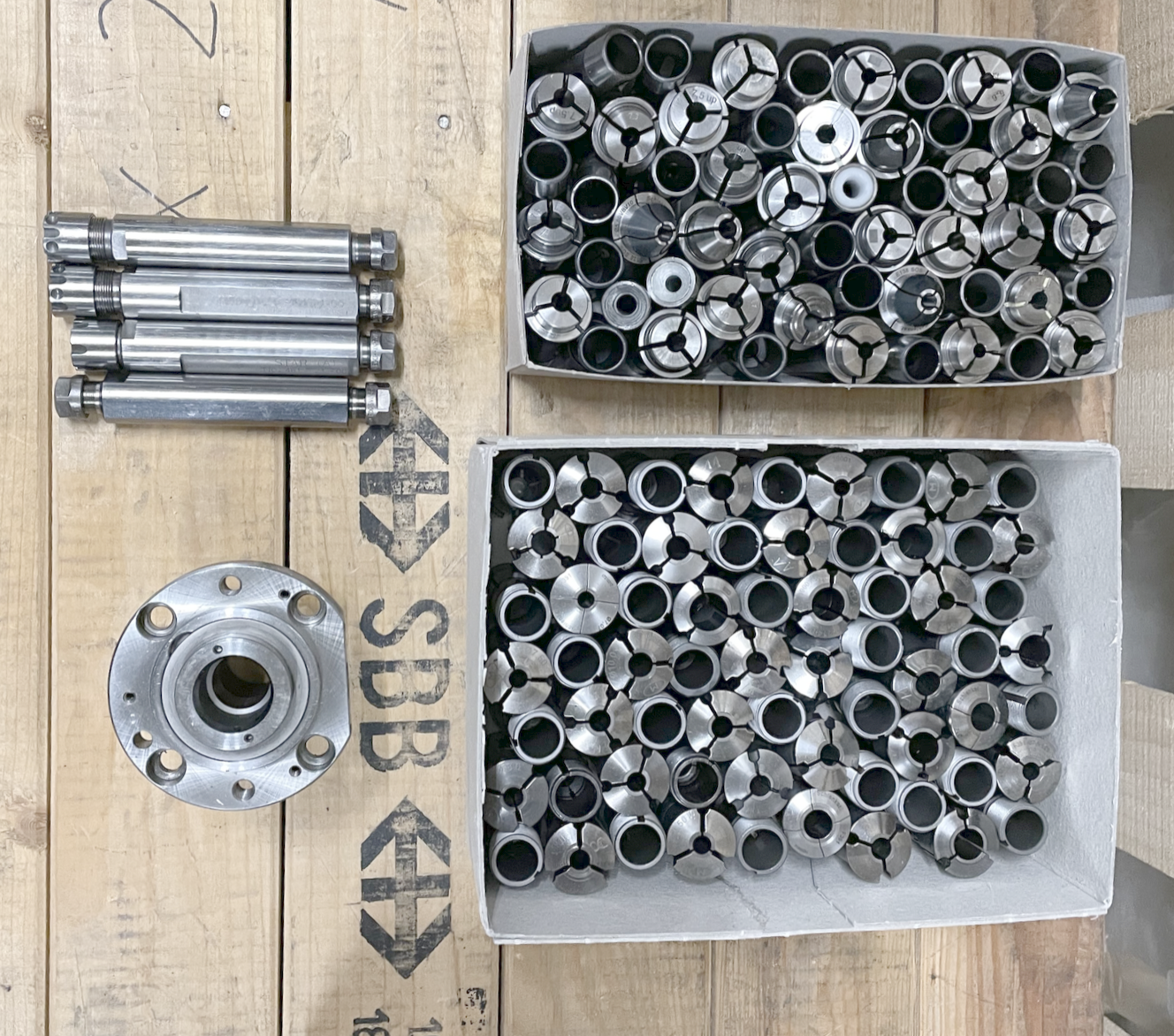

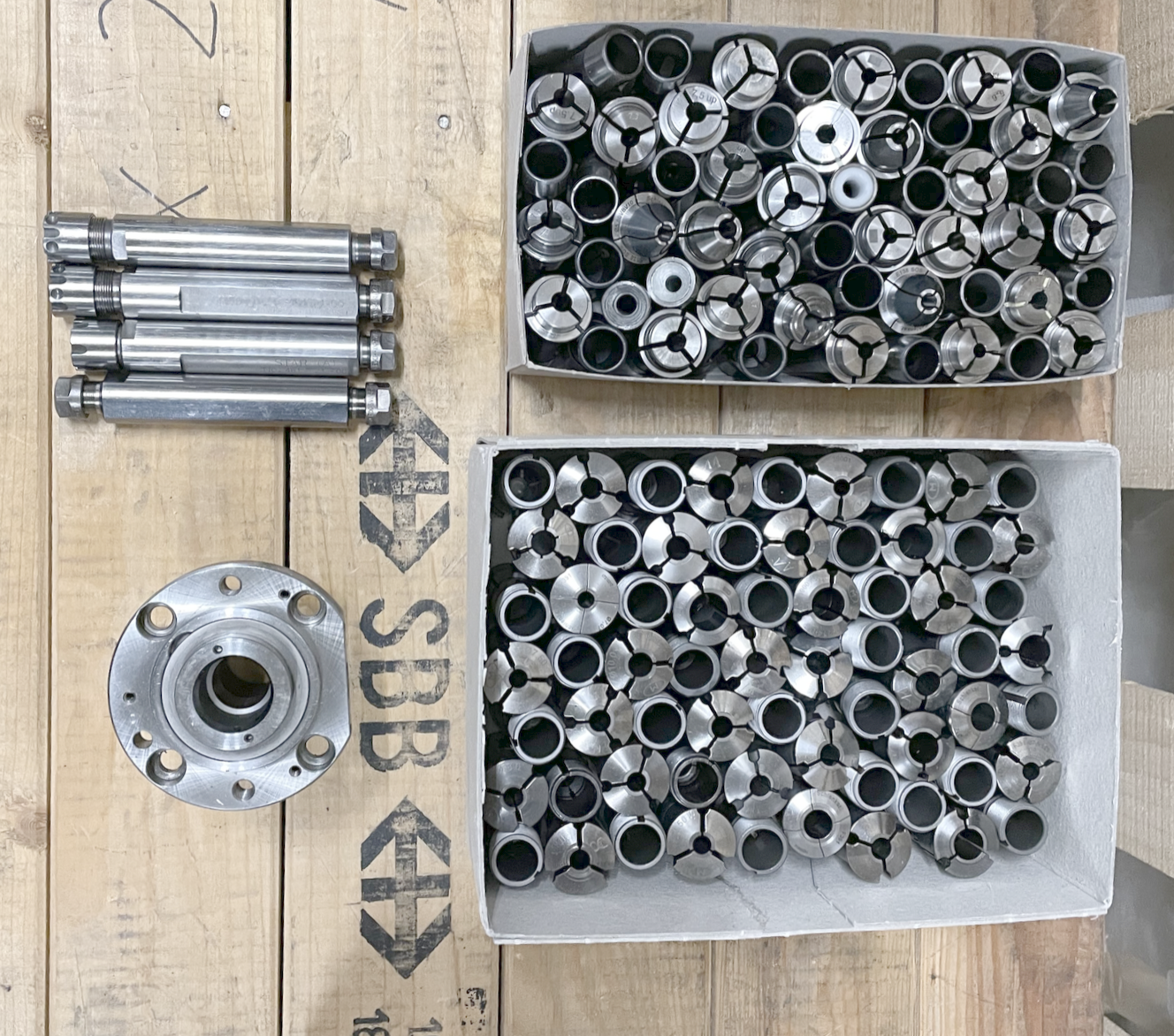

| Set of collets | |
| Set of toolholders | |
| Fire extinguishing system (without bottle) |
STAR SA-16 RC is a CNC automatic lathe (CNC Swiss type lathe) engineered for precision, high accuracy and reliable production. Working capacities: 2 spindles; max. turning Ø 16 mm; max. drilling Ø 7 mm; max. threading M6; back‑machining length 85 mm; bar feeder capacity up to 3200 mm, bar Ø 2–20 mm. Key specifications: stepless spindle 500–12,000 rpm (back spindle 500–9,000 rpm); spindle motor 2.2/3.7 kW; back spindle 1.1/0.5 kW; driven tools 7,500 rpm, 0.4 kW; max drilling by driven tool 4 mm, tapping 3 M; rapid traverse 20 m/min; cutting speed 10,000 mm/min; voltage 3x400 V 50 Hz; total power 6 kVA; air 5 bar; weight ≈1700 kg; dimensions L2090×W770×H1660 mm. Accessories: LNS EXPRESS 220 bar feeder (2007), 80 l coolant, collet and toolholder sets, parts catcher/conveyor, lamp, fire extinguishing system (without bottle). Delivers tight tolerances and is suited to watchmaking, automotive, medical, aerospace and precision component industries.
Technical specifications are subject to change without notice
