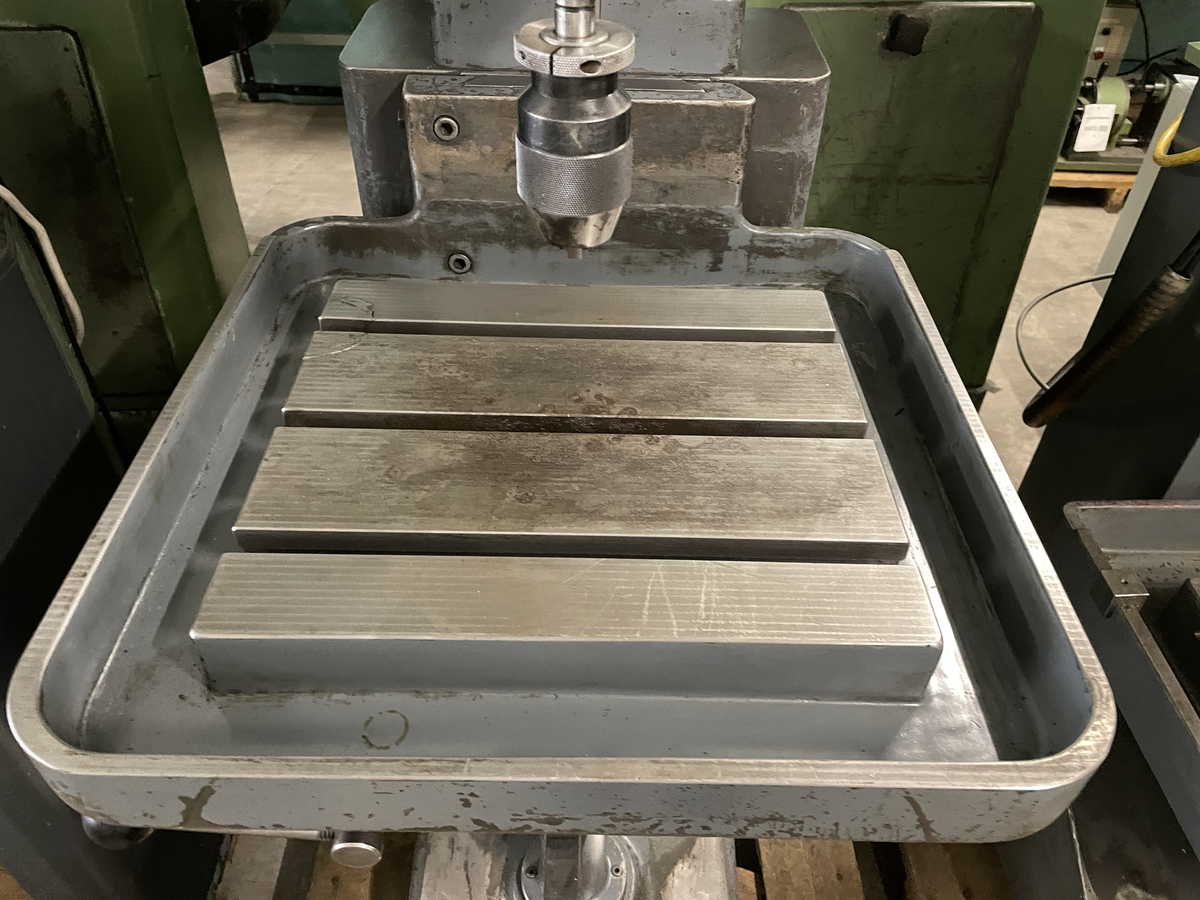

ACIERA 22 S is a pillar drilling machine for precision work, providing high accuracy and reliability. Capacities: table 500×500 mm (3 T‑slots, 100 mm pitch, 16 mm width), clamping surface 360×320 mm; drilling steel 22 mm, cast iron 24 mm; throat 300 mm; spindle stroke 120 mm; travels X330 Y210 Z350 mm. Specs: MT3; speeds 100–4000 t/min stepless; feeds 0.02–0.25 mm/t stepless; 3×380 V 50 Hz; spindle motor 1.0/1.5 CV; weight ≈900 kg; dims 1100×600×2100 mm. Accessory: drill chuck. Delivers tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, machine‑tool construction.
| Table length | 500 mm |
| Table width | 500 mm |
| Clamping surface: | |
| Length | 360 mm |
| Width | 320 mm |
| Number of T-channels | 3 |
| Distance of the T-slots | 100 mm |
| T-channel width | 16 mm |
| Drill capacity in steel | 22 mm |
| Drill capacity in cast-iron | 24 mm |
| Taper in spindle: MT | 3 |
| Depth of throat | 300 mm |
| Drill depth (spindle stroke) | 120 mm |
| Spindle head adjustment | 300 mm |
| Table travels: | |
| Longitudinal travel (X-axis) | 330 mm |
| Transversal travel (y-axis) | 210 mm |
| Vertical travel (z axis) | 350 mm |
| Spindle speeds: | |
| stepless | |
| from | 100 t/min |
| up to | 4000 t/min |
| Feeds: | |
| stepless | |
| from | 0.02 mm/t |
| up to | 0.25 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.0 / 1.5 CV |
| Machine's weight about | 900 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 600 mm |
| Height | 2100 mm |
| Various accessories: | |
| Drill chuck |
