SCHAUBLIN 53 is a Universal milling machine designed for precision, high accuracy and reliable performance. Table 1100×305 mm; travels X 700 mm, Y 250 mm, Z 490 mm. Spindle speeds 18 steps 38–1510 t/min; spindle taper 40 ISO. Feeds 18 steps: X/Y 12–1050 mm/min, Z 6–525 mm/min; rapid traverse X/Y 3.5 m/min, Z 1.7 m/min. Voltage 3x380 V 50 Hz; motor output 5.5 CV; total power 8 CV; weight approx. 2100 kg; dimensions 1800×1600×1800 mm. Accessories: vice, 3-axis digital readout, lamp. Built to achieve tight tolerances; suited to automotive, watchmaking, toolmaking, aerospace and medical sectors.
| Table length | 1100 mm |
| Table width | 305 mm |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y axis) | 250 mm |
| Vertical travel (z axis) | 490 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 38 t/min |
| up to | 1510 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 18 |
| longitudinal from | 12.0 mm/min |
| up to | 1050 mm/min |
| transversal from | 12.0 mm/min |
| up to | 1050 mm/min |
| vertical from | 6.0 mm/min |
| up to | 525 mm/min |
| Rapid traverse: | |
| longitudinal | 3.5 m/min |
| transversal | 3.5 m/min |
| vertical | 1.7 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 5.5 CV |
| Total power required | 8 CV |
| Machine's weight about | 2100 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1600 mm |
| Height | 1800 mm |
| Various accessories: | |

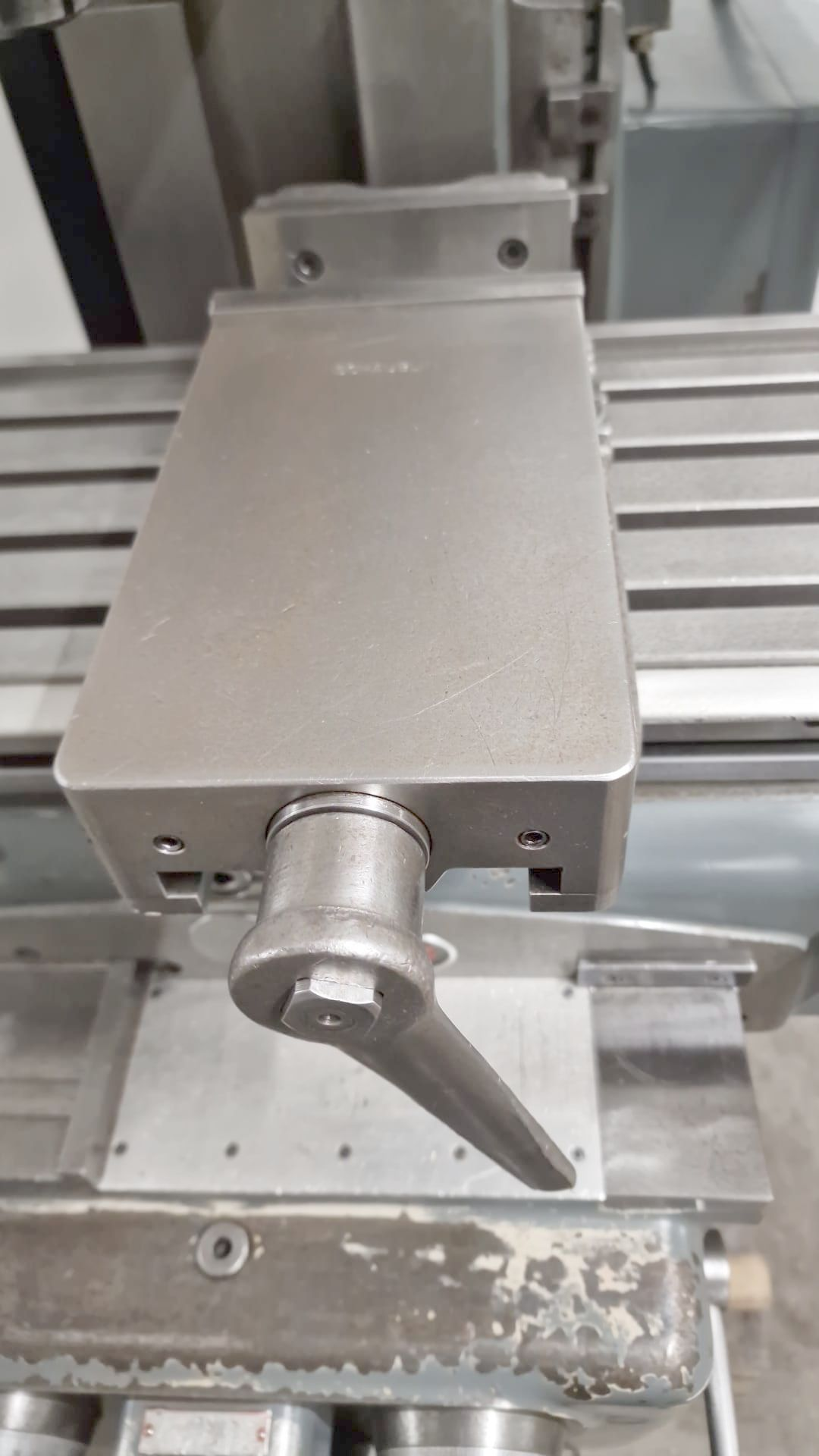

| Vice | |
| Digital readout number of axis: | 3 |
| Lamp |
