022667 - AVEREX HS-450i
Type: HS-450i
Manufacturer: AVEREX
Group: Machining center
Subgroup: 4-axis machining center
Control: Averex-Fanuc MPro I Plus
Stock: 022667

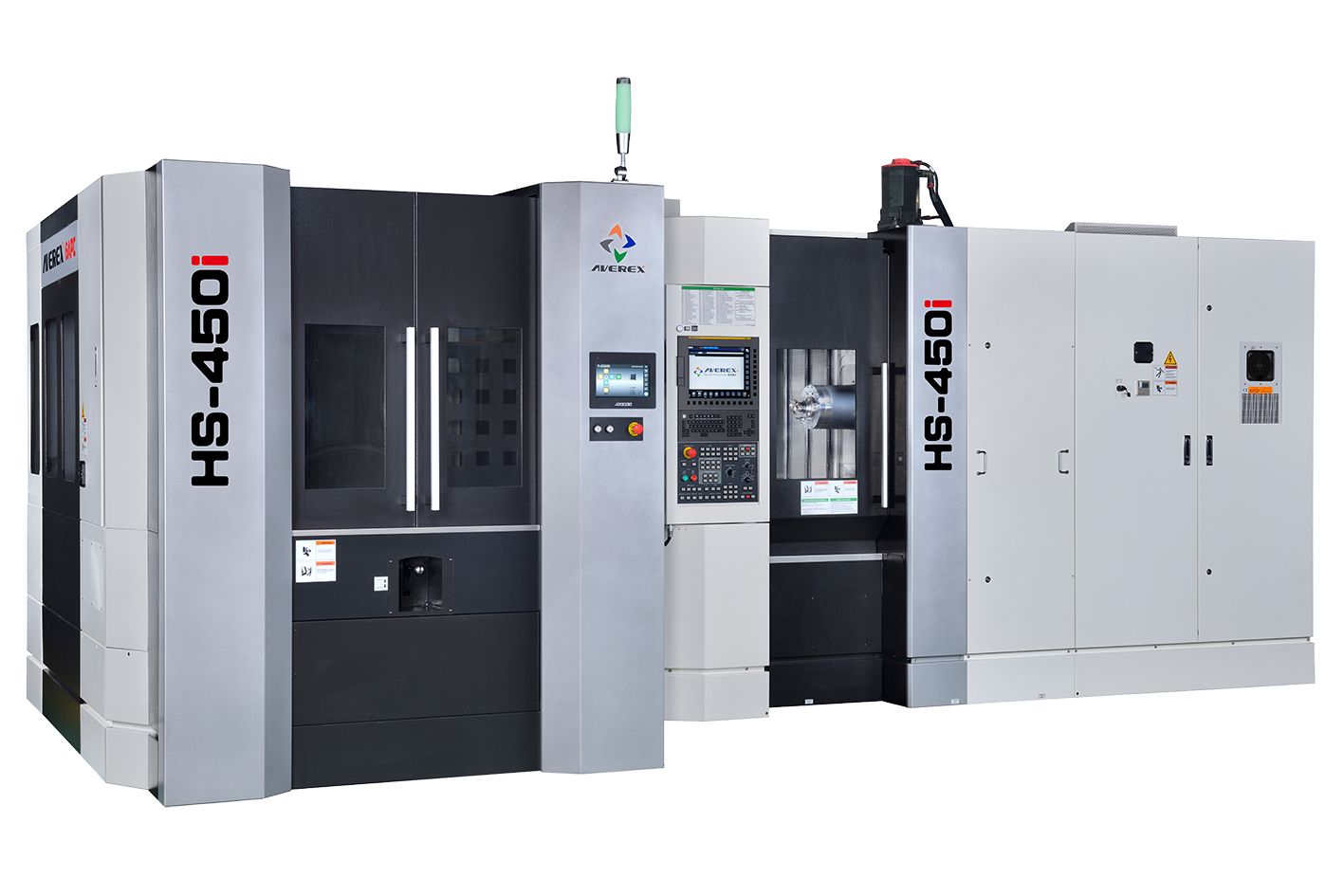

AVEREX HS-450i is a 4-axis machining center engineered for high precision, accuracy and reliability. Travels X 640 mm, Y 610 mm, Z 680 mm. Workpiece H 1000 mm, Ø 785 mm; table divisions C 0.001°. Automatic pallet changer: 2 pallets; max workpiece weight 550 kg. Rapid traverse X/Y/Z 60 m/min. Machine weight ~11,645 kg; footprint 4730×2260×2600 mm. Suited for tight tolerances in automotive, aerospace, medical, watchmaking and machine tool sectors.
Longitudinal travel (X-axis) | 640 mm |
Transversal travel (y-axis) | 610 mm |
Vertical travel (z axis) | 680 mm |
Dimension of the workpice: | |
Height | 1000 mm |
Diameter | 785 mm |
Table divisions (C) | 0.001 ° |
Pallets chanching device: | |
Automatic pallet change-unit (number of paletts) | 2 |
Maximum workpiece weight | 550 kg |
Rapid traverse: long. | 60 m/min |
Rapid traverse: transversal | 60 m/min |
Rapid traverse: vertical | 60 m/min |
Machine's weight about | 11645 kg |
Overall dimensions machine: | |
Length | 4730 mm |
Width | 2260 mm |
Height | 2600 mm |
