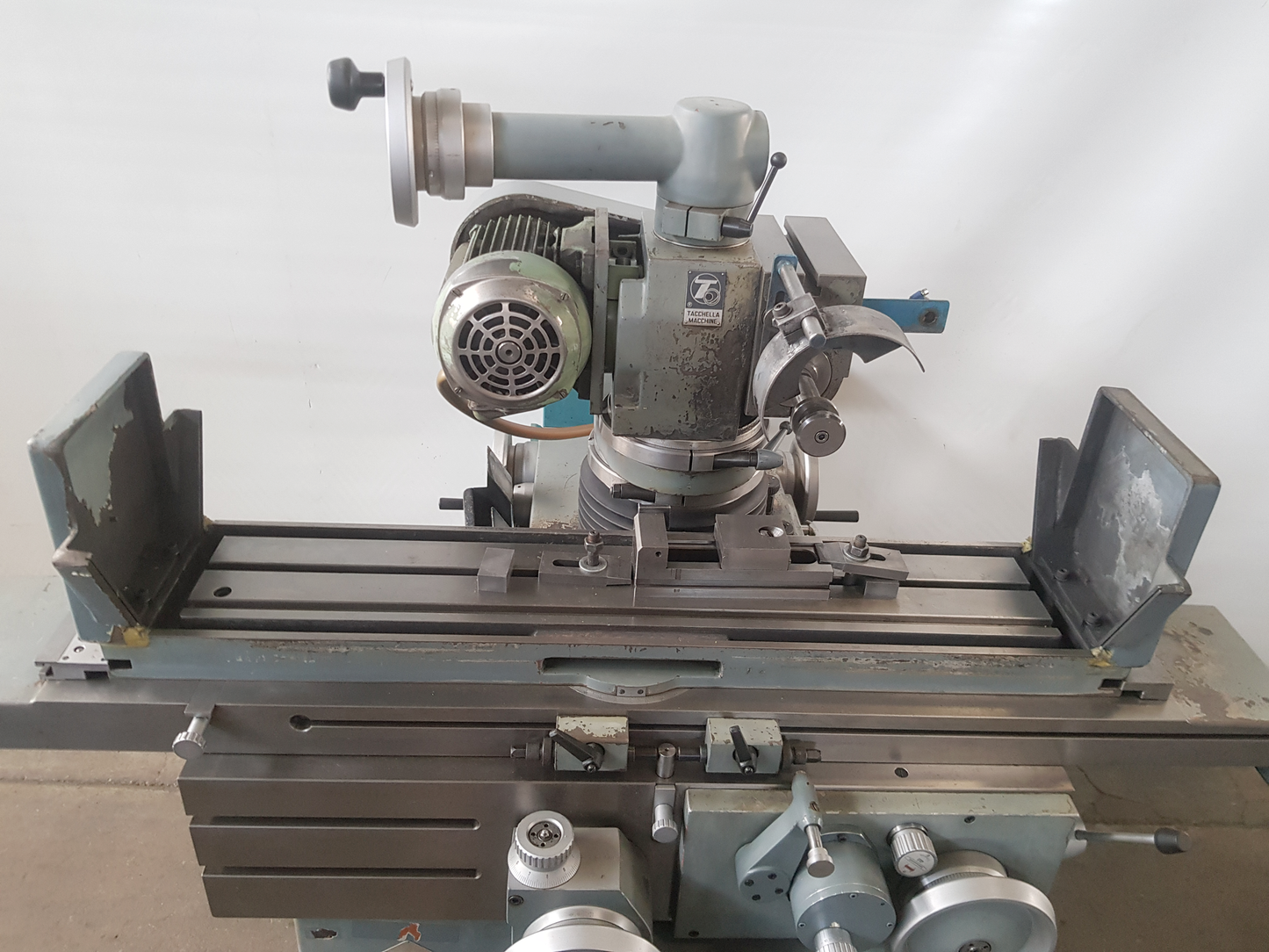

TACCHELLA 4 AM is a tool and cutter grinder designed for precision, high accuracy and reliability. Centre height 125 mm, distance between centres 550 mm; table 900x130 mm; max. grinding diameter 250 mm; grinding-wheel diameter 200 mm; longitudinal travel 400 mm; transversal travel 200 mm. Grinding spindle stepless 2200–6400 rpm; voltage 3x380 V 50 Hz; overall dimensions L1400xW1300xH1700 mm. Enables tight tolerances; typical applications: automotive, aerospace, watchmaking, machine tools and medical.
Technical specifications are subject to change without notice
| Centre height | 125 mm |
| Distance between centres | 550 mm |
| Table length | 900 mm |
| Table width | 130 mm |
| Max. grinding diameter | 250 mm |
| Grinding-wheel diameter | 200 mm |
| Longitudinal way of table | 400 mm |
| Transversal way of grinding head | 200 mm |
| Grinding spindle speeds: | |
| stepless | |
| from | 2200 t/min |
| up to | 6400 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1300 mm |
| Height | 1700 mm |
