SCHAUBLIN 51 5AX CNC is a 5-axis machining center designed for precision, high accuracy and reliability. Working capacities: X300 Y400 Z430 mm; rotary table Ø210 mm; table load V50 H75 kg; A +30/−120°, C360°. Specs: HSK‑A63, 0–20,000 rpm, spindle motor 23 kW, feed 12,000 mm/min, rapid 30 m/min; weight ≈5750 kg; size 2700×1800×2600 mm. Tool magazine 20 places, Ø 80 mm (95 mm free), length 250 mm, tool change 3 s. Accessories: coolant system, water cooler, oil mist extractor FX4000, rinsing gun. Achieves tight tolerances; sectors: watchmaking, aerospace, medical, automotive, machine tools.
Technical specifications are subject to change without notice
| Time under power | 73217 Heures |
| Operating time | 71454 Heures |
| Working time | 19844 Heures |
| Spindle run time | 18289 Heures |
| Number of axis simultaneous | 5 |
| Rotary table:diameter | 210 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y-axis) | 400 mm |
| Vertical travel (z axis) | 430 mm |
| Position accuracy | mm |
| Table load max.: | |
| vertical | 50 kg |
| Horizontal | 75 kg |
| Swivel angle (a-axis) | + 30 / -120° ° |
| Table rotation angle (c-axis) | 360 ° |
| Tool magazine number of tool places | 20 |
| Tool diameter | 80 mm |
| Diameter with free adjacent pockets | 95 mm |
| Tool lenght | 250 mm |
| Max. tool-weight | 6 kg |
| Time of tool changing | 3 s |
| Spindle nose: HSK-A | 63 |
| Distance from vertical | |
| spindle to table | 45 - 475 mm |
| Distance from spindle-center to vertical slide | 470 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 20000 t/min |
| Feed range | 12000 mm/min |
| Rapid traverse: | 30 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 23 kW |
| Machine's weight about | 5750 kg |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 1800 mm |
| Height | 2600 mm |
| Various accessories: | |
| Coolant system | |

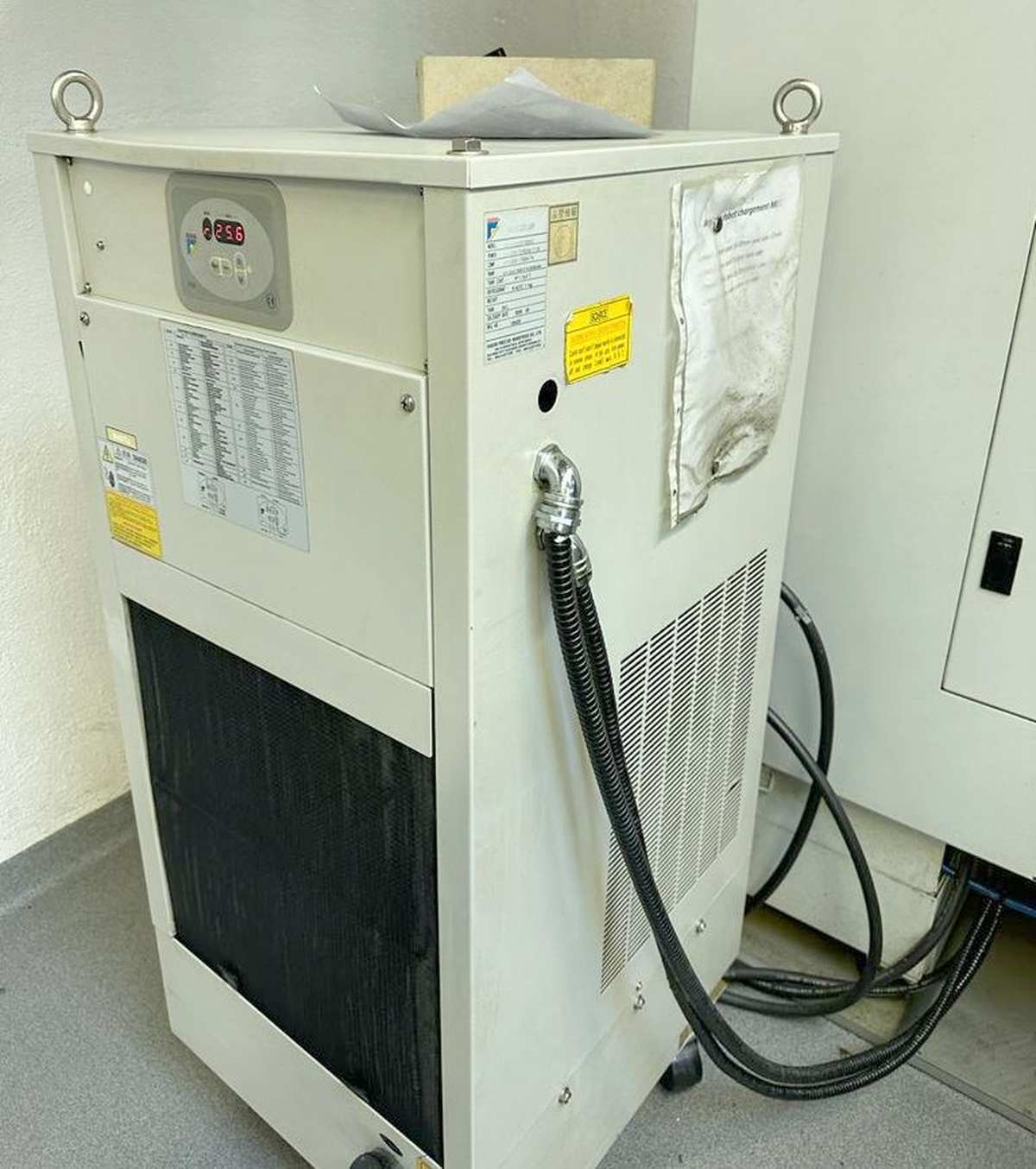

| Water cooler | |
| Oil mist extractor | FX4000 |
| Rinsing Guns |
