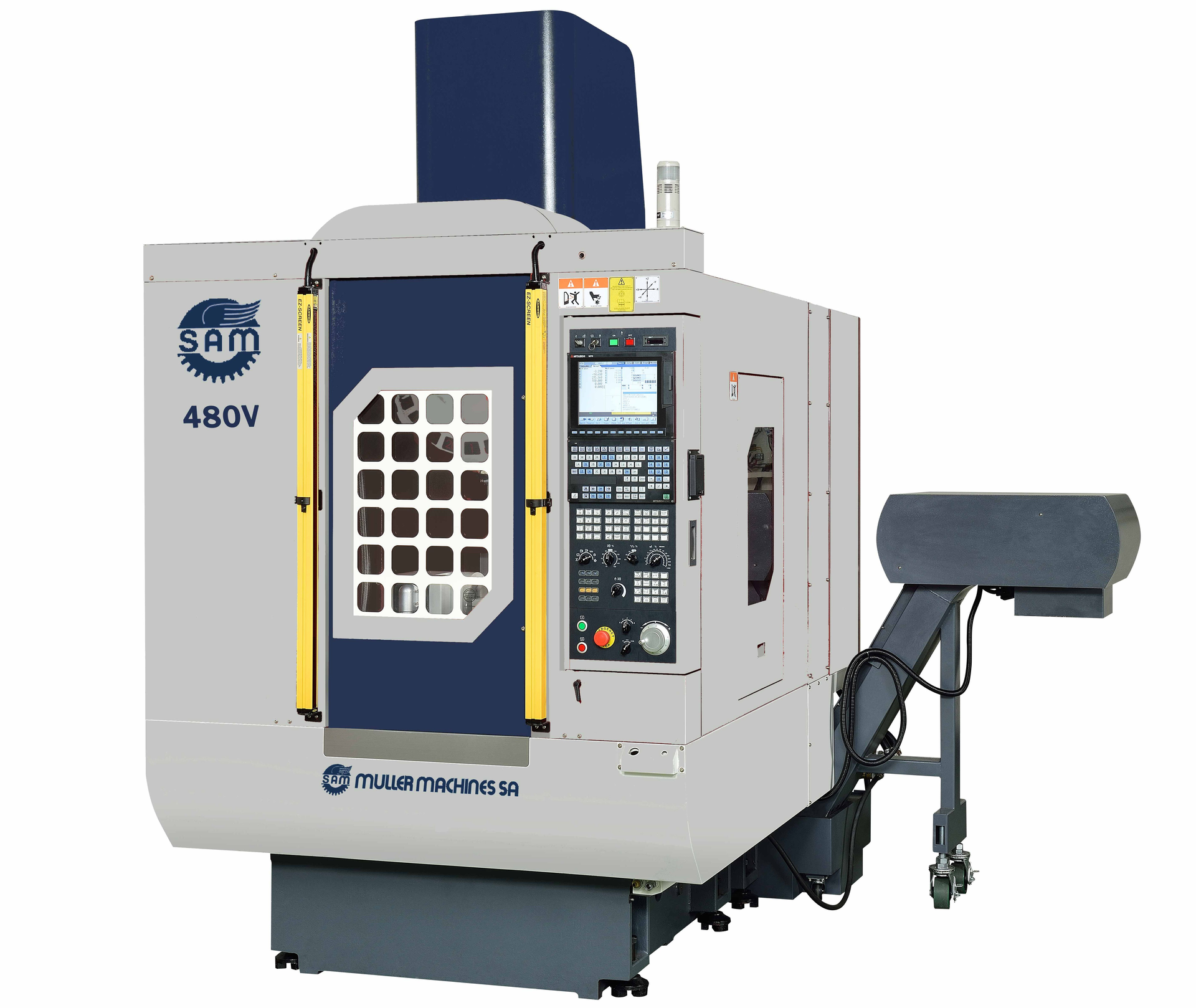

Muller Machines SA 480 V
Type: 480 V
Manufacturer: Muller Machines SA
Group: Machining center
Subgroup: Vertical machining center
Control: FANUC 0iMF Plus
Stock: 022600
Muller Machines SA 480 V is a Vertical machining center engineered for precision machining, high accuracy and reliability. Table 650 x 410 mm, 3 T‑slots (14 mm wide, 125 mm pitch), table load max. 280 kg; spindle nose to table 130–580 mm. Spindle 0–12,000 rpm stepless, spindle power 11 kW, rapid traverse 36 m/min. Preparation for 4th axis, coolant chip flushing, air blast through milling spindle, automatic central lubrication, status light. Delivers tight tolerances; typical applications include automotive, aerospace, medical, watchmaking and machine building.
| Table length | 650 mm |
| Table width | 410 mm |
| Number of T-channels | 3 |
| Distance of the T-slots | 125 mm |
| T-channel width | 14 mm |
| Table load max. | 280 kg |
| Distance spindle nose to table | 130 - 580 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 12000 t/min |
| Rapid traverse: | 36 m/min |
| Spindle power | 11 kW |
| Various accessories: | |
| Preparation 4the axis | |
| Coolant chip flushing | |
| Air blast through milling spindle | |
| Automatic central lubrication | |
| Status light |
