HERMLE U 740
Special Price
CHF 19 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

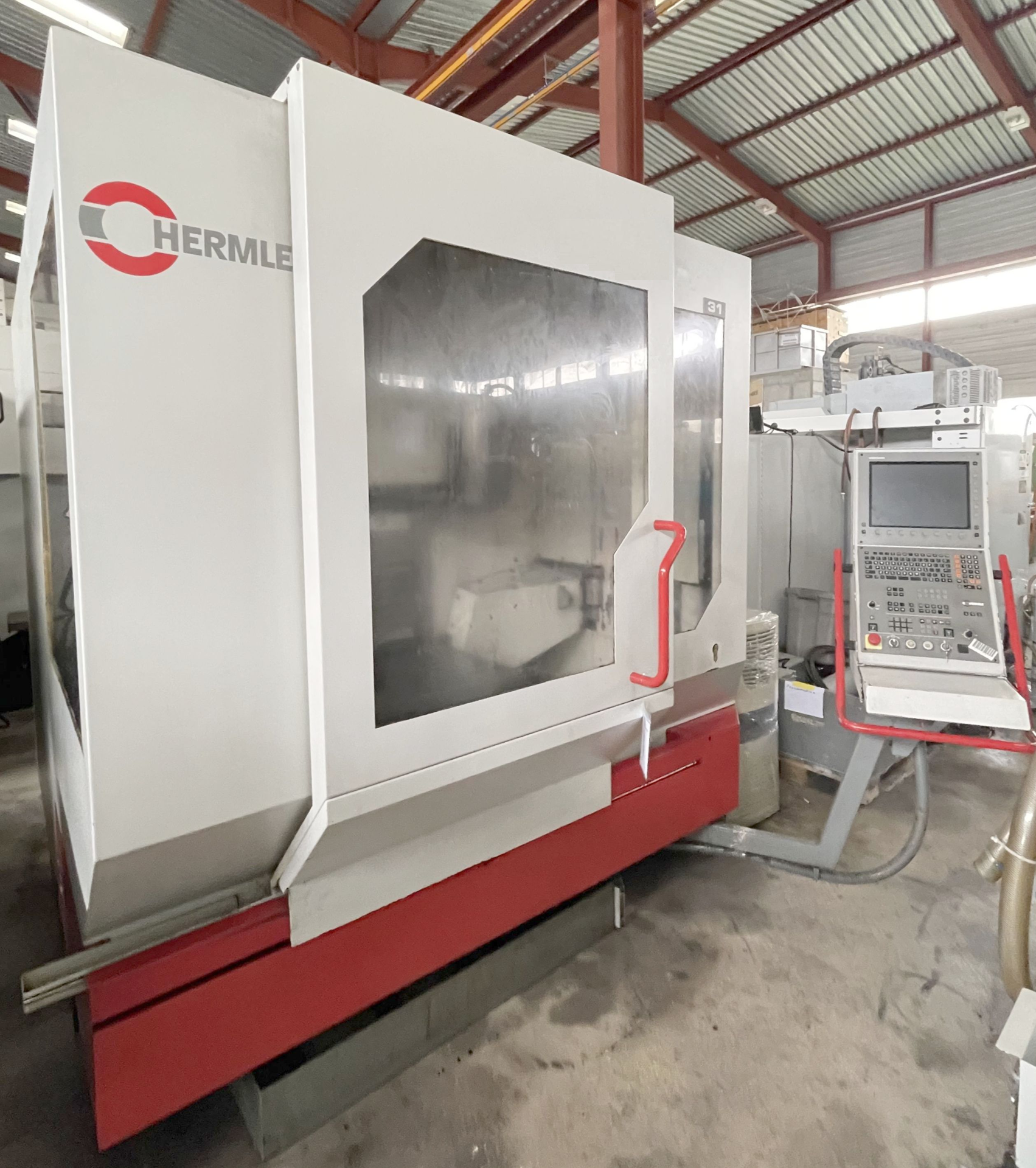

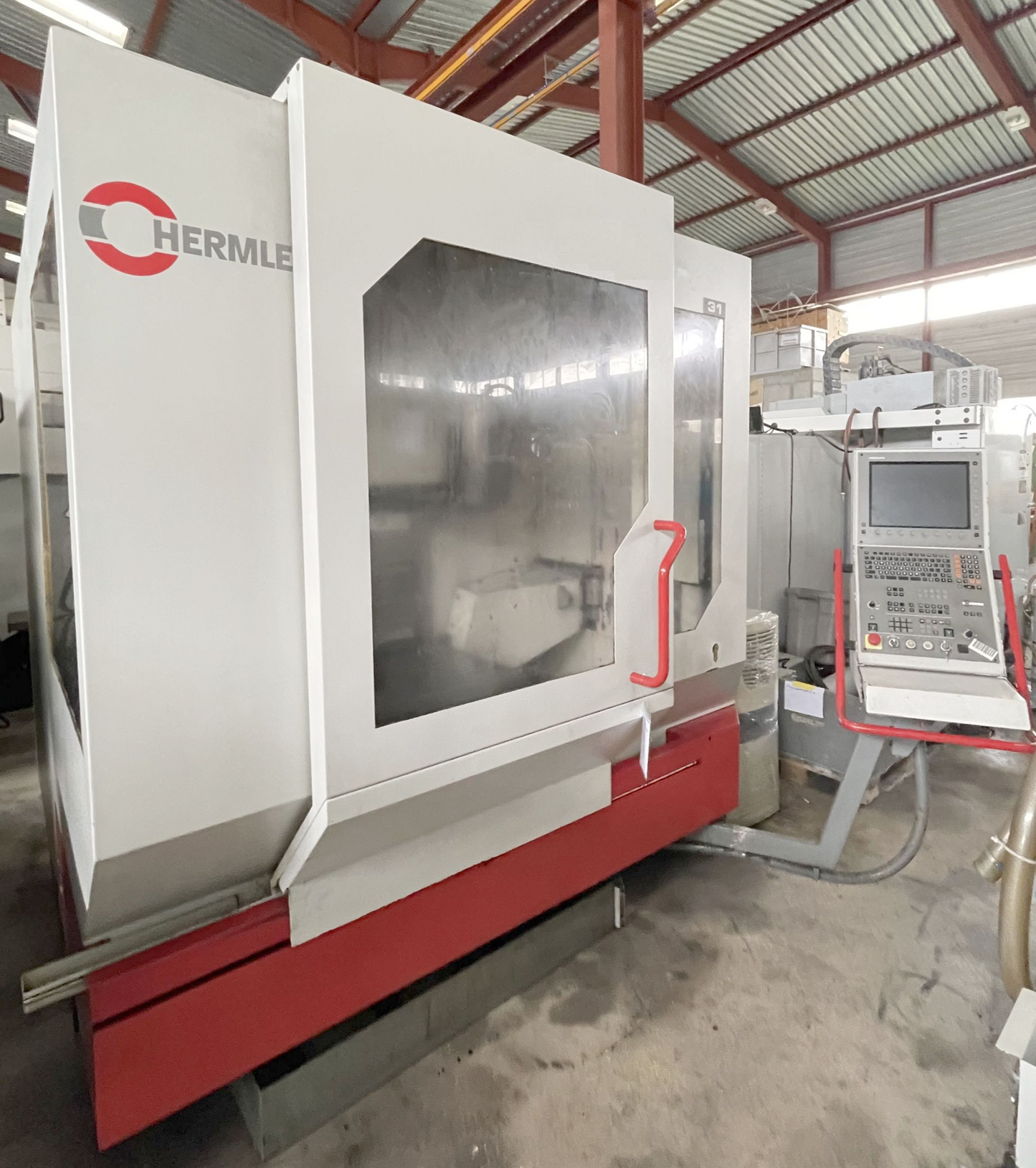

HERMLE U 740 is a Machining center delivering high precision, accuracy and reliability. Capacities: table 900×500 mm with 8 T‑slots (65 mm pitch, 14 mm width), table load 700 kg; travels X915 Y500 Z500 mm; workpiece max 900×500×500 mm. Specs: spindle SK40 20–12000 t/min, 32 kW; rapid traverse X/Y 30 m/min Z 20 m/min; 3×400 V 50 Hz; air 6 bar; total power 26 kVA; weight ~7300 kg; dims 2760×2390×2370 mm; 78 dB(A). Equipment: 16‑station ATC (tool Ø max 125 mm, 180 mm with free pockets), tool length 300 mm, tool weight max 6 kg; 3‑jaw chuck Ø200 mm, HEIDENHAIN TS 640 probe, HOFMANN 4th‑axis RW/NC‑160 divider, RS232, Ethernet, switch‑cabinet air conditioner, rinsing gun. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, machine tools.
| Time under power | 86672 Heures |
| Working time | 34362 Heures |
| Spindle run time | 27804 Heures |
| Number of axis total | 5 |

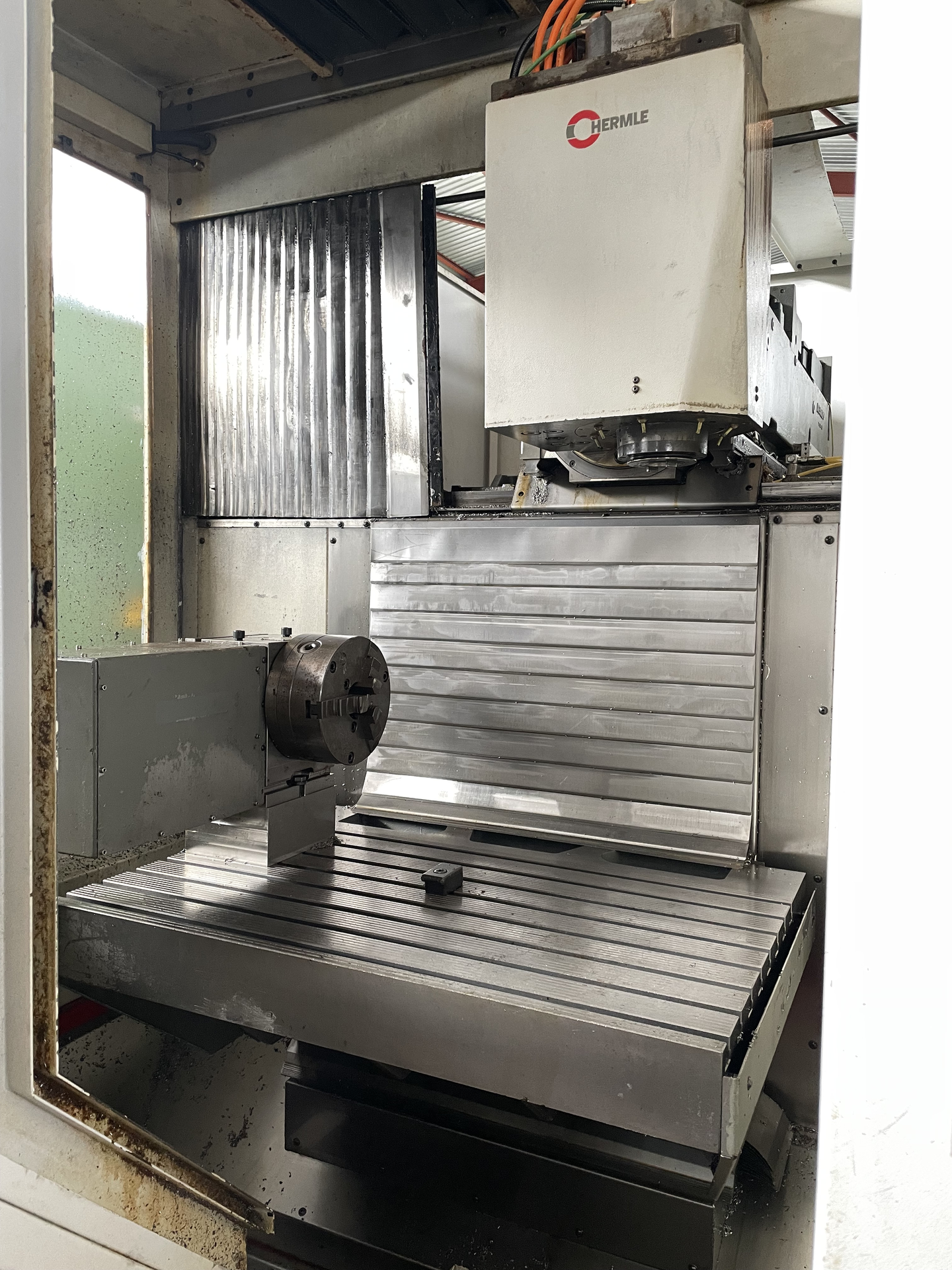

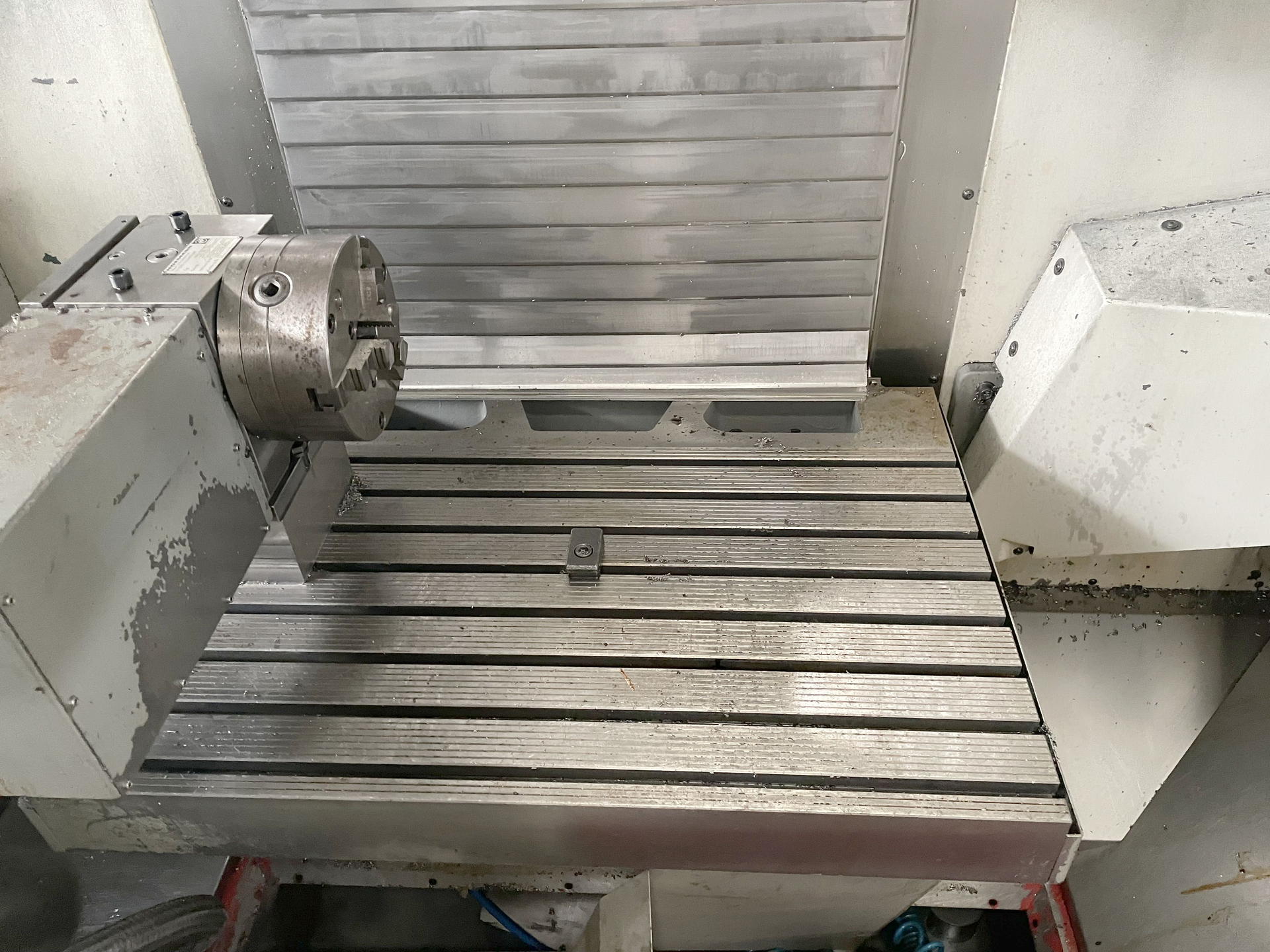

| Table length | 900 mm |
| Table width | 500 mm |
| Number of T-channels | 8 |
| Distance of the T-slots | 65 mm |
| T-channel width | 14 mm |
| Table load max. | 700 kg |
| Longitudinal travel (X-axis) | 915 mm |
| Transversal travel (y-axis) | 500 mm |
| Vertical travel (z axis) | 500 mm |
| Dimension of the workpice: | |
| Length | 900 mm |
| Width | 500 mm |
| Height | 500 mm |
| Tool changer: | |
| Number of tools | 16 |
| Tool diameter max. | 125 mm |
| Diameter with free adjacent pockets | 180 mm |
| Tool lenght | 300 mm |
| Max. tool-weight | 6 kg |
| Milling head: | |
| Swivelling range | -5 + 95 ° |
| Spindle nose SK | 40 |
| Spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 12000 t/min |
| Rapid traverse: long. | 30 m/min |
| Rapid traverse: transversal | 30 m/min |
| Rapid traverse: vertical | 20 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 32 kW |
| Total power required | 26 kVA |
| Noise level | 78 dB (A) |
| Machine's weight about | 7300 kg |
| Overall dimensions machine: | |
| Length | 2760 mm |
| Width | 2390 mm |
| Height | 2370 mm |
| Various accessories: | |

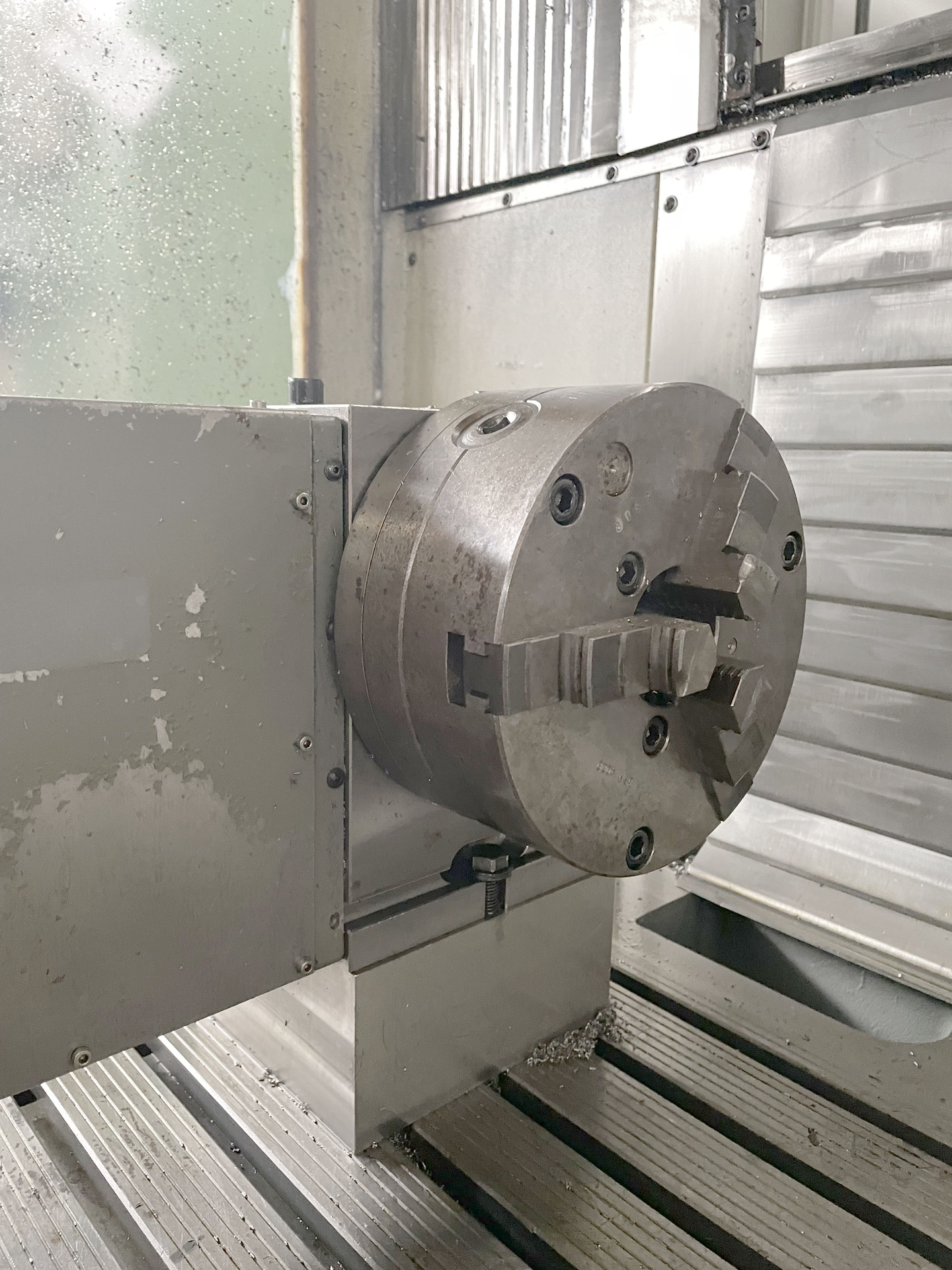

| 3-jaw chuck diameter | 200 mm |
| Touch Probe | HEIDENHAIN TS 640 |
| Dividing attachment 4th axis | HOFMANN |
| Type | RW/NC-160 |

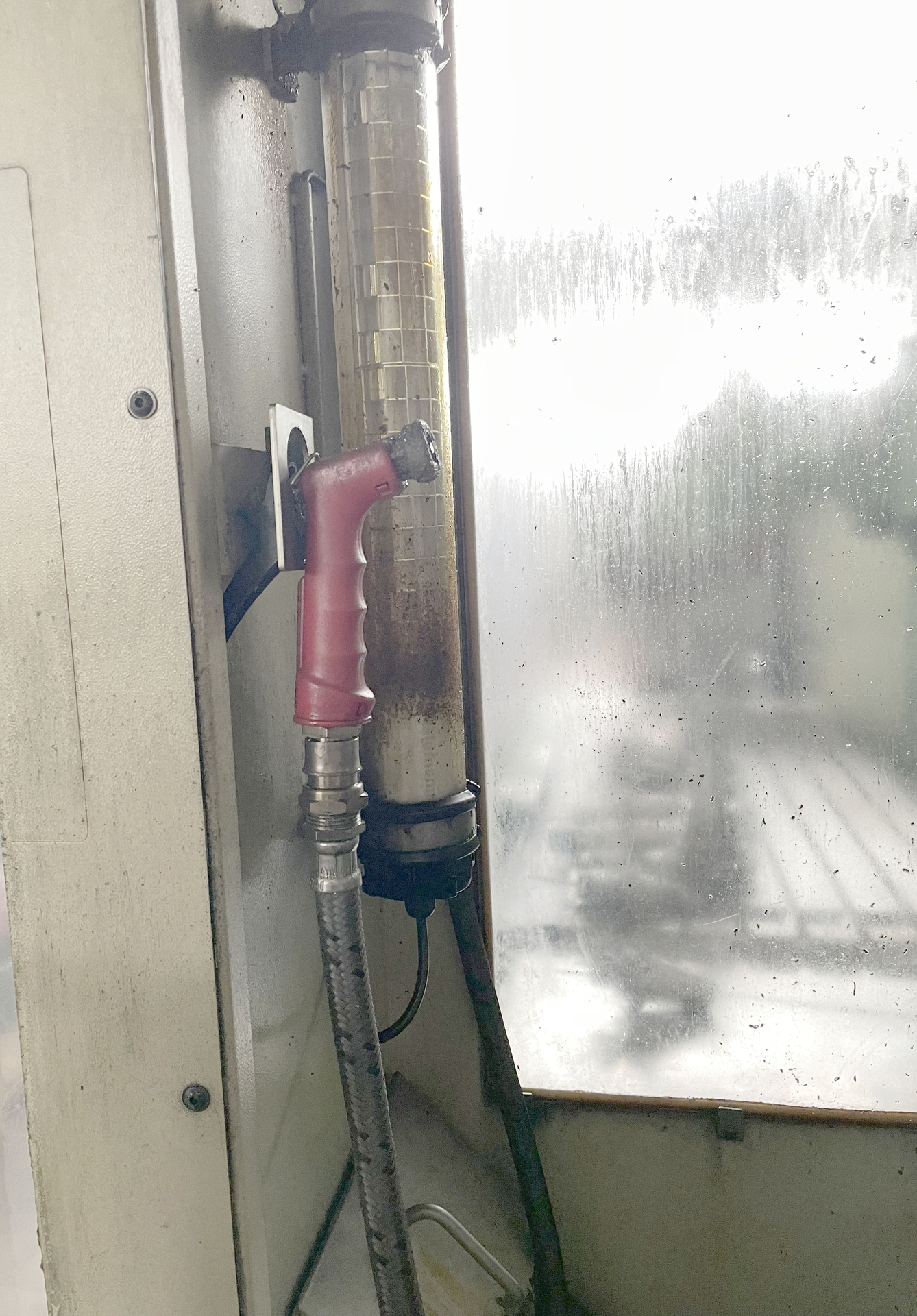

| Rinsing Guns | |
| Interface serial port RS 232 | |
| Interface Ethernet | |
| Switch cabinet Air conditioner |
