ABA MULTILINE 1507 A
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
ABA MULTILINE 1507 A is a profile grinding machine engineered for precision, high accuracy and reliable operation. Capacities: table 2000x600 mm, grinding area 1500x600 mm, table load max 2500 kg, table‑to‑spindle centre 900 mm; travels X1500, Z750, Y900 mm. Specs: stepless feeds X 2000–35000, Z 5–5000, Y 1–3000 mm/min; wheel speeds 50–2500 t/min; wheel Ø400x60 mm, bore 127 mm; spindle motor 26 kW; supply 3x400V 50Hz; total power 35 kW; weight ≈11000 kg; size 6465x3770x3000 mm. Accessories: paper filtration, magnetic plate 1500x700 mm, lamp, switch‑cabinet air conditioner. Achieves tight tolerances; ideal for automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 2000 mm |
| Table width | 600 mm |
| Grinding length | 1500 mm |
| Grinding width | 600 mm |
| Table load max. | 2500 kg |
| Max. distance from table | |
| to spindle-centreline | 900 mm |
| Longitudinal travel (X-axis) | 1500 mm |
| Cross travel (z-axis) | 750 mm |
| Vertical travel (Y-axis) | 900 mm |
| Automatic longitudinal feeds: | |
| stepless | |
| from | 2000 mm/min |
| up to | 35000 mm/min |
| Automatic cross-feed: | |
| stepless | |
| from | 5 mm/min |
| up to | 5000 mm/min |
| Automatic Vertical feed: | |
| stepless | |
| from | 1 mm/min |
| up to | 3000 mm/min |
| Grinding wheel speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 2500 t/min |
| Diameter of grinding wheel | 400 mm |
| Width of the grinding wheel | 60 mm |
| Drilling cap. of grind.wheel | 127 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 26 kW |
| Total power required | 35 kW |
| Machine's weight about | 11000 kg |
| Overall dimensions machine: | |
| Length | 6465 mm |
| Width | 3770 mm |
| Height | 3000 mm |
| Various accessories: | |

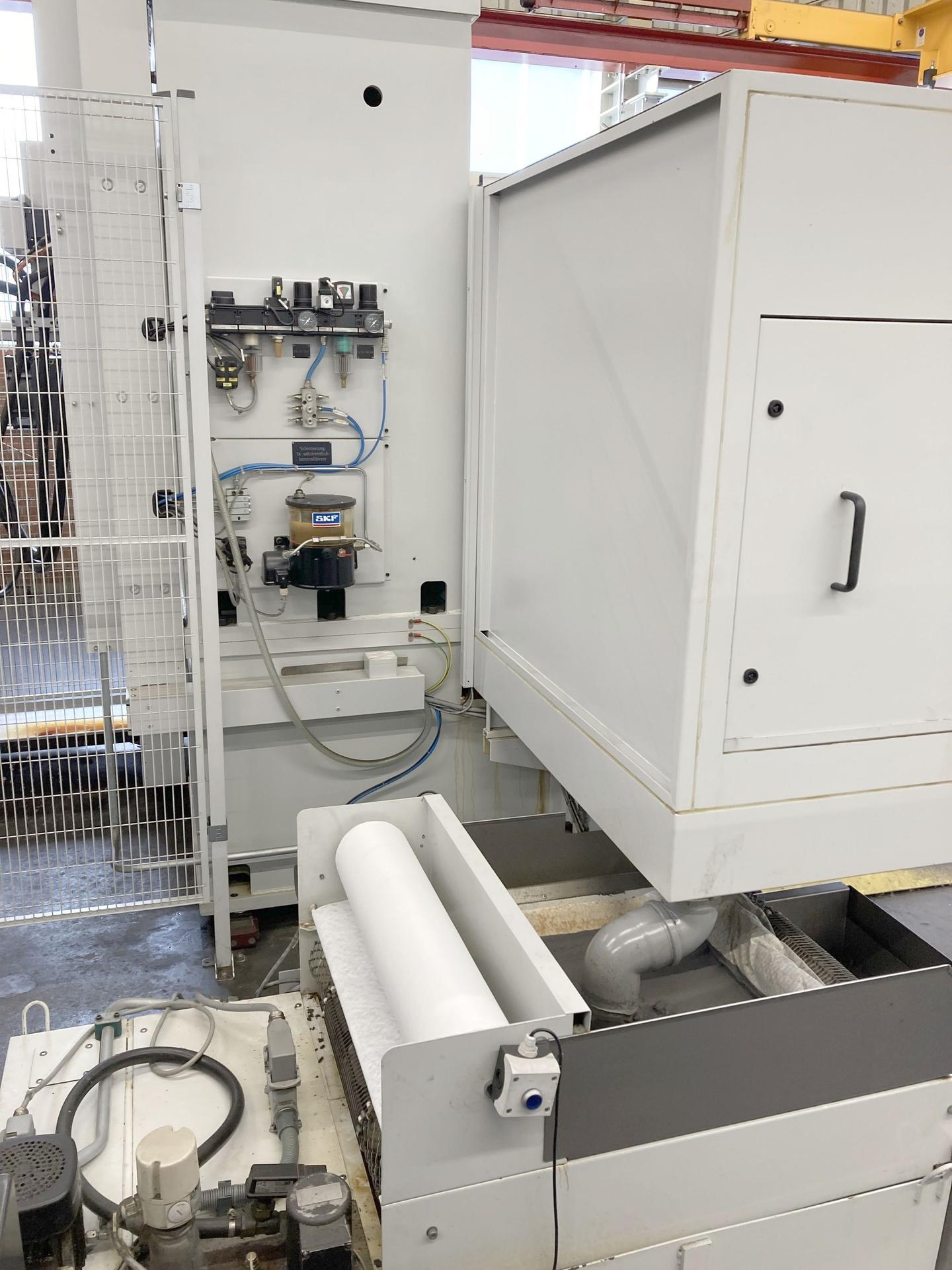

| Paper filtration system | |
| Magnetic plate: | |
| Length | 1500 mm |
| Width | 700 mm |
| Lamp | |
| Switch cabinet Air conditioner |
