BIANCO 370 SA
Type: 370 SA
Manufacturer: BIANCO
Group: Band saw
Subgroup: Scie à ruban semi-automatique
Stock: 022578
BIANCO 370 SA is a semi-automatic band saw, engineered for precision, high accuracy and reliability. Cut ranges: round up to 280 mm; square 240 mm; flat 370×140 mm; at 45°: round 225 mm, square 215 mm, flat 230×140 mm; at 60°: round 140 mm, square 140 mm, flat 140×130 mm. Specs: stepless cutting speed 35–70 m/min; band length 3120 mm; band width 27 mm; blade thickness 1 mm; saw motor 2 kW; weight ≈465 kg; dimensions 1500×1400×1500 mm. Accessories: hydraulic vice, set of saw bands, material stops. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace and medical.
| Cut range: round up to | 280 mm |
| Square | 240 mm |
| Flat | 370 x 140 mm |
| Cutting range with mitre angle 45°: | |
| Round | 225 mm |
| Square | 215 mm |
| Flat | 230 x 140 mm |
| Cutting range with mitre angle 60°: | |
| Round | 140 mm |
| Square | 140 mm |
| Flat | 140 x 130 mm |
| semi-automatic | |
| Cutting speed: | |
| stepless | |
| from | 35 m/min |
| up to | 70 m/min |
| Band length | 3120 mm |
| Band width | 27 mm |
| Sheet thickness | 1 mm |
| Saw motor driving power | 2 kW |
| Machine's weight about | 465 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1400 mm |
| Height | 1500 mm |
| Various accessories: | |
| Hydraulic vice | mm |

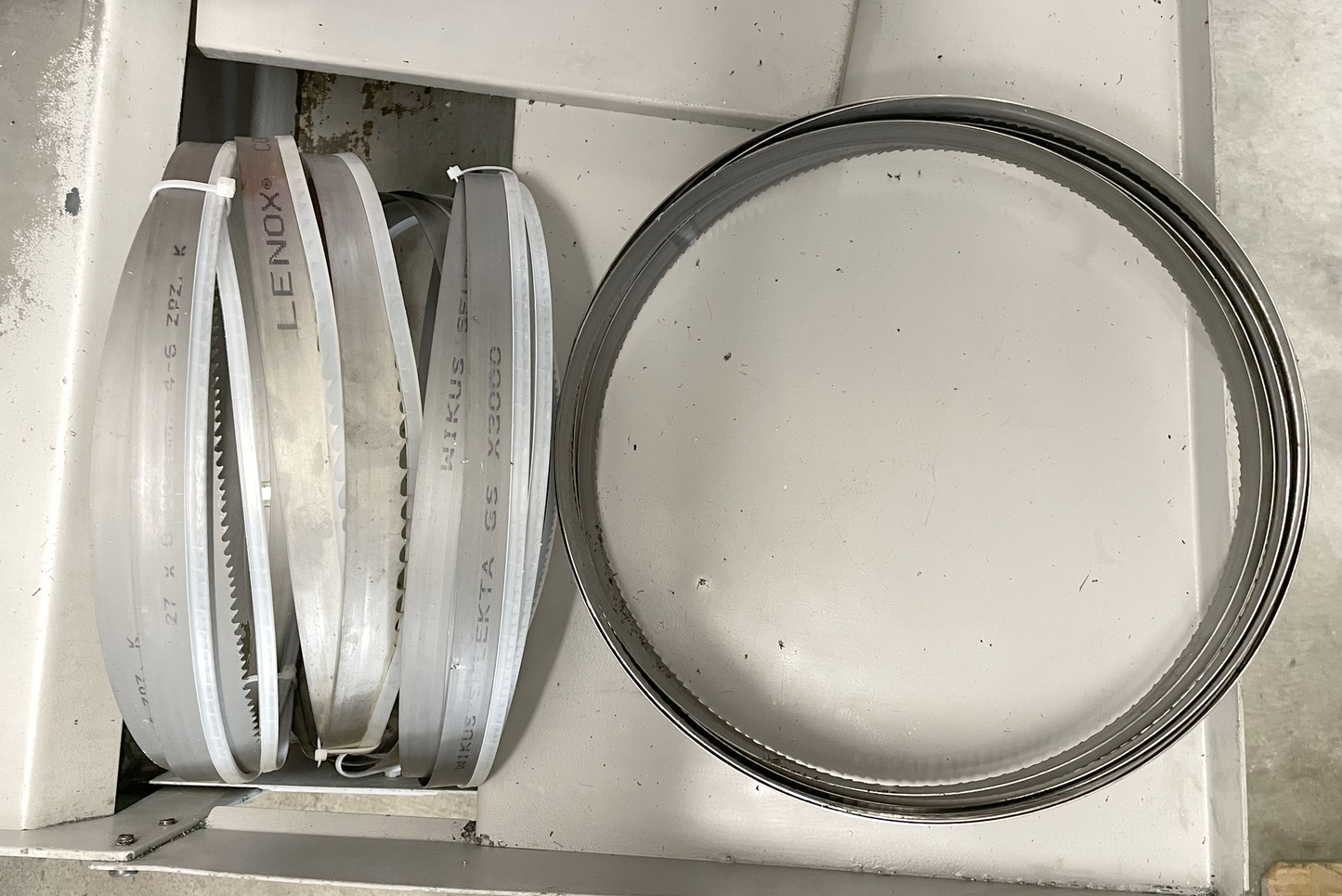

| Set of saw bands | |
| Material stops |
