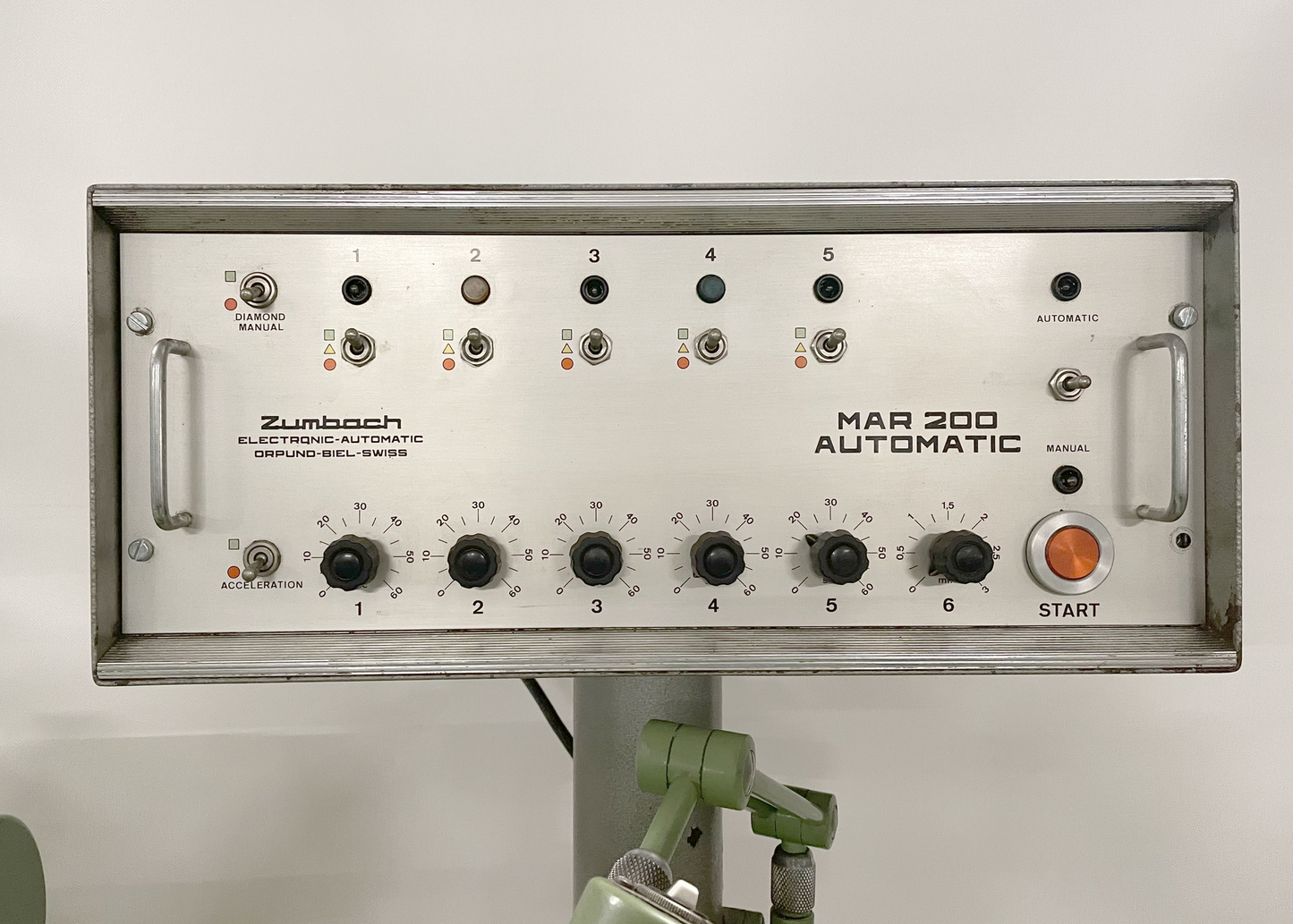

TRIPET MAR 200 AUTOMATIC
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

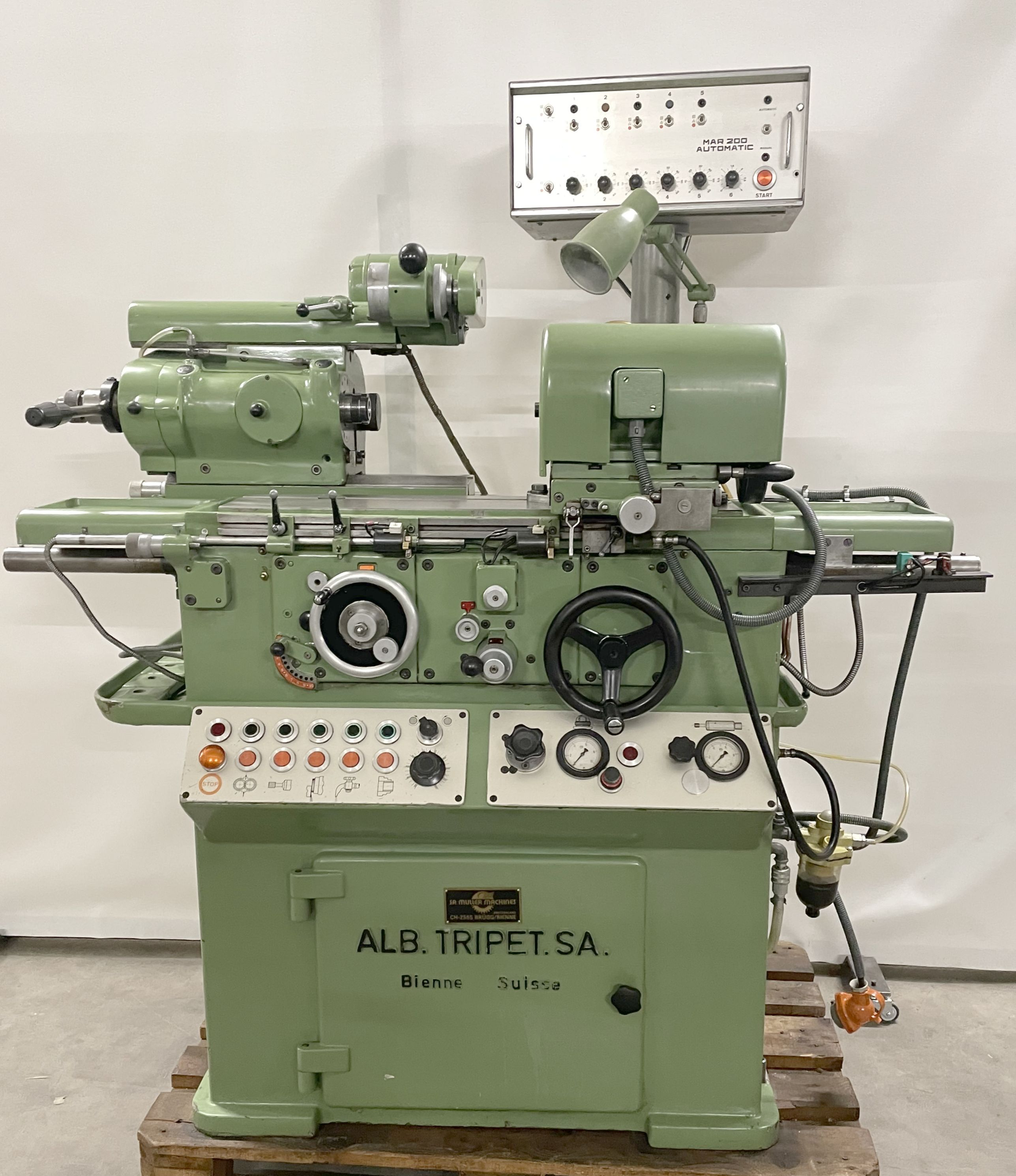

TRIPET MAR 200 AUTOMATIC is a Internal grinding machine, engineered for precision, high accuracy and reliability. Capacity: min ø 1 mm, max ø 50 mm, grinding depth 200 mm, centre height 132 mm. Specs: workpiece spindle 150–1500 t/min; grinding spindle 16,500–120,000 t/min; stepless table up to 10 m/min; 3x380V 50Hz; motors 0.8 kW and 3 kW; weight ~2000 kg; size 1800×1000×1800 mm. Accessories: grinding-wheel dressing device, grinding spindle unit, special base; internal spindle (1) max 16,500/22,000/33,000 t/min. Enables tight tolerances; typical uses: automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
| Min. internal grinding diameter | 1 mm |
| Max. internal grinding diameter | 50 mm |
| Grinding depth | 200 mm |
| Centre height | 132 mm |
| Workpiece spindle speeds: | |
| from | 150 t/min |
| up to | 1500 t/min |
| Max. angle | 90 ° |
| Possible grinding-spindle speeds: | |
| from | 16500 t/min |
| up to | 120000 t/min |
| Table speeds: | |
| stepless | |
| up to | 10 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Workpiece spindle motor | 0.8 kW |
| Drive for internal grinding spindle | 3 kW |
| Machine's weight about | 2000 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1000 mm |
| Height | 1800 mm |
| Various accessories: | |
| Grinding wheel dressing device | |
| Grinding spindle unit for internal grinding | |
| Special base for grinding wheel holders | |
| Internal grinding spindle: | |
| numbers | 1 |
| max. speed | 16500 t/min |
| max. speed | 22000 t/min |
| max. speed | 33000 t/min |
| Steady |
