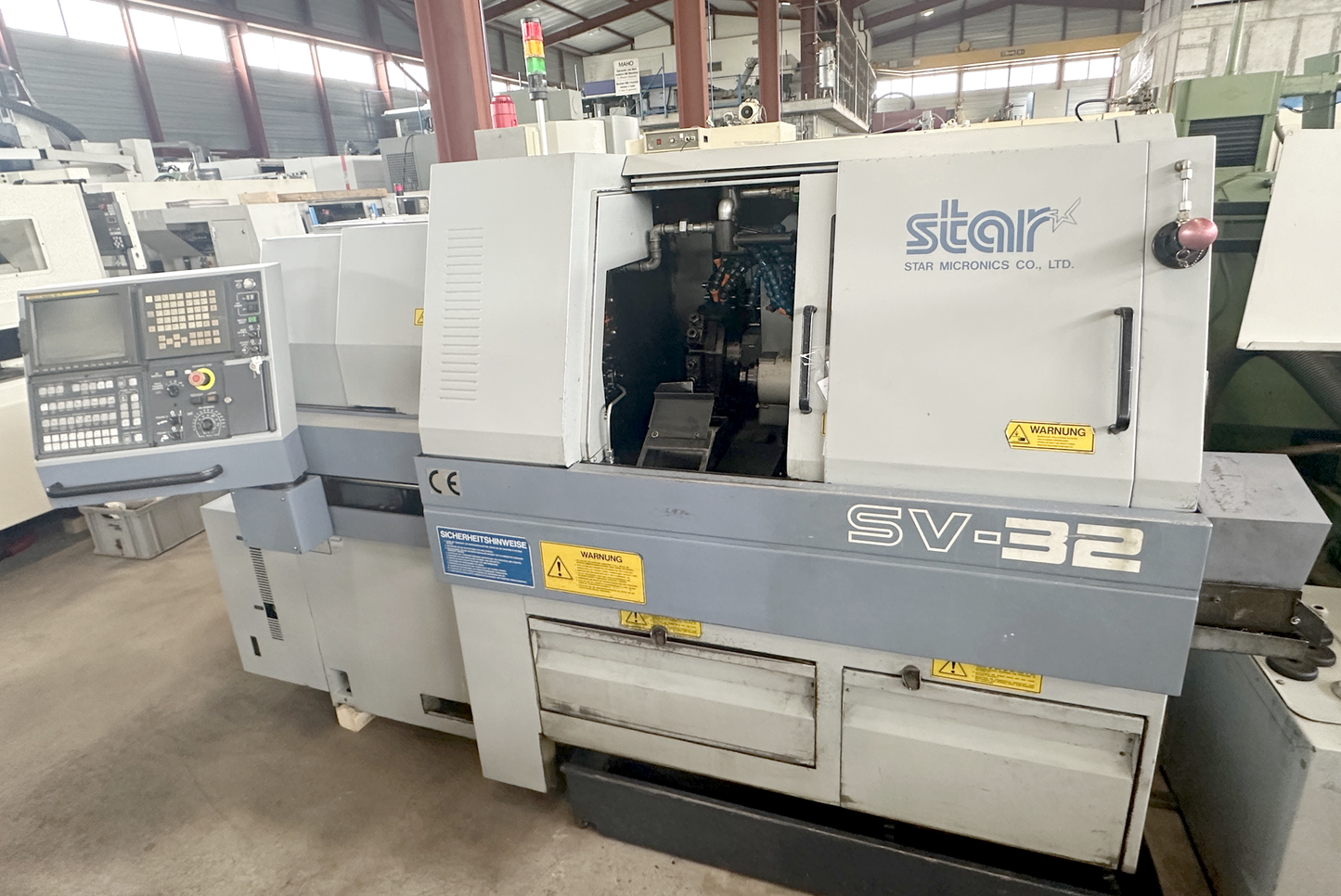

STAR SV 32 is a CNC automatic lathe built for precision, high accuracy and reliable production. Capacities: max turning Ø 32 mm, max turning length 300 mm, max threading Ø 12 M, max tapping length 150 mm, collet taper F37. Main specs: spindle 5.5/7.5 kW, speeds 280–7000 t/min (stepless), back spindle 2.2/3.7 kW 280–7000 t/min, rapid traverse X/Y 15 m/min, Z 18 m/min, supply 3x 380 V 50 Hz, air 5 bar; weight ~3800 kg; dimensions 2645×1405×1680 mm. Accessories: bar feeder IEMCA BOSS 338/32, 180 l coolant, set of collets, toolholder set, parts catcher, conveyor belt, tool cabinet, central lubrication, fire extinguishing system, status light, spindle blow-out (backspindle). Achieves tight tolerances; typical for automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
| Max. turning diameter | 32 mm |
| Maximum turning length | 300 mm |
| Max. threading diameter | 12 M |
| Thread drill diameter | 12 M |
| Inner taper type | F37 |
| Spindle speeds: | |
| stepless | |
| from | 280 t/min |
| up to | 7000 t/min |
| Spindle power | 5.5 / 7.5 kW |
| C axis (spindle,resolution) | ° |
| Turret slide: | |
| Number of positions | 10 |

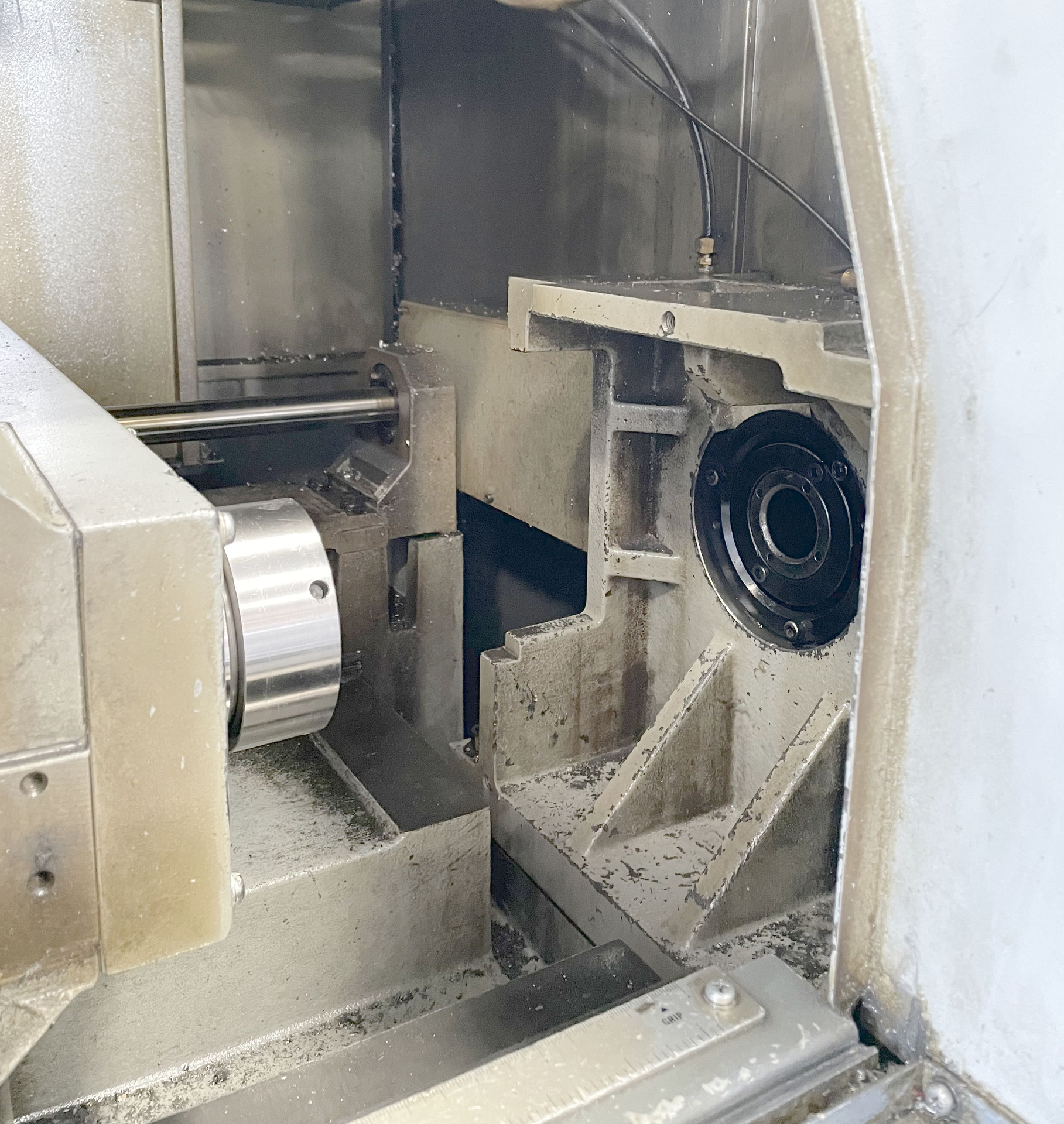

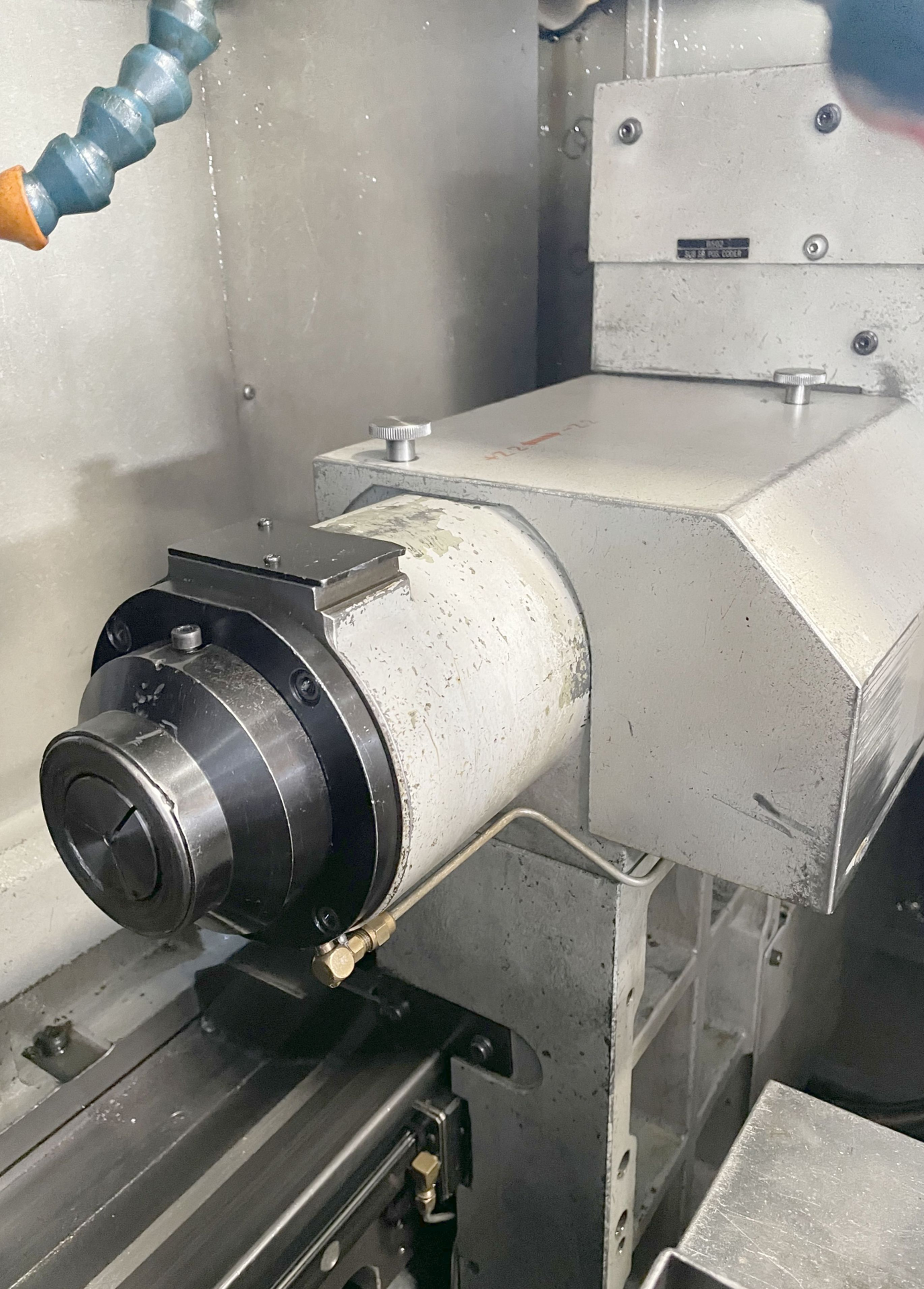

| Back spindle: | |
| speeds: | |
| from | 280 t/min |
| up to | 7000 t/min |
| Max. tapping length | 150 mm |
| Thread drill diameter | 12 M |

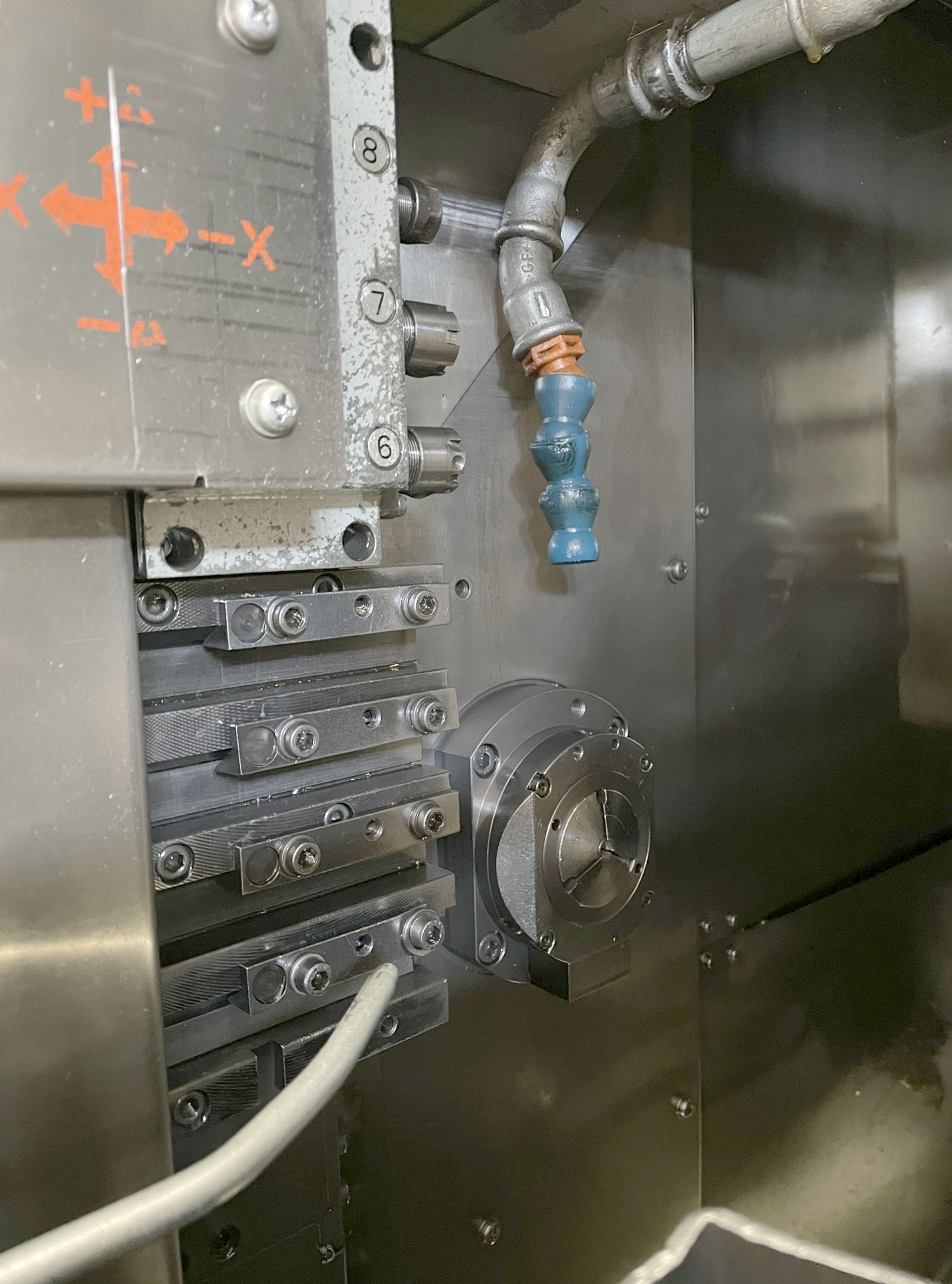

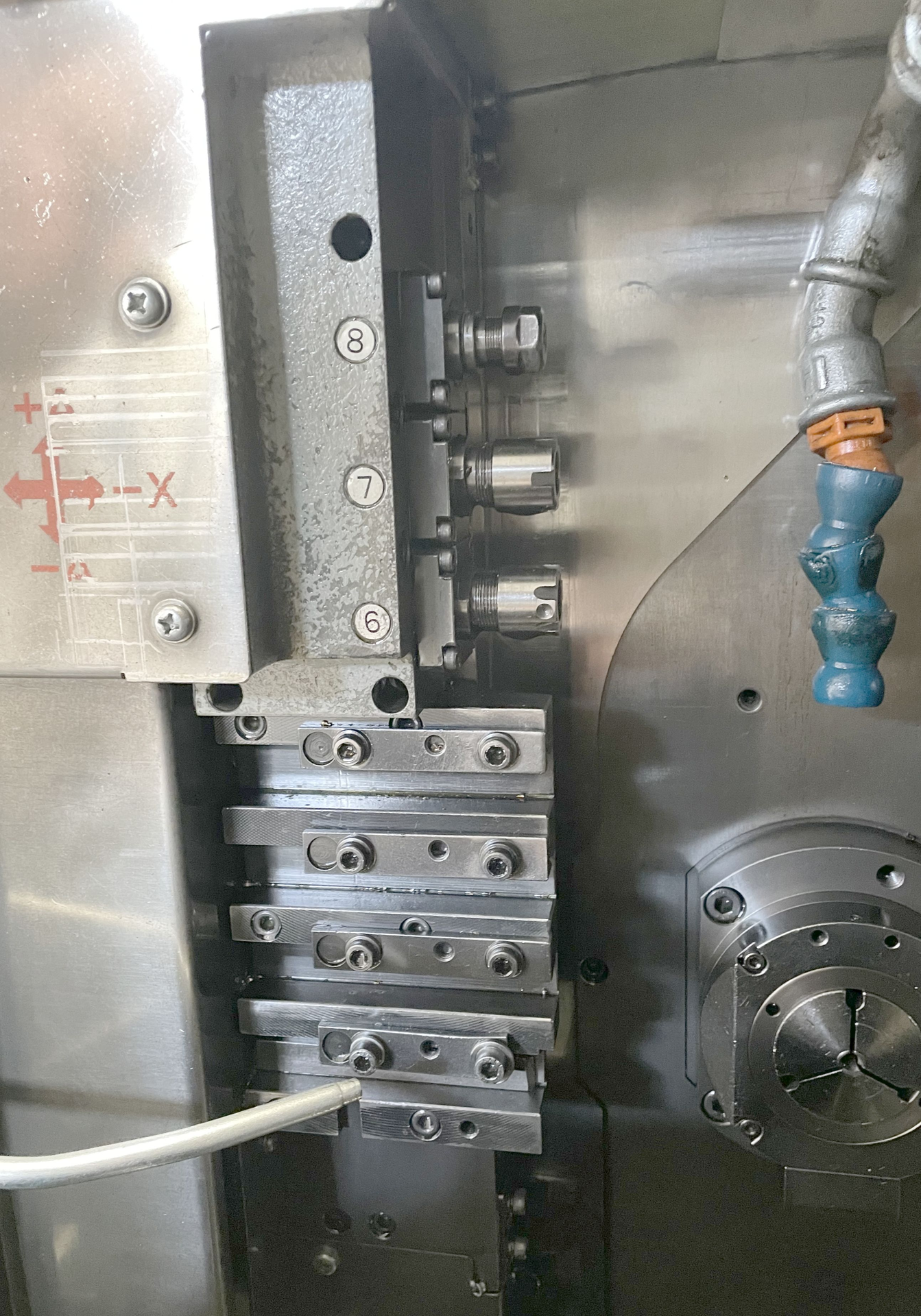

| Tool-holder: | |
| numbers | 2 |
| Number of stations | 7 |
| number of driven tools | 3 |
| Turning tools | 4 pce |
| Rapid traverse X | 15 m/min |
| Rapid traverse Y | 15 m/min |
| Rapid traverse Z | 18 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power of back spindle | 2.2 / 3.7 kW |
| Air connect | 5 bar |
| Machine's weight about | 3800 kg |
| Overall dimensions machine: | |
| Length | 2645 mm |
| Width | 1405 mm |
| Height | 1680 mm |
| Various accessories: | |
| Spindle blow out (backspindle) | |

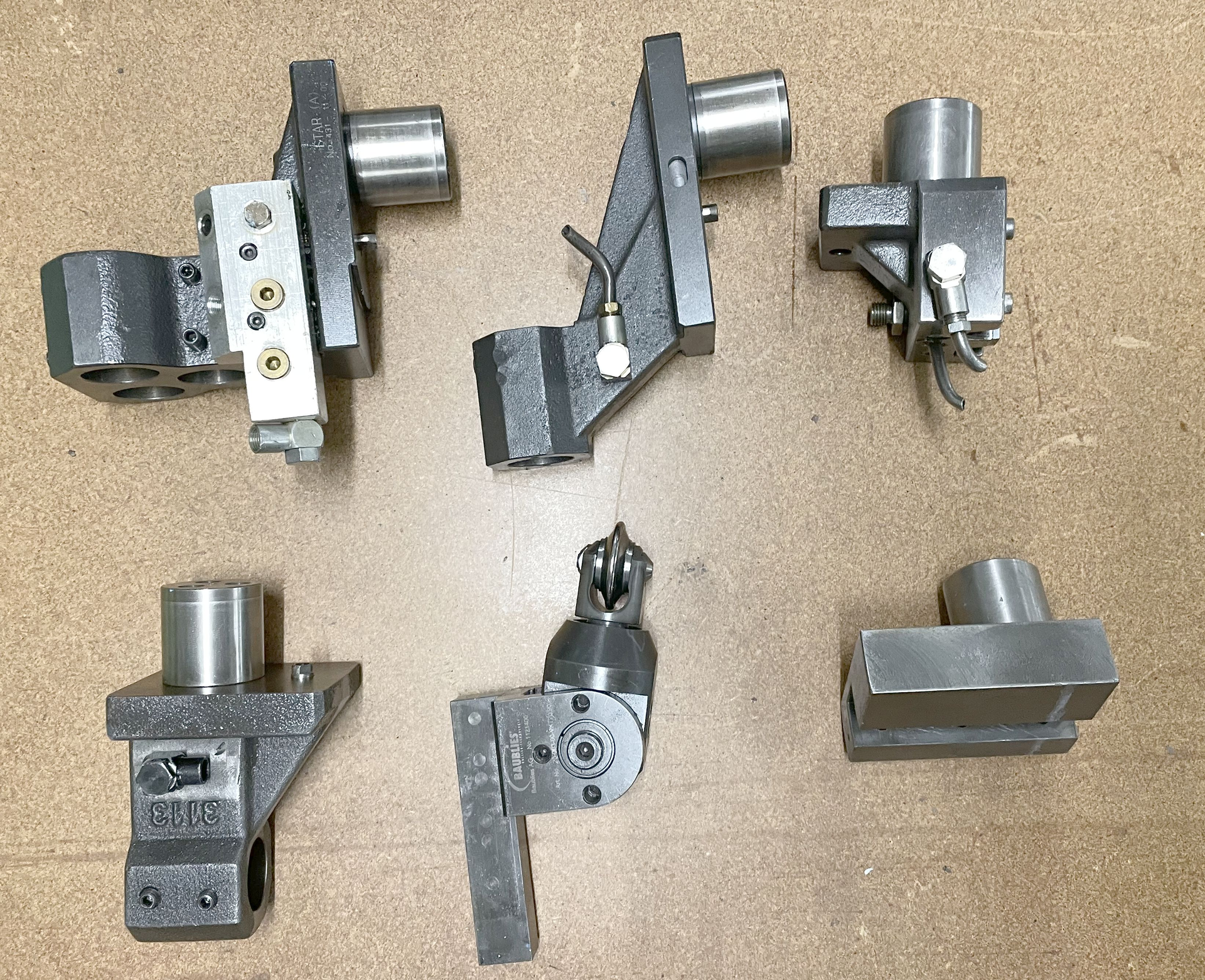

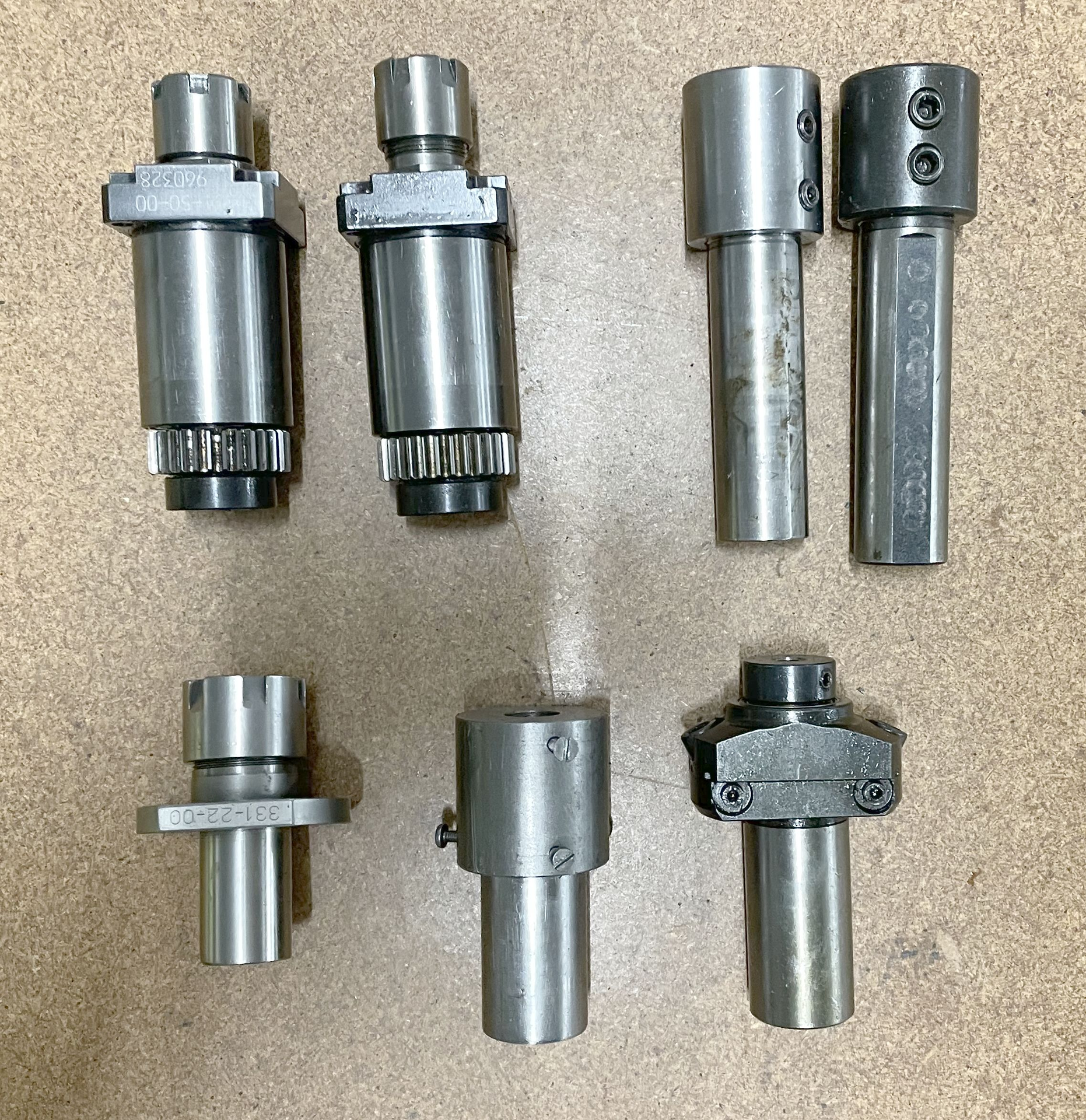

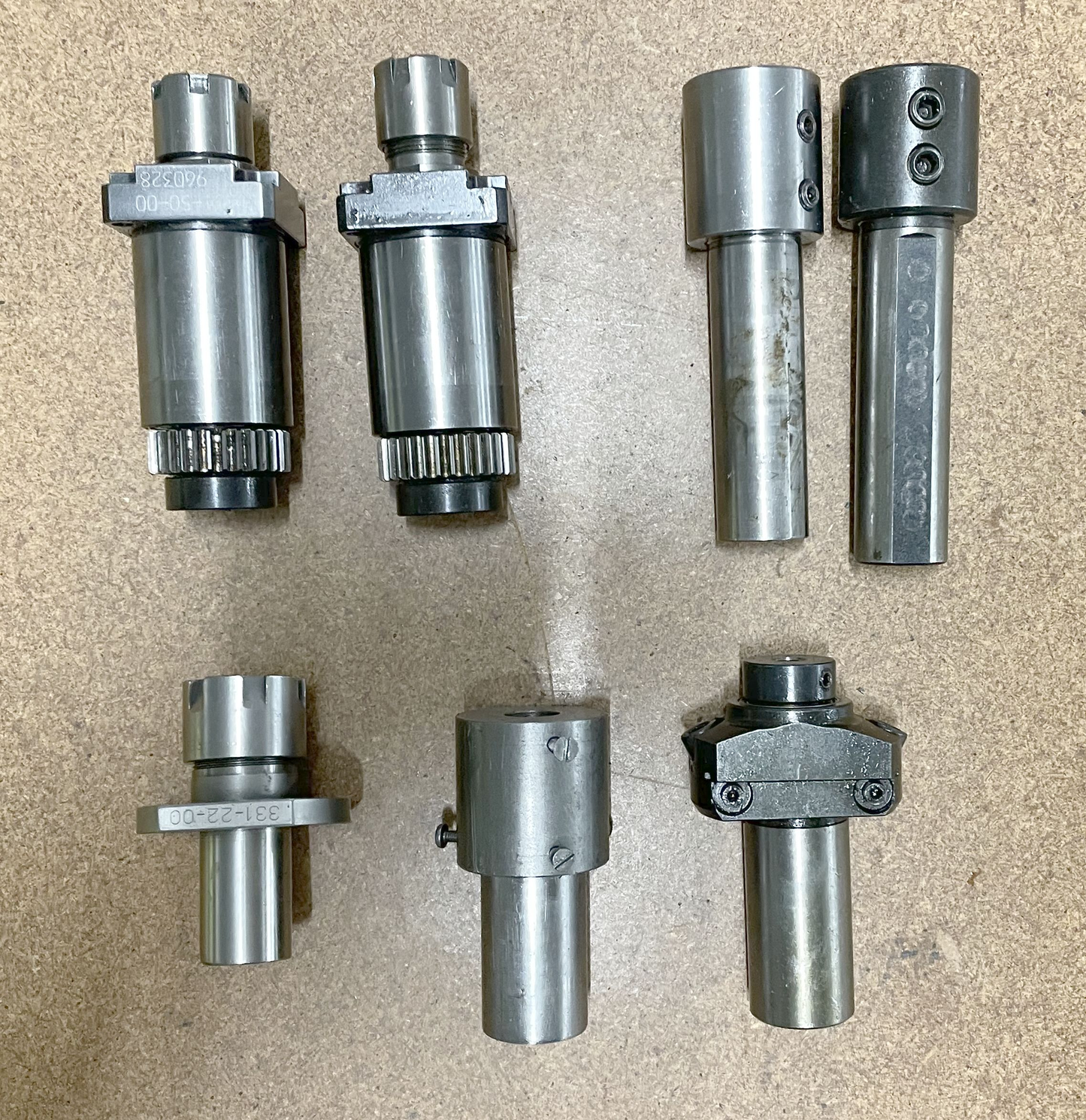

| Set of toolholders | |

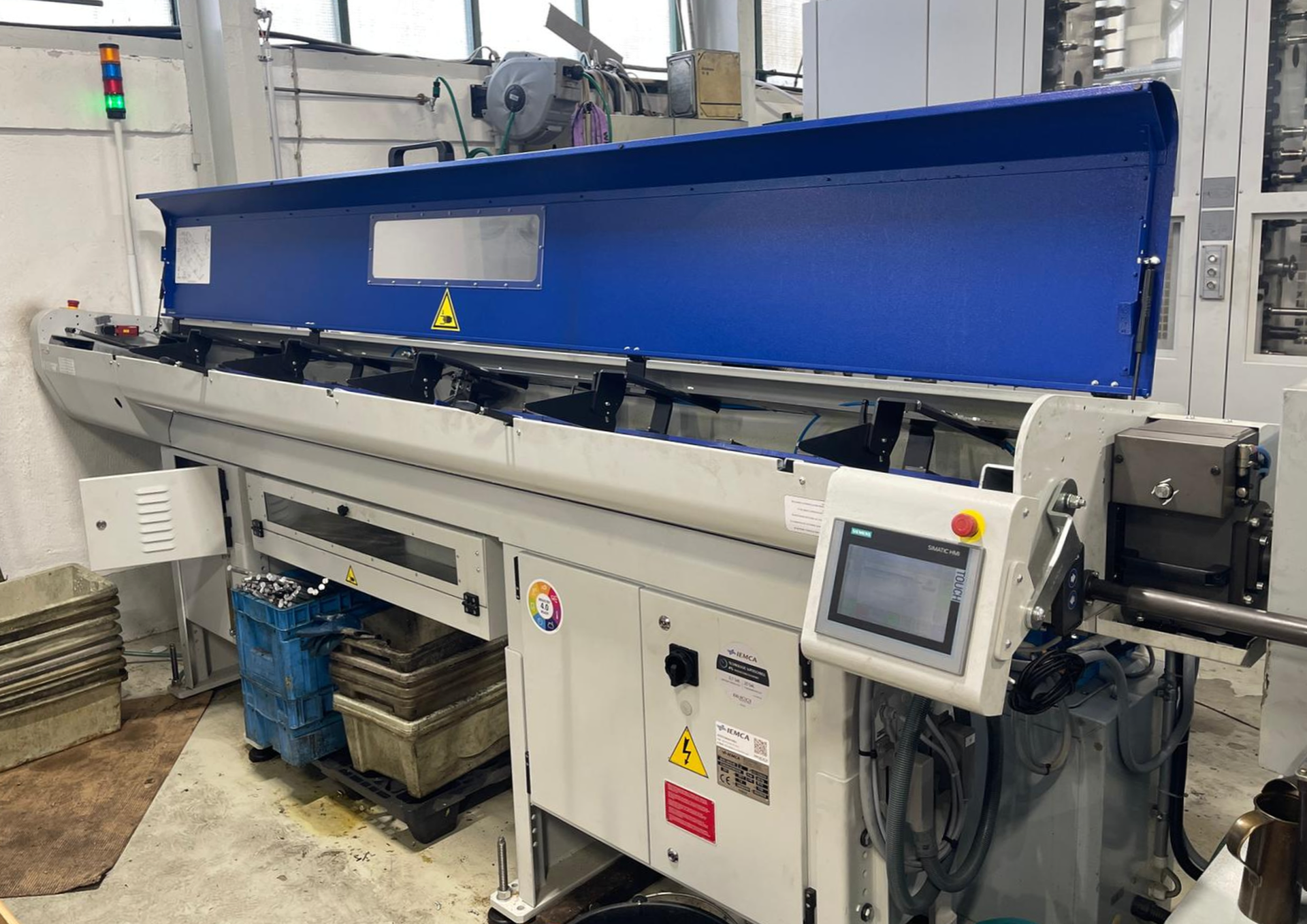

| Bar feeder | IEMCA |
| Type | BOSS 338/32 |

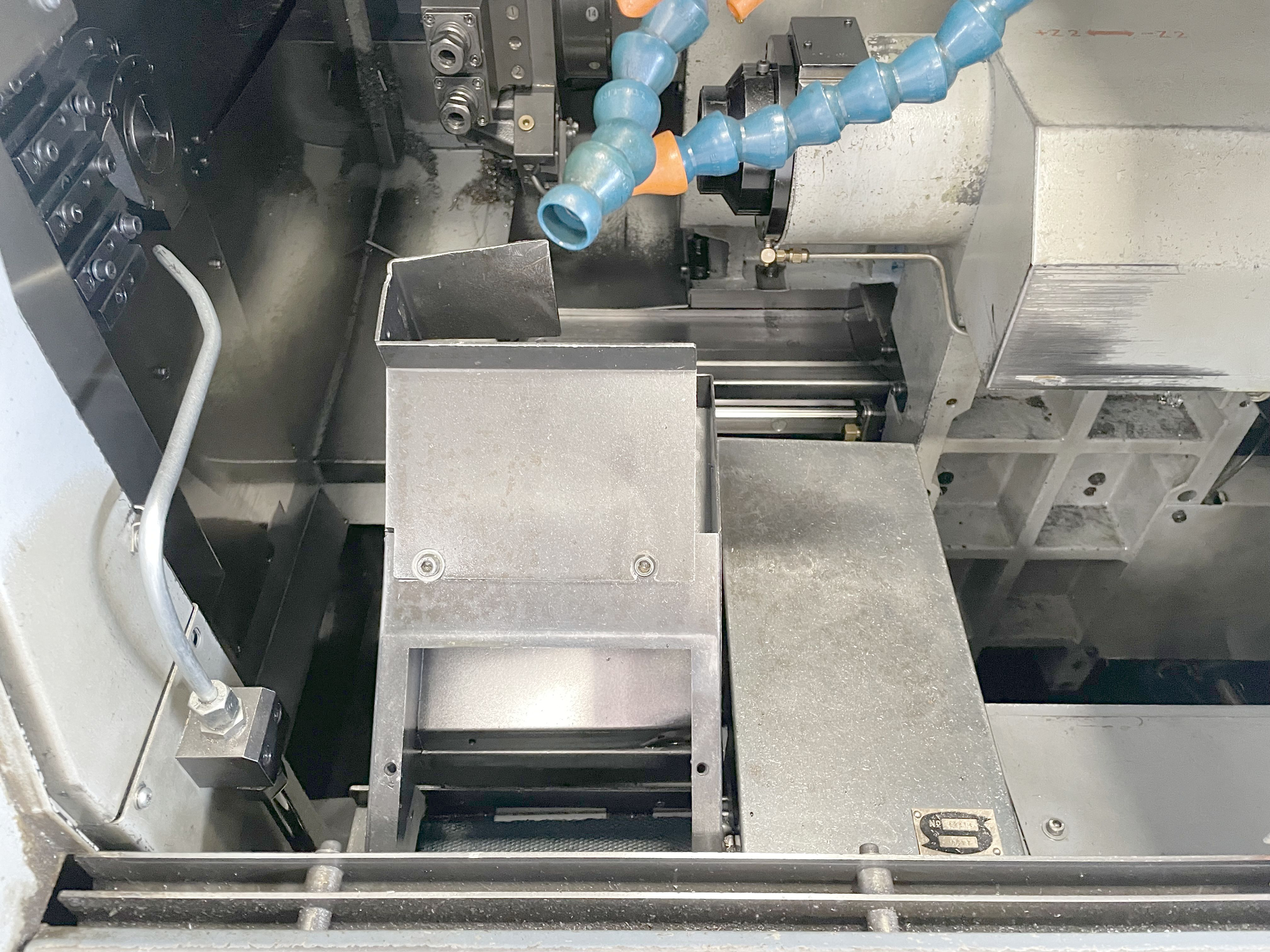

| Parts catcher | |
| Workpiece conveyor | |
| Coolant system | 180 l |

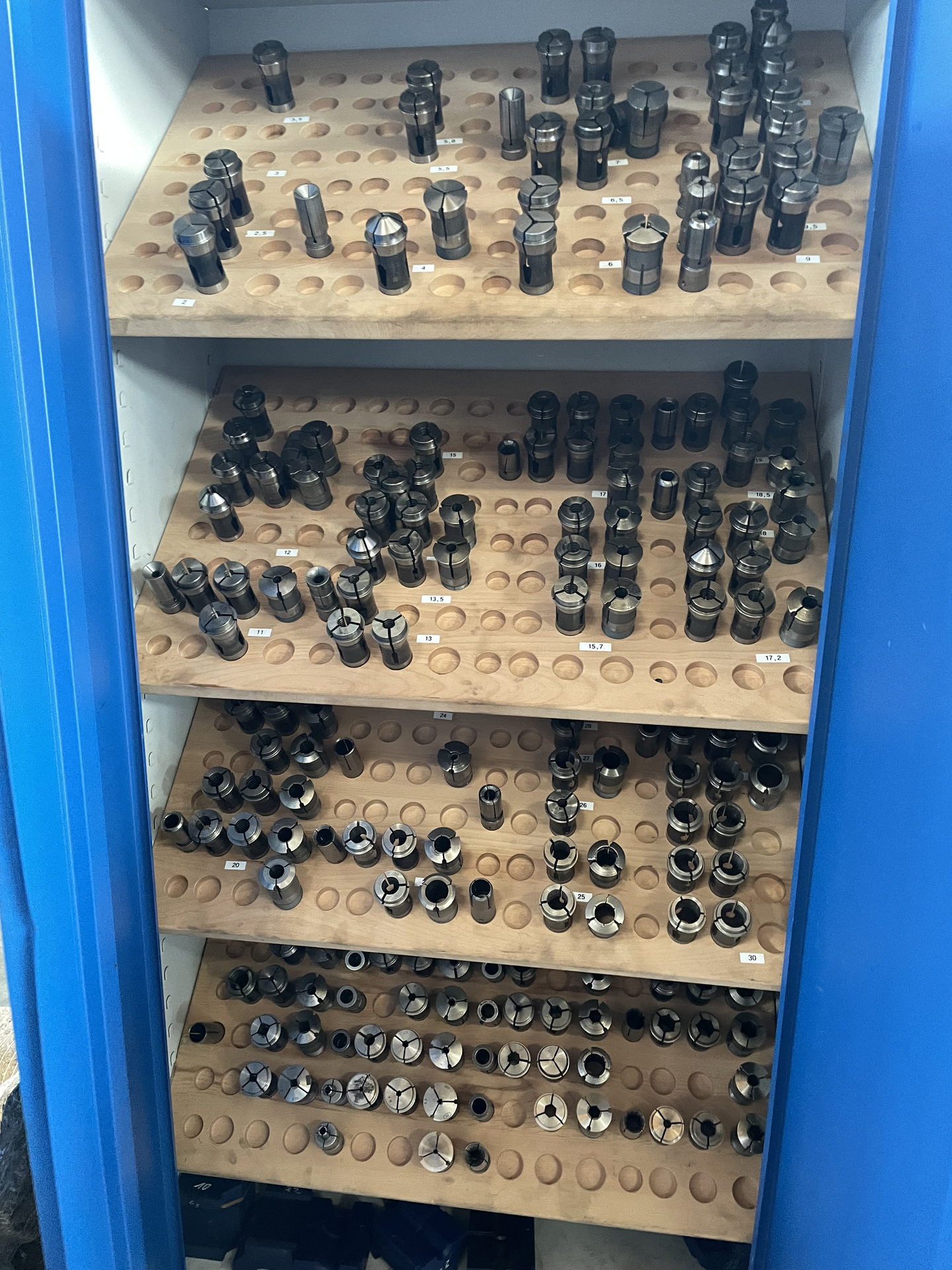

| Set of collets | |
| Tool cabinet | |
| Central lubrification | |
| Fire extinguishing system | |
| Status light |
