022533 - GILDEMEISTER CTX 400
Download technical sheet (PDF)
Message us on WhatsApp
| Swing over bed | 500 mm |
| Maximum turning length | 640 mm |
| Turning diameter | 290 mm |
| Turret carriage: | |
| Longitudinal travel (Z-axis) | 640 mm |
| Transversal strocke (X axis) | 212 mm |
| Turret slide: | |
| Fixed tools turret | 12 |
| Inner cone diameter | 30 mm |
| Inner cone DIN | 69880 |
| Indexing time | 0.8 s |
| Main spindle: | |
| Spindle hole | 66 mm |
| Inner taper type | HAINBUCH SK65 BZI |
| Spindle speeds: | |
| stepless | |
| from | 25 t/min |
| up to | 5000 t/min |
| Spindle power | 22 kW |
| Torque max. | 420 Nm |
| Morse taper | 4 CM |
| Spindle stroke | 100 mm |
| Spindle diameter | 80 mm |
| Pressure | 8 kN |
| Feeds: | |
| longitudinal from | mm/min |
| up to | 8000 mm/min |
| transversal from | mm/min |
| up to | 4000 mm/min |
| Rapid traverse X | 10 m/min |
| Rapid traverse Z | 15 m/min |
| Spindle motor | 22 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 50 kVA |
| Machine's weight about | 5100 kg |
| Overall dimensions machine: | |
| Length | 3400 mm |
| Width | 1940 mm |
| Height | 1700 mm |
| Various accessories: | |
| Lamp | |
| Coolant system | |
| Bar feeder | LNS |
| Type | Quick Load Servo 2 |
| Chip conveyor | |

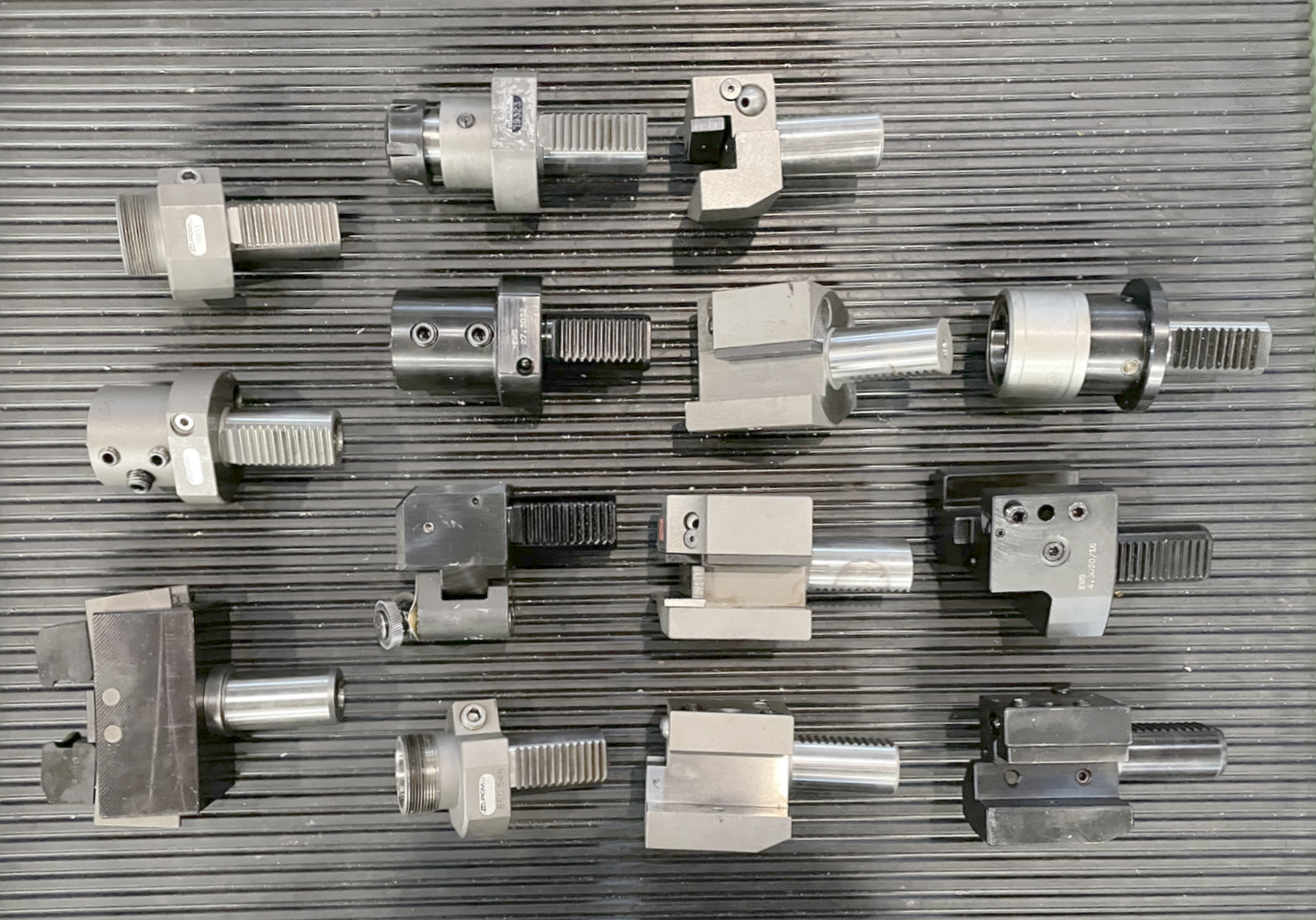

| Set of toolholders |
