MAZAK NEXUS 510C is a 3-axis machining center engineered for precision, high accuracy and reliable performance. Capacities: 2 tables 1300x550 mm, 5 T-slots (100 mm), table load 1200 kg, travels X1050 Y510 Z510; tool magazine 30 positions (Ø80 mm; Ø125 mm with free pockets), tool length 350 mm. Specs: stepless spindle 35–12000 rpm, spindle power 18.5/7.5 kW, feed 1–8000 mm/min, rapid 36 m/min, 3x400V 50Hz, air 5 bar; weight ~6900 kg, dims 2880x2835x2783 mm. Key accessories: linear scales, 250 l coolant, coolant-through-spindle 15 bar, Renishaw probe, chip conveyor, 2-way pallet changer. Delivers tight tolerances; suitable for automotive, aerospace, medical and toolmaking.
| Number of axis total | 3 |
| Number of tables | 2 |
| Table length | 1300 mm |
| Table width | 550 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 100 mm |
| T-channel width | 18 mm |
| Table load max. | 1200 kg |
| Longitudinal travel (X-axis) | 1050 mm |
| Transversal travel (y-axis) | 510 mm |
| Vertical travel (z axis) | 510 mm |
| Tool changer: | |
| Number of tools | 30 |
| Tool diameter max. | 80 mm |
| Diameter with free adjacent pockets | 125 mm |
| Tool lenght | 350 mm |
| Max. tool-weight | 8 kg |
| Average chip-to-chip time | 2.9 s |
| Spindle nose: ISO | 40 |
| Distance spindle nose to table | 150 - 660 mm |
| Spindle speeds: | |
| stepless | |
| from | 35 t/min |
| up to | 12000 t/min |
| Feed range | 1 - 8000 mm/min |
| Rapid traverse: | 36 m/min |
| Air connect | 5 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 18.5 / 7.5 kW |
| Total power required | 32 kVA |
| Machine's weight about | 6900 kg |
| Overall dimensions machine: | |
| Length | 2880 mm |
| Width | 2835 mm |
| Height | 2783 mm |
| Various accessories: | |
| Linear scale system (X-,Y-,Z-axis) | |
| Set of toolholders | |
| Coolant system | 250 l |
| Coolant through spindle (cts) | 15 bar |

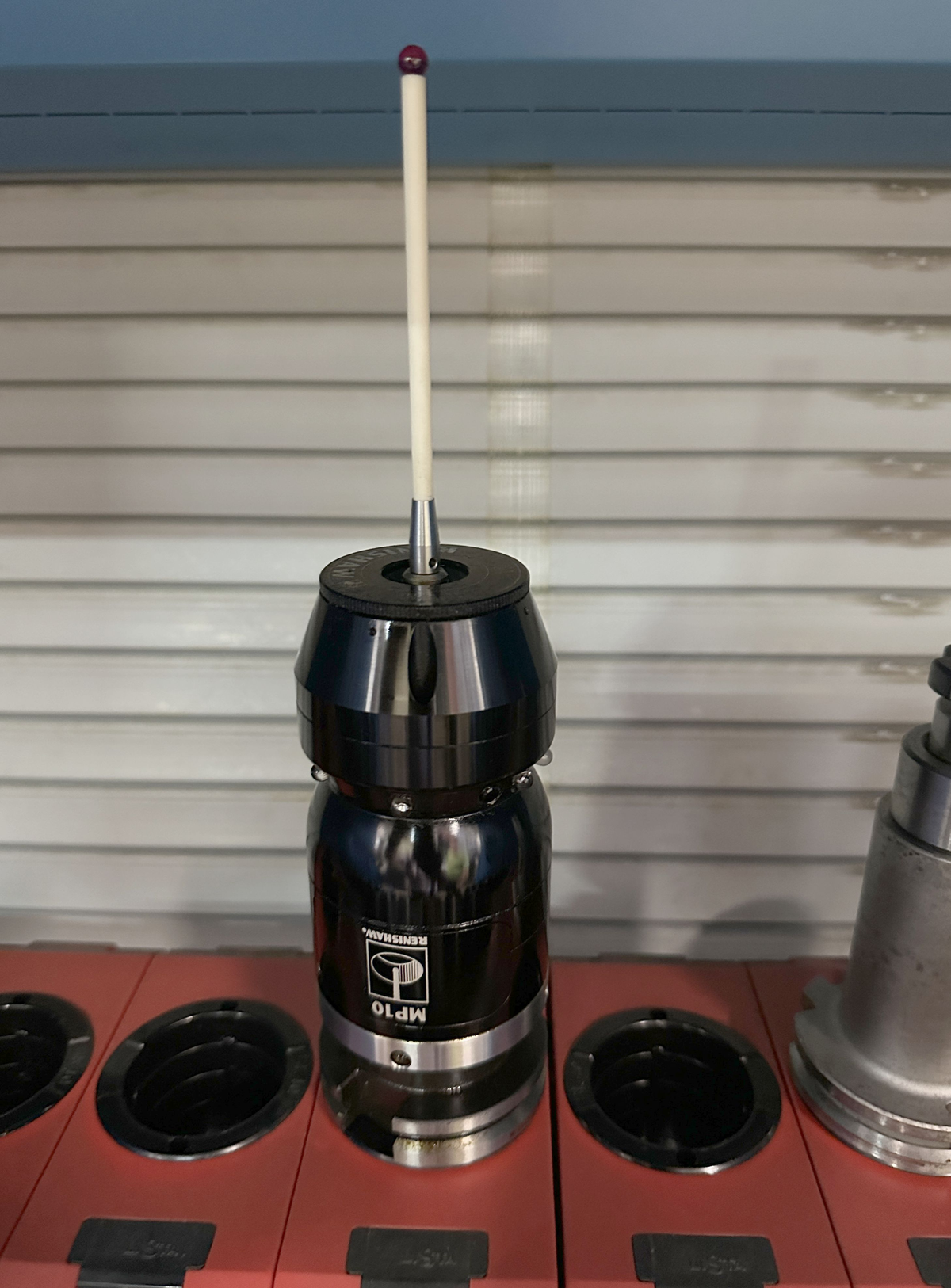

| Measuring feeler gauge Renishaw | |
| Tool break control | |
| Chip conveyor | |
| 2-way pallet changer | |
| Lamp | |
| Oil mist extractor | |
| Tool measuring device | |
| Automatic switch off | |
| Interface PCMCIA card | |
| Synchronized tapping |
