ELB PERFEKT BD 8 SPS is a surface grinder engineered for precision, high accuracy and reliability. Capacities: table 1360×590 mm; grinding length 1250 mm; max grinding 600×400 mm; travels X900 Z540 Y400; table load 900 kg. Specs: wheel 400×100 mm, 1440 rpm, bore 127 mm, spindle cone 60 mm; grinding spindle motor 20 kW; supply 3×400 V 50 Hz; total power 18.5 kW; machine weight ≈5400 kg. Accessories: paper filtration, electrical magnetic chuck 1200×600 mm, redressing device, lamp, central lubrication. Achieves tight tolerances; ideal for automotive, aerospace, tooling, medical and watchmaking.
| Table length | 1360 mm |
| Table width | 590 mm |
| Number of T-channels | 1 |
| T-channel width | 16 mm |
| Grinding length | 1250 mm |
| Grinding width | 600 mm |
| Grinding height | 400 mm |
| Table load max. | 900 kg |
| Longitudinal travel (X-axis) | 900 mm |
| Cross travel (z-axis) | 540 mm |
| Vertical travel (Y-axis) | 400 mm |
| Automatic longitudinal feeds: | |
| stepless | |
| from | m/min |
| up to | 26 m/min |
| Automatic cross-feed: | |
| stepless | |
| from | mm/min |
| up to | 2000 mm/min |
| Automatic Vertical feed: | |
| stepless | |
| from | mm/min |
| up to | 300 mm/min |
| Grinding wheel speeds fix | 1440 t/min |
| Diameter of grinding wheel | 400 mm |
| Width of the grinding wheel | 100 mm |
| Drilling cap. of grind.wheel | 127 mm |
| Spindle cone | 60 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 20 kW |
| Total power required | 18.5 kW |
| Machine's weight about | 5400 kg |
| Overall dimensions machine: | |
| Length | 3800 mm |
| Width | 2900 mm |
| Height | 2500 mm |
| Dimensions electric cabinet: | |
| Length | 1200 mm |
| Width | 500 mm |
| Height | 1900 mm |
| Various accessories: | |

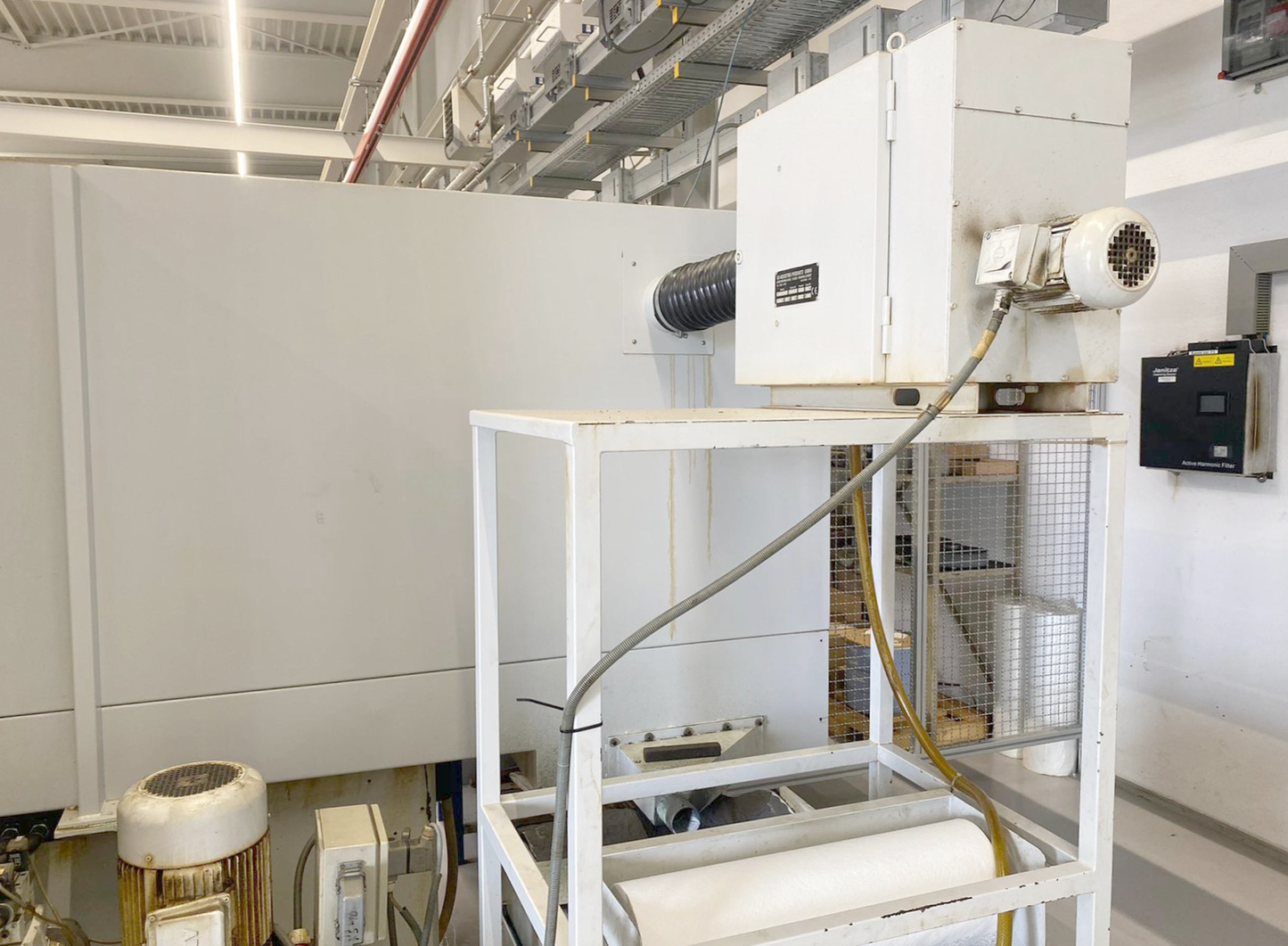

| Paper filtration system | |
| Electrical magnetic chuck | |
| Length | 1200 mm |
| Width | 600 mm |
| Redressing device | |
| Lamp | |
| Central lubrification |
