HARDINGE CONQUEST T42SP is a CNC turning lathe with slant bed, for precision, high accuracy and reliability. Capacities: between centres 350 mm, swing over bed 269 mm, turning dia. 231 mm, spindle hole 42 mm; travels Z 353 mm, X 135 mm; turret 12 pos. Speeds 50–5000 t/min; spindle motor 7.5 kW. Accessories: 3‑jaw chuck Ø150 mm, hydraulic tailstock, Renishaw measuring arm. Achieves tight tolerances; typical sectors: automotive, aerospace, medical.
| Number of turning spindles | 1 |
| Number of revolvers | 1 |
| Distance between centres | 350 mm |
| Swing over bed | 269 mm |
| Spindle hole | 42 mm |
| Turning diameter | 231 mm |
| Carriage: | |
| Longitudinal travel (Z-axis) | 353 mm |
| Transversal strocke (X axis) | 135 mm |
| Turret carriage: | |
| Number of positions turret 1 | 12 |
| Driven tools turret 1 | |
| Taper in spindle: | |
| Camlock | A2-5" |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 5000 t/min |
| Taper in tailstock: | |
| Morse taper | 3 CM |
| Rapid traverse: | 12/16 m/min |
| Spindle motor | 7.5 kW |
| Machine's weight about | 4445 kg |
| Overall dimensions machine: | |
| Length | 3150 mm |
| Width | 1800 mm |
| Height | 1700 mm |

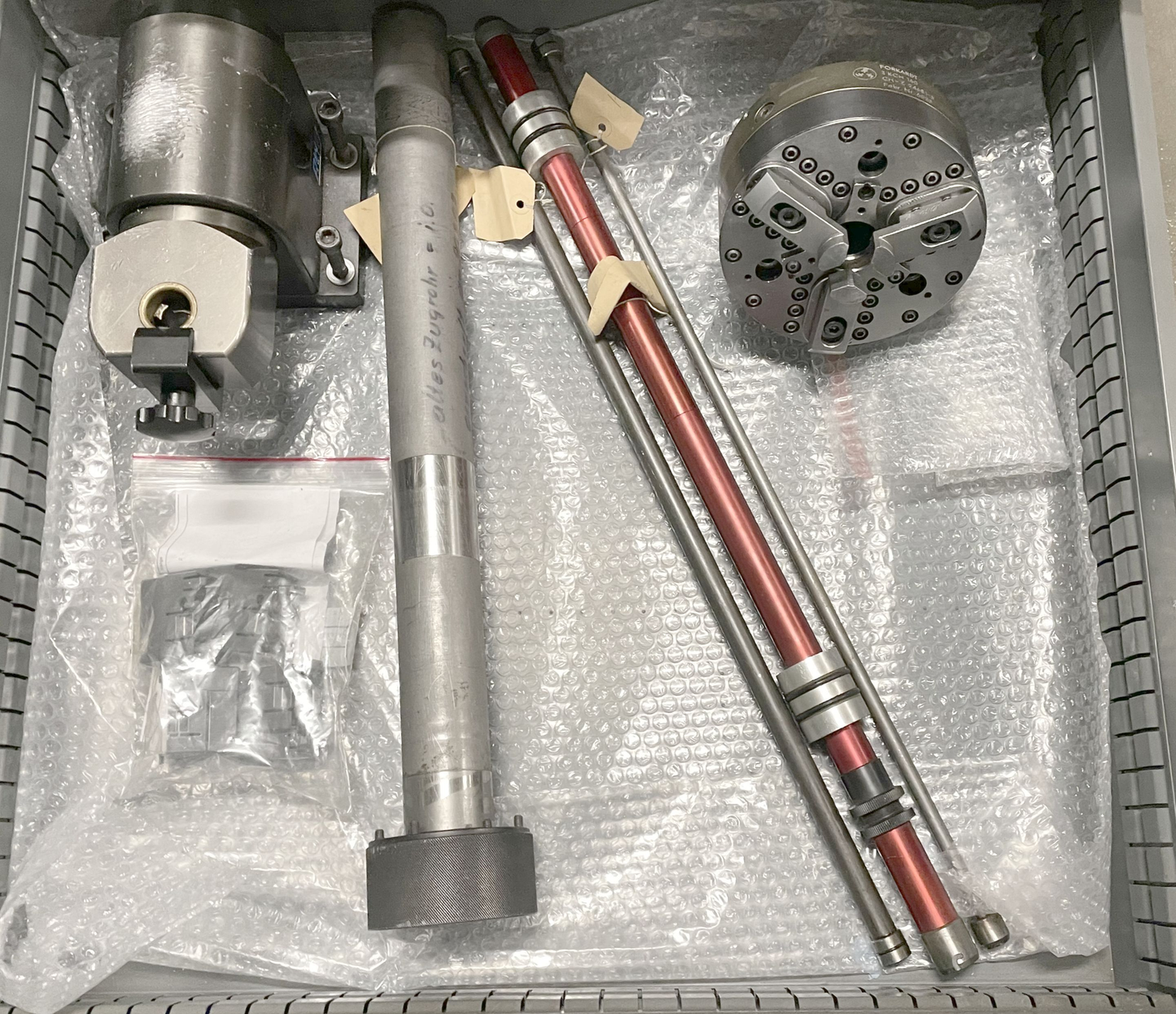

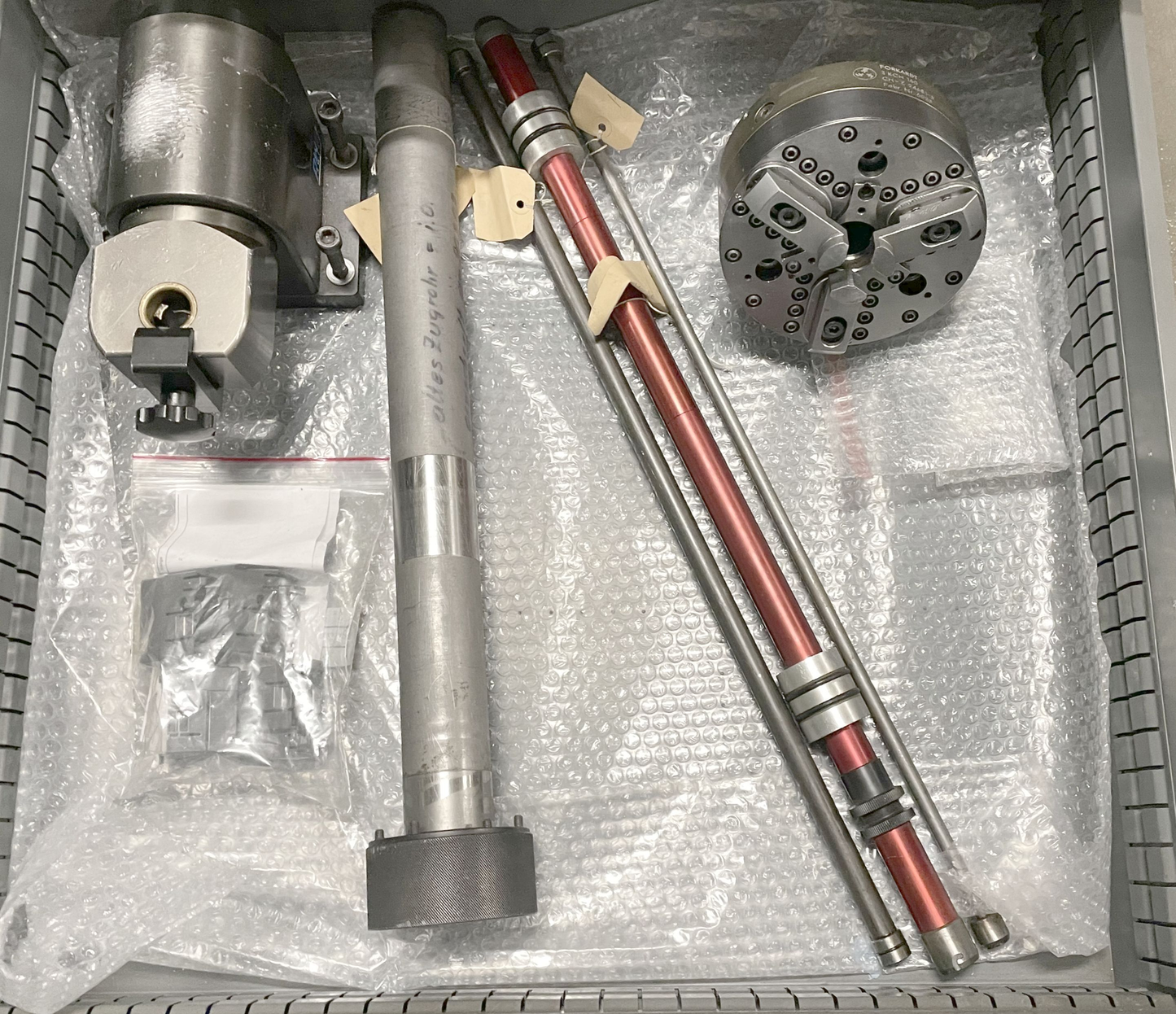

| Various accessories: | |
| 3-jaw chuck diameter | 150 mm |
| Set of soft jaws | |
| Set of hard jaws | |
| Lamp | |
| Hydraulic tailstock | |
| Coolant system | |
| Drawer Stock | |
| Centering microscop | |
| Rotary centre | |
| Chip conveyor | |
| Set of toolholders | |
| Measuring arm Renishaw |
