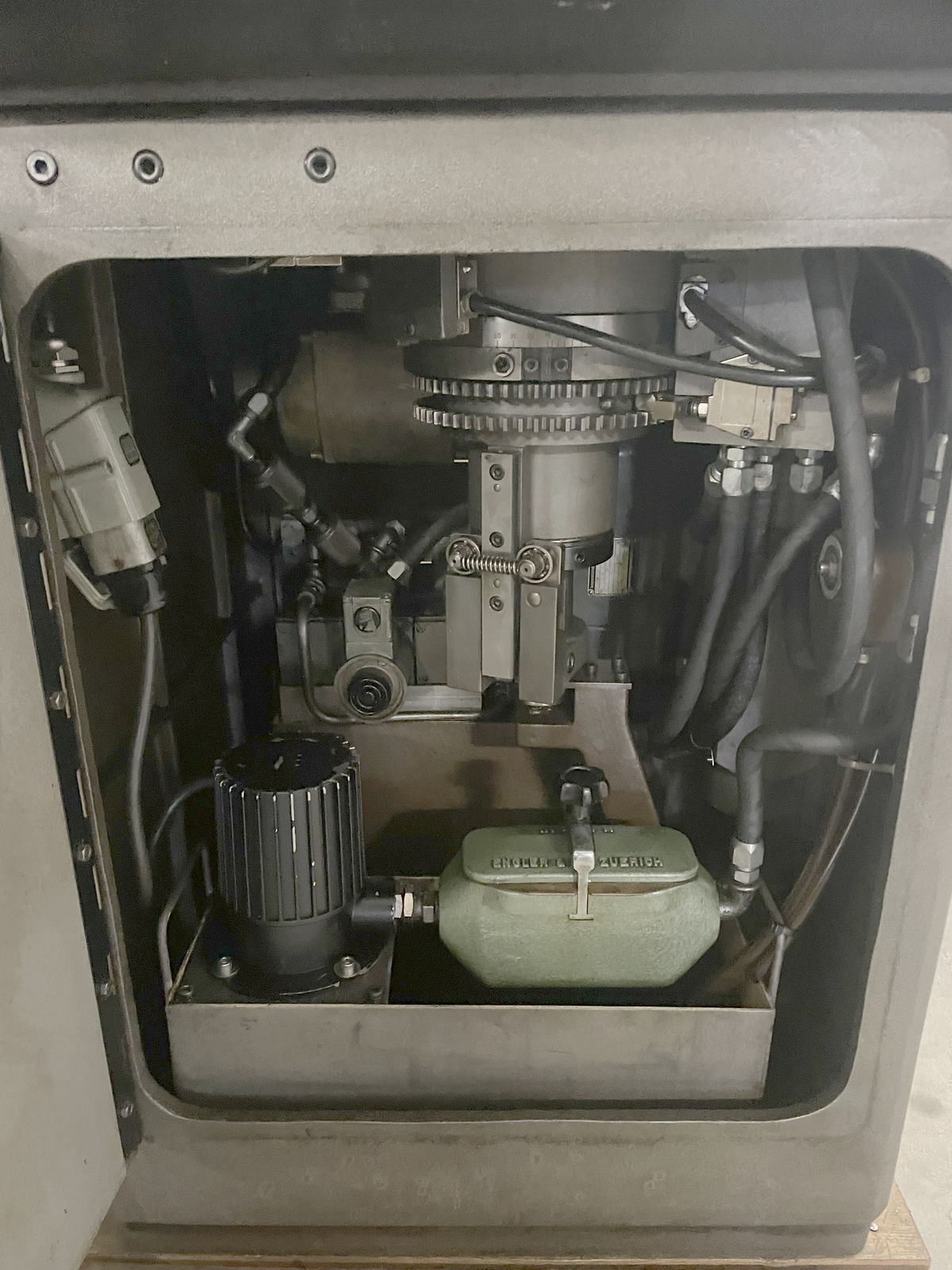

MIKRON A 60 is a cutter grinding machine engineered for precision, high accuracy and reliability. Capacities: min cutter Ø 8 mm, max Ø 80 mm, max grinding width 100 mm, max wheel Ø 100 mm, travel adjustable 5–135 mm; stroke speed stepless up to 70 c/min; wheel speeds 3 steps 3250–6200 rpm. Specs: 50 Hz 3x380 V, 1 CV drive, approx. 450 kg, dimensions L800×W800×H1200 mm. Equipment: lamp and coolant system. Delivers tight tolerances; typical applications in automotive, tooling, aerospace, medical and watchmaking.
| Min. milling cutter diameter | 8 mm |
| Max. milling cutter diameter | 80 mm |
| Max. cutter-grinding width | 100 mm |
| Max. grinding wheel diamter | 100 mm |
| Travel length adjustment from | 5 mm |
| up to | 135 mm |
| Stroke speed: | |
| stepless | |
| up to | 70 c/min |
| Grinding wheel speeds: | |
| number (steps) | 3 |
| from | 3250 t/min |
| up to | 6200 t/min |
| Automatic feed to | |
| the grinding wheel | |
| stepless from | mm |
| up to | mm |
| Voltage 50 Hz 3x | 380 Volt |
| Drive | 1 CV |
| Machine's weight about | 450 kg |
| Overall dimensions machine: | |
| Length | 800 mm |
| Width | 800 mm |
| Height | 1200 mm |
| Various accessories: | |
| Lamp | |
| Coolant system |
