FASTI 2095 - 12/3.5
Type: 2095 - 12/3.5
Manufacturer: FASTI
Subgroup: Folding machine
Stock: 022505
Download technical sheet (PDF)
FASTI 2095 - 12/3.5 is a Folding machine, engineered for precision, high accuracy and reliability. Working width 1270 mm; max sheet thickness 4 mm (at 40 kg/mm2); top clamping bar opening 350 mm; lower bar adjustment 80 mm. Top/bottom clamping motor 2 kW each; voltage 50 Hz 3x 400 V; weight approx. 1480 kg; overall dims L2310×W810×H1500 mm. Accessories: folding rails, foot pedal. Delivers tight tolerances; typical applications: automotive, aerospace, machine tools, watchmaking, medical

Working width 1270 mm
Max. sheet thickness at 40kg/mm2 4 mm
manual
Adjust.of the top clamping bar 350 mm
Adjustment of the lower clamping bar 80 mm
Required power top clamping bar 2 kW
Required power lower clamping bar 2 kW
Voltage 50 Hz 3x 400 Volt
Machine's weight about 1480 kg
Overall dimensions machine:
   Length 2310 mm
   Width 810 mm
   Height 1500 mm
Various accessories:

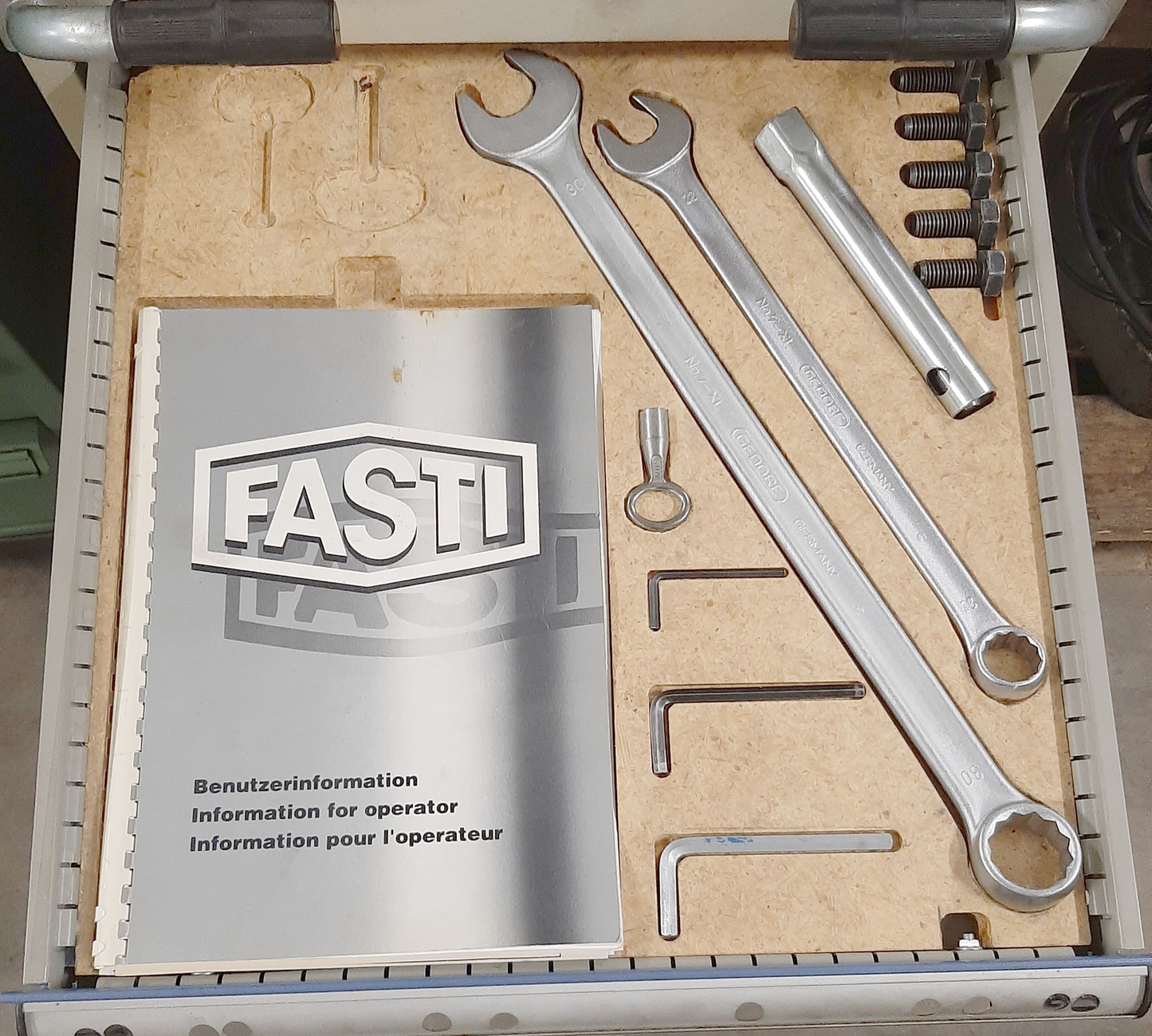

Folding rails
Foot pedal
