ROLLOMATIC FRP 200
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

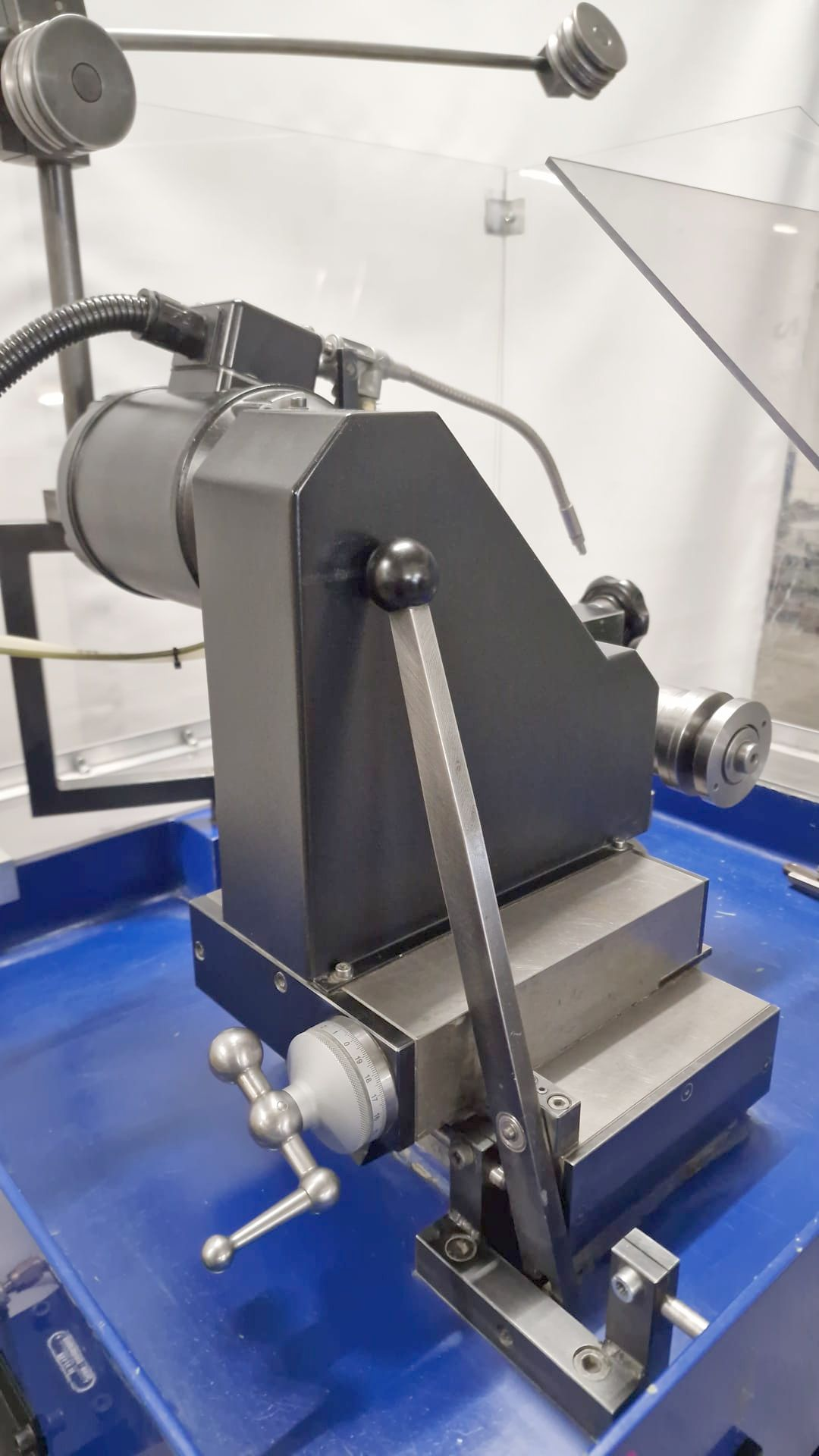

ROLLOMATIC FRP 200 is a wheel profiling and dressing machine offering high precision, accuracy and reliability. Table 135×130 mm, 3 T-slots (10 mm, 40 mm pitch); grinding length 45 mm; grinding diameter 20–200 mm; wheel Ø150×10 mm, bore 20 mm; spindle inclination (A) 0–180°. Voltage 50 Hz 3x400 V; motor speed 2700 t/min; grinding spindle motor 0.37 kW; weight ≈200 kg; overall L1000×W700×H1600 mm. Coolant system and full splash cabin included. Achieves tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace, medical.
| Table length | 135 mm |
| Table width | 130 mm |
| Number of T-channels | 3 |
| T-channel width | 10 mm |
| Distance of the T-slots | 40 mm |
| Grinding length | 45 mm |
| grinding diameter | 20 - 200 mm |
| Grinding-wheel diameter | 150 mm |
| Width of the grinding wheel | 10 mm |
| Drilling cap. of grind.wheel | 20 mm |
| Grinding head: | |
| Spindle inclination (A-axis) | 0 - 180 ° |
| Voltage 50 Hz 3x | 400 Volt |
| motor speeds | 2700 t/min |
| Grinding spindle motor | 0.37 kW |
| Machine's weight about | 200 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1600 mm |
| Various accessories: | |
| Coolant system | |
| Full splash cabin |
