HAUSER S 45-400 is a CNC jig grinder engineered for precision, high accuracy and reliable operation. Table 770×630 mm, load 500 kg, column gap 750 mm, grinding Ø 230 mm (360 with plate). Travels X700/Y500/W500 mm; feeds X/Y 0–1800, W 0–1150 mm/min; Z stroke 130 mm, 5 Hz, stroke speed 1–14000 mm/min; spindle 4,500–80,000 rpm; U fine feed 6 mm; 3×400 V. Accessories: centering device with dial, MSS Multi‑Sensoric‑System, oil mist extractor, HF CBN redresser, EROWA 12‑station tool changer. Suited to achieve tight tolerances in automotive, watchmaking, aerospace, medical and toolmaking.
Technical specifications are subject to change without notice
| 2 columns execution | |
| Table length | 770 mm |
| Table width | 630 mm |
| T-channel width | 14 mm |
| Table load max. | 500 kg |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y-axis) | 500 mm |
| Verticla travel (W-axis) | 500 mm |
| Feeds: | |
| X axis | 0 - 1800 mm/min |
| Y axis | 0 - 1800 mm/min |
| W axis | 0 - 1150 mm/min |
| Passage from grinding motor to table | 0 - 600 mm |
| Max. grinding diameter | 230 mm |
| with display-plate | 360 mm |
| Passage between the columns | 750 mm |
| Max. angle with taper grinding: | |
| up to | 16 ° |
| Stroke speed Z-Axis: | |
| Alternating stroke mouvement, infinitely adjust. | |
| from Vmin. | 1 mm/min |
| up to Vmax. | 14000 mm/min |
| Stroke frequency Z | 5 Hz |
| Stroke length Z, infinitely adjustable | 130 mm |
| grinding spindle: | |
| speeds: | |
| from | 4500 t/min |
| up to | 80000 t/min |
| Radiale fine feed U-axis up to | 6 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Various accessories: | |

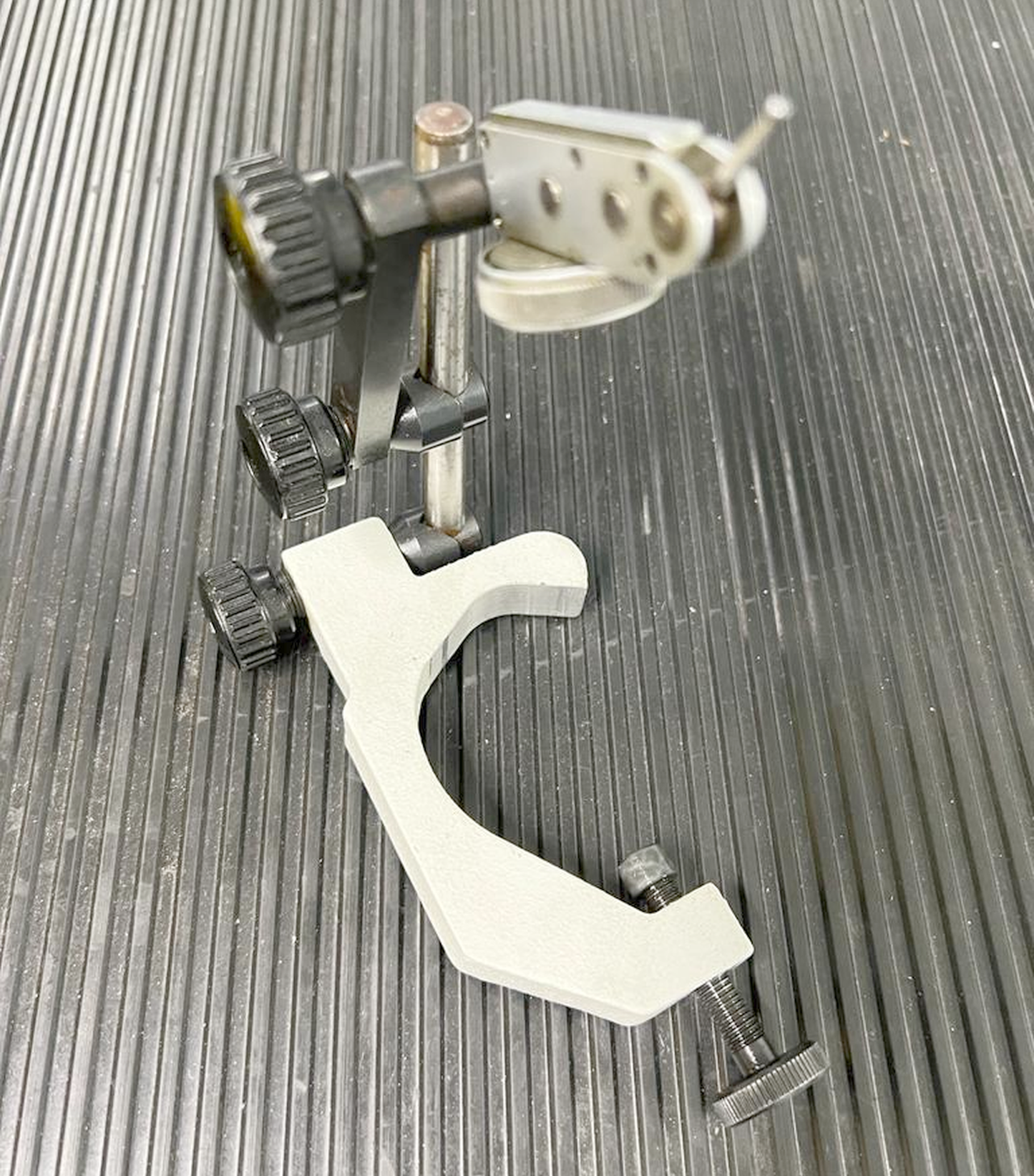

| Centering divice with dial indicator | |
| MSS Multi-Sensoric-System | |
| Oil mist extractor | |
| CBN Redresser with HF-drive | |
| Tool changer: (number of tools) | 12 |
| Type | EROWA |
